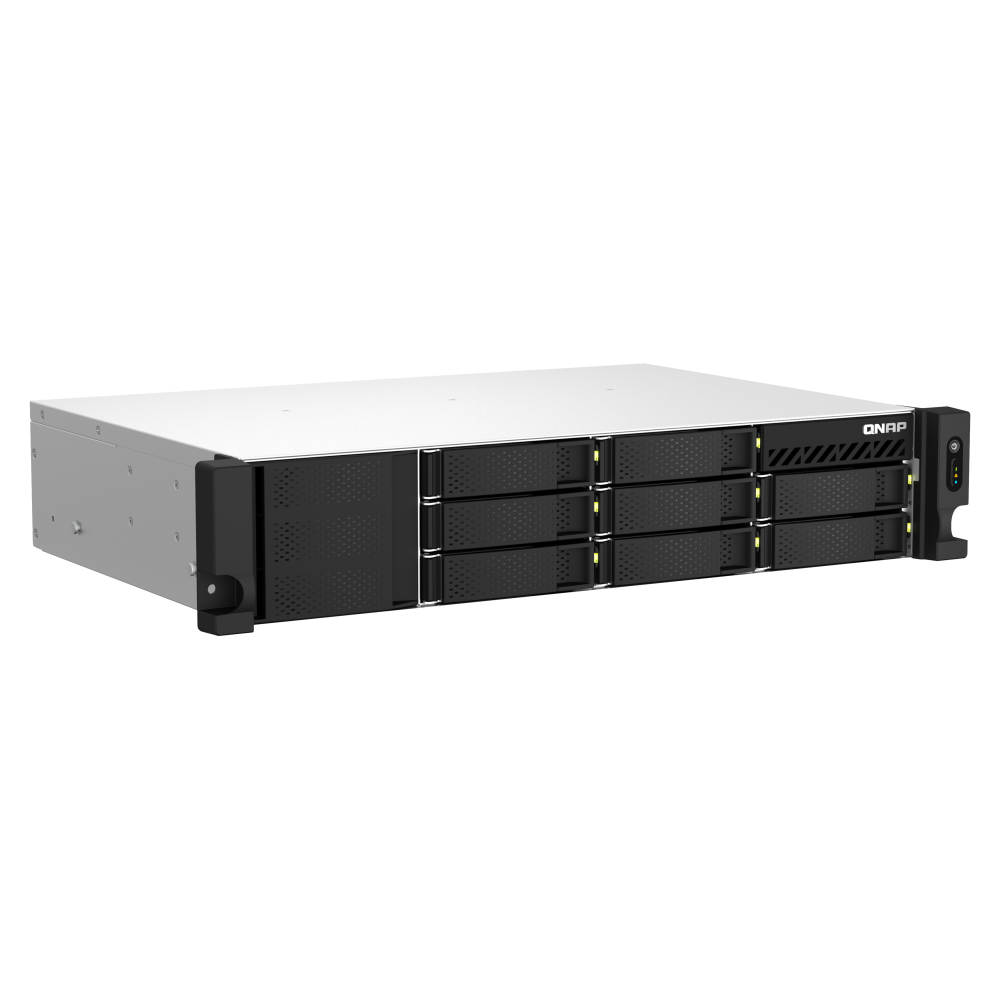

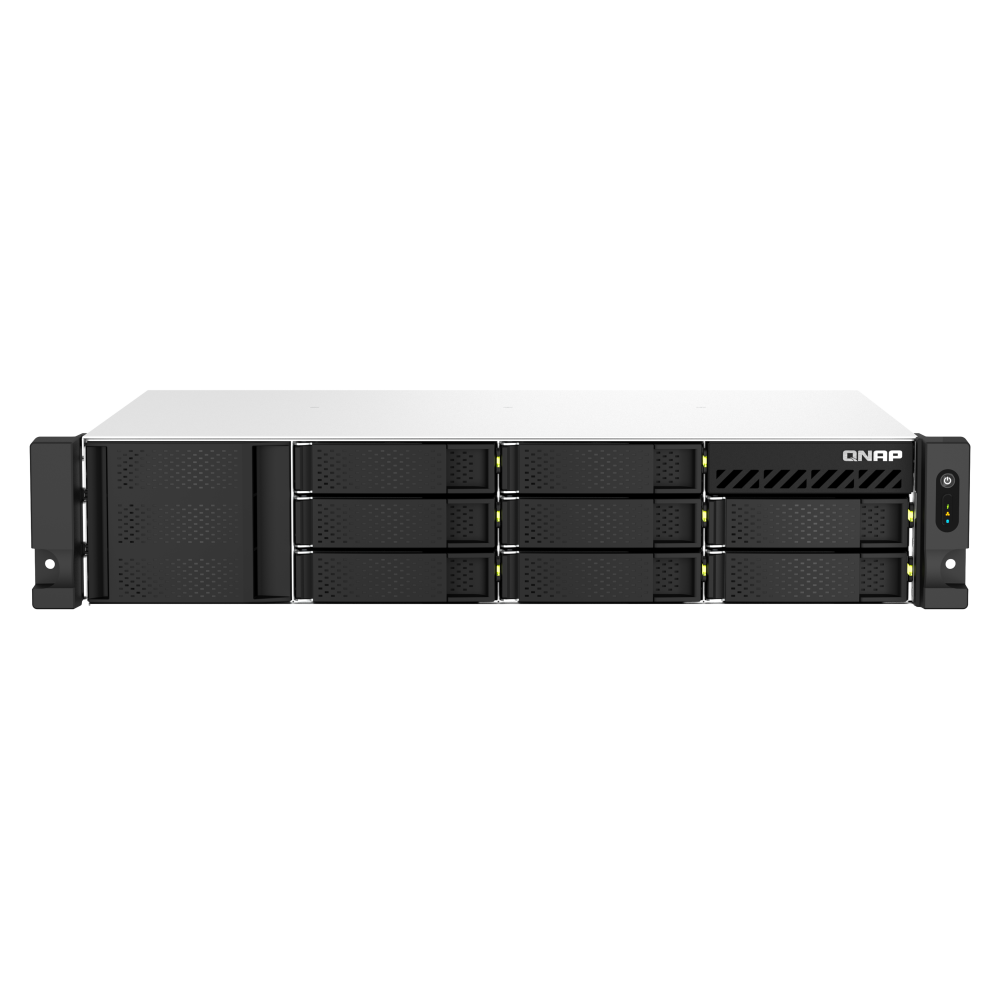

The TS-864eU-RP is equipped with an Intel® Celeron® N5095 quad-core processor (up to 2.9 GHz). Its space-efficient, short depth makes it easy to install in small media cabinets or places with a lot of cables. With its expandable storage capacity and feature-rich applications, the TS-864eU-RP outperforms the previous generation.
The TS-864eU-RP runs the QTS operating system by default. You can also switch to the QuTS hero operating system. QuTS hero provides benefits including ZFS data integrity and WORM technology to prevent data modification. (Switching to QuTS hero is supported from QTS 5.2.2.)
As an optional purchase, the short rail kit is available to mount the TS-864eU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
-
2.5GbE connectivity
Transfer speeds of up to 5 Gbps are possible by setting up port trunking with the two built-in 2.5GbE ports.
-
HDMI™ output
Features 4K media playback and real-time transcoding.
-
PCIe expandability
Two PCIe Gen 3 slots allow you to install 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.
-
USB interface
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
-
Backup and data recovery
Protects PCs/Macs, virtual machines, software containers, cloud data, and SaaS services.
-
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on the NAS.
Specification
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU architecture | 64-bit x86 |
| Graphics processors | Intel® UHD Graphics |
| Floating Point Unit |
|
| Encryption engine | (AES-NI) |
| Hardware accelerated transcoding |
|
| System memory |
8GB SODIMM DDR4 (1 x 8GB)
Since 2024/01
|
| Maximum amount of memory | 16 GB (2 x 8 GB) |
| Memory slot | 8 GB |
| Flash memory | 4 GB (Dual boot OS protection) |
| Disc holder | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Disk Compatibility |
3.5-inch bays: 3.5-inch SATA hard drive drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 slot | Optionally via a PCIe adapter |
| Support SSD cache acceleration |
|
| 2.5 Gigabit Ethernet port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet port (5G/2.5G/1G/100M) | Optional via network adapter |
| 10 Gigabit Ethernet port |
Optional via network adapter
Optional via PCIe expansion card
|
| Wake on LAN (WOL) |
|
| Jumbo Frame |
|
| PCIe slot |
1 Slot 1: PCIe Gen 3 x 2 Only applicable for PCIe slot 1: 97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inch.
|
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10 Gbps) port | 2 x Type-A USB 3.2 Gen 2 |
| HDMI™ output | 1, HDMI™ 1.4b |
| Form | 2U Short Depth Rackmount |
| LED indicators | HDD 1-8, Status, LAN, Expansion, Power |
| Buttons | On/Off / Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm |
| Weight (net) | 9.21 kg |
| Weight (gross) | 10.71 kg |
| Operating temperature | 0 - 40°C (32°F - 104°F) |
| Storage temperature | -20 - 70°C (-4°F - 158°F) |
| Relative humidity | 5-95% RH non-condensing, wet bulb: 27 ˚C |
| Power supply unit | 300W (x2), 100-240V |
| Power Consumption: Disk Standby Mode | 31,742 |
| Power Consumption: Operating Mode, Typical |
55.83 W
Tested fully loaded with discs.
|
| Fan | 3 x 60 mm, 12 V DC |
| System warning | Buzzer |
| Standard warranty | 3 |
| Max. number of concurrent connections (CIFS) - with max. memory | 1500 |
