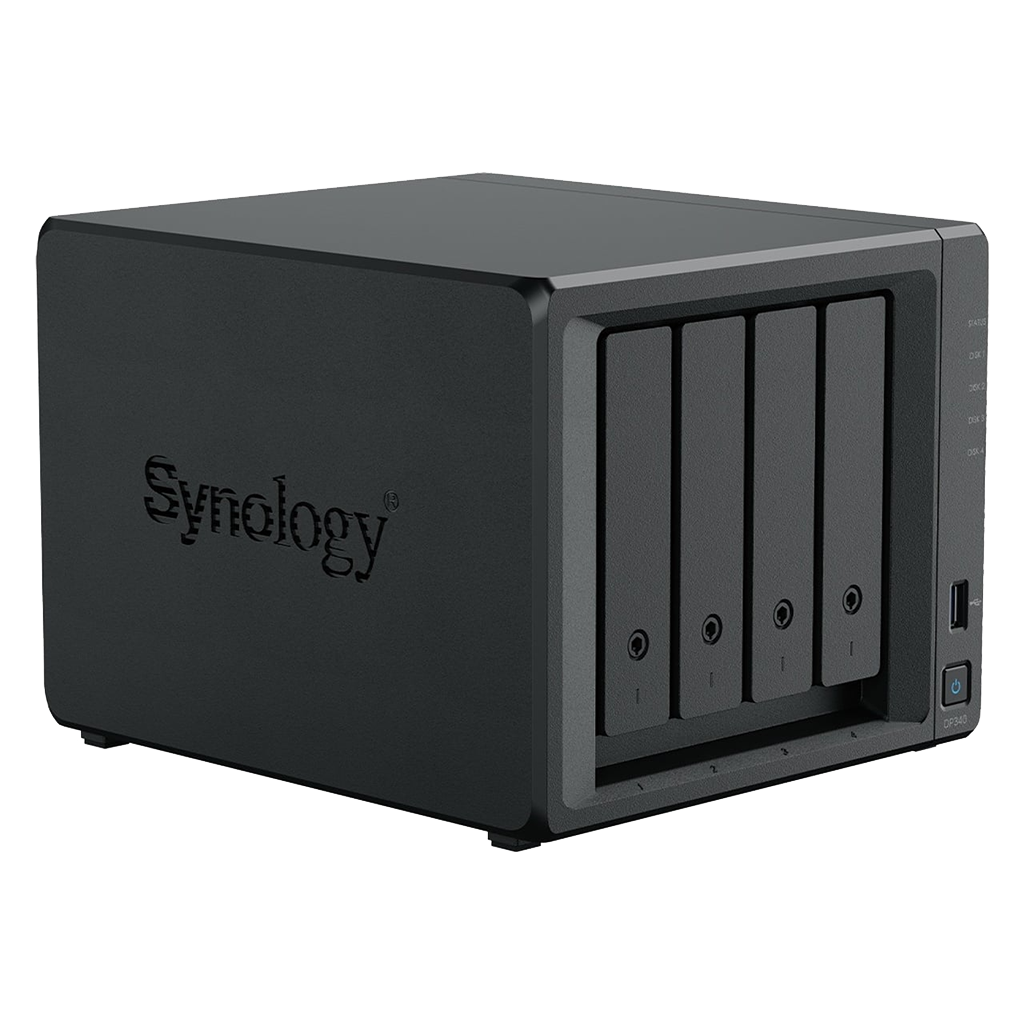

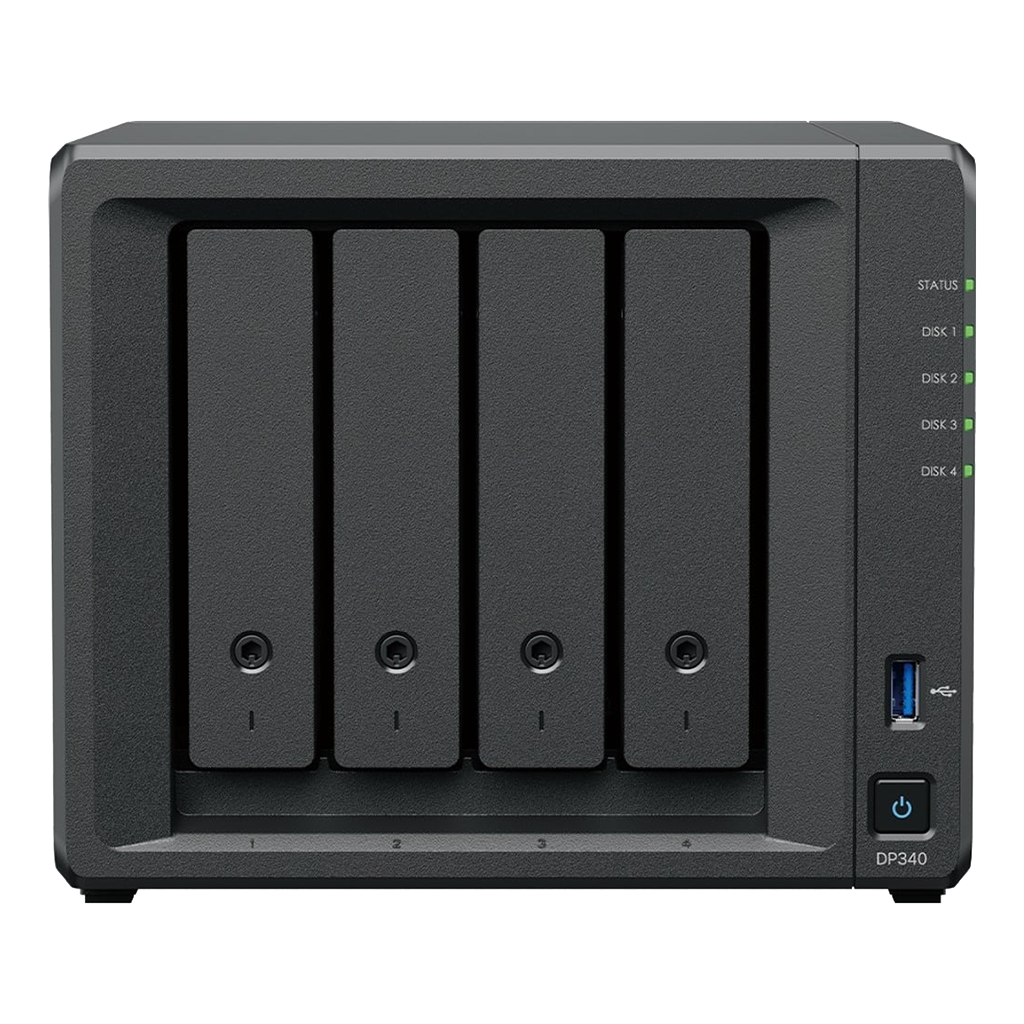

Tower ActiveProtect backup appliance
Synology DP340 ActiveProtect Appliance
The Synology DP340 is a tower backup appliance with an AMD Ryzen R1600 processor, 16 GB memory, four 8 TB hard drives and two 400 GB M.2 SSDs for centralised protection of small and medium environments.
- Backup source
- Suggested 14.5 TB
- Processor
- AMD Ryzen R1600
- Memory
- 16 GB
- Data network
- 1 × 10GbE RJ-45
A unified backup platform for growing organisations
The Synology DP340 runs ActiveProtect Manager to coordinate backup policies, tasks, appliances and recovery from one interface. Its included RAID-protected HDD and M.2 SSD configuration, 10GbE data path and cyber-resilience controls make it a focused alternative to assembling separate backup software and storage components.
Central policy control
Use ActiveProtect Manager to organise protection plans, tasks and appliances.
Included protected storage
Four 8 TB HDDs use RAID 5 while two 400 GB M.2 SSDs use RAID 1.
10GbE data transfer
A dedicated 10GbE RJ-45 data port complements the separate 1GbE management port.
Recovery capability
The platform lists two suggested concurrent built-in restored virtual machines.
Cyber-resilient backups
Immutability, air-gapping and access controls support protected recovery copies.
Multi-site participation
The DP340 can operate individually or as a managed appliance within an ActiveProtect cluster.
Who is the Synology DP340 best for?
A strong choice for
- Small and medium business backup
- Branch or edge protection
- Centralised endpoint and server policies
- Teams needing a dedicated 10GbE backup path
- Built-in recovery testing and VM restoration
- Organisations reducing backup-tool sprawl
Consider another model if you need
- You need a larger rackmount ActiveProtect appliance
- Your protected data exceeds the suggested 14.5 TB source size
- You need a rackmount rather than tower appliance
- You want general-purpose NAS storage rather than ActiveProtect Manager
Key specifications
- Form factor
- Tower
- CPU
- AMD Ryzen R1600, 2 cores
- Memory
- 16 GB
- HDD configuration
- 4 × 8 TB, RAID 5
- SSD configuration
- 2 × 400 GB M.2, RAID 1
- Management network
- 1 × 1GbE RJ-45
- Data network
- 1 × 10GbE RJ-45
- Dimensions
- 166 × 199 × 223 mm
- Weight
- 5.2 kg
- Warranty
- 3 years
Full technical specifications
Protection platform and hardware
| Suggested backup source | 14.5 TB |
|---|---|
| Suggested built-in restored VMs | 2 |
| Cluster management capability | Up to 30 servers or 1,500 workloads |
| Cluster role | Individual server or managed server in a cluster |
| Form factor | Tower |
| Processor | AMD Ryzen R1600, 2 cores |
| Memory | 16 GB |
| HDD storage configuration | 4 × 8 TB 3.5-inch HDD, RAID 5 |
| SSD storage configuration | 2 × 400 GB M.2 SSD, RAID 1 |
Network and physical specifications
| Management network | 1 × 1GbE RJ-45 |
|---|---|
| Data-transfer network | 1 × 10GbE RJ-45 |
| Dimensions (H × W × D) | 166 × 199 × 223 mm |
| Weight | 5.2 kg |
Power and environment
| AC input | 100 V to 240 V AC |
|---|---|
| Power frequency | 50/60 Hz, single phase |
| Power consumption — access | 35.51 W |
| British thermal unit — access | 121.09 BTU/hr |
| Operating temperature | 0°C to 45°C (32°F to 104°F) |
| Operating humidity | 8% to 80% RH |
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Storage humidity | 5% to 95% RH |
Warranty, compliance and package contents
| Warranty | 3 years |
|---|---|
| Environmental compliance | RoHS compliant |
| Certifications | FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS and EAC |
| Package contents | DP340 main unit × 1, 3.5-inch SATA HDD × 4, adapter × 1, AC power cord × 1, RJ-45 LAN cable × 2, accessory pack × 1 and Quick Installation Guide × 1 |
Frequently asked questions about the Synology DP340
What is the Synology DP340?
It is a tower ActiveProtect backup appliance for centralised protection and recovery in small and medium environments.
Which processor does the DP340 use?
The DP340 uses a two-core AMD Ryzen R1600 processor.
How much memory is installed in the DP340?
The appliance includes 16 GB of memory.
What storage is included in the DP340?
It includes four 8 TB HDDs in RAID 5 and two 400 GB M.2 SSDs in RAID 1.
What backup-source size is suggested for the DP340?
Synology lists a suggested backup source of 14.5 TB.
How many workloads can the DP340 manage?
The current specification supports up to 30 servers or 1,500 workloads.
Can the DP340 join an ActiveProtect cluster?
Yes. It can operate individually or as a managed server in a cluster.
What network interfaces are included on the DP340?
It has one 1GbE management port and one 10GbE data-transfer port.
What are the DP340 dimensions?
It measures 166 × 199 × 223 mm and weighs 5.2 kg.
What warranty applies to the DP340?
Synology specifies a three-year warranty.
- Suggested source size and restored-VM figures are planning guidance and vary by workload.
- The M.2 SSDs are part of the specified internal storage configuration even though the supplied package list names only the HDDs separately.
- Confirm network, retention and recovery requirements before deployment.
- This appliance runs ActiveProtect Manager and is not a general-purpose DSM NAS.
