1-bay compact desktop NAS

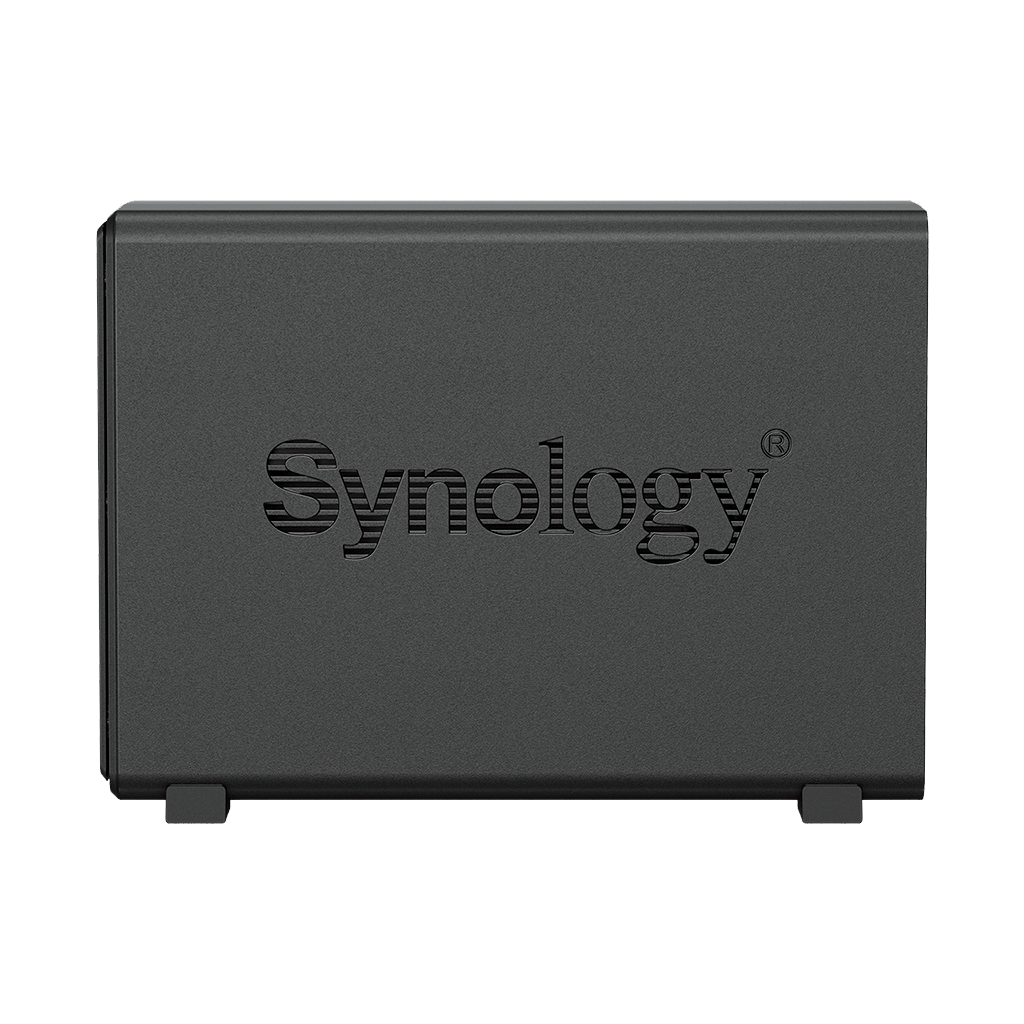

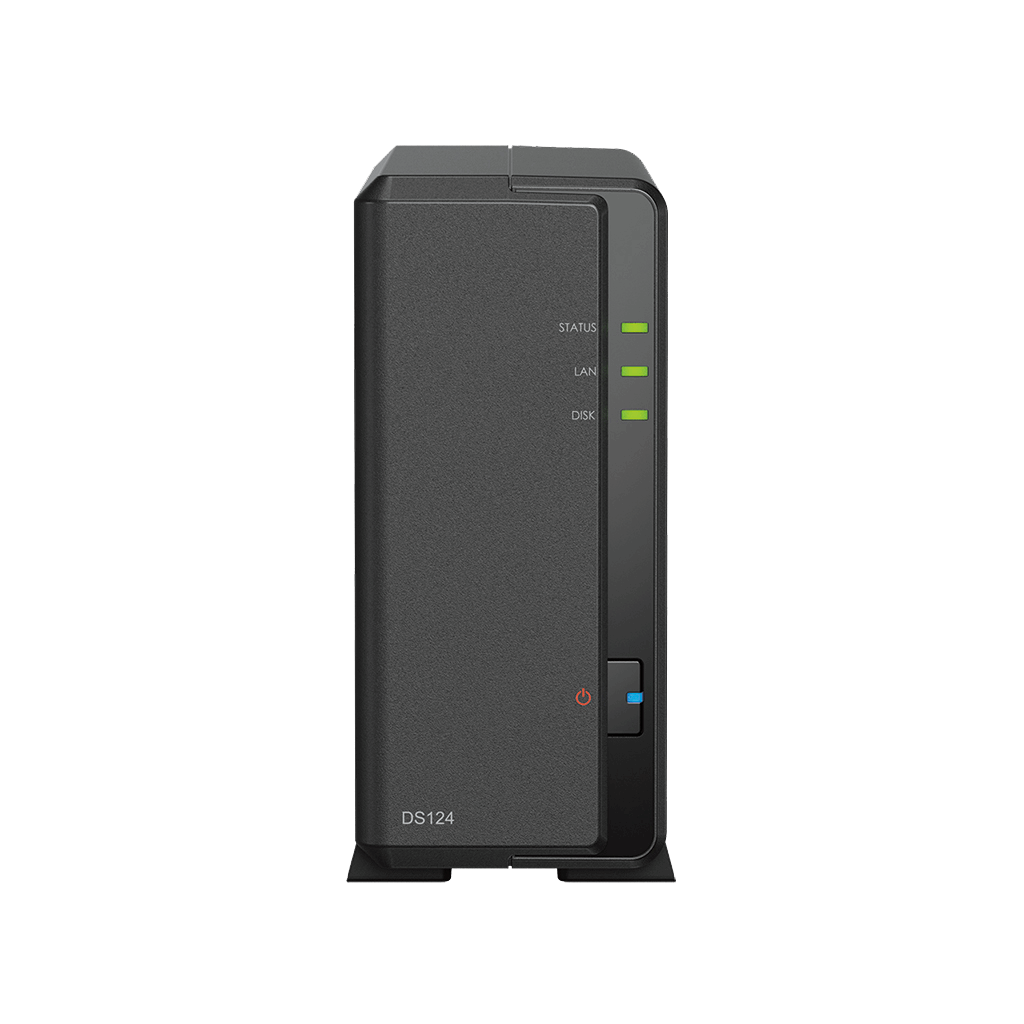

Synology DS124 1-bay Compact Desktop NAS
A compact one-bay NAS with Realtek RTD1619B processing and 1 GB DDR4 memory for private cloud access, file sharing and straightforward backup.
- Processor
- Realtek RTD1619B
- Memory
- 1 GB DDR4 non-ECC
- Drive bays
- 1
- Networking
- 1 × 1GbE
Take control of essential data in a small footprint
The Synology DS124 gives professionals, home users and small teams a simple way to centralise files and media. Synology Drive supports access across computers, mobile devices and browsers, while supplied backup and cloud-sync tools help organise copies of important data.
One-bay simplicity
Create a compact central store with one supported 3.5-inch SATA HDD or 2.5-inch SATA SSD.
Secure private cloud
Keep files on a system you manage and access them through supported Synology tools.
Multi-platform access
Work with files from supported PCs, Macs, Linux systems, Chromebooks and mobile devices.
Cloud synchronisation
Synchronise selected data with supported public-cloud services while retaining a local copy.
Hassle-free backups
Use supplied DSM tools for scheduled file, folder and system protection workflows.
Low-power compact design
A 0.7 kg enclosure and low-power fan mode suit space-conscious home and office use.
Who is the Synology DS124 best for?
A strong choice for
- Personal private cloud storage
- Home-office document sharing
- Straightforward computer backup
- Photo and media organisation
- Buyers needing one compact drive bay
Consider another model if you need
- You need drive redundancy within the NAS
- You require hot-swappable drives
- You need more than one network port
- You need expandable memory or PCIe expansion
Key specifications
- Model
- DS124
- Product type
- 1-bay compact desktop NAS
- Processor
- Realtek RTD1619B
- CPU cores
- 4
- CPU frequency
- 1.7 GHz
- System memory
- 1 GB DDR4 non-ECC
- Drive bays
- 1
- Drive categories
- | 3.5" SATA HDD; 2.5" SATA SSD (with optional 2.5" Disk Holder)
- Built-in network
- 1 × 1GbE
- USB ports
- 2 × USB 3.2 Gen 1
- Dimensions
- Not specified
- Weight
- 0.7 kg
- Warranty
- 2-year hardware warranty, extendable to 4 years with extended warranty plus
Full technical specifications
Processor, memory and storage
| CPU Model | Realtek RTD1619B |
|---|---|
| CPU Quantity | 1 |
| CPU Core | 4 |
| CPU Threads | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 1.7 GHz |
| Hardware Encryption Engine | Supported |
| System Memory | 1 GB DDR4 non-ECC |
| Memory notes | Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
| Drive Bays | 1 |
| Drive Type | | 3.5" SATA HDD; 2.5" SATA SSD (with optional 2.5" Disk Holder) |
| Hot Swappable Drive* | - |
Network, ports and expansion
| RJ-45 1GbE LAN Port | 1 |
|---|---|
| USB 3.2 Gen 1 Port* | 2 |
| External Ports notes | | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.; The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. |
Physical design and power
| Size (Height × Width × Depth) | 166 mm × 71 mm × 224 mm |
|---|---|
| Weight | 0.7 kg |
| System Fan | 60 mm × 60 mm × 1 pcs |
| Fan Speed Mode | | Full-Speed Mode; Cool Mode; Quiet Mode; Low-power Mode |
| Brightness Adjustable Front LED Indicators | Supported |
| Power Recovery | Supported |
| Noise Level* | 19.0 dB(A) |
| Scheduled Power On / Off | Supported |
| Wake on LAN / WAN | Supported |
| Power Supply Unit / Adapter | 36 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 10.69 watts (Access); 3.44 watts (HDD Hibernation) |
| British Thermal Unit | 36.50 BTU/hr (Access); 11.75 BTU/hr (HDD Hibernation) |
| Others notes | |; | Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8% |
Environment, warranty and package
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
|---|---|
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Certification | | FCC; CE; BSMI; VCCI; RCM; UKCA; EAC; CCC; KC; BIS |
| Warranty | 2-year hardware warranty, extendable to 4 years with extended warranty plus |
| Warranty notes | | The warranty period starts from the purchase date as stated on your purchase receipt. | |
| Environment | RoHS Compliant |
| Packaging Content | | Main Unit X 1; Accessory Pack X 1; AC Power Adapter X 1; RJ-45 LAN Cable X 1; Quick Installation Guide X 1 |
Frequently asked questions about the Synology DS124
What is the Synology DS124?
The Synology DS124 is a 1-bay compact desktop NAS for personal private cloud storage, home-office document sharing, straightforward computer backup.
Which processor is in the Synology DS124?
It uses the Realtek RTD1619B with 4 cores at 1.7 GHz.
How much memory does the Synology DS124 include?
It includes 1 GB DDR4 non-ECC. No higher memory capacity is stated in the verified hardware specification.
How many drive bays does the Synology DS124 have?
It has 1 internal drive bay.
Which drive types does the Synology DS124 support?
| 3.5" SATA HDD; 2.5" SATA SSD (with optional 2.5" Disk Holder). The optional Type C drive holder is required for a 2.5-inch SSD.
What networking is built into the Synology DS124?
The verified built-in network interfaces are 1 × 1GbE.
What external ports does the Synology DS124 provide?
It provides 2 USB 3.2 Gen 1 ports alongside 1 × 1GbE.
Does the Synology DS124 include storage drives?
No. This listing identifies the Synology DS124 as diskless, so compatible drives are selected separately.
What are the Synology DS124 dimensions?
It measures Not specified and weighs 0.7 kg.
What warranty applies to the Synology DS124?
Synology specifies 2-year hardware warranty, extendable to 4 years with extended warranty plus. Warranty-extension availability depends on region.
- DS124 is listed as diskless; compatible storage drives are selected separately.
- Confirm exact drives, memory and accessories on Synology’s compatibility list for DS124.
- A separately purchased Type C drive holder is required for 2.5-inch SSD installation, and the single bay is not hot-swappable.
- Actual usable capacity and performance depend on installed drives, storage configuration, workloads and network environment.
