Use an M.2 PCIe NVMe SSD in a U.2 PCIe NVMe SSD drive bay for PC and NAS

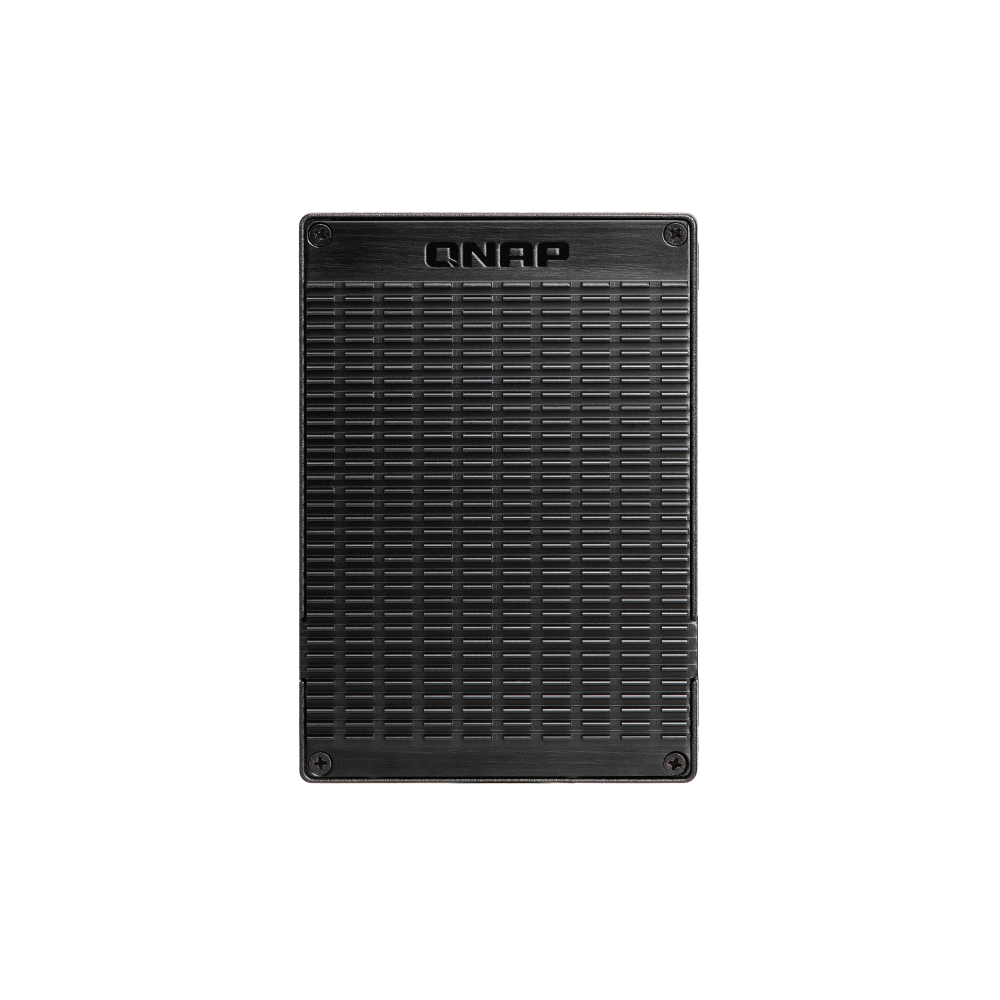

The QDA-UMP4 allows installing an M.2 PCIe 4.0 x4 NVMe SSD in a 2.5-inch U.2 (SFF-8639) PCIe 4.0 x4 NVMe SSD drive bay. No extra software or drivers are required for the QDA-UMP4 and it can be installed in a PC/workstation (Windows®, Linux®) or QNAP NAS to enable using M.2 SSDs as cost-effective alternatives to expensive U.2 SSDs.
-
1

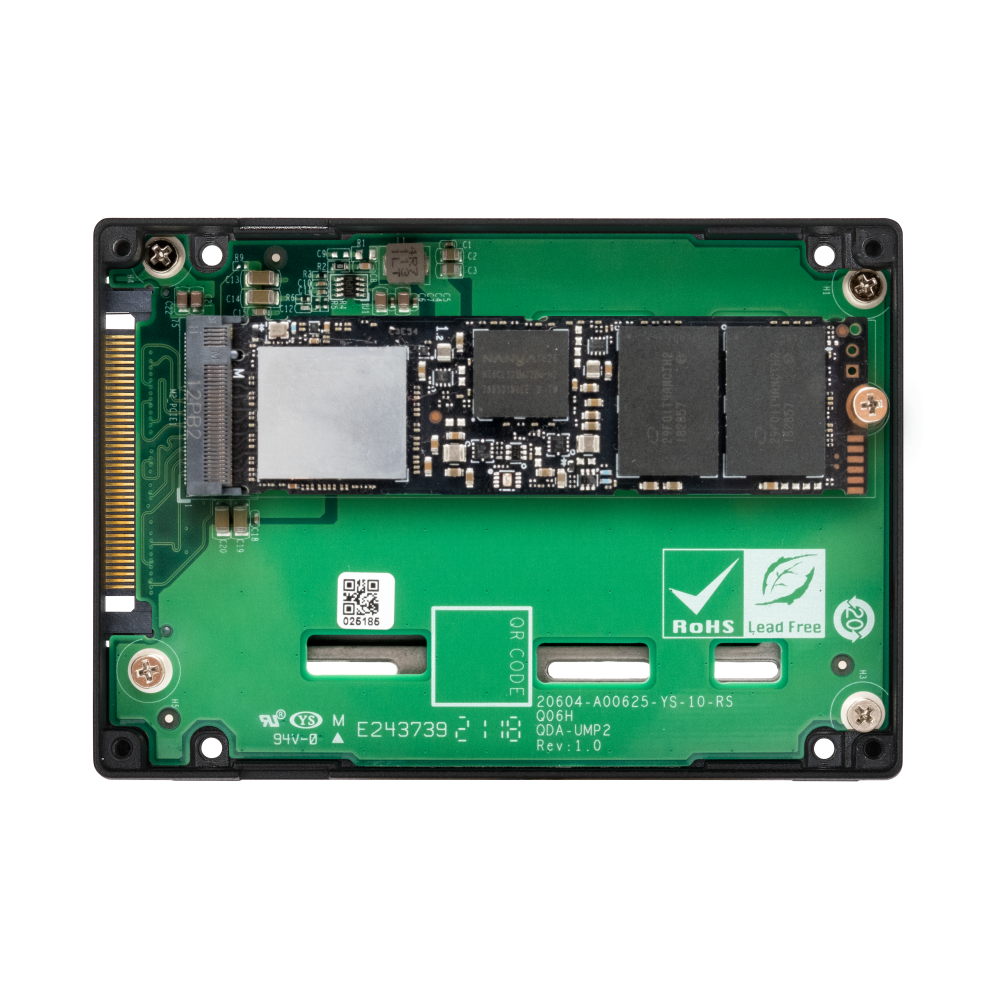

Use an M.2 2280 (M key) PCIe NVMe SSD in a U.2 PCIe NVMe SSD drive bay (M.2 SSD sold separately).
-
2
Up to PCIe 4.0 x4 file transfer speeds.
(Compatible with NVMe PCIe 3.0 for M.2 SSDs and U.2 drive bays)
Specification
| Standard Warranty | 2 years |
| Supported Drives | 1 x M.2 2280 PCIe 4.0 x4 NVMe SSD |
| Host Interface | U.2 (SFF-8639) PCIe 4.0 x4 |
| Supported Operating Systems | 1. QTS 4.4.1 (or later) 2. Windows: Windows 7, 8.1, 10, Windows Server 2012 R2 3. Ubuntu |
| Dimensions (L x W x H) | 100.4 × 69.85 × 15 mm |
| Weight | 0.1045 kg |
| Note | Consult your PC system provider if the PC operating system supports U.2 NVMe SSD. |
| Architecture Diagram |  |
