4x 1GbE 802.3bt PoE++ (60W) ports, 10x 1GbE 802.3at PoE+ (30W) ports and 2x 1GbE 802.3at PoE+ (30W)/ SFP fiber combo ports

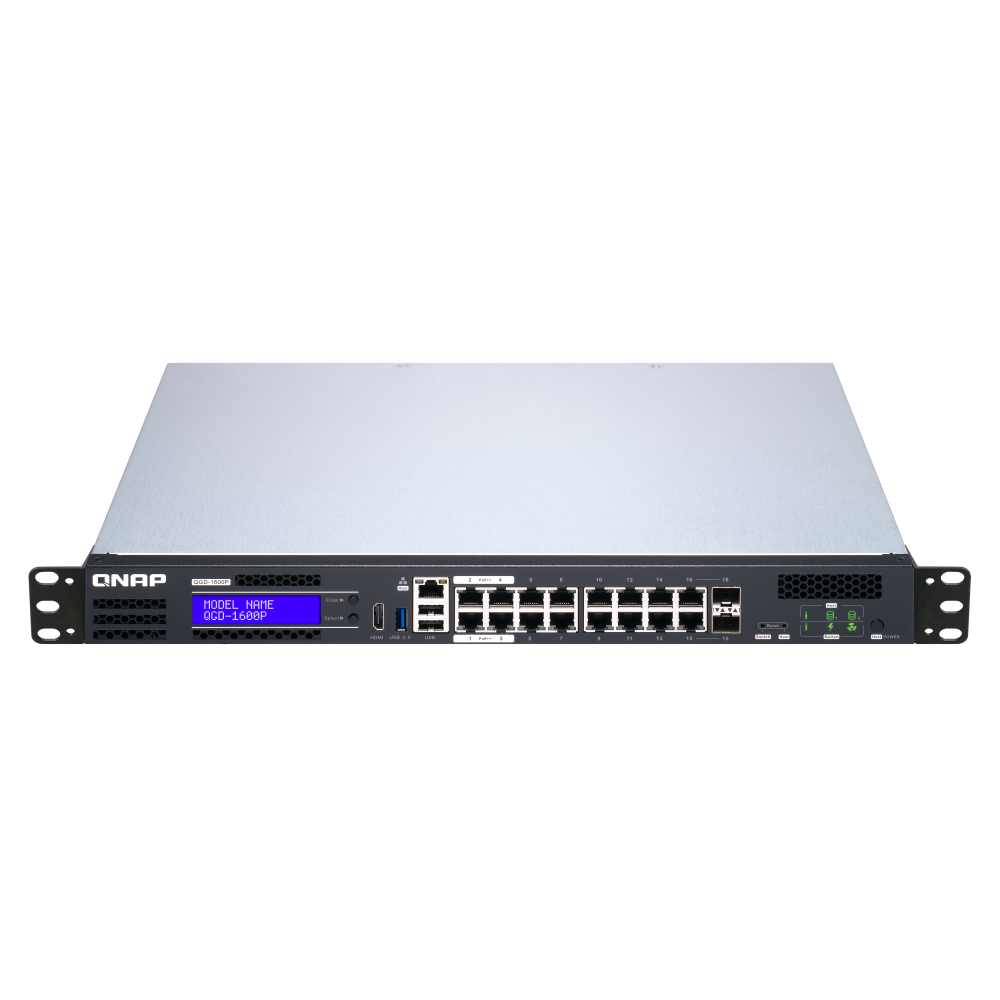

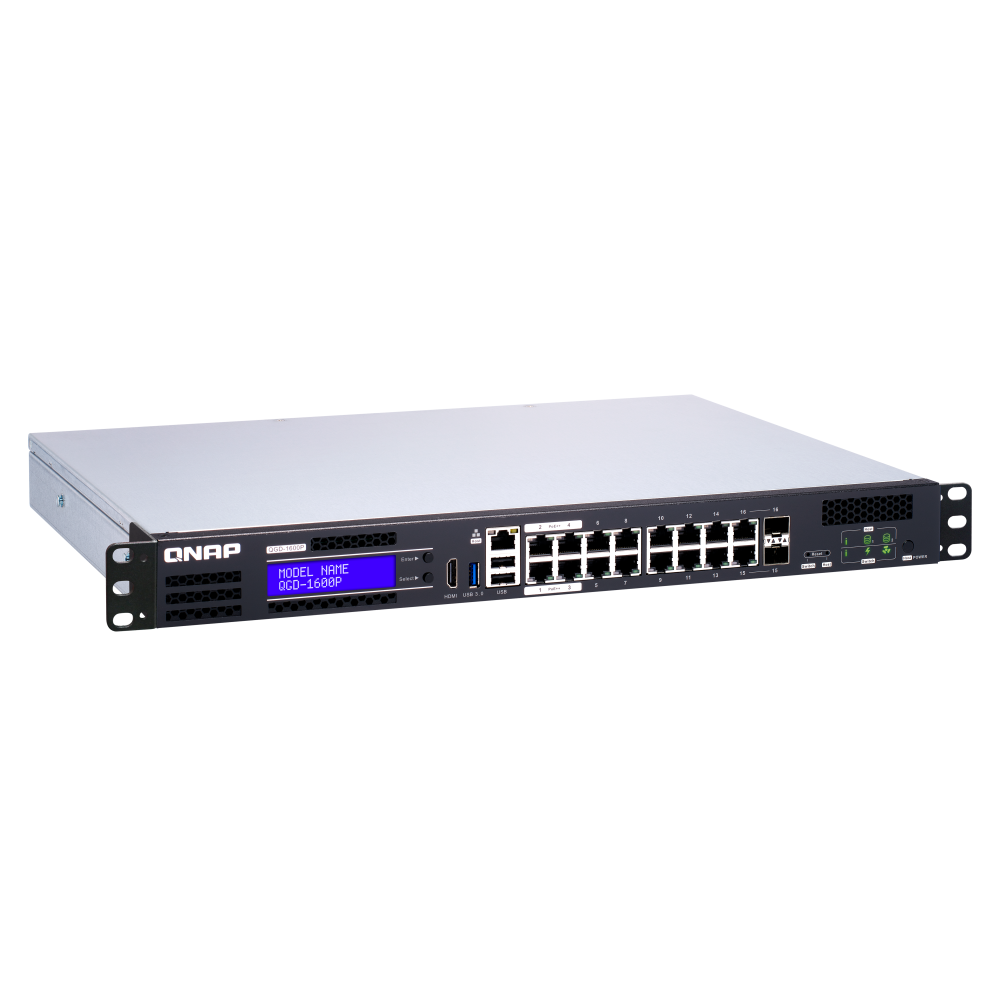

QNAP’s QGD-1600P is the world’s first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Note: There are two models available: QGD-1600P with PoE, and QGD-1600 without PoE.
-
PoE++/ PoE+
QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 360 watts to meet the demands of high-powered devices (PDs).
-
Layer 2 network
QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface.
-
User-friendly management interface
QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy.
-
Two SATA drive bays
Supports up to two SATA drives.
-
Flexible PCIe expansion
PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters.
-
Virtualization applications
Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications.
Specification
| Management Type | Web Managed |
| Number of Ports | 16 |
| 1GbE (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE++ PSE (802.3bt, 60W) | Ports 1-4 |
| PoE Power Output | Ports 1-4 (60W), Ports 5-16 (30W) |
| Total PoE Power Budget | 360W |
| PCIe Slot | Slot 1: PCIe Gen2 (x2) Slot 2: PCIe Gen2 (x2) |
| USB 3.2 Gen 1 port | 1 |
| USB 2.0 port | 2 |
| Management Port | 1 x 1GbE |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| HDMI™ Output | 1 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 418W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 8K |
| Total Non-Blocking Throughput | 16Gbps |
| Switching Capacity | 32Gbps |
| Management Interface | Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | yes |
| Fan | System: 2 x 4 cm (12V DC) |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at/bt Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Link/Activity/Speed/PoE Per System: Warning/PoE/Fan |
| LCD Management | yes |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 47.2 × 436.2 × 326.2 mm |
| Weight (Net) | 4.41 kg |
| Weight (Gross) | 5.56 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F) |
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance | CLASS A, UL62368 |
| Jumbo Frames | 9k |
| QTS Built-in | yes |
| CPU | Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture | 64-bit x86 |
| Internal Network Bandwidth | 2 x 1GbE |
| Graphics Processors | Intel® HD Graphics 600 |
| Floating Point Unit | yes |
| Encryption Engine | (AES-NI) |
| System Memory | 4 GB (1 x 4 GB) |
| Maximum Memory | 8 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
| Hot-swappable | yes |
| M.2 SSD Slots | Optional via PCIe adapter |
| SSD Cache Acceleration Support | yes |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty | 2 Years |
