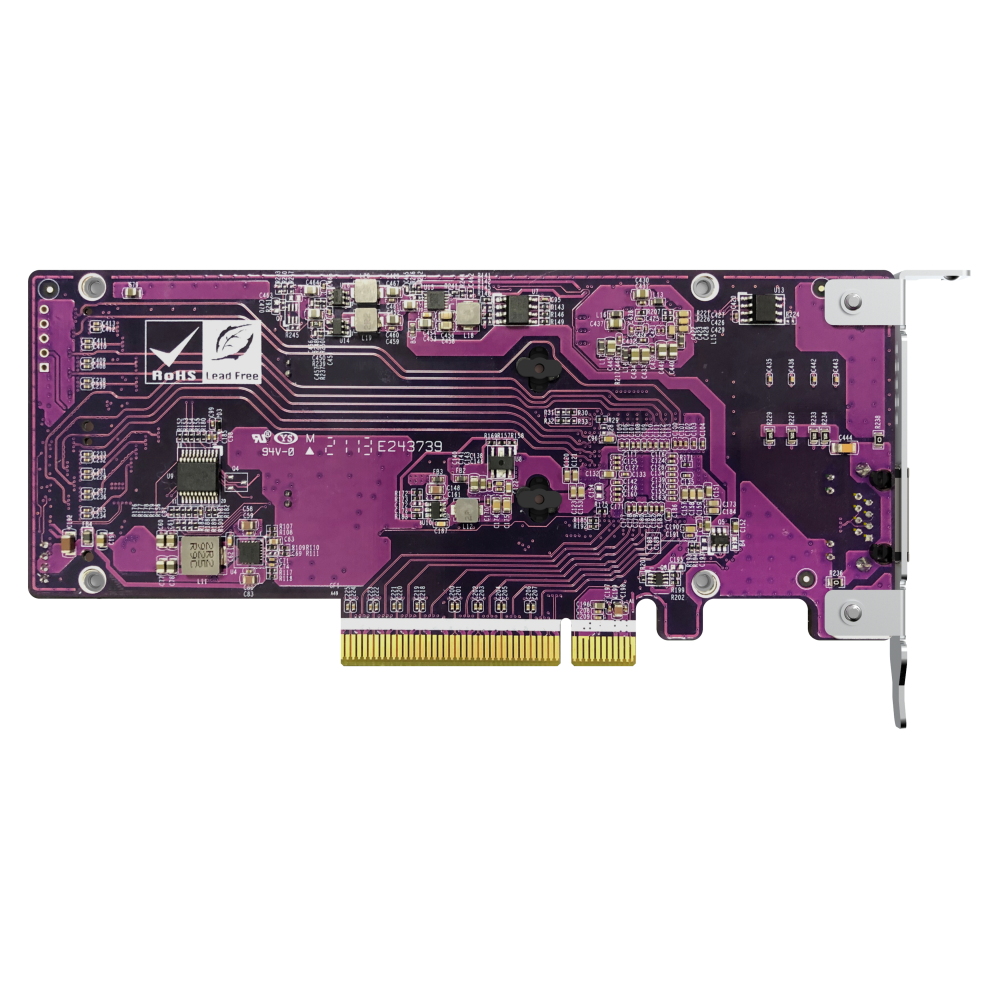

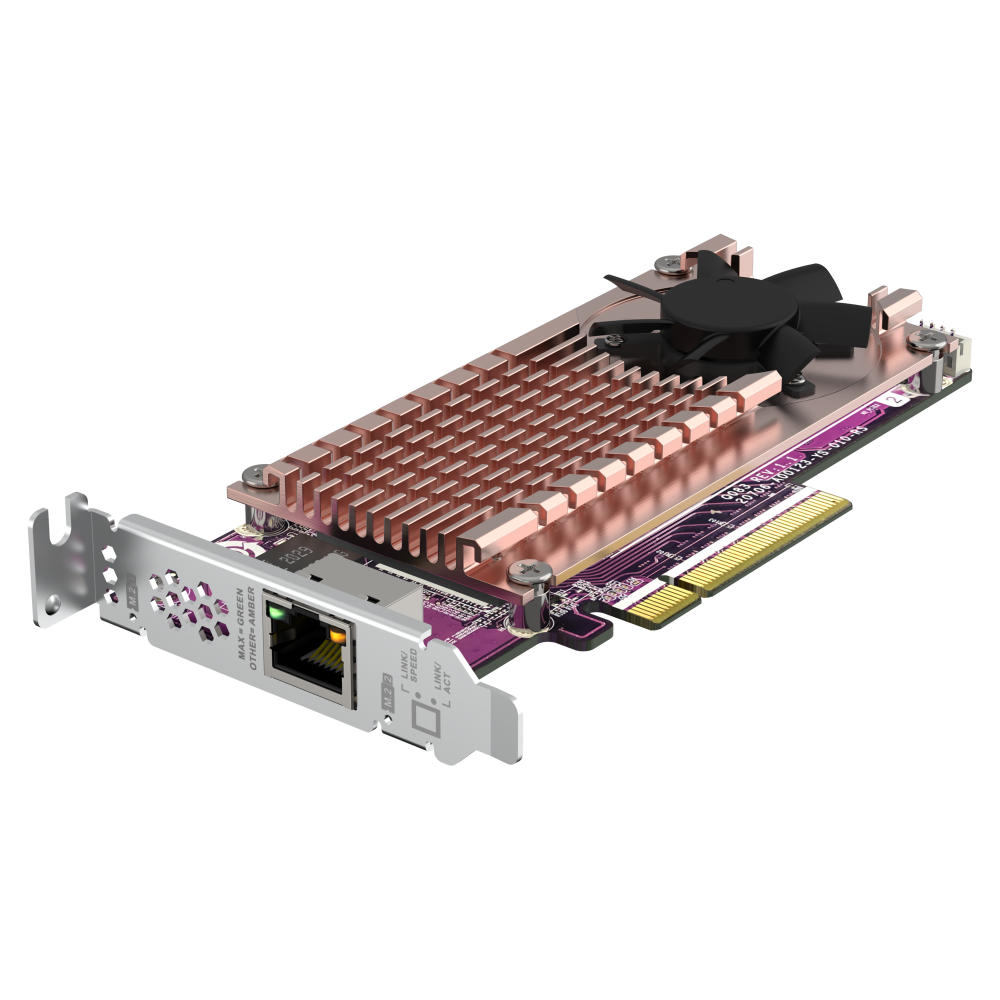

Dual M.2 2280 PCIe NVMe SSD & single-port 10GbE expansion card
Add speed and connectivity to your QNAP NAS with the QM2-2P10G1TB. This expansion card features two M.2 NVMe SSD slots and a 10GbE RJ45 port for lightning-fast data access. The PCIe Gen3 x 8 interface ensures high-bandwidth performance, delivering faster computing speeds. Upgrade your NAS with the QM2-2P10G1TB for improved efficiency.
Specification
| Controller | Marvell AQC113C |
| Connector | 2 x M.2 2280 PCIe (Gen3 x4) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x8 |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 68.9 × 18.9 × 152.65 mm |
| Form factor | Low-profile |
| Cable | RJ-45; over CAT-6 class cable |
| Note [NAS] |
Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). |
| Note [PC] | Note: Windows devices: The driver for QM2-2P10G1TB is required. |
| Architecture Diagram |  |
| Standard Warranty | 1 year |
