QNAP QM2-2P410G2T Expansion Card Front View

QNAP QM2-2P410G2T Expansion Card Back View (I/O ports)

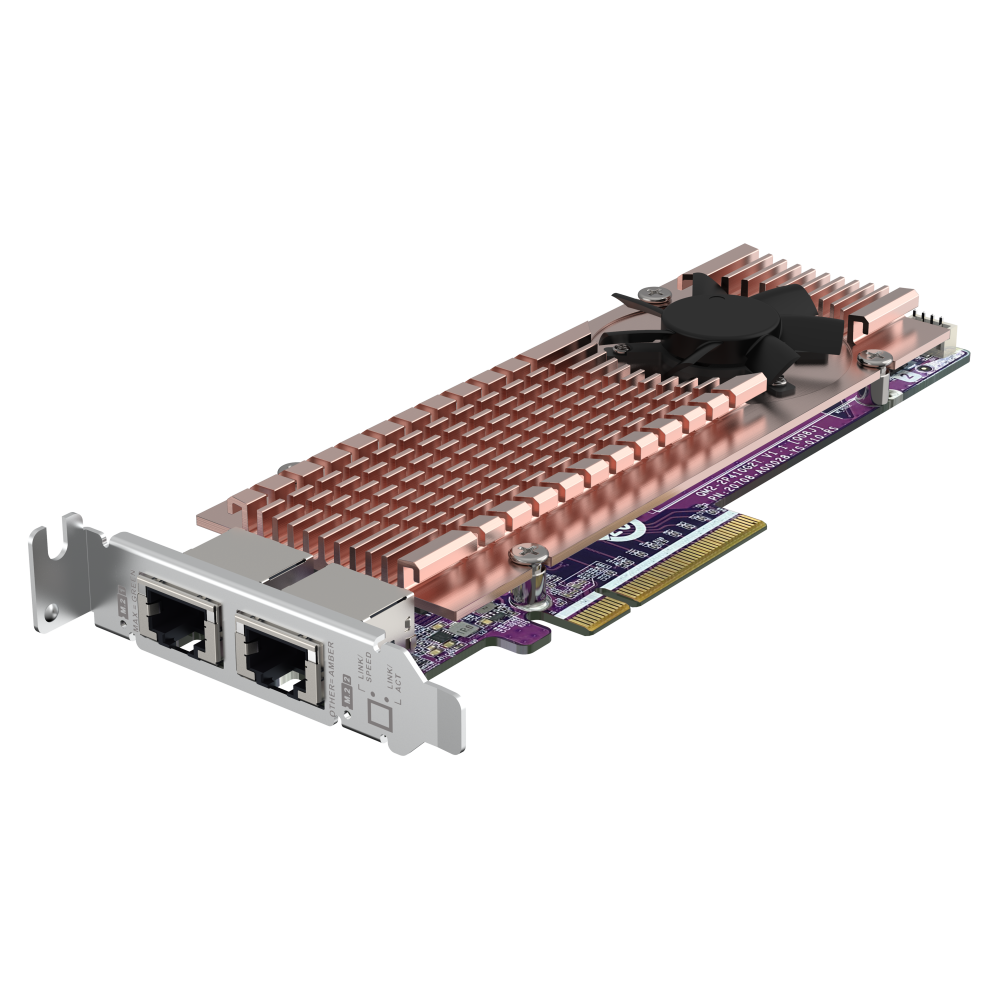

QNAP QM2-2P410G2T Expansion Card Side View 3

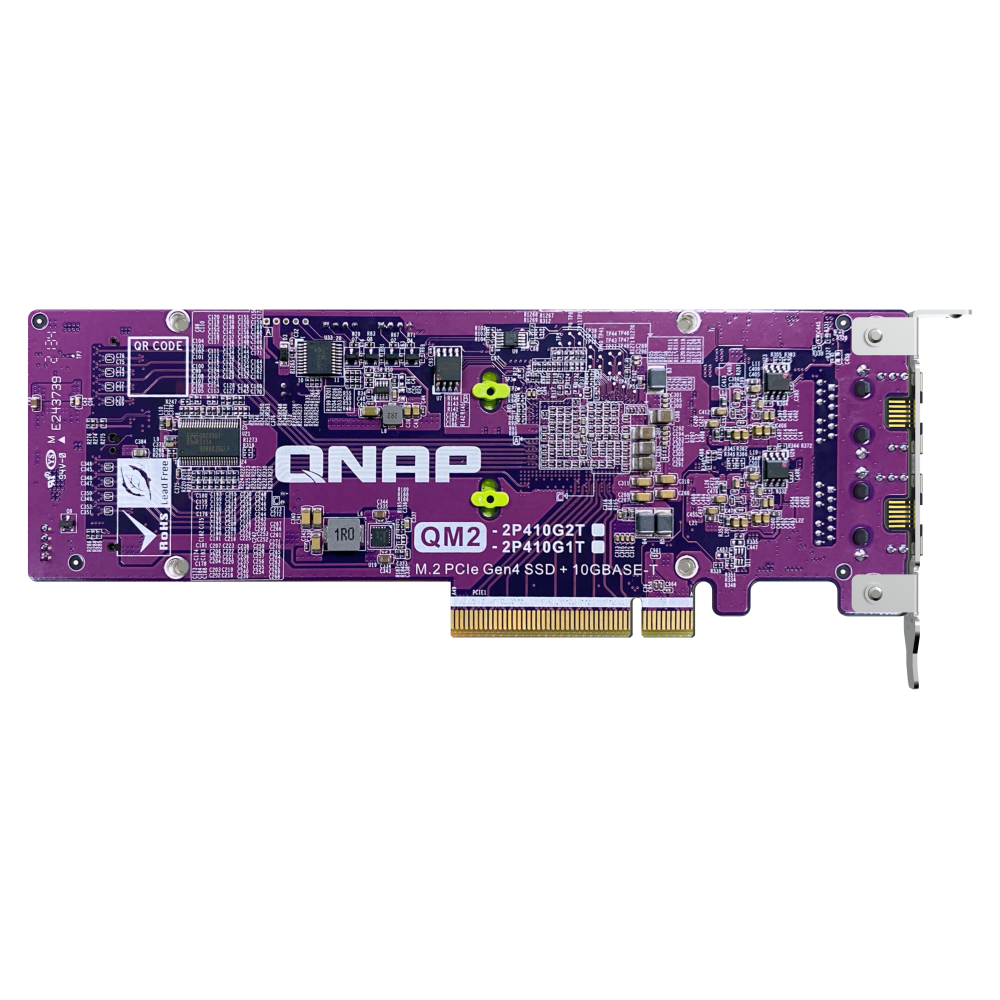

QNAP QM2-2P410G2T Expansion Card Side View 4

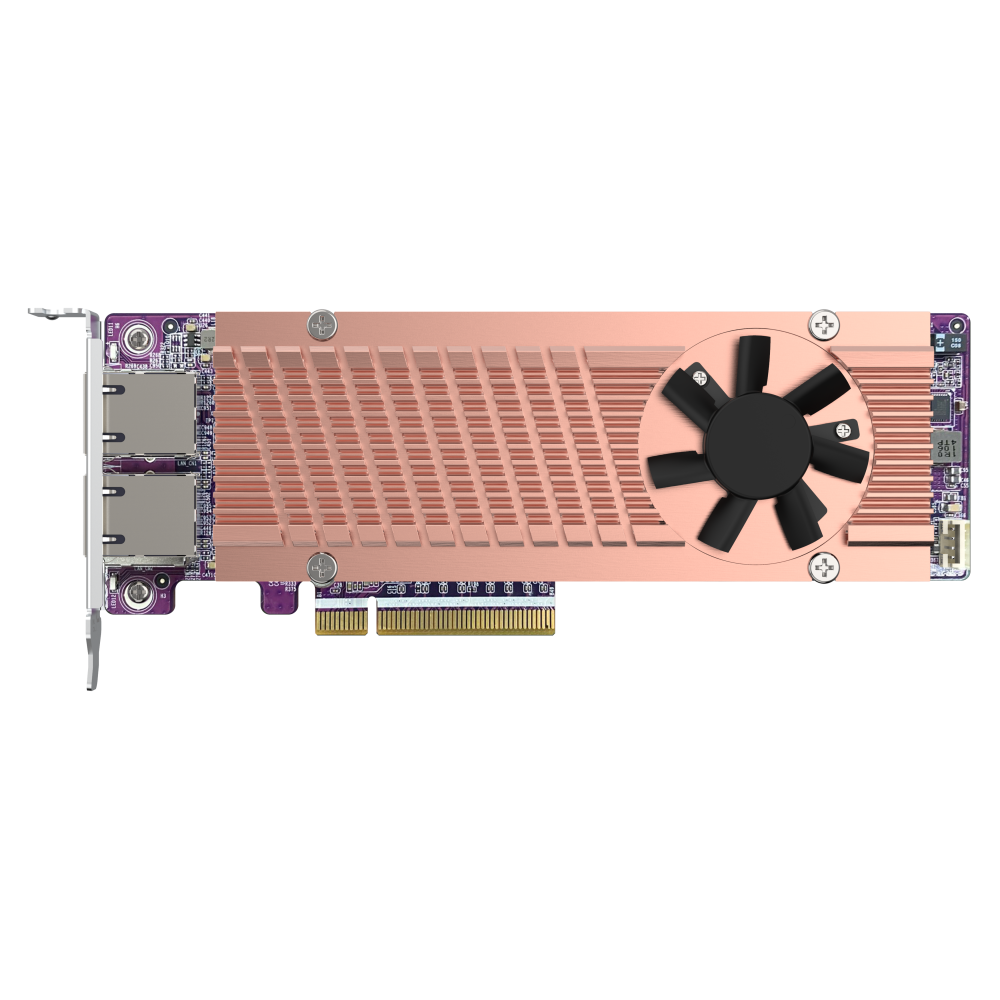

QNAP QM2-2P410G2T Expansion Card Side View 5

Gallery
Description

Description

Dual M.2 2280 PCI Express 4.0 NVMe SSD & dual-port 10GbE expansion card

The QNAP QM2-2P410G2T is the perfect solution for enhancing your QNAP NAS system. With dual M.2 NVMe SSD slots and dual 10GbE RJ45 connectivity, boost your computing speed and data access with ease. Featuring a PCIe 4.0 interface and a Broadcom® controller, experience high bandwidth and faster performance without the need for driver installation.

Specification

Controller	Marvell AQC113C
Connector	2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots
PCIe and Lanes	PCIe Gen4 x8
Bracket	Low-profile (default). Low-profile flat and Full-height brackets are also included.
Dimensions (L x W x H)	187 × 19.35 × 68.9 mm
Form factor	Low-profile
Cable	RJ-45; over CAT-6 class cable
Note [PC]	Note: Windows devices: The driver for QM2-2P410G2T is required.
Architecture Diagram
Standard Warranty	2 years

QNAP QM2-2P410G2T ,Dual-port M.2 2280 PCIe NVMe SSD & Dual 10GbE Expansion Card

Dhs. 2,613.00

SKU: QM2-2P410G2T

Select quantity

Ask for Availability

Description
Compatibility

Dual M.2 2280 PCI Express 4.0 NVMe SSD & dual-port 10GbE expansion card

Specification

Controller	Marvell AQC113C
Connector	2 x M.2 2280 PCIe (Gen4 x4) NVMe SSD slots
PCIe and Lanes	PCIe Gen4 x8
Bracket	Low-profile (default). Low-profile flat and Full-height brackets are also included.
Dimensions (L x W x H)	187 × 19.35 × 68.9 mm
Form factor	Low-profile
Cable	RJ-45; over CAT-6 class cable
Note [PC]	Note: Windows devices: The driver for QM2-2P410G2T is required.
Architecture Diagram
Standard Warranty	2 years
