5-Port 2.5GbE Unmanaged Desktop Switch

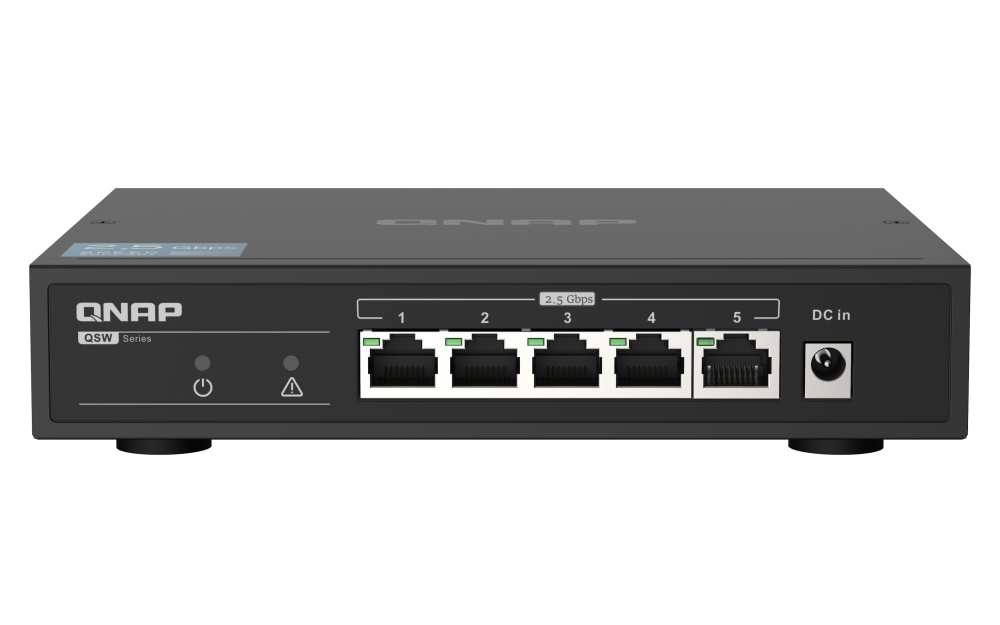

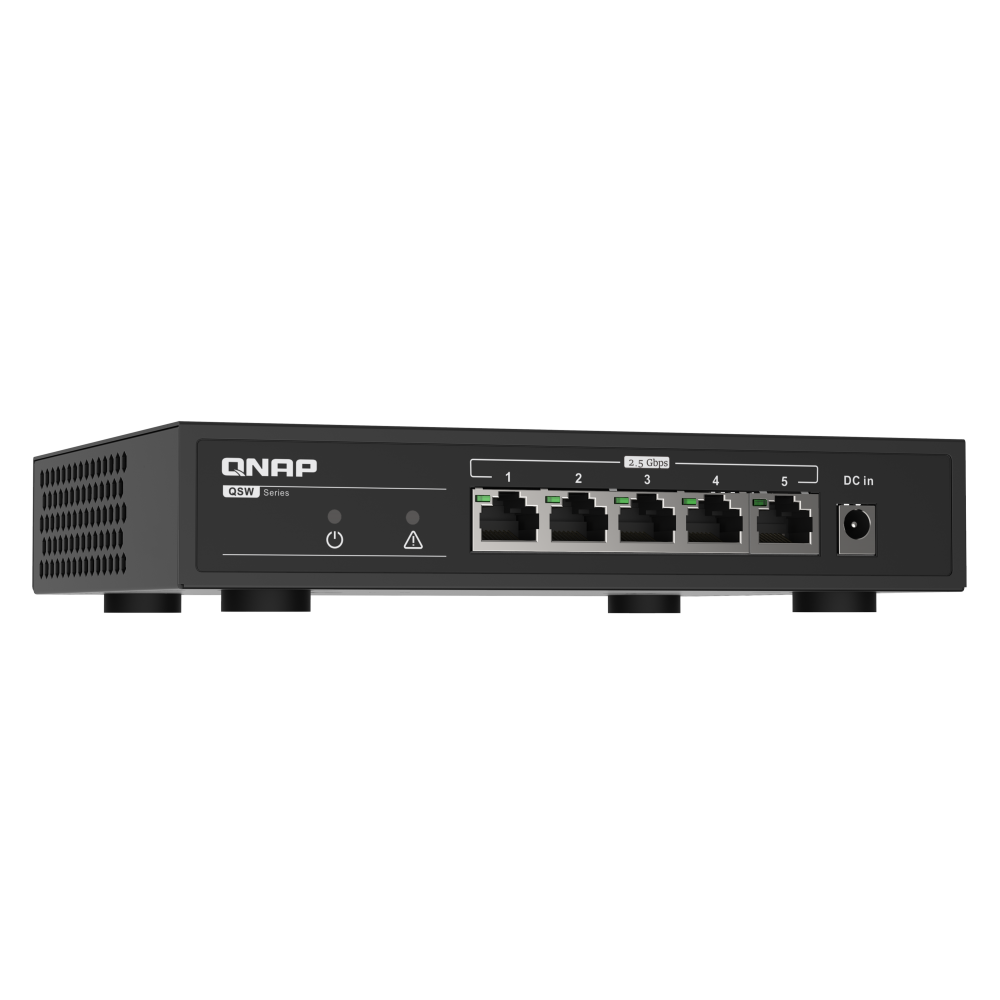

QNAP QSW-1105-5T Unmanaged Switch
A compact fanless switch with five 2.5GbE RJ45 ports, plug-and-play setup, loop detection and a stated switching capacity of 25Gbps.
A simple five-port upgrade for 2.5GbE devices
The QNAP QSW-1105-5T provides five 2.5GbE ports for connecting compatible NAS systems, computers and other network devices. Auto-negotiation, loop detection and fanless operation make it a straightforward choice for high-speed home or small-business networks.
Key features and benefits
Five 2.5GbE ports
Five RJ45 interfaces support 2.5G, 1G and 100M auto-negotiation.
Use existing Cat 5e cabling
The product is positioned to deliver 2.5GbE connectivity over existing Cat 5e network cables.
Plug-and-play setup
The unmanaged design requires no complex switch configuration.
Loop protection
Automatic loop detection and blocking support continuous network operation.
Fanless operation
The ventilated fanless design supports near-silent desktop use.
Compact desktop format
The 34 × 180 × 145 mm chassis fits neatly into home and small-office network spaces.
Who is this model best for?
A strong choice for
- Five-device 2.5GbE network upgrades
- Home and small-business networks
- NAS and workstation connections
- Quiet desktop installations
- Plug-and-play deployments
Consider another model if you need
- You need 10GbE connectivity
- You require web or Layer 2 management
- You require Power over Ethernet
Key specifications
- Management type
- Unmanaged
- Ports
- 5 × 2.5GbE RJ45
- MAC address table
- 16K
- Non-blocking throughput
- 12.5Gbps
- Switching capacity
- 25Gbps
- Cooling
- Fanless
- Maximum power consumption
- 12 W
- Dimensions
- 34 × 180 × 145 mm
- Weight
- 0.577 kg
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Unmanaged |
|---|---|
| Number of Ports | 5 |
| 2.5GbE (RJ45) | 5 |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 12.5Gbps |
| Switching Capacity | 25Gbps |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3x Full-Duplex Flow Control |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Adapter |
|---|---|
| Max. Power Consumption | 12 W |
| Input Power Type | DC |
| Fan | Fanless |
| Fanless | Supported |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 34 x 180 x 145 mm |
| Weight (Net) | 0.577 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
Software and system features
| Input Voltage Range | 12V |
|---|
Warranty and certifications
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ |
|---|---|
| Electromagnetic Compliance | Class B |
| Warranty | 2 Years |
Frequently asked questions about the QSW-1105-5T
What is the QNAP QSW-1105-5T?
It is a compact unmanaged desktop switch with five 2.5GbE RJ45 ports.
How many ports does the QSW-1105-5T have?
It has five 2.5GbE RJ45 ports.
Which network speeds does the QSW-1105-5T support?
Its RJ45 ports support 2.5G, 1G and 100M auto-negotiation.
Does the QSW-1105-5T require configuration?
No. It is an unmanaged plug-and-play switch.
Is the QSW-1105-5T fanless?
Yes. The technical specifications identify a fanless design.
Does the QSW-1105-5T provide loop protection?
Yes. Automatic loop detection and blocking are included.
What is the switching capacity of the QSW-1105-5T?
The stated switching capacity is 25Gbps.
What are the dimensions of the QSW-1105-5T?
The stated dimensions are 34 × 180 × 145 mm.
How much power does the QSW-1105-5T consume?
The stated maximum power consumption is 12 W.
What warranty is provided with the QSW-1105-5T?
The QSW-1105-5T includes a two-year warranty.
Important information
The five RJ45 ports support 2.5G, 1G and 100M auto-negotiation.
The product includes a two-year warranty.
