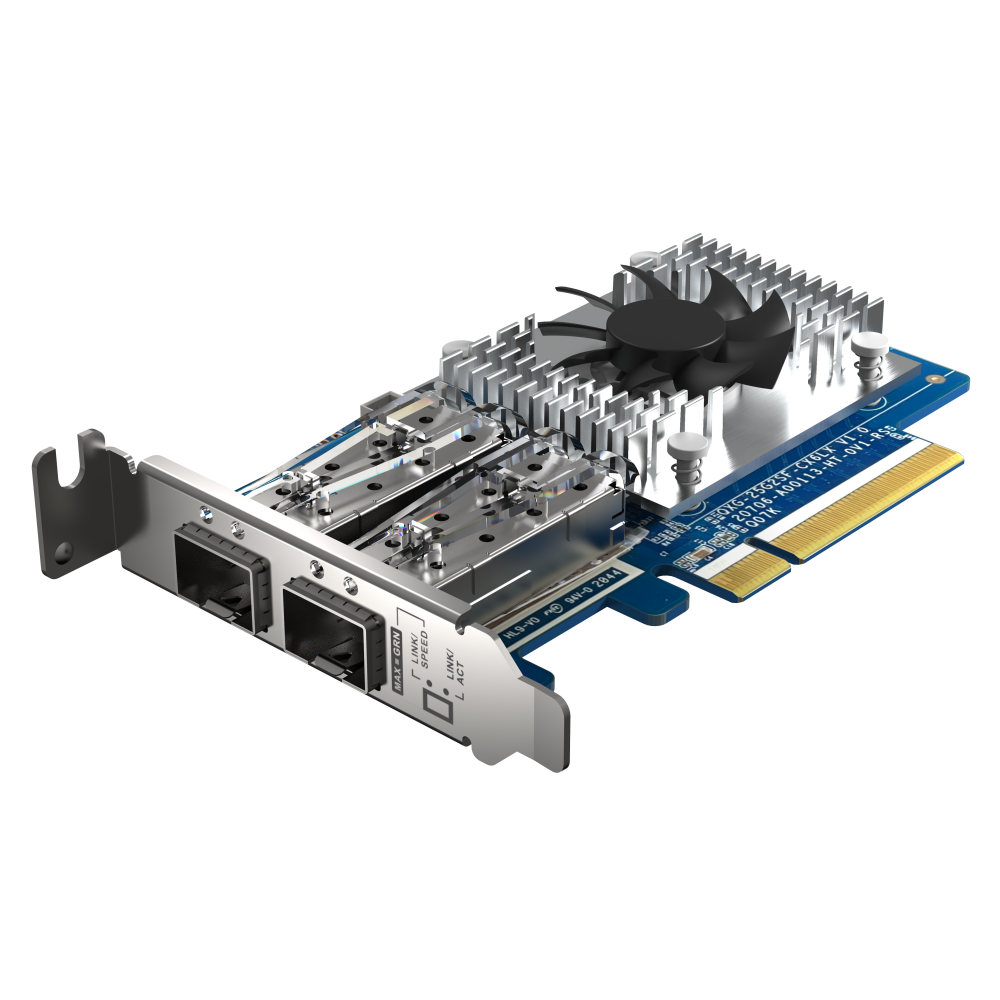

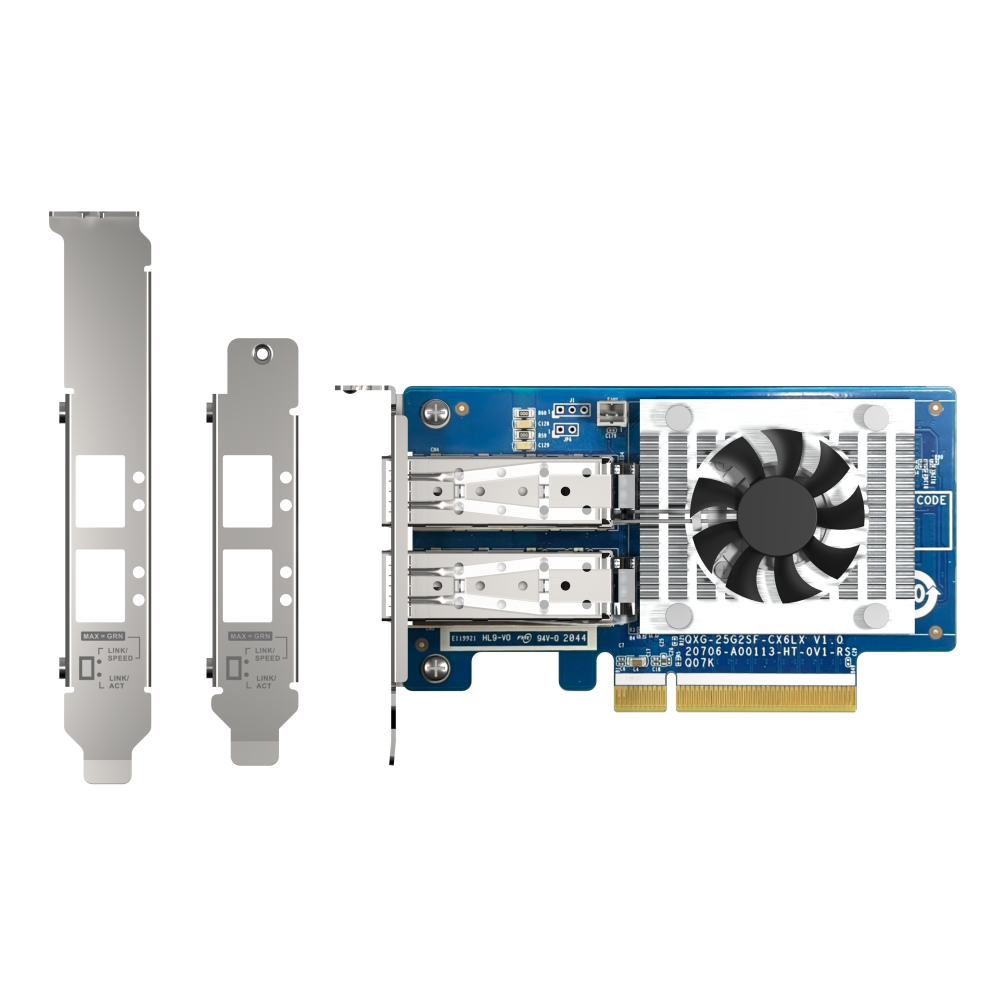

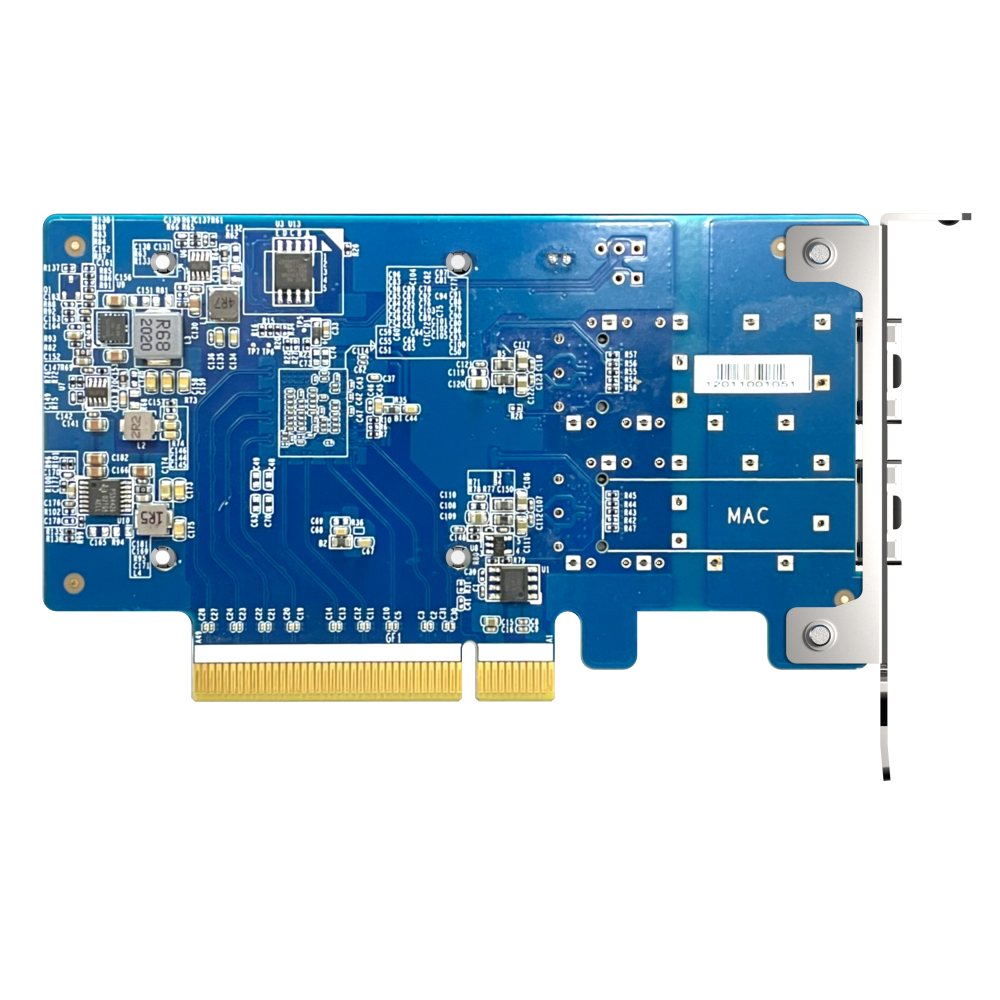

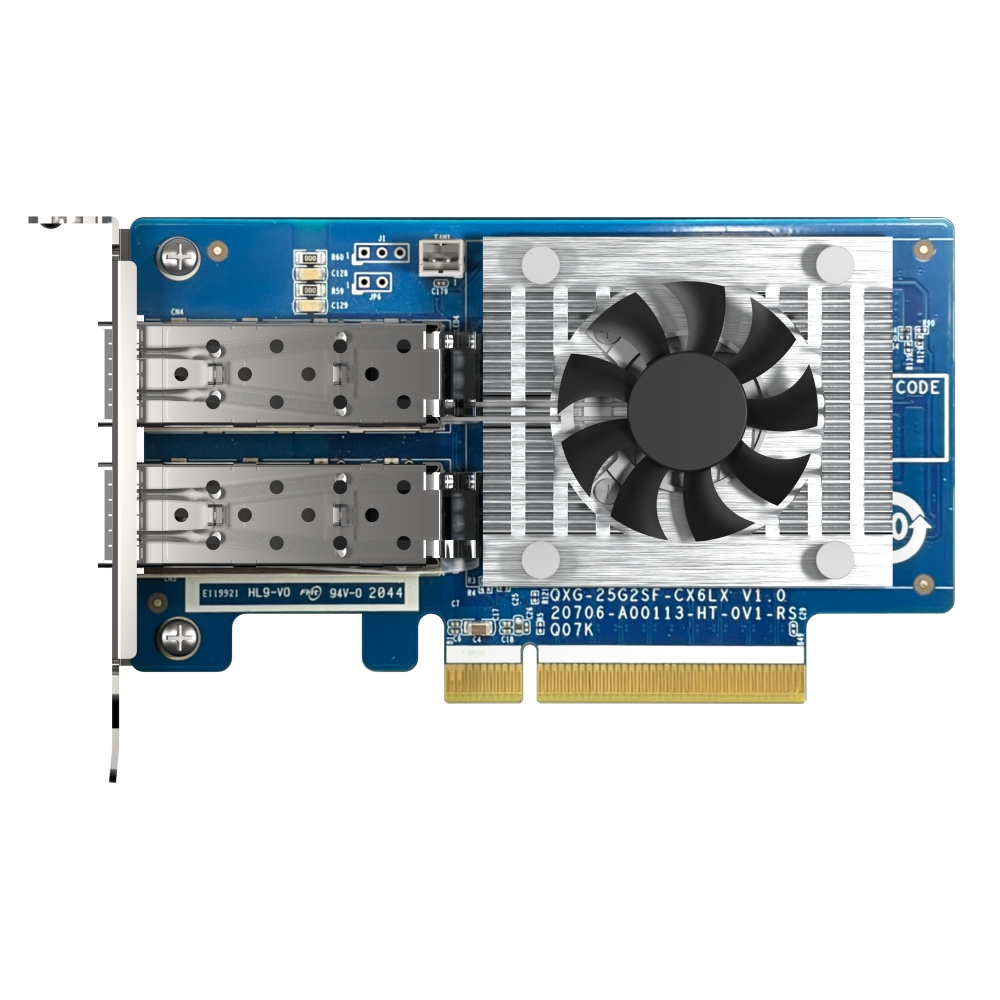

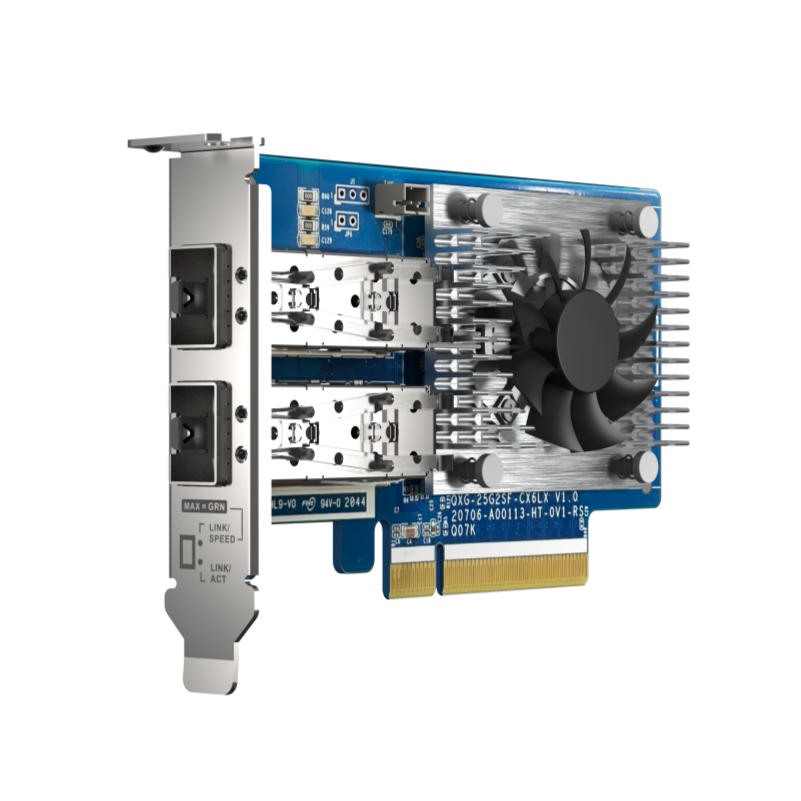

The QXG-25G2SF-CX6 features an NVIDIA Mellanox® ConnectX®-6 Lx SmartNIC controller, supports PCIe Gen4 (backwards compatible with Gen3/ Gen2) and provides up to 25 Gbps transfer speeds (supports 10/25Gbps). By using Port Trunking to combine multiple ports, up to 50GbE can be achieved for accelerating file sharing and intensive data transfer. With SR-IOV support, the QXG-25G2SF-CX6 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications and data centers.
Specification
|
| Dimensions (L x W x H) |
117.33 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| Cable |
CAB-DAC30M-SFP28,CAB-DAC15M-SFP28,TRX-25GSFP28-SR |
| Controller |
NVIDIA Mellanox ConnectX-6 Lx |
| Number of Ports |
2 x SFP28 |
| Connector |
SFP28 |
| PCIe and Lanes |
PCIe Gen4 x8 |
| Transmission Rates |
25Gbps/10Gbps |
| IEEE Standards |
IEEE 802.3ae 10 Gigabit Ethernet
25/50 Ethernet Consortium 25G and 50G supporting all FEC modes
IEEE 802.3by 25G supporting all FEC modes
IEEE 802.3ad, 802.1AX Link Aggregation
IEEE 802.3az Energy Efficient Ethernet (supports only “Fast-Wake” mode)
IEEE 802.3ap based auto-negotiation and KR startup
IEEE 802.1Q, 802.1P VLAN tags and priority
IEEE 802.1Qaz (ETS) |
| Bracket |
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support |
|
| RDMA over Converged Ethernet (RoCE), Zero Touch RoCE (ZTR) Support |
|
| VLAN insertion/stripping Support |
|
| iSER Support |
|
| NVGRE, VXLAN, Geneve Support |
|
| How mant virtual functions |
512 |
| How many physical functions per host |
8 |
| Supported NAS operating systems |
QTS/QuTS hero (recommend an upgrade to the latest version); Windows ; Linux
|
| Supported QNAP NAS |
Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution |
-Ubuntu 20.04
driver: mlx5_core, version: 5.15.0-97-generic
-Ubuntu 22.04
driver: mlx5_core, version: 6.5.0-35-generic |
| Support Windows |
Windows 8/10 |
| Support Windows Server |
Windows Server 2016/2019 |
| Port and Cable |
SFP28 DAC cable (3M) or SFP28 OPTIC transceiver |
| Package Contents |
1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty |
3 years |
