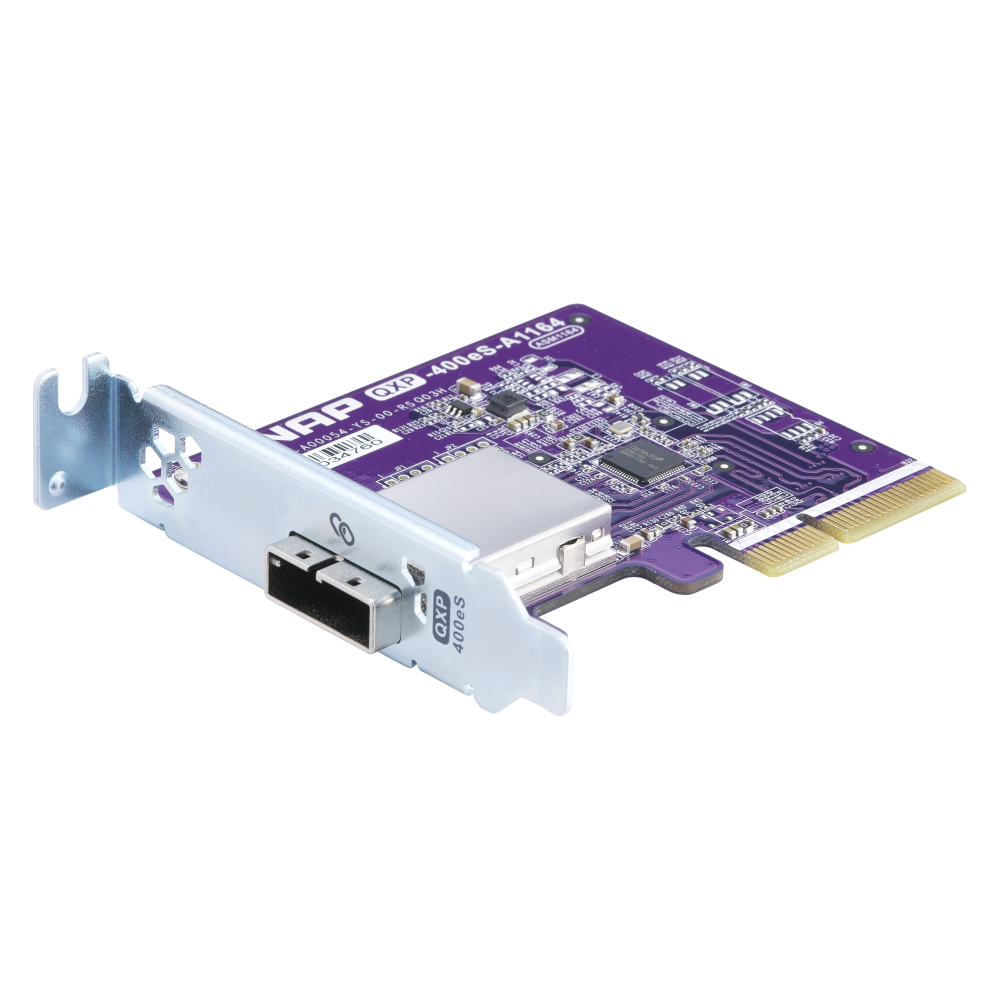

The QXP SATA expansion cards are designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. Expand storage capacity easily by installing a QXP SATA expansion card into the PCIe slot of a QNAP NAS or Windows®/ Ubuntu® (Linux®) PC, and then connect the TL series JBOD storage enclosures using an SFF-8088 (or SFF-8644) cable. The low-profile card form-factor allows QXP SATA expansion cards to be compatible with a wide variety of NAS, computers, and servers.
Specification
| Standard Warranty | 1 year |
| Controller | Asmedia ASM1164 |
| Connector | 1 x SFF-8088 |
| Supported SATA driver numbers | 4 x SATA 6Gb/s drives (Through SFF-8088 connector) |
| PCIe interfaces | PCIe Gen3 x2 (16Gbps) |
| Supported operating systems | - QTS 4.4.2 or later, QuTS hero - Windows 8 or later - Windows Server 2012 R2 or later - Linux with Kernel 3.10 or later |
| Form factor | Low-profile 85 x 68.9 x 17.24 mm (Without bracket 85 x 68.9 x 17.24 mm) |
| Cable | QNAP provides 1.0M SFF-8088 cable for optional purchase. Order number: |
| Architecture Diagram |  |
