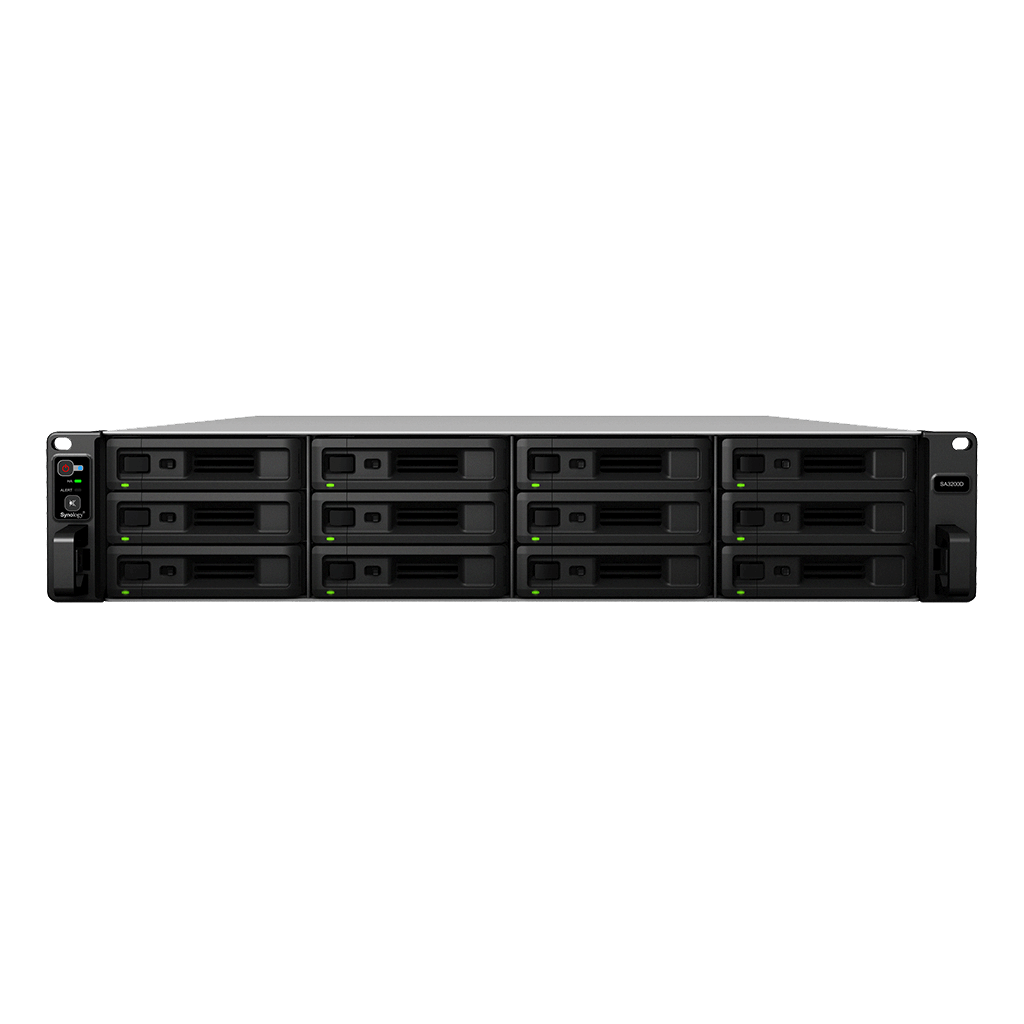

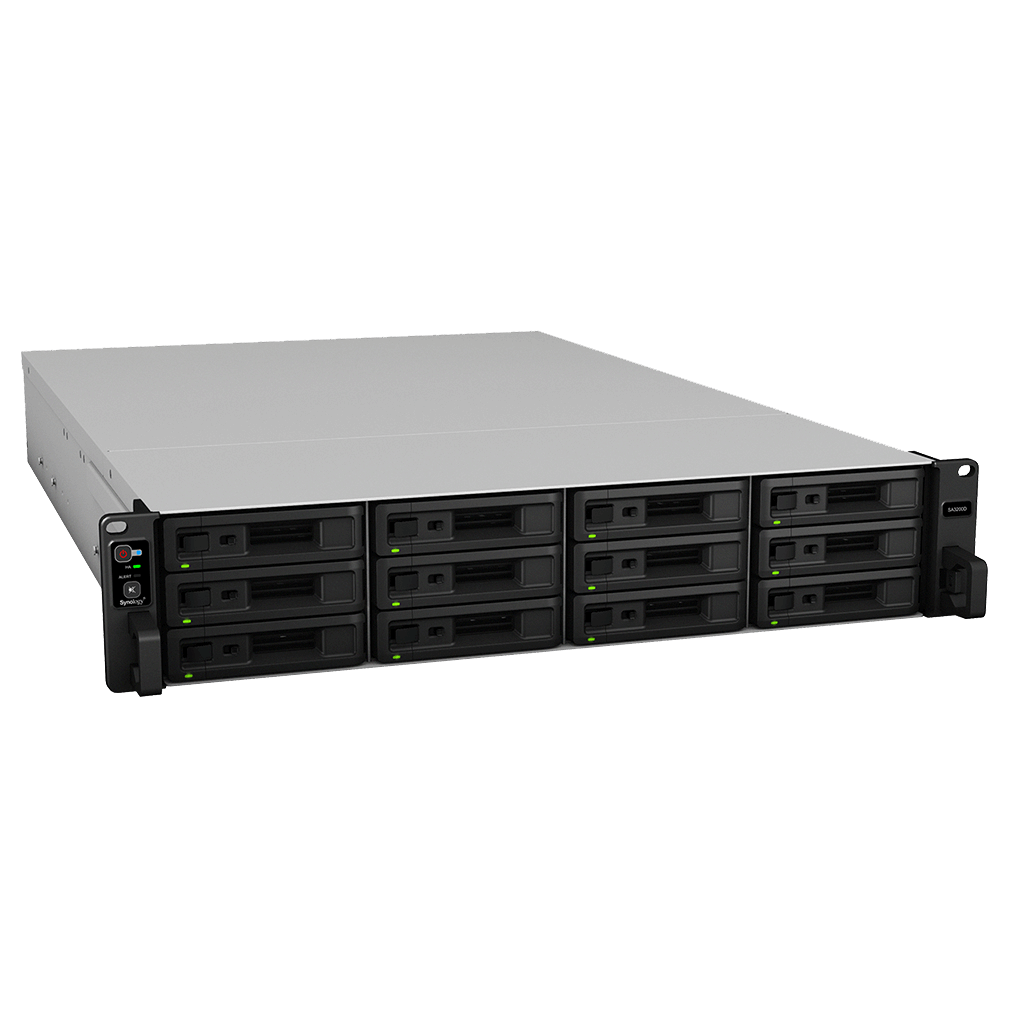

Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute, delivering outstanding cost effectiveness in just a 2U footprint.
High Availability
Dual storage controllers
Cost-effective
Shared storage design
Effortless
Automatic system-level protection
Scalable
Up to 36 drives for 576 TB
Specification
Hardware Specifications
Controller
Number of Controller Module
2
CPU
CPU Model
Intel Xeon D-1521
CPU Quantity
1 (per controller)
CPU Core
4
CPU Architecture
64-bit
CPU Frequency
2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine
Memory
System Memory
8 GB DDR4 ECC UDIMM (per controller)
Memory Module Pre-installed
8 GB (8 GB x 1) (per controller)
Total Memory Slots
4 (per controller)
Maximum Memory Capacity
64 GB (16 GB x 4) (per controller)
Notes
Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
For more information on the recommended memory configurations.
Storage
Drive Bays
12
Maximum Drive Bays with Expansion Unit
36 (RXD1219sas x 2)
Drive Type
3.5” dual port SAS HDD
2.5” dual port SAS HDD
2.5” dual port SAS SSD
Hot Swappable Drive*
External Ports
RJ-45 1GbE LAN Port
2 (per controller)
RJ-45 10GbE LAN Port
1 (per controller)
Expansion Port
1 (per controller)
Expansion Port Type
Mini-SAS HD
PCIe
PCIe Expansion
1 x Gen3 x8 slot (x8 link) (per controller)
Appearance
Form Factor (RU)
2U
Size (Height x Width x Depth)
88 mm x 482 mm x 724 mm
Weight
19.7 kg
Rack Installation Support*
4-post 19" rack
Notes
The rail kit is sold separately
Others
System Fan
60 mm x 60 mm x 2 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*
51.3 dB(A)
Power Supply Unit / Adapter
500 watts
Redundant Power Supply
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
417.48 watts (Access)
British Thermal Unit
1425.45 BTU/hr (Access)
Notes
Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Certification
FCC
CE
BSMI
VCCI
RCM
EAC
CCC
BIS
Warranty
5 Years
Notes
The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Compatibility
✔ Expansion Units: Scalable up to 36 drives with RXD1219sas x 2
Check available Synology NAS Expansion Units
HERE
.
✔ General Compatibility:
See the compatible storage drives and accessories for this Synology device (SKU: SA3200D):
