12-bay scalable SAS/SATA enterprise storage

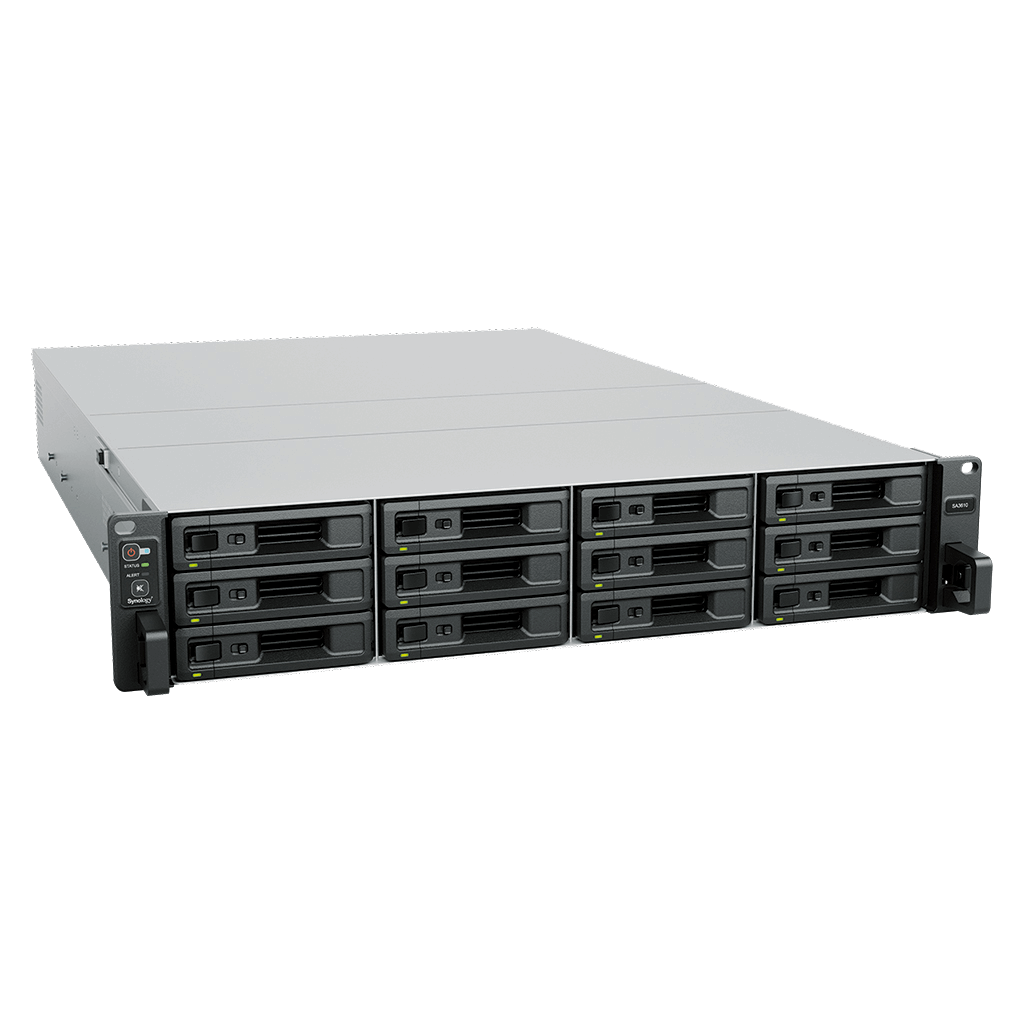

Synology SA3610 12-Bay Scalable Enterprise Storage Server
The Synology SA3610 is designed for large-scale centralised storage, backup and business applications, combining Intel Xeon D-1567, 16 GB DDR4 ECC RDIMM, 12 hot-swappable bays and 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45.
- Processor
- Intel Xeon D-1567
- Memory
- 16 GB DDR4 ECC RDIMM
- Drive bays
- 12 / up to 96
- Networking
- 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45
Petabyte-scale storage with built-in 10GbE
The Synology SA3610 combines twelve SAS/SATA bays, a 12-core Intel Xeon D-1567 processor, 16 GB ECC memory and dual 10GbE networking. Expansion to 96 bays, two PCIe slots and out-of-band management support growing enterprise data, backup and application requirements.
Purpose-selected processor
Intel Xeon D-1567 with 12 cores supports the model's verified business-storage positioning.
12 hot-swappable drive bays
Install compatible 3.5-inch sas/sata hdd; 2.5-inch sas/sata ssd and expand to 96 bays where the listed expansion unit is used.
Expandable ECC memory
The system includes 16 GB DDR4 ECC RDIMM and supports up to 128 GB (32 GB × 4).
Integrated business networking
4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45 provides wired connectivity without requiring the main PCIe expansion option.
Storage and I/O expansion
The verified Mini-SAS HD expansion connection and 2 × Gen3 x8 slots (x8 link) support future capacity or connectivity requirements.
Redundant power supplies
Two power paths reduce exposure to a single power-supply failure.
Who is the Synology SA3610 best for?
A strong choice for
- Centralised business file storage and backup
- Growing data sets that need verified bay expansion
- Rack deployments using ECC memory and built-in 10GbE
- Multi-site file sharing and synchronisation
- IT teams that require hot-swappable drive support and managed expansion
Consider another model if you need
- A smaller system with fewer than 12 drive bays
- An active-active SAN architecture for dedicated block storage
- A SATA-only drive strategy without SAS media
- A desktop enclosure rather than a rackmount system
Key specifications
- Model
- SA3610
- Product type
- 12-bay scalable SAS/SATA enterprise storage
- Processor
- Intel Xeon D-1567, 12 cores, 24 threads
- CPU frequency
- 2.1 GHz base / 2.7 GHz turbo
- System memory
- 16 GB DDR4 ECC RDIMM
- Maximum memory
- 128 GB (32 GB × 4)
- Drive bays
- 12; up to 96 (RX1222sas × 7)
- Drive types
- 3.5-inch SAS/SATA HDD; 2.5-inch SAS/SATA SSD
- Networking
- 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45
- PCIe expansion
- 2 × Gen3 x8 slots (x8 link)
- Dimensions (H × W × D)
- 88 × 482 × 724 mm
- Warranty
- 5 years
Full technical specifications
Processor, controller and memory
| Model | SA3610 |
|---|---|
| CPU model | Intel Xeon D-1567 |
| CPU quantity | 1 |
| CPU cores | 12 |
| CPU threads | 24 |
| CPU architecture | 64-bit |
| CPU frequency | 2.1 GHz base / 2.7 GHz turbo |
| Hardware encryption engine | Supported |
| System memory | 16 GB DDR4 ECC RDIMM |
| Pre-installed memory | 16 GB (16 GB × 1) |
| Total memory slots | 4 |
| Maximum memory capacity | 128 GB (32 GB × 4) |
| Memory guidance | Use Synology memory modules and follow the exact model manual for supported configurations |
Storage, network and expansion
| Drive bays | 12 |
|---|---|
| Maximum drive bays with expansion | 96 (RX1222sas × 7) |
| Compatible drive types | 3.5-inch SAS/SATA HDD; 2.5-inch SAS/SATA SSD |
| Hot-swappable drives | Supported |
| RJ-45 1GbE LAN ports | 4 |
| RJ-45 10GbE LAN ports | 2 |
| Out-of-band management LAN port | 1 |
| Maximum number of LAN ports | 15 |
| USB ports | 2 × USB 3.2 Gen 1 |
| Expansion ports | 1 |
| Expansion port type | Mini-SAS HD |
| PCIe expansion | 2 × Gen3 x8 slots (x8 link) |
| Drive compatibility | Use only drives listed for the exact system on Synology’s current compatibility list |
Physical design and power
| Form factor | 2U |
|---|---|
| Size (H × W × D) | 88 × 482 × 724 mm |
| Weight | 14.5 kg |
| Rack installation | 4-post 19-inch rack; compatible rail kit sold separately |
| System fan | 80 × 80 mm × 4 |
| Fan modes | Full-speed, cool and quiet |
| Easy-replacement system fan | Supported |
| Noise level | 49.8 dB(A) |
| Power recovery | Supported |
| Scheduled power on/off | Supported |
| Wake on LAN/WAN | Supported |
| Power supply unit | 550 W |
| Redundant power supply | Supported |
| AC input | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Power consumption | 137.54 W (access); 58.23 W (HDD hibernation) |
| British Thermal Unit | 469.30 BTU/hr (access); 198.68 BTU/hr (HDD hibernation) |
Environment, warranty and package
| Operating temperature | 0°C to 35°C (32°F to 95°F) |
|---|---|
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating humidity | 8% to 80% RH |
| Storage humidity | 5% to 95% RH |
| Certifications | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL |
| Environment | RoHS compliant |
| Warranty | 5 years |
| Package contents | Main unit × 1; accessory pack × 1; AC power cord × 2; quick installation guide × 1 |
Frequently asked questions about the Synology SA3610
What is the Synology SA3610?
The Synology SA3610 is a 12-bay rackmount network attached storage system designed for large-scale centralised storage, backup and business applications.
Which processor is in the SA3610?
It uses the Intel Xeon D-1567 with 12 cores and 24 threads, operating at 2.1 GHz base / 2.7 GHz turbo.
How much memory does the SA3610 include?
It includes 16 GB DDR4 ECC RDIMM and supports up to 128 GB (32 GB × 4).
How many drive bays does the SA3610 have?
It has 12 hot-swappable bays and supports up to 96 (RX1222sas × 7).
Which drives are supported by the SA3610?
The verified drive categories are 3.5-inch sas/sata hdd; 2.5-inch sas/sata ssd. Confirm the exact drive model on Synology's compatibility list before purchase.
What network ports are built into the SA3610?
The SA3610 includes 4 × 1GbE RJ-45 plus 2 × 10GbE RJ-45.
What expansion is available for the SA3610?
It provides 2 × Gen3 x8 slots (x8 link) plus 1 Mini-SAS HD expansion connection. Use only options listed for the exact model.
Does the SA3610 have redundant power?
Yes. The SA3610 includes redundant power supplies.
What are the dimensions of the SA3610?
It measures 88 × 482 × 724 mm in height × width × depth and weighs 14.5 kg.
What warranty applies to the SA3610?
Synology specifies 5 years. The warranty begins from the purchase date shown on the receipt.
- This product is supplied diskless unless the listing explicitly states otherwise; storage drives are sold separately.
- Confirm drives, memory, expansion units, rail kits and add-in cards on Synology’s current compatibility list for the exact model before purchase.
- Actual storage capacity and performance depend on the installed drives, RAID or storage configuration, network and workload.
- The rail kit is sold separately.
