3-Bay 2.5GbE Multimedia NAS

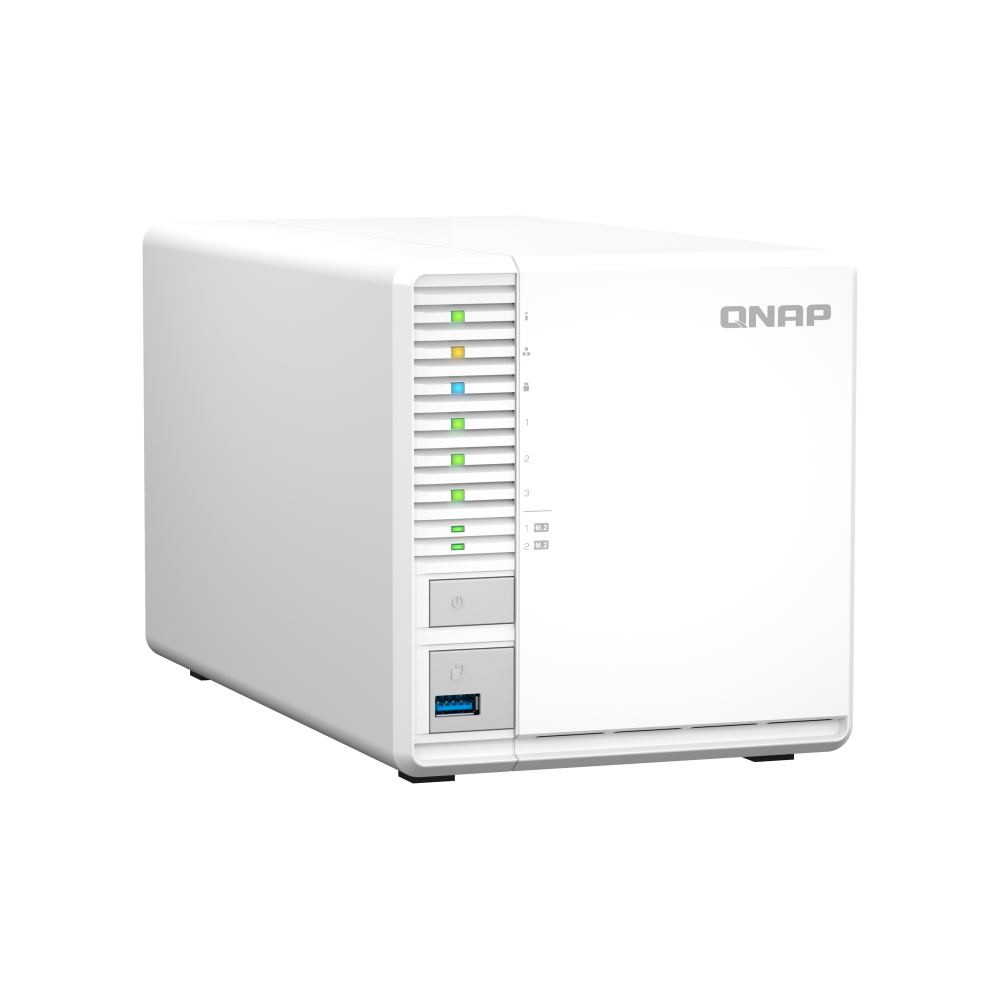

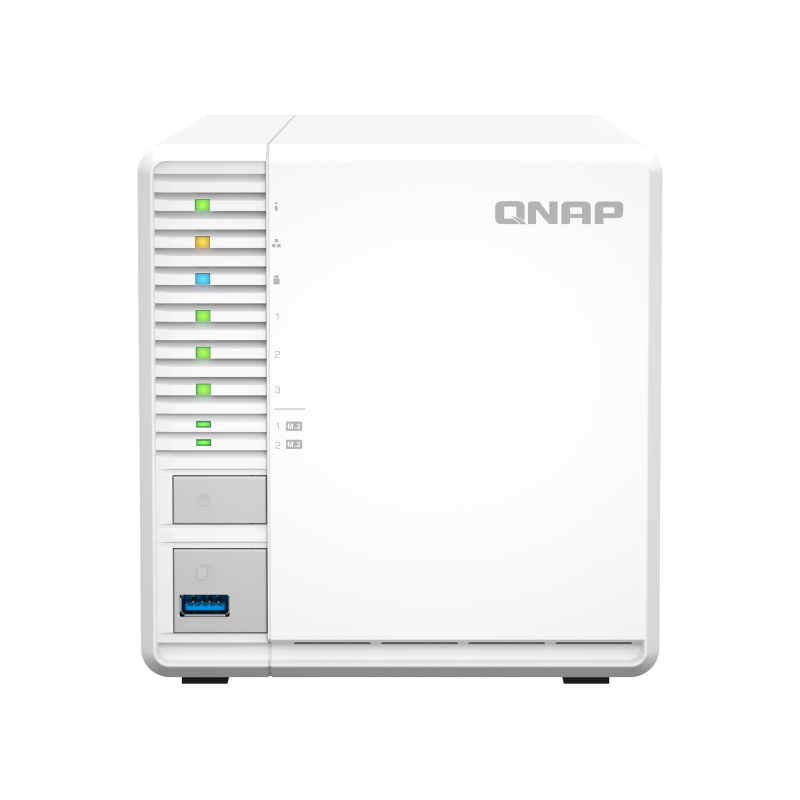

QNAP TS-364-8G Desktop NAS
A three-bay NAS with an Intel Celeron N5095 quad-core processor, 8 GB memory, dual M.2 NVMe slots, 2.5GbE, HDMI output and two USB 3.2 Gen 2 ports.
Three-bay storage with RAID 5, NVMe and multimedia features
The QNAP TS-364-8G provides three SATA bays for a compact RAID 5 configuration, plus two M.2 NVMe slots for cache acceleration or SSD storage pools. Its 2.5GbE port, Intel UHD Graphics, HDMI 1.4b, hardware-accelerated transcoding, USB 3.2 Gen 2 and support for virtual machines and containers suit home storage, multimedia and compact application workloads.
Key features and benefits
Three-bay RAID 5 option
Three drive bays allow a RAID 5 array using the minimum number of disks stated in the product description.
Dual M.2 NVMe slots
Two M.2 2280 PCIe Gen 3 x2 slots support compatible NVMe SSDs for caching or SSD storage pools.
2.5GbE connectivity
A 2.5GbE RJ45 port supports faster file access over compatible network equipment.
Integrated graphics and HDMI
Intel UHD Graphics, hardware-accelerated transcoding and HDMI 1.4b support multimedia use.
Fast USB connectivity
Two USB 3.2 Gen 2 Type-A ports and one USB 3.2 Gen 1 port support connected storage and peripherals.
QTS and QuTS hero path
The model runs QTS by default and can switch to QuTS hero starting from QTS 5.2.2.
Who is this model best for?
A strong choice for
- Three-drive RAID 5 storage
- Home file and multimedia libraries
- M.2 NVMe caching or storage pools
- Compact virtual machines and containers
- Single-port 2.5GbE environments
Consider another model if you need
- You need more than three SATA drive bays
- You require multiple built-in network ports
- You need built-in 10GbE connectivity
Key specifications
- Processor
- Intel Celeron N5095, 4-core/4-thread, burst up to 2.9 GHz
- System memory
- 8 GB RAM
- Maximum memory
- 8 GB
- Drive bays
- 3 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD with optional TRAY-25-NK-BLK03
- M.2 slots
- 2 × M.2 2280 PCIe Gen 3 x2
- Networking
- 1 × 2.5GbE RJ45
- USB
- 1 × USB 3.2 Gen 1; 2 × USB 3.2 Gen 2 Type-A
- HDMI
- 1 × HDMI 1.4b, up to 4096 × 2160 at 30Hz
- Dimensions
- 146 × 142 × 257.1 mm
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 8 GB RAM |
| Maximum Memory | 8 GB |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 3 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives An optional 2.5" drive tray base (TRAY-25-NK-BLK03) is needed to install a 2.5" SSD/HDD |
| Hot-swappable | Supported |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1(2.5G/1G/100M) |
|---|---|
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | System Status, LAN, USB, HDD1~3, M.2 SSD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 146 × 142 × 257.1 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 2.6 kg |
| Weight (Gross) | 3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 65W adapter, 100 - 240V |
| Power Consumption: HDD Sleep Mode | 18.9 W |
| Power Consumption: Operating Mode, Typical | 32.8 W Tested with drives fully populated. |
| Fan | 1 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-364-8G
What is the QNAP TS-364-8G?
It is a three-bay desktop NAS with an Intel Celeron processor, two M.2 NVMe slots, 2.5GbE and HDMI output.
Which processor does the TS-364-8G use?
The TS-364-8G uses an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9 GHz.
How much memory is included with the TS-364-8G?
The TS-364-8G includes 8 GB RAM, which is also the stated maximum memory capacity.
How many drive bays does the TS-364-8G have?
It has three 3.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-364-8G?
It supports 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives; the specified optional tray base is required for a 2.5-inch drive.
Which network ports are built into the TS-364-8G?
It includes one 2.5GbE RJ45 port supporting 2.5G, 1G and 100M speeds.
What expansion options does the TS-364-8G provide?
It provides two M.2 2280 PCIe Gen 3 x2 slots for compatible NVMe SSDs.
What form factor is the TS-364-8G?
It is a compact desktop tower NAS.
What are the dimensions of the TS-364-8G?
Its stated dimensions are 146 × 142 × 257.1 mm, excluding the foot pad.
Can the TS-364-8G use RAID 5?
Yes. The product description specifically positions its three bays for building a RAID 5 array.
Important information
This NAS is supplied without drives.
The optional TRAY-25-NK-BLK03 drive-tray base is required to install a 2.5-inch SSD or HDD in a SATA bay.
The stated 32.8 W operating figure was tested with drives fully populated.
The stated maximum memory capacity is 8 GB.
