4-Bay Fanless SATA SSD NAS

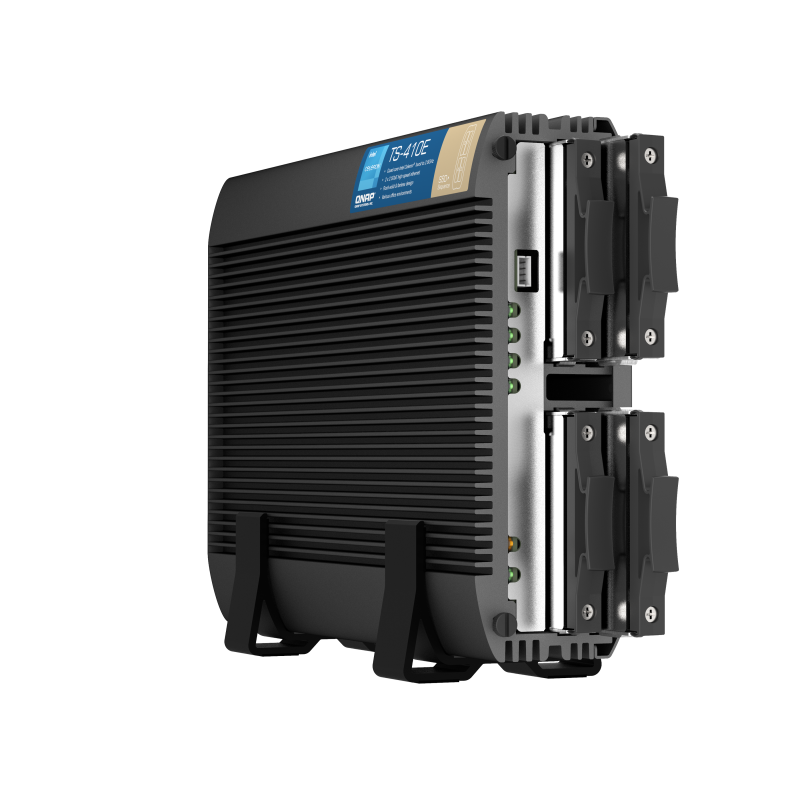

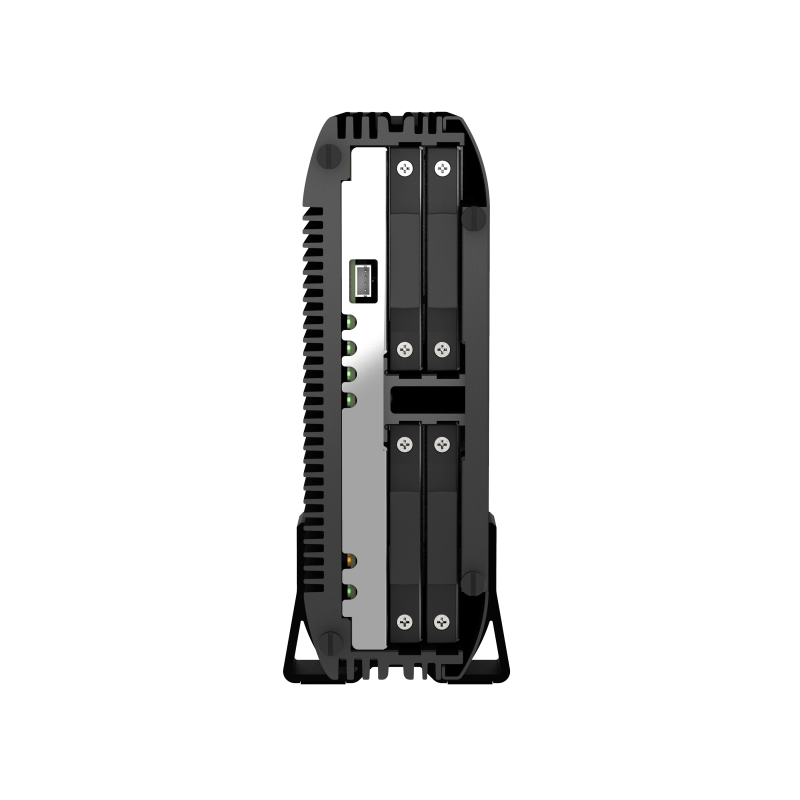

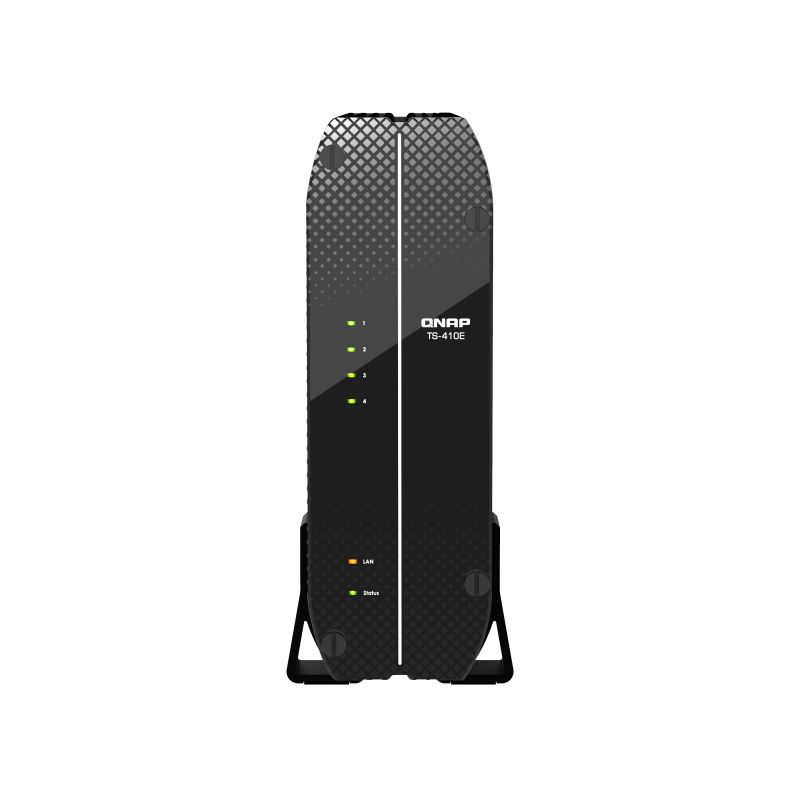

QNAP TS-410E-8G Fanless SSD NAS
A fanless four-bay 2.5-inch SATA SSD NAS with an Intel Celeron J6412 quad-core processor, 8 GB onboard memory, dual 2.5GbE, four USB 3.2 Gen 2 ports and 4K HDMI output.
Quiet, space-conscious SSD storage with 2.5GbE and HDMI
The QNAP TS-410E-8G is designed for noise-sensitive environments, using a fanless chassis and four 2.5-inch SATA SSD bays. Dual 2.5GbE, four USB 3.2 Gen 2 ports, HDMI 1.4b, integrated graphics, hardware-accelerated transcoding, multimedia streaming and backup tools support professional, media and data-protection workflows.
Key features and benefits
Fanless chassis
The fanless, low-vibration design supports quiet operation and helps limit dust build-up.
Four SATA SSD bays
Four hot-swappable 2.5-inch SATA bays provide an all-SSD storage layout.
Dual 2.5GbE connectivity
Two 2.5GbE RJ45 ports support port trunking with a stated combined transfer speed up to 5Gbps.
4K HDMI output
HDMI 1.4b supports output up to 3840 × 2160 at 30Hz.
Four 10Gbps USB ports
Four USB 3.2 Gen 2 ports support fast connections to compatible USB devices.
Backup and multimedia tools
Data backup, recovery, centralised media storage, streaming and real-time transcoding are included.
Who is this model best for?
A strong choice for
- Noise-sensitive workspaces
- Compact all-SSD storage
- 2.5GbE file access
- HDMI-connected multimedia use
- Backup and recovery workflows
Consider another model if you need
- You require 3.5-inch hard-drive bays
- You need expandable system memory
- You require built-in 10GbE networking
Key specifications
- Processor
- Intel Celeron J6412, 4-core/4-thread, burst up to 2.6 GHz
- System memory
- 8 GB onboard, non-expandable
- Drive bays
- 4 × 2.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 2.5-inch SATA solid state drives
- Networking
- 2 × 2.5GbE RJ45
- USB
- 4 × USB 3.2 Gen 2, 10Gbps
- HDMI
- 1 × HDMI 1.4b, up to 3840 × 2160 at 30Hz
- Form factor
- Fanless tower
- Dimensions
- 180 × 59.1 × 244 mm
- Power supply
- External 90W or above, AC 100–240V
Full technical specifications
Processor, memory and storage
| CPU | Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 8 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory. |
| Maximum Memory | 8 GB on board (non-expandable) |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. |
| Drive Compatibility | 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| USB 3.2 Gen 2 (10Gbps) Port | 4 |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 3840 x 2160 @ 30Hz) |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | Power/Status, LAN, SSD 1-4 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 180 × 59.1 × 244 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 3.87 kg |
| Weight (Gross) | 3.87 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | External Power Adapter, 90W and above, AC 100-240V |
| Power Consumption: HDD Sleep Mode | 13.494 W |
| Power Consumption: Operating Mode, Typical | 22.694 W Tested with drives fully populated. |
| System Warning | Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-410E-8G
What is the QNAP TS-410E-8G?
It is a fanless four-bay SATA SSD NAS with dual 2.5GbE, four USB 3.2 Gen 2 ports and 4K HDMI output.
Which processor does the TS-410E-8G use?
The TS-410E-8G uses an Intel Celeron J6412 four-core, four-thread processor with burst speed up to 2.6 GHz.
How much memory is included with the TS-410E-8G?
The TS-410E-8G includes 8 GB onboard memory, which is stated as non-expandable.
How many drive bays does the TS-410E-8G have?
It has four 2.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-410E-8G?
It supports 2.5-inch SATA solid state drives.
Which network ports are built into the TS-410E-8G?
It includes two 2.5GbE RJ45 ports supporting 2.5G, 1G, 100M and 10M speeds.
What expansion options does the TS-410E-8G provide?
It provides four USB 3.2 Gen 2 ports; no PCIe or M.2 expansion slot is listed.
What form factor is the TS-410E-8G?
It is a fanless tower NAS that can be positioned upright.
What are the dimensions of the TS-410E-8G?
Its stated dimensions are 180 × 59.1 × 244 mm, excluding the foot pad.
Which HDMI output does the TS-410E-8G include?
It includes one HDMI 1.4b output supporting up to 3840 × 2160 at 30Hz.
Important information
The system is shipped without drives.
The installed 8 GB onboard memory is non-expandable and reserves some capacity for shared graphics memory.
The stated 22.694 W operating figure was tested with drives fully populated.
Long-term availability is stated as up to 2029.
