8-Bay High-Capacity Tower NAS

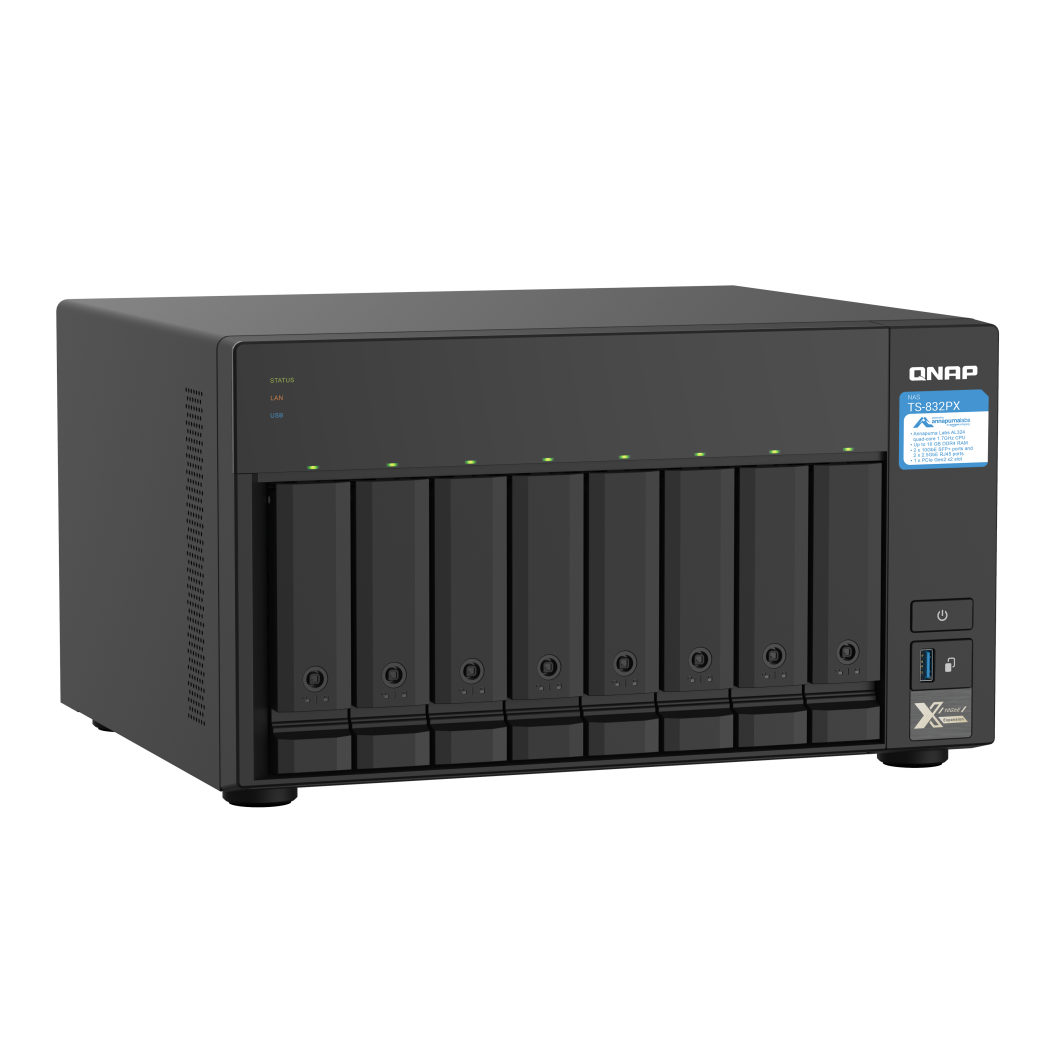

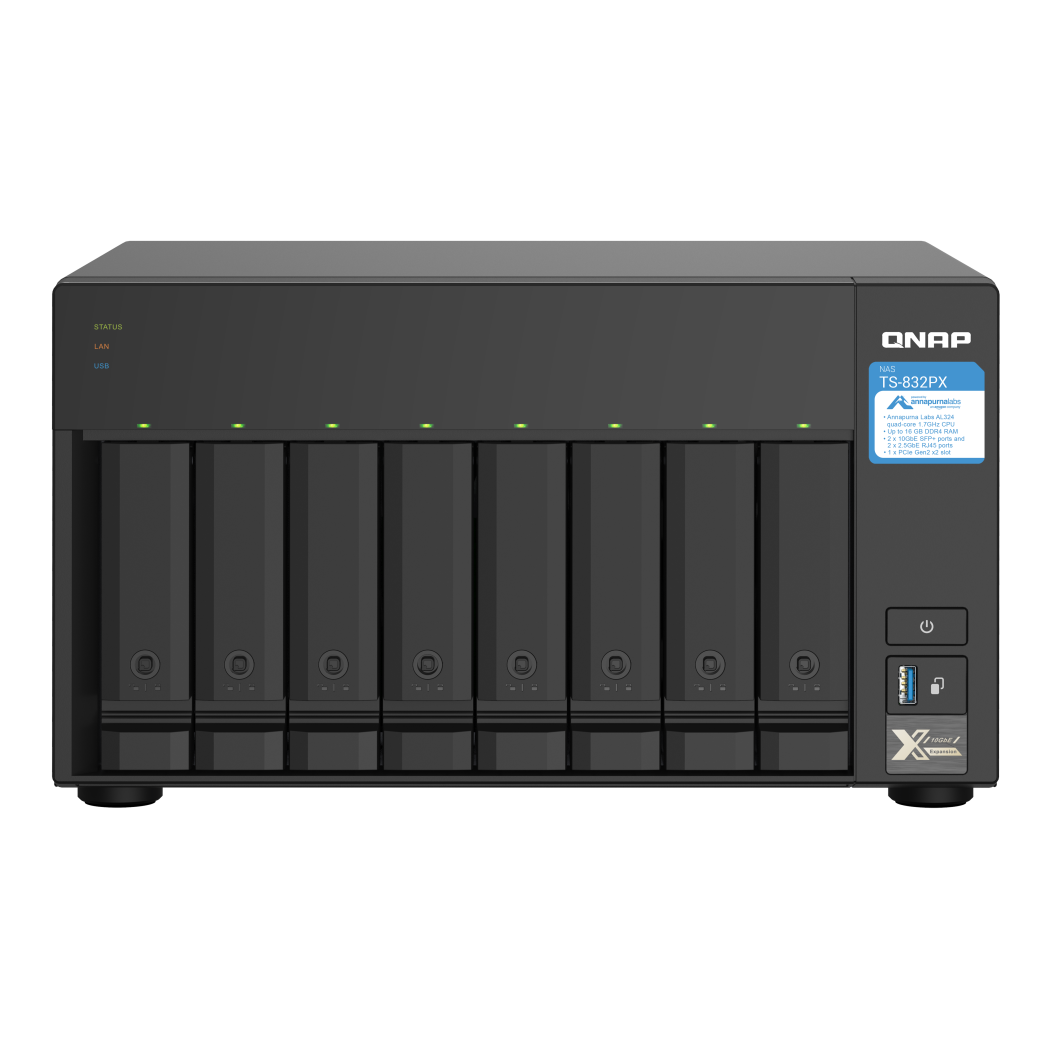

QNAP TS-832PX-4G High-Capacity NAS
An eight-bay tower NAS with a quad-core Alpine AL324 processor, 4 GB DDR4 memory, dual 10GbE SFP+, dual 2.5GbE and PCIe expansion.
High-capacity desktop storage with 10GbE connectivity
The QNAP TS-832PX-4G brings eight SATA bays, dual 10GbE SFP+ and dual 2.5GbE into a tower chassis for shared storage, file access and backup. A PCIe slot supports compatible expansion cards, while snapshots, Qtier, SSD caching, cloud storage gateways and expansion-enclosure support provide options for performance and capacity growth.
Key features and benefits
Eight-bay tower capacity
Eight 3.5-inch bays provide substantial room for centralised files and backups without a rack chassis.
Dual 10GbE SFP+
Two SFP+ ports support high-bandwidth file sharing and storage access.
Dual 2.5GbE RJ45
Two copper multi-gigabit ports add flexible connectivity for everyday networks.
Optional M.2 through PCIe
A compatible QM2 card can add M.2 SATA or NVMe SSDs for caching and Qtier.
Snapshots and hybrid cloud
Snapshot protection and cloud storage gateways support recovery and hybrid-cloud workflows.
External capacity growth
The product description states support for QNAP TR RAID expansion enclosures and TL JBOD units.
Who is this model best for?
A strong choice for
- High-capacity tower storage
- 10GbE SFP+ workgroups
- Centralised file sharing and backup
- Snapshot and hybrid-cloud workflows
- Teams that want capacity expansion without moving to rackmount
Consider another model if you need
- You require redundant power
- You need built-in M.2 slots
- You require an x86 processor platform
Key specifications
- Processor
- AnnapurnaLabs Alpine AL324 ARM Cortex-A57, 4-core 1.7 GHz
- System memory
- 4 GB SODIMM DDR4 (1 × 4 GB)
- Maximum memory
- 16 GB (1 × 16 GB)
- Drive bays
- 8 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 2 × 10GbE SFP+; 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 2 x2 slot
- USB
- 3 × USB 3.2 Gen 1
- Dimensions
- 180.2 × 329.3 × 280.8 mm
- Power supply
- 250W, 100–240V AC
Full technical specifications
Processor, memory and storage
| CPU | AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor |
|---|---|
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Supported |
| Encryption Engine | Supported |
| System Memory | 4 GB SODIMM DDR4(1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x SODIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. Card dimensions for PCIe slot:210 x 68.9x 24.76 mm / 8.27 x 2.71 x 0.97 inches. |
| USB 3.2 Gen 1 port | 3 |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | System Status, LAN, USB, HDD1~8 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 × 329.3 × 280.8 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 7.05 kg |
| Weight (Gross) | 8 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 27.949 W |
| Power Consumption: Operating Mode, Typical | 50.858 W Tested with drives fully populated. |
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm |
| System Warning | Voice prompts or Buzzer |
| Kensington Security Slot | Supported |
Frequently asked questions about the TS-832PX-4G
What is the QNAP TS-832PX-4G?
It is an eight-bay tower NAS with dual 10GbE SFP+, dual 2.5GbE and one PCIe expansion slot.
Which processor does the TS-832PX-4G use?
The TS-832PX-4G uses an AnnapurnaLabs Alpine AL324 ARM Cortex-A57 four-core 1.7 GHz processor.
How much memory is included with the TS-832PX-4G?
The TS-832PX-4G includes 4 GB SODIMM DDR4 memory and supports a stated maximum of 16 GB.
How many drive bays does the TS-832PX-4G have?
It has eight 3.5-inch SATA 6Gb/s, 3Gb/s drive bays.
Which drive types are supported by the TS-832PX-4G?
It supports 3.5-inch SATA HDDs, 2.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Which network ports are built into the TS-832PX-4G?
It includes two 10GbE SFP+ ports and two 2.5GbE RJ45 ports.
What expansion options does the TS-832PX-4G provide?
It has one PCIe Gen 2 x2 slot, and M.2 SSD support can be added through a compatible PCIe adapter.
What form factor is the TS-832PX-4G?
It is a desktop tower NAS.
What are the dimensions of the TS-832PX-4G?
Its stated dimensions are 180.2 × 329.3 × 280.8 mm, excluding the foot pads.
Does the TS-832PX-4G support SSD caching?
Yes. SSD cache acceleration is supported, with M.2 SSD options available through a compatible PCIe adapter.
Important information
The PCIe Gen 2 x2 bandwidth can restrict 10GbE performance.
The stated 50.858 W operating figure was tested with drives fully populated.
Check drive, PCIe-card and expansion-enclosure compatibility before purchase.
