8-Bay Short-Depth Rackmount NAS

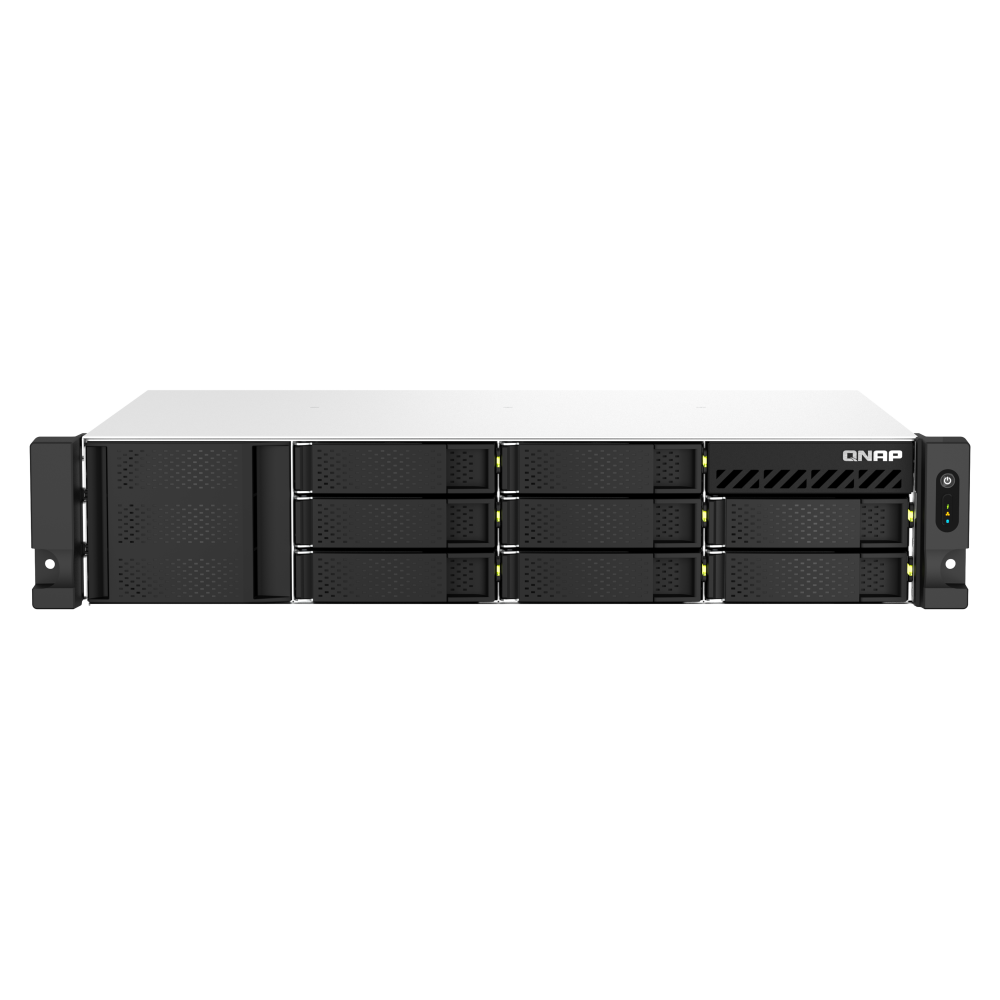

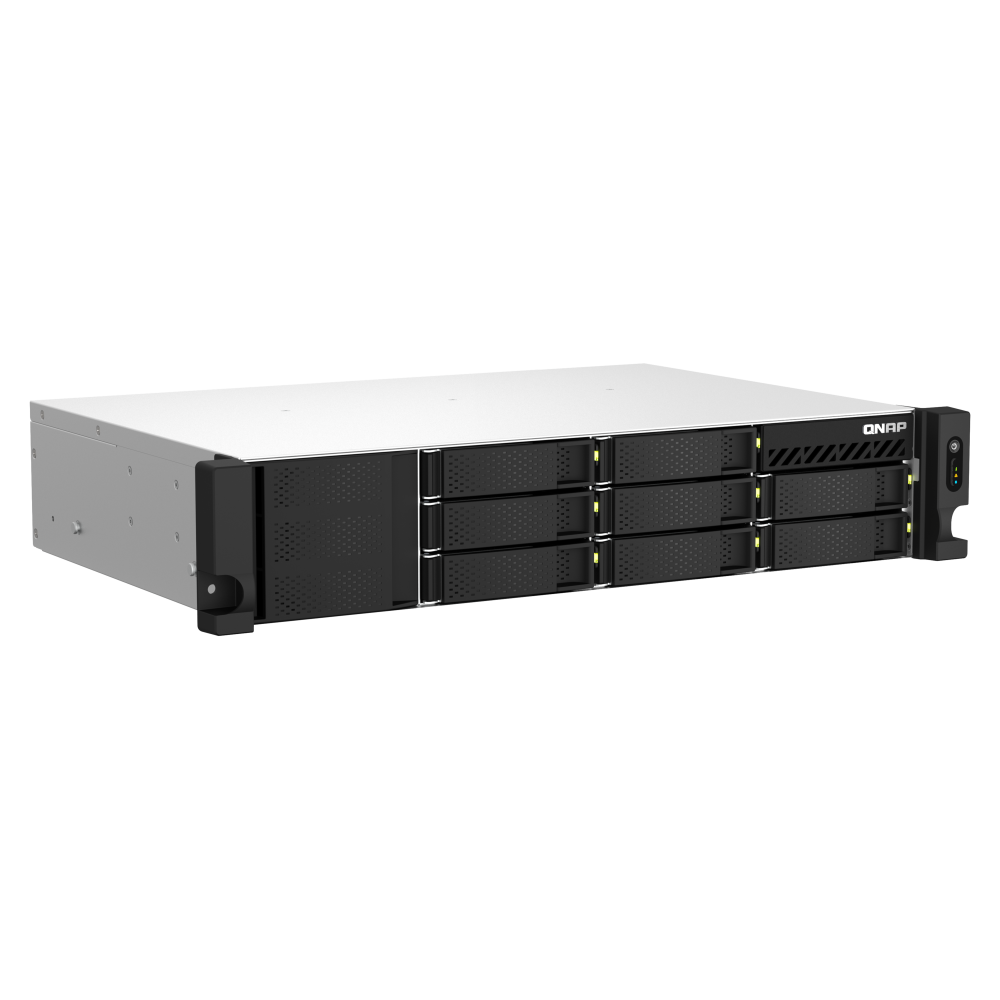

QNAP TS-873AeU-RP-4G Short-Depth Rackmount NAS
An eight-bay 2U short-depth NAS with an AMD Ryzen Embedded V1500B processor, 4 GB DDR4 memory, dual 2.5GbE ports, two M.2 NVMe slots, PCIe expansion and redundant power.
Short-depth rack storage with redundant power
The QNAP TS-873AeU-RP-4G provides eight SATA bays in a 297.4 mm-deep 2U chassis designed for compact racks and cabling-dense installations. Dual 2.5GbE, two M.2 NVMe slots, a PCIe Gen 3 x8 slot and dual power supplies support shared storage, virtual machines, multi-user access and hybrid-cloud workflows.
Key features and benefits
297.4 mm short-depth chassis
The compact depth suits smaller racks, media cabinets and installations where rear cabling space is limited.
Dual 2.5GbE networking
Two 2.5GbE RJ45 ports provide multi-gigabit connectivity and support port trunking.
Two M.2 NVMe slots
Two M.2 2280 PCIe Gen 3 x1 slots support compatible NVMe SSDs for cache acceleration.
PCIe expansion
One PCIe Gen 3 x8 slot supports compatible network, QM2 or Fibre Channel cards within the stated dimensions.
Virtual machine support
The feature set includes virtual machines and containers for running applications on the NAS.
Redundant power
Two 300W power supplies support continuity-focused rack deployments.
Who is this model best for?
A strong choice for
- Short-depth business rack installations
- Shared storage and multi-user access
- Virtual machines and containers
- SSD caching with compatible M.2 NVMe drives
- Deployments requiring redundant power
Consider another model if you need
- You need built-in 10GbE connectivity
- You require more than 4 GB memory installed initially
- You prefer a tower chassis
Key specifications
- Processor
- AMD Ryzen Embedded V1500B, 4-core/8-thread 2.2 GHz
- System memory
- 4 GB SODIMM DDR4 (1 × 4 GB)
- Maximum memory
- 64 GB (2 × 32 GB)
- Drive bays
- 8 × 3.5-inch SATA 6Gb/s, 3Gb/s; supplied without HDDs
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- M.2 slots
- 2 × M.2 2280 PCIe Gen 3 x1
- Networking
- 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 3 x8 slot
- Dimensions
- 88.6 × 432 × 297.4 mm
- Power supply
- 300W × 2, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
|---|---|
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 1 x PCIe Gen3 x8 Card dimensions for PCIe slot:210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
| HDMI™ Output | Optional via a PCIe graphics card |
Physical, environmental and power
| Form Factor | 2U Short Depth Rackmount |
|---|---|
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.2 kg |
| Weight (Gross) | 10.7 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 300W PSU(x2), 100 - 240V |
| Power Consumption: HDD Sleep Mode | 32.19 W |
| Power Consumption: Operating Mode, Typical | 58.14 W Tested fully populated with WD10EFRX hard drives. |
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-873AeU-RP-4G
What is the QNAP TS-873AeU-RP-4G?
It is an eight-bay 2U short-depth rackmount NAS with dual 2.5GbE, two M.2 slots and redundant power supplies.
Which processor does this model use?
It uses an AMD Ryzen Embedded V1500B four-core, eight-thread 2.2 GHz processor.
How much memory is included?
The TS-873AeU-RP-4G includes 4 GB SODIMM DDR4 memory.
What is the maximum memory capacity?
The stated maximum is 64 GB using two 32 GB modules.
How many drive bays are provided?
It has eight hot-swappable 3.5-inch SATA bays and is supplied without hard drives.
Which drive types are supported?
The bays support 3.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Which M.2 slots are included?
It includes two M.2 2280 PCIe Gen 3 x1 slots for compatible NVMe SSDs.
Which network ports are built in?
Two 2.5GbE RJ45 ports are included.
Does the TS-873AeU-RP-4G have redundant power?
Yes. It includes two 300W power supplies.
What are its dimensions?
The stated dimensions are 88.6 × 432 × 297.4 mm, excluding the ear hooks and protruding power-supply section.
Important information
The system is supplied without hard drives.
Optional 5GbE, 10GbE, HDMI and hardware-transcoding functions require compatible adapters or graphics cards.
The 58.14 W operating figure was tested fully populated with WD10EFRX hard drives.
Confirm drive, M.2 SSD and expansion-card compatibility before purchase.
