ARM 8-core CPU, built-in 6 TOPS NPU
1x 2.5GbE, 1x PCIe slot for 10GbE expansion
2x 4K HDMI™

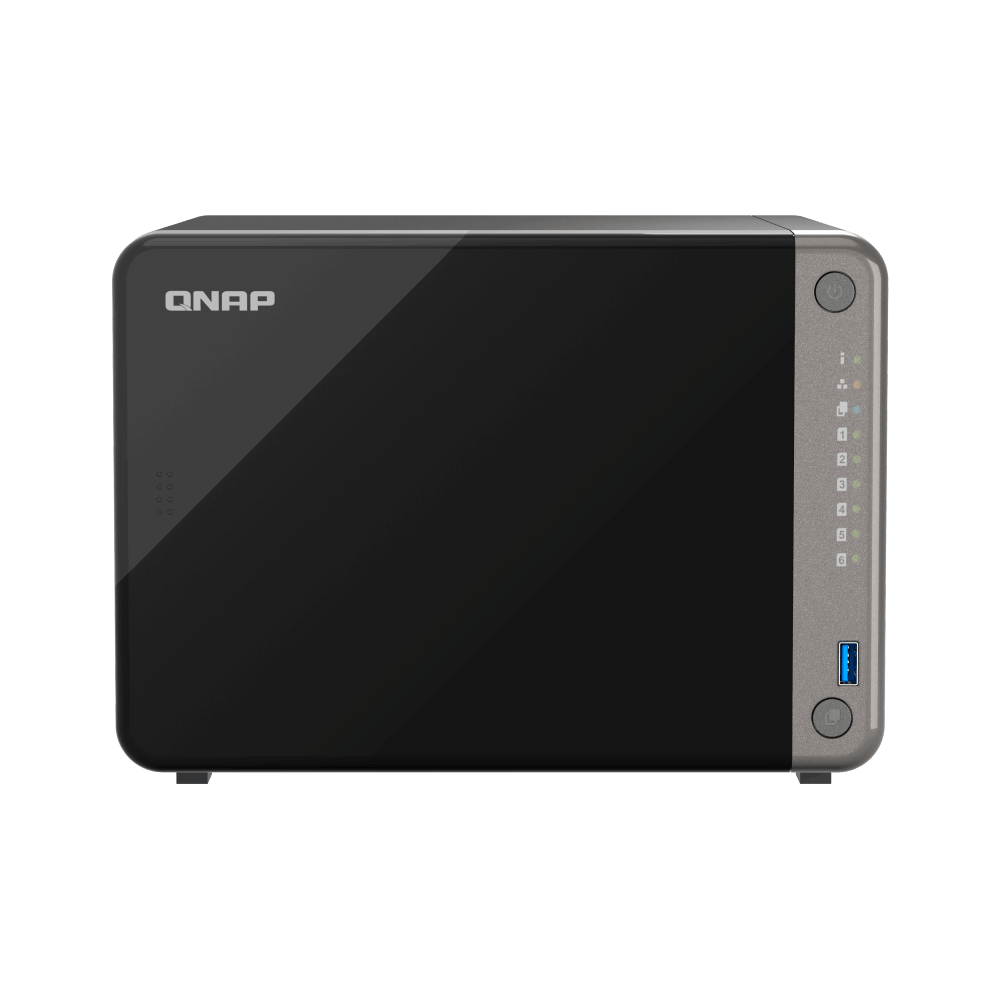

The next-generation TS-AI642 AI NAS is specifically designed for AI-powered video and image recognition applications. Adopting the 64-bit ARM Cortex-A76/-A55 SoC octa-core processor with up to 6 TOPS NPU (Neural network Processing Unit), the TS-AI642 not only tackles image processing and analysis tasks, but also offloads CPU workloads when running AI applications to reduce system operation power consumption. With powerful computing performance, high-capacity storage space and flexible I/O expandability, the TS-AI642 allows enterprises to easily deploy an AI NAS solution for video surveillance, image recognition, and face recognition applications.
-
AI computing performance of 6 TOPS NPU
With a built-in NPU (Neural network Processing Unit) processor, the TS-AI642 boosts performance for high-speed face and object recognition.
-
2.5GbE is a must!
2.5GbE provides higher transmission speeds with existing Cat 5e cables, making file backup/restore and media conversion smoother.
-
PCIe Gen 3 Expandability
Install a 2.5/5/10GbE adapter, QM2 card, or USB 3.2 Gen 2 (10Gbps) card to increase application potential.
-
Professional surveillance NAS solution
QVR Elite allows you to deploy up to 64 channels (2 channels are included for free).
-
Dual 4K HDMI™ Output
Use two screens for a surveillance TV wall monitoring.
-
ARM hardware transcoding
Supports ARM NEON technology that accelerates video processing for a better media experience.
Specification
| CPU | 8-core ARM Cortex 64-bit Processor ( 4-core Cortex-A76 2.2 GHz + 4-core Cortex-A55 1.8 GHz ) |
| CPU Architecture | 64-bit ARM |
| Graphic Processors | ARM Mali-G610 MC4 |
| Floating Point Unit |  |
| Encryption Engine | |
| Hardware-accelerated Transcoding | |
| Neural Processing Unit (NPU) | |
| System Memory | 8 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|
| Maximum Memory | 8 GB |
| Flash Memory | 4GB (Dual boot OS protection) |

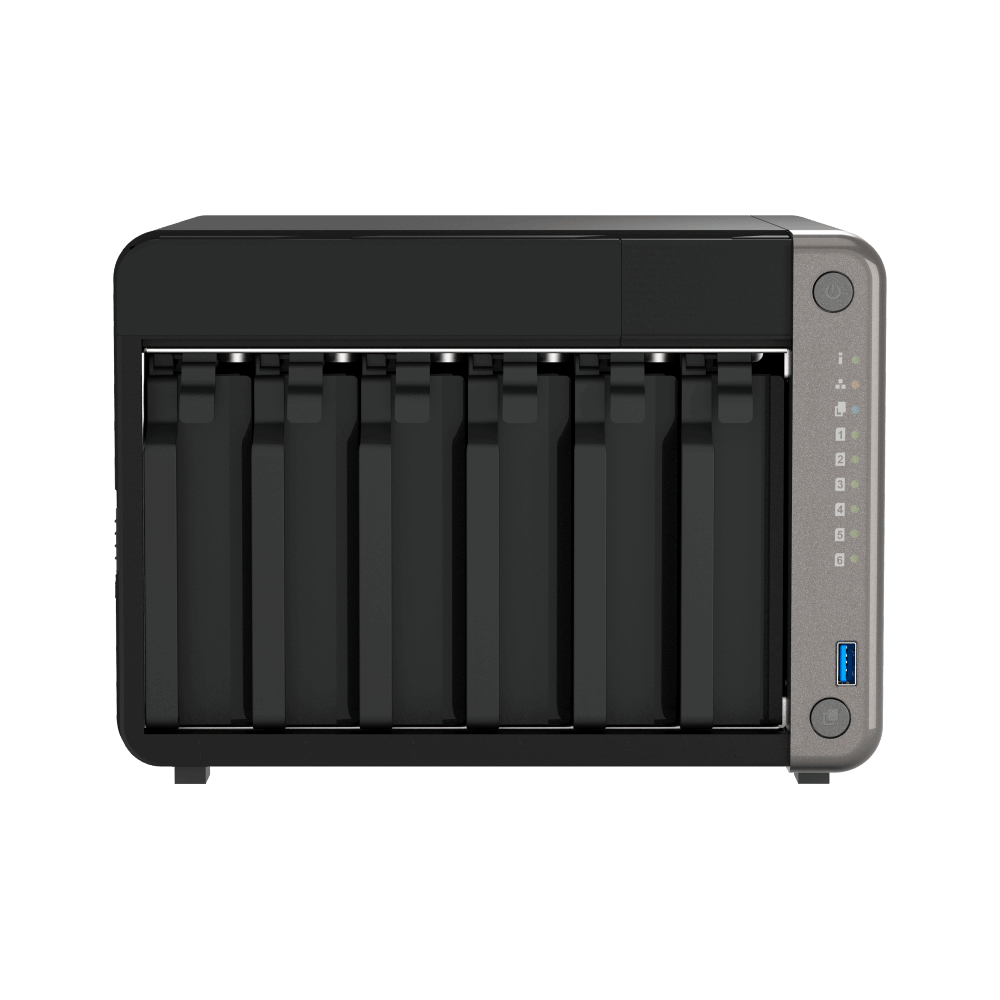

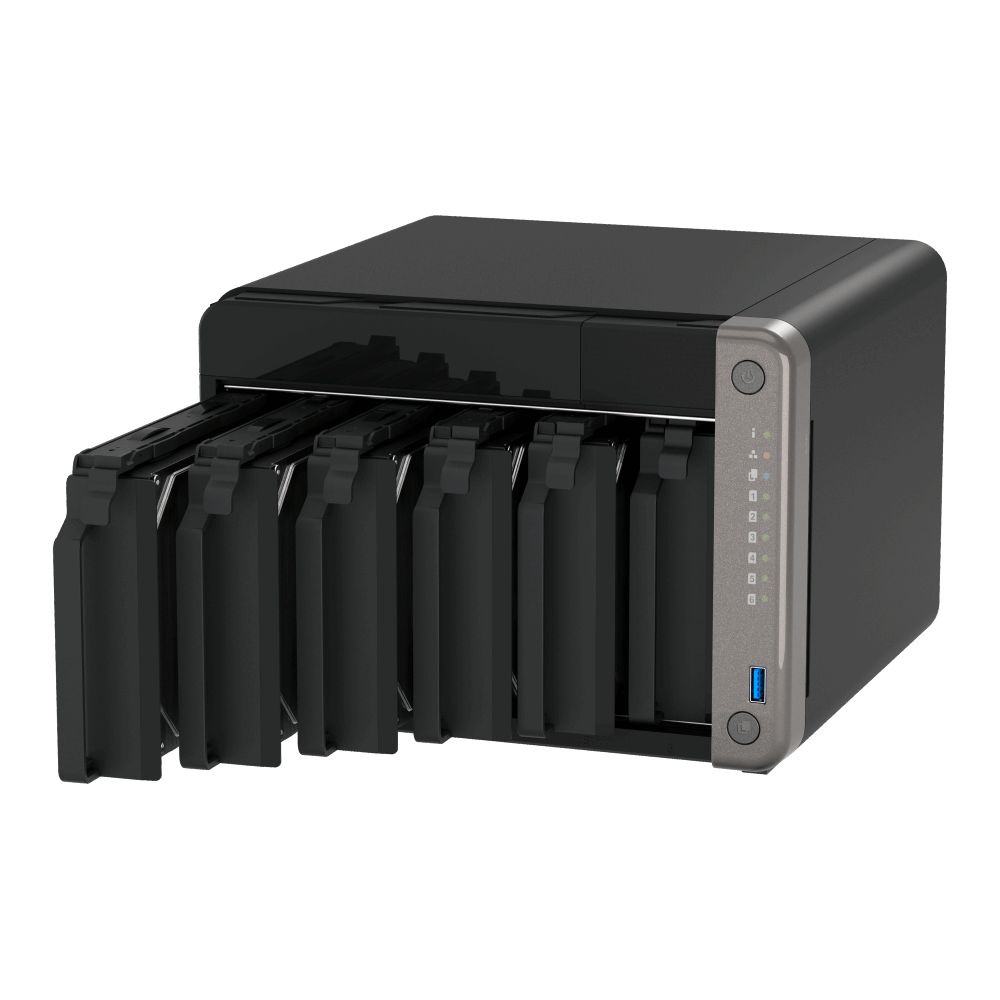

| Drive Bay | 6 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 2 |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 2 x Type-A |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output | 2, HDMI™ 1.4b |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-6 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 235 × 226.5 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 4.4 kg |
| Weight (Gross) | 4.4 kg |
| Operating Temperature | 0 ~ 40˚C (32˚F ~ 104˚F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 120W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 14.005 W |
| Power Consumption: Operating Mode, Typical | 33.33 W
Tested with drives fully populated.
|
| Fan | 2 x 90mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1,500 |
