12-Bay 2U Rackmount ZFS NAS
QNAP TS-h1277AXU-RP-R5-16G Rackmount NAS
A 12-bay 2U storage and backup system with a 6-core AMD Ryzen 5 7000 Series processor, 16 GB DDR5 memory, dual M.2 PCIe Gen 5 slots, three PCIe Gen 4 slots and redundant power supplies.
Expandable ZFS storage for demanding business workflows

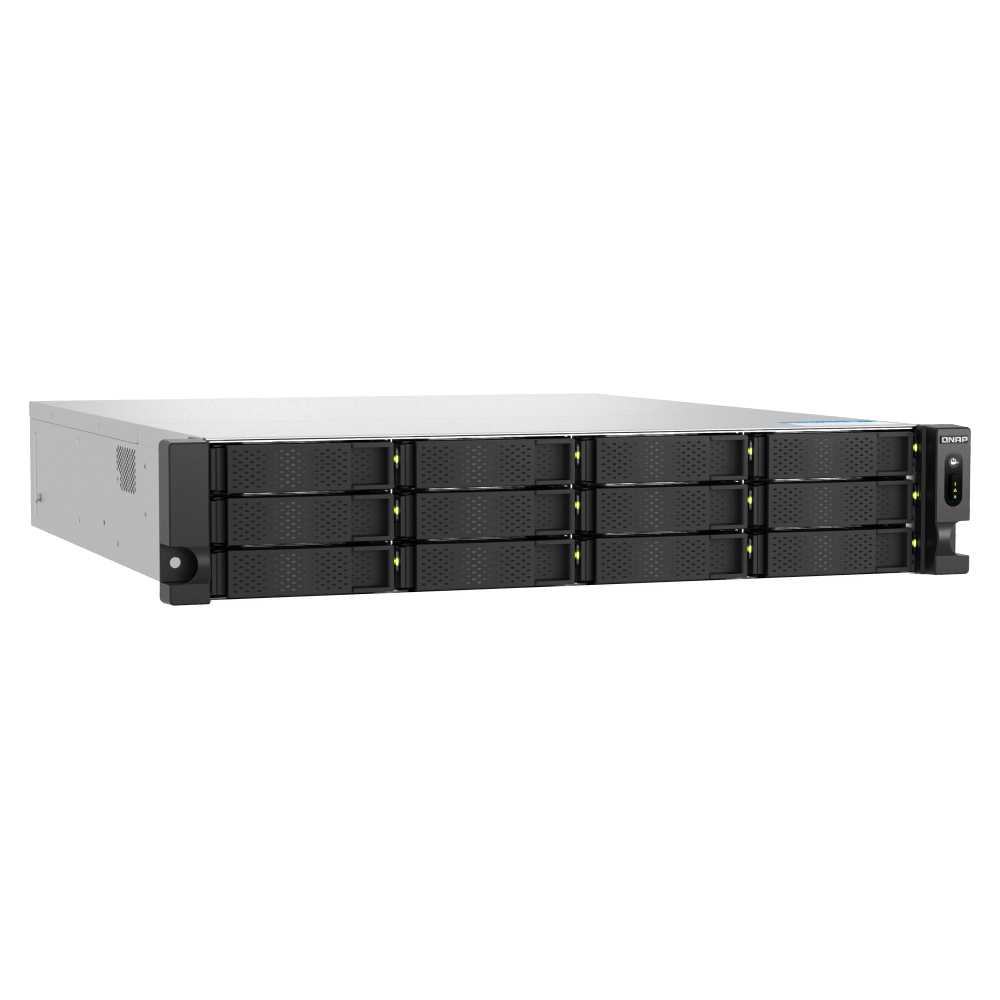

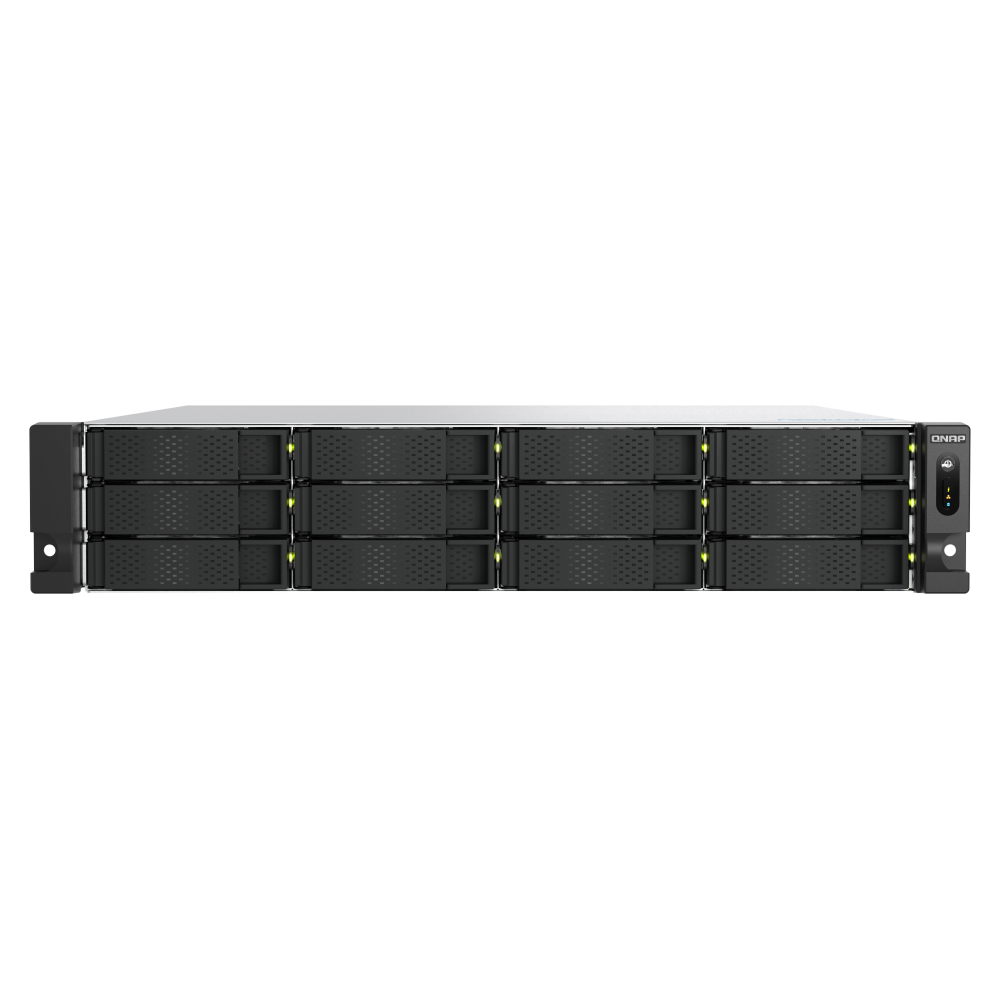

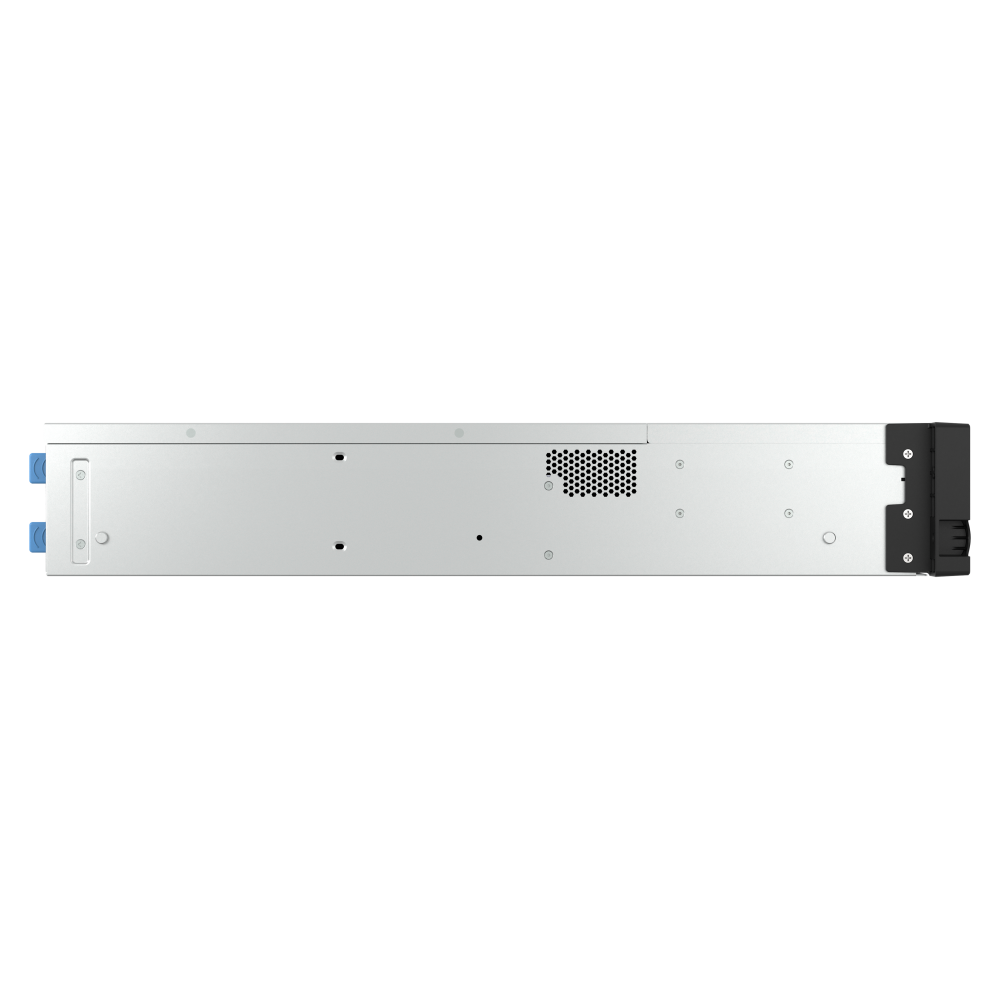

The QNAP TS-h1277AXU-RP-R5-16G combines a modern AMD Ryzen platform with DDR5 memory, twelve SATA bays, dual M.2 slots and redundant power in a 2U rackmount chassis. It is designed for Tier 2 storage, virtualisation, backup, collaborative 4K video editing and large-scale storage expansion.
Key features and benefits
DDR5 memory platform
The system includes 16 GB UDIMM DDR5 and supports a maximum capacity of 192 GB; optional ECC memory is supported.
Dual M.2 PCIe Gen 5 slots
Install compatible M.2 NVMe SSDs for cache acceleration, with support stated for PCIe Gen 3 and above.
Three PCIe Gen 4 slots
Add supported network, SAS storage-expansion or Fibre Channel cards as requirements develop.
Built-in 2.5GbE connectivity
Two 2.5GbE Ethernet ports provide multi-gigabit connectivity over compatible network infrastructure.
Large storage expansion path
Connect up to eight 24-bay JBODs for a stated maximum of 204 disks.
Redundant power design
Two 550W power supply units support continuity-focused rack deployments.
Who is this model best for?
A strong choice for
- Tier 2 storage and backup infrastructure
- Virtualisation storage
- Collaborative 4K video-editing workflows
- Rack deployments planning substantial JBOD expansion
- Organisations seeking DDR5 memory and M.2 Gen 5 expansion
Consider another model if you need
- You need an all-flash U.2 NVMe platform rather than SATA drive bays
- You require more than 16 GB memory installed from day one
- You need a tower system rather than a 2U rackmount chassis
Key specifications
- Processor
- AMD Ryzen™ 5 7000 Series 6-core/12-thread processor, burst up to 5.1 GHz
- System memory
- 16 GB UDIMM DDR5 (1 × 16 GB)
- Maximum memory
- 192 GB (4 × 48 GB)
- Drive bays
- 12 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA SSD
- M.2 slots
- 2 × M.2 2280 PCIe Gen 5 x2
- 2.5GbE networking
- 2 × 2.5GbE Ethernet ports
- Expansion
- 3 × PCIe Gen 4 slots
- Dimensions
- 88.6 × 482 × 550 mm
- Power supply
- 550W × 2, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz AMD Radeon Graphics |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 16 GB UDIMM DDR5 (1x 16 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to for compatibility. |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. Card dimensions for PCIe slot 1:250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches Card dimensions for PCIe slot 2:250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches Card dimensions for PCIe slot 3:250 x 68.9 x 23.76 mm / 9.84 x 2.71 x 0.94 inches Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
Physical, environmental and power
| Form Factor | 2U Rackmount |
|---|---|
| LED Indicators | Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 482 × 550 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 13 kg |
| Weight (Gross) | 19 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 367.65 W Tested with drives fully populated. |
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-H1277AXU-RP-R5-16G
What is the QNAP TS-h1277AXU-RP-R5-16G?
It is a 12-bay 2U ZFS-based rackmount NAS for storage, backup, virtualisation, 4K editing and large-scale expansion.
Which processor does the TS-h1277AXU-RP-R5-16G use?
It uses an AMD Ryzen 5 7000 Series 6-core/12-thread processor with burst speed up to 5.1 GHz.
How much memory is included?
The TS-h1277AXU-RP-R5-16G includes 16 GB UDIMM DDR5 memory as one 16 GB module.
What is the maximum memory capacity?
The stated maximum is 192 GB using four 48 GB modules, and optional ECC memory is supported.
How many drive bays are available?
It has twelve hot-swappable 3.5-inch SATA bays that also support 2.5-inch SATA SSDs.
Which M.2 slots are included?
Two M.2 2280 PCIe Gen 5 x2 slots are included for compatible NVMe SSDs.
How many 2.5GbE ports are included?
The TS-h1277AXU-RP-R5-16G includes two 2.5GbE Ethernet ports.
Does the TS-h1277AXU-RP-R5-16G support PCIe expansion?
Yes. It provides three PCIe Gen 4 slots with their lane configurations detailed in the full specifications.
Does this model have redundant power?
Yes. It includes two 550W power supply units.
What are its dimensions?
The stated dimensions are 88.6 × 482 × 550 mm, excluding the ear hooks and protruding power-supply section.
Important information
The typical 367.65 W operating figure was tested with drives fully populated.
Confirm drive, M.2 SSD, JBOD and expansion-card compatibility before purchase.
The stated long-term availability extends up to 2030.
