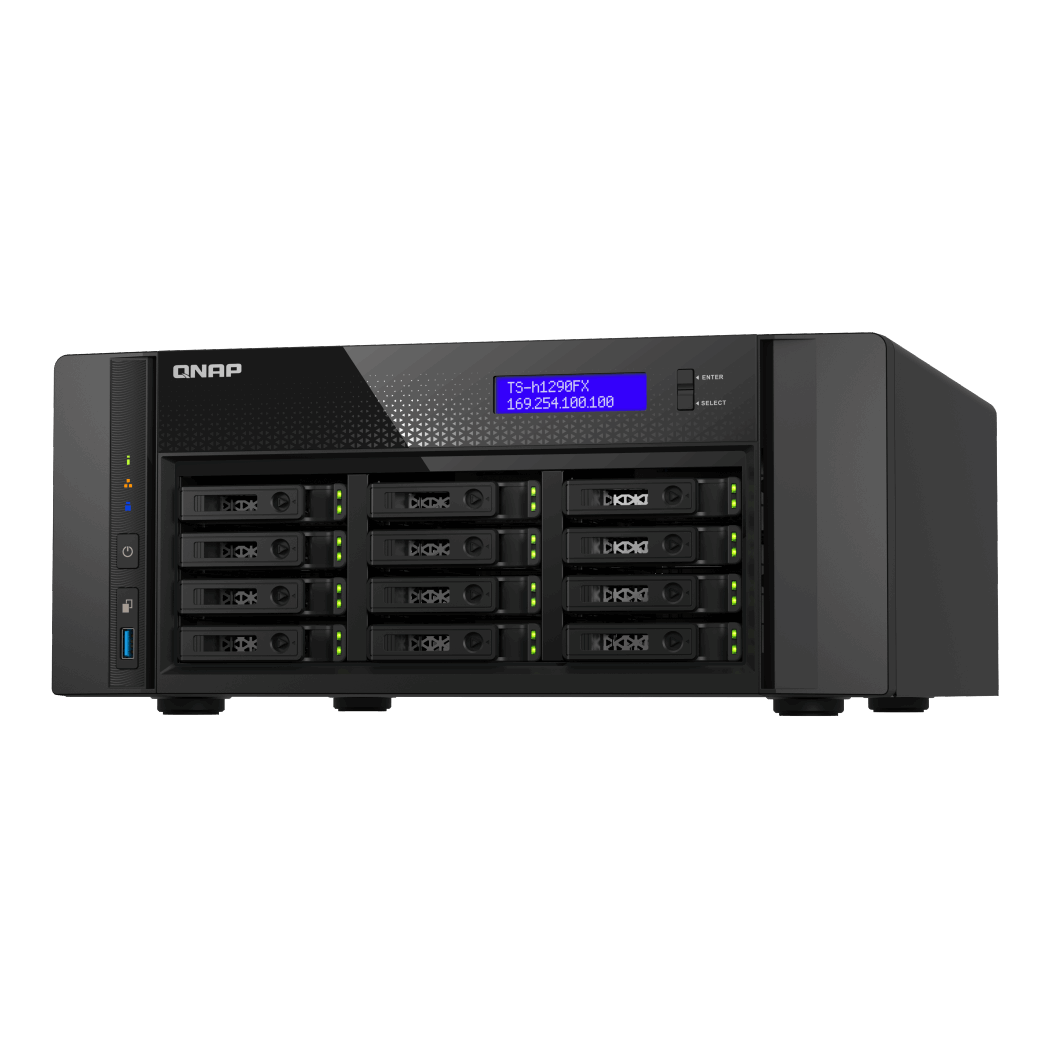

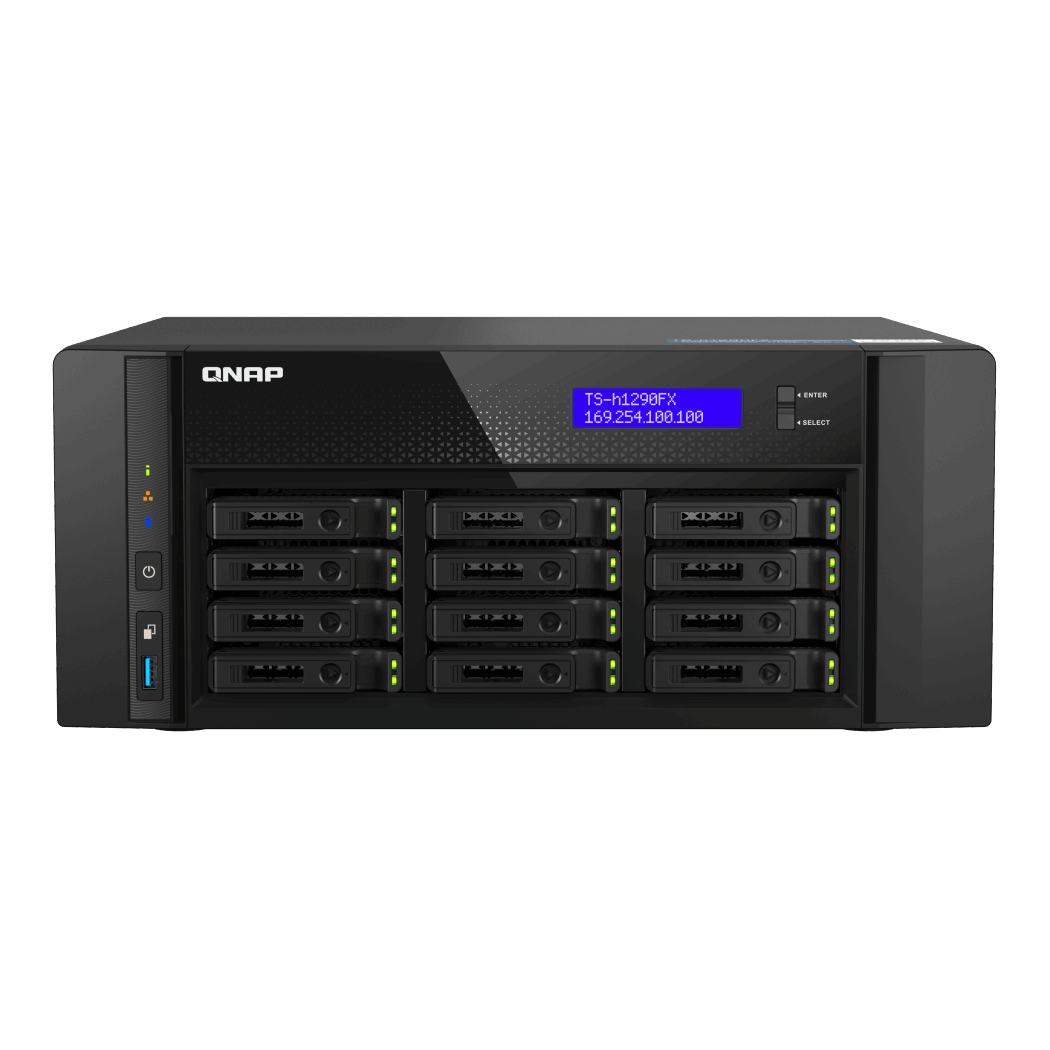

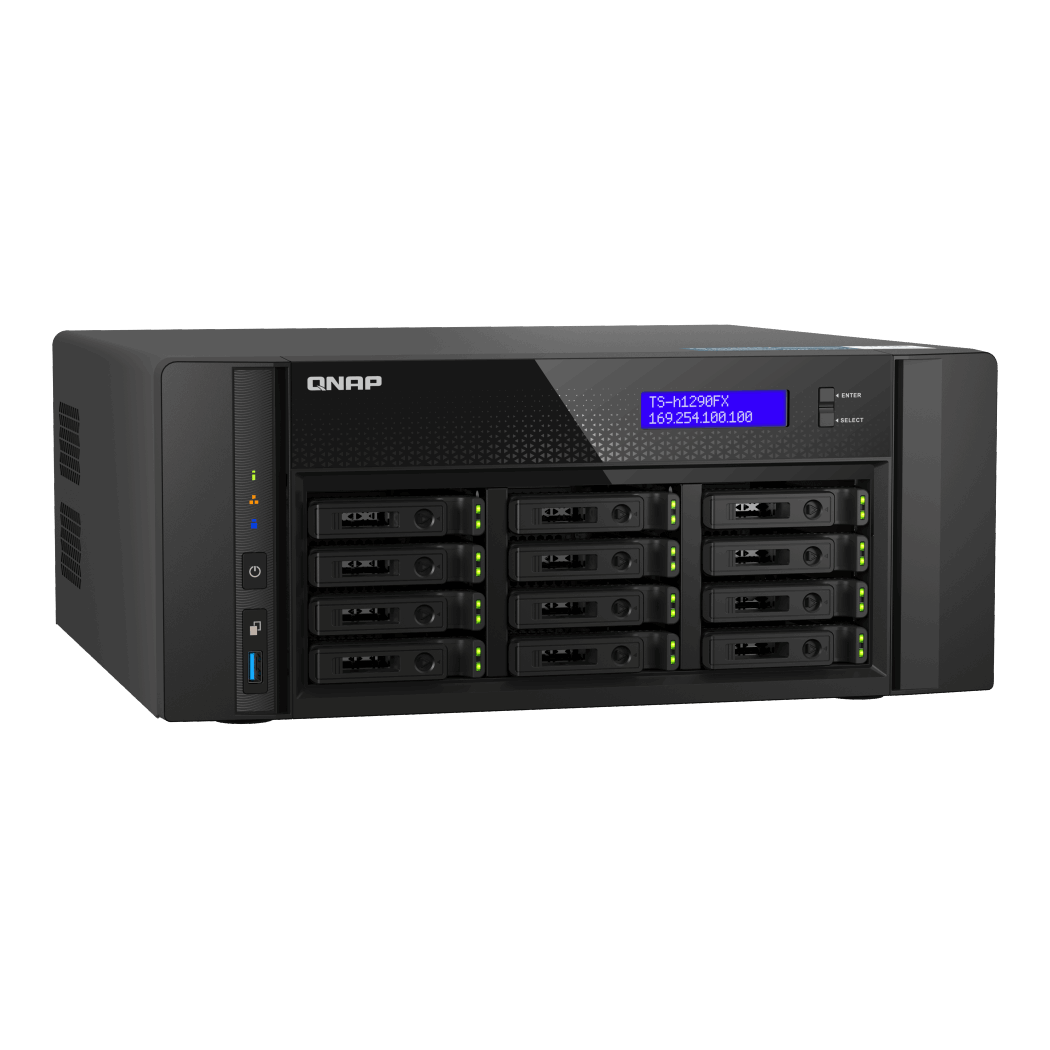

12-bay U.2 NVMe / SATA all-flash NAS
AMD EPYC™ 7002 series processor
ZFS storage for 25GbE collaboration
Supporting U.2 NVMe PCIe Gen 4 / SATA SSD storage, the TS-h1290FX is a cost-efficient and powerful all-flash NAS. With a sleek design and near-silent cooling, the TS-h1290FX seamlessly integrates into cozy studio/office surroundings. Equipped with an AMD EPYC™ 16 core 7302P/8 core 7232P processor and built-in 25GbE connectivity, the TS-h1290FX can tackle the heaviest of workloads and enables smooth file transfer, display, and real-time editing of 4K/8K media. The TS-h1290FX also features a ZFS-based operating system to ensure data integrity while supporting inline data deduplication and compression for optimal storage utilization. Price-competitive, high-performance, and easily scalable—the TS-h1290FX is here to streamline your backup, collaboration, and video editing/storage workflows.
-
25GbE connectivity

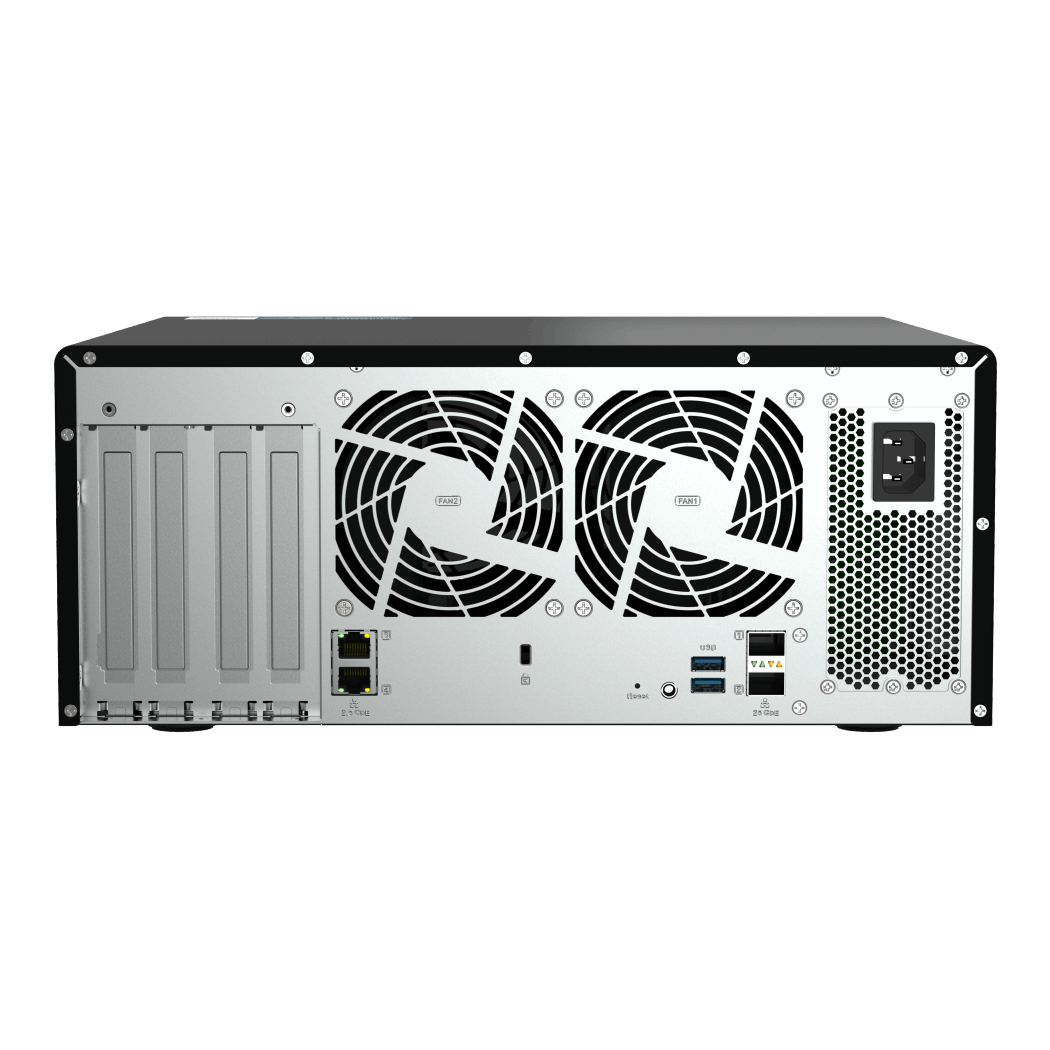

Accelerate file access and sharing with two built-in 25GbE SFP28 ports and two 2.5GbE RJ45 ports.
-
Four PCIe Gen 4 slots
Install network cards, graphics cards, and other PCIe Gen 4 cards to boost application performance and system functionality.
-
Data integrity
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
-
Optimized SSD performance
Maximize SSD performance and lifespan with inline data deduplication, compression, Pool Over-provisioning, and TRIM.
-
Easy expansion
The scalable design of the TS-h1290FX allows it to grow with your business. Connect expansion enclosures to achieve up to petabyte-scale storage capacity.
-
Supercharge graphics card
Supports NVIDIA® graphics cards for video processing or GPU-passthrough to VMs
Specification
| CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | 128 GB RDIMM DDR4 ECC (8 x 16 GB) |
| Maximum Memory | 1 TB (8 x 128 GB) |
| Memory Slot | 8 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
The system is shipped without SSD.
For the SSD compatibility list |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable |
|
| SSD Cache Acceleration Support |
|
| GPU pass-through |
|
| SR-IOV |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame |
|
| PCIe Slot | 4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8 Slot 4: PCIe Gen 4 x16 Card dimensions for PCIe slot 1 ~ Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches.
Card dimensions for PCIe slot 3 ~ Slot 4：280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, SSD1-12 |
| LCD Display/ Button |
|
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 150 × 368 × 362 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 10.4 kg |
| Weight (Gross) | 11.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 750W, 100-240V |
| Power Consumption: Operating Mode, Typical | 134.41 W |
| Fan | 2 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot |
|
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
