24-bay Ryzen rackmount NAS
QNAP TS-h2477XU-RP-3700X-32G

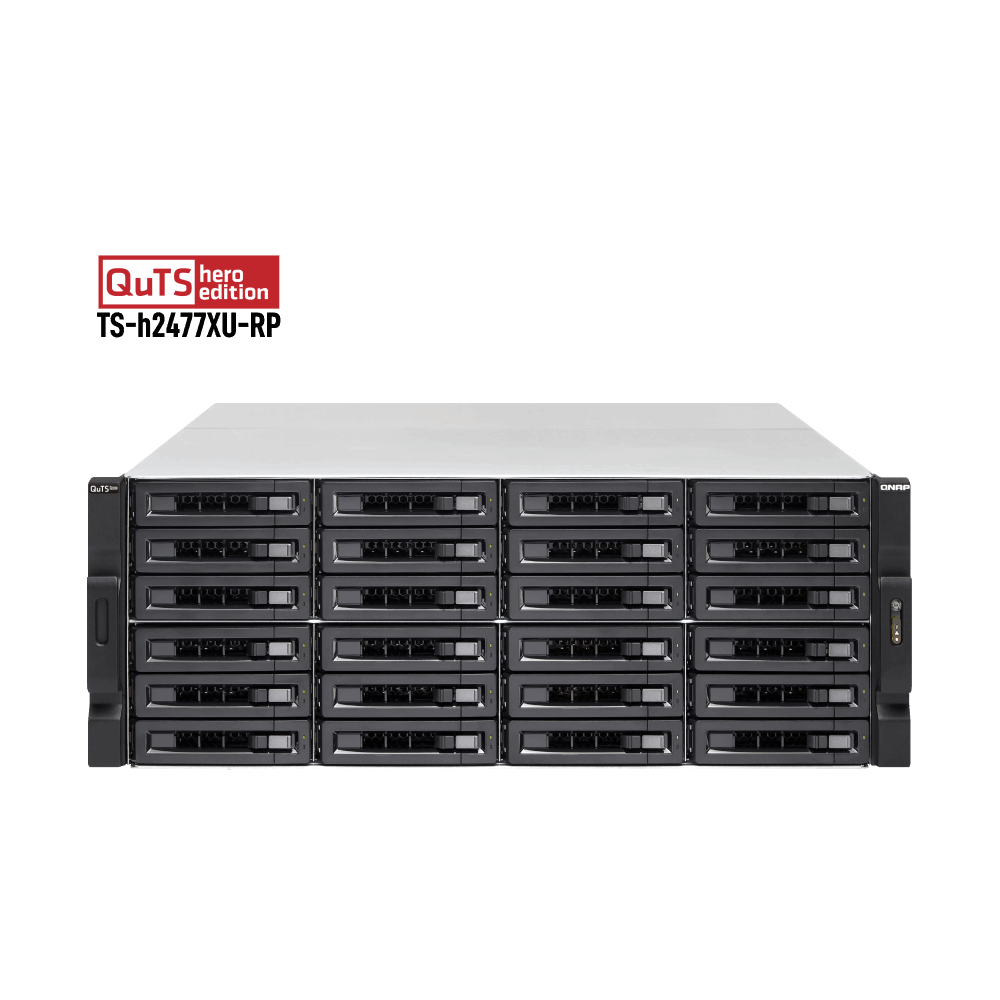

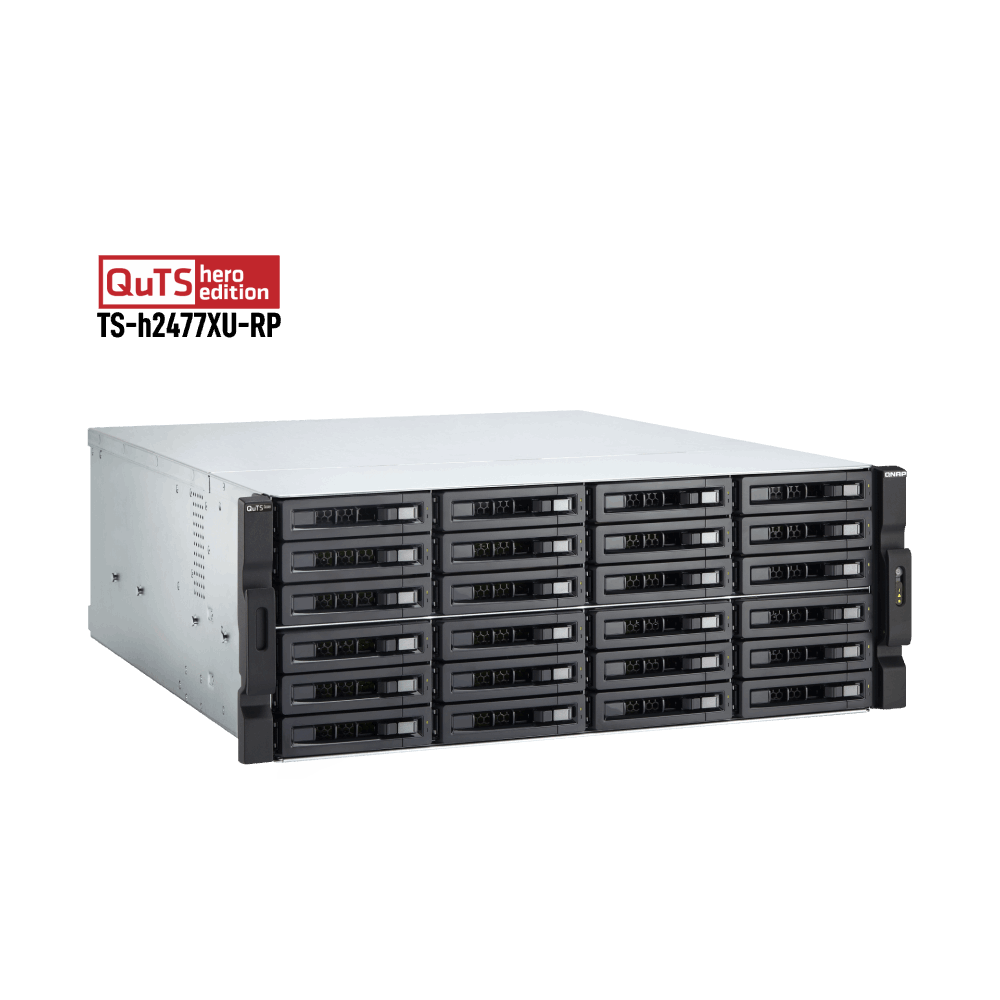

A 4U rackmount NAS supplied with an AMD Ryzen 7 3700X 8-core processor, 32GB DDR4, twenty-four 3.5-inch SATA bays, two 10GbE SFP+ SmartNIC ports and two Gigabit Ethernet ports.
High-capacity Ryzen storage with built-in 10GbE SFP+
The QNAP TS-h2477XU-RP-3700X-32G combines twenty-four SATA bays, an eight-core Ryzen 7 processor and 32GB DDR4 in a 4U rackmount chassis. The supplied content positions it for file serving, virtualisation, VDI, collaborative video editing and backup and recovery, with QuTS hero data services and dual 10GbE SFP+ connectivity.
Key features and benefits
Twenty-four SATA bays
The source lists twenty-four 3.5-inch bays supporting the specified 3.5-inch SATA HDD and 2.5-inch SATA SSD types.
Ryzen 7 platform
The eight-core Ryzen 7 3700X is paired with 32GB DDR4 and a listed maximum of 128GB.
Dual 10GbE SFP+
Two 10GbE SFP+ SmartNIC ports and two Gigabit Ethernet ports are supplied.
PCIe expansion
The table states four PCIe Gen 3 slots, although it also includes dimensions for a fifth slot and needs confirmation.
Virtualisation and backup
The source describes virtualisation storage, hosted virtual machines and containers, and business backup and recovery.
QuTS hero data services
The supplied content includes inline deduplication and compression, snapshots and real-time SnapSync.
Who is the QNAP TS-h2477XU-RP-3700X-32G best for?
A strong choice for
- Mission-critical file-server storage as supplied
- Virtualisation servers and VDI
- Collaborative video-editing storage
- Large backup and recovery tasks
- High-capacity SATA deployments with 10GbE SFP+
Consider another model if you need
- Publishing expansion details before confirming the slot-count anomaly
- Built-in 25GbE rather than optional adapter expansion
- Dedicated 2.5-inch SSD bays
- A tower enclosure
- A system supplied with drives where none are stated
Key specifications
- Processor
- AMD Ryzen 7 3700X, 8-core/16-thread, burst up to 4.4GHz
- Memory
- 32GB UDIMM DDR4 (2 × 16GB); maximum 128GB (4 × 32GB)
- Drive bays
- 24 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA hard disk drives; 2.5-inch SATA solid-state drives
- Networking
- 2 × 10GbE SFP+ SmartNIC; 2 × Gigabit Ethernet
- PCIe
- Source states 4 PCIe Gen 3 slots but also gives dimensions for slot 5; confirm before publishing
- USB
- 4 × USB 3.2 Gen 1; 1 × Type-C and 1 × Type-A USB 3.2 Gen 2
- Form factor
- 4U rackmount
- Dimensions
- 176.2 × 441.6 × 630.2 mm, excluding ear hook and protruding PSU section
- Net weight
- 22.68 kg
- Power supply
- 2 × 800W, 100–240V
- Standard warranty
- 3 (unit not stated in supplied source)
Full technical specifications
View all supplied technical specifications
| CPU | AMD Ryzen™ 7 3700X 8-core/16-thread processor, burst up to 4.4 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 (2 x 16GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x8 or PCIe Gen 3 x4** Slot 4: PCIe Gen 3 x4 *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use. **Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use. ***PCIe slot 4 is preinstalled with a 10GbE network adapter Card dimensions for PCIe slot 1:260 x 131.15 x 28.76 mm / 10.24 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 2:300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 3:300 x 131.15 x 28.76 mm / 11.81 x 5.16 x 1.13 inches. Card dimensions for PCIe slot 4:300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Card dimensions for PCIe slot 5:300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | HDD 1-24, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 176.2 × 441.6 × 630.2 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 22.68 kg |
| Weight (Gross) | 28.46 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 800W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 143.97 W Tested with drives fully populated. |
| Fan | System fan: 4 x 92mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
Frequently asked questions about the QNAP TS-h2477XU-RP-3700X-32G
What is the QNAP TS-h2477XU-RP-3700X-32G?
It is a 24-bay 4U rackmount NAS with a Ryzen 7 3700X processor, 32GB DDR4 and two 10GbE SFP+ SmartNIC ports.
What drives does it support?
The supplied table lists 3.5-inch SATA hard disk drives and 2.5-inch SATA solid-state drives for its twenty-four 3.5-inch bays.
How much memory is installed?
The table lists 32GB DDR4 as two 16GB modules and a maximum of 128GB.
What networking is built in?
Two 10GbE SFP+ SmartNIC ports and two Gigabit Ethernet ports are listed.
How many PCIe slots does it have?
The table says four slots, but it also includes card dimensions for slot 5. Confirm the expansion layout before publishing.
What form factor is it?
The supplied table lists a 4U rackmount chassis.
What is the warranty period?
The source gives the value 3 without a unit, so the duration cannot be confirmed.
