Description
  • Quad-Core 10 nm Intel Celeron N5105 CPU
  • 4x M.2 slots for NVMe SSDs
  • 4 GB of DDR4-2933 RAM
  • Dual 2.5-Gigabit Ethernet ports
  • 3x USB 3.2 Gen 2 at 10 Gbps
  • HDMI 2.0b
  • Aesthetically pleasing M.2 SSD heat dissipation thermal vents
  • Enjoy, download, upload and stream content with 4K transcoding
  • Supports Wake on LAN and Wake on WAN



Specification



Hardware Specifications

CPU Model Intel Celeron N5105
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory 4GB SO-DIMM DDR4
Memory Module Pre-installed 4GB (1x 4GB)
Total Memory Slots 2
Memory Expandable up to 16GB (2x 8GB)
  • Support mixed capacity
Flash Memory 8GB eMMC
Drive Bays 2
M.2 Drive Slots 4
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe
M.2 PCIe Interface  PCIe 3.0 x1
Maximum Drive Bays with  14
Supports Hot Swappable Drives
Expansion 3x USB 3.2 Gen 2 (10Gbps)
Network 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output 1x HDMI 2.0b
System Fan 1x 70mm
Infrared Receiver
Power Supply Unit / Adapter 65W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty 3 Years
Power Consumption 22.9 W (Operation);
12.7 W (Disk Hibernation);
0.71 W (Sleep Mode)
Noise Level 18.6dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Humidity 5% to 95% RH
Size 170 (H) x 114 (W) x 230 (D) mm
Weight 1.71 kg / 3.77 lb
Compatibility
  • ✔ Expansion Units:
    See which ASUSTOR NAS and expansion units are compatible.
    Explore HERE.
  • ✔ Others (Drives, Accessories, Cards, etc.):
    See which ASUSTOR NAS and storage drives, expansion cards, rail kits and accessories are compatible.
    Explore HERE.

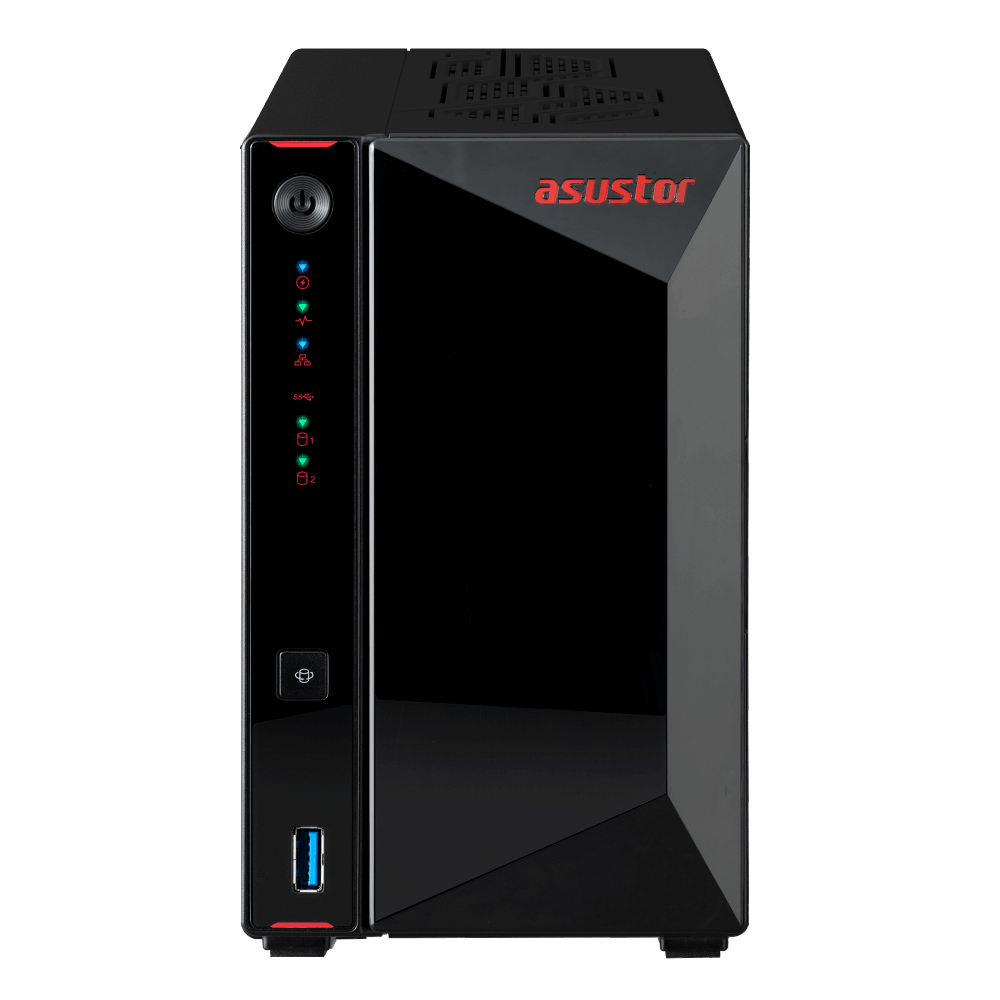

ASUSTOR Nimbustor AS5402T, 2-Bay NAS, Intel Celeron N5105 Quad-Core 2.0GHz, 4GB DDR4, Four M.2 SSD Slots

Regular price $517.00

Tax included.

SKU: AS5402T

Price Match / Bid Request Ask us to match or bid on pricing
  • Quad-Core 10 nm Intel Celeron N5105 CPU
  • 4x M.2 slots for NVMe SSDs
  • 4 GB of DDR4-2933 RAM
  • Dual 2.5-Gigabit Ethernet ports
  • 3x USB 3.2 Gen 2 at 10 Gbps
  • HDMI 2.0b
  • Aesthetically pleasing M.2 SSD heat dissipation thermal vents
  • Enjoy, download, upload and stream content with 4K transcoding
  • Supports Wake on LAN and Wake on WAN



Specification



Hardware Specifications

CPU Model Intel Celeron N5105
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory 4GB SO-DIMM DDR4
Memory Module Pre-installed 4GB (1x 4GB)
Total Memory Slots 2
Memory Expandable up to 16GB (2x 8GB)
  • Support mixed capacity
Flash Memory 8GB eMMC
Drive Bays 2
M.2 Drive Slots 4
Compatible Drive Type
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe
M.2 PCIe Interface  PCIe 3.0 x1
Maximum Drive Bays with  14
Supports Hot Swappable Drives
Expansion 3x USB 3.2 Gen 2 (10Gbps)
Network 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output 1x HDMI 2.0b
System Fan 1x 70mm
Infrared Receiver
Power Supply Unit / Adapter 65W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Warranty 3 Years
Power Consumption 22.9 W (Operation);
12.7 W (Disk Hibernation);
0.71 W (Sleep Mode)
Noise Level 18.6dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Humidity 5% to 95% RH
Size 170 (H) x 114 (W) x 230 (D) mm
Weight 1.71 kg / 3.77 lb
  • ✔ Expansion Units:
    See which ASUSTOR NAS and expansion units are compatible.
    Explore HERE.
  • ✔ Others (Drives, Accessories, Cards, etc.):
    See which ASUSTOR NAS and storage drives, expansion cards, rail kits and accessories are compatible.
    Explore HERE.
