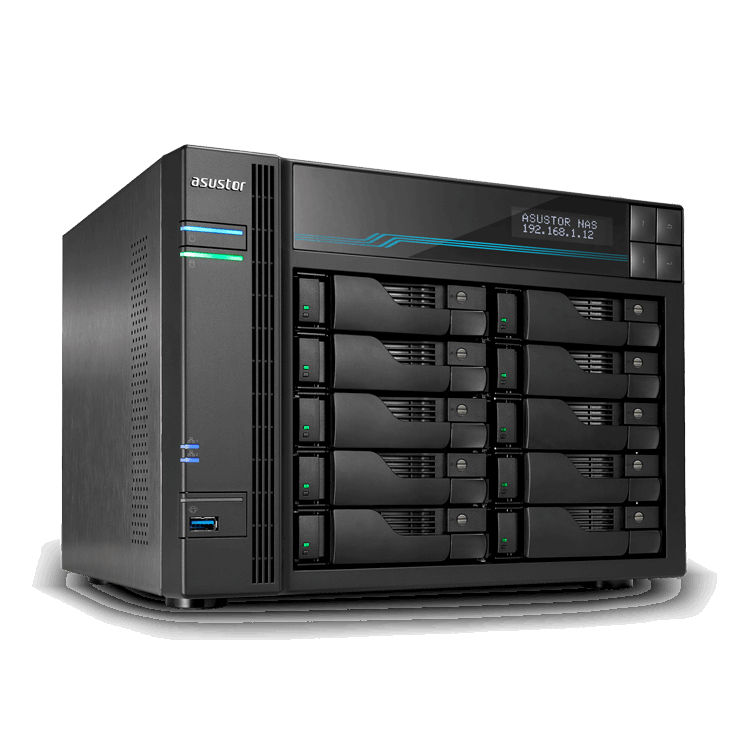

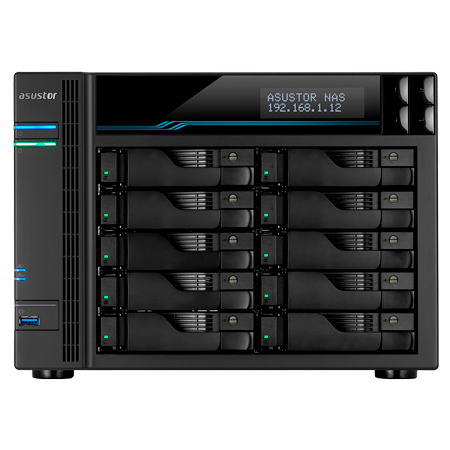

ASUSTOR Lockerstor AS7110T 10-Bay NAS, Intel 9th Xeon E-2224 Quad-core 3.5GHz, 8GB DDR4, 2.5GbE x3, 10GbE x1, M.2 slots x2, USB 3.2 Gen2 Type-A x2, USB 3.2 Gen1 Type-1 x1, SATA, AES-NI hardware encryption, SSD caching, MyArchive
Select quantity
Decrease quantity for ASUSTOR Lockerstor AS7110T 10-Bay NAS, Intel 9th Xeon E-2224 Quad-core 3.5GHz, 8GB DDR4, 2.5GbE x3, 10GbE x1, M.2 slots x2, USB 3.2 Gen2 Type-A x2, USB 3.2 Gen1 Type-1 x1, SATA, AES-NI hardware encryption, SSD caching, MyArchive
Increase quantity for ASUSTOR Lockerstor AS7110T 10-Bay NAS, Intel 9th Xeon E-2224 Quad-core 3.5GHz, 8GB DDR4, 2.5GbE x3, 10GbE x1, M.2 slots x2, USB 3.2 Gen2 Type-A x2, USB 3.2 Gen1 Type-1 x1, SATA, AES-NI hardware encryption, SSD caching, MyArchive
Adding product to your cart
Full Xeon speed ahead!
Intel Xeon 9th Generation Quad-Core CPU boosted to up to 4.6GHz Supports and uses ECC RAM -8 GB ECC DDR4-2666 (Max 64GB, 32GB x 2 ) 2x M.2 NVMe SSD ports for fast caching Full SCSI/IP SAN and NFS support. VMware, Citrix, and Hyper-V capable. Supports virtualization and Docker apps. Brings a smooth working experience with 10-Gigabit Ethernet and three 2.5-Gigabit ports and USB 3.2 Gen2 ports Supports wake-up function via LAN (2.5-Gigabit ports)
Specification
Hardware specifications
CPU
CPU model Intel Xeon E-2224
CPU architecture x64 64-bit
CPU frequency Quad Core 3.4GHz up to 4.6GHz
memory
memory 8GB DDR4 ECC SO-DIMM
Memory module, pre-installed 8GB (1x 8GB)
Total memory slots 2
Memory expandable up to
64GB (2x 32GB)
Flash memory 8GB USB DOM
memory
Drive bays 10
M.2 hard drive bays 2
Compatible drive type
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe M.2 2280 SATA 3 M.2 2260 SATA 3 M.2 2242 SATA 3
M.2 PCIe interface
PCIe 3.0 x2
Max. drive bays with expansion unit 22
Hot-swap drive
External ports
Expansion 1x Front USB 3.2 Gen 1, 2x Rear USB 3.2 Gen 2 (10Gbps)
network
1x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M)
3x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia output N/A
other
System fan 2x 120mm
LCD panel
Power supply/adapter 350W x1
Input voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK
Warranty (in years) 5 years
Operation
Power consumption
78.7W (operation); 40.1W (hard drive sleep); 5.8W (sleep mode)
Noise level 22dB (HDD idle)
Operating temperature 0°C~40°C (32°F~104°F)
Storage temperature -20°C~70°C (-4°F~158°F)
moisture 5% to 95% RH
Size and weight
Size 215.5(H) x 293(W) x 230(D) mm
Weight 7.1 (kg) / 15.62 (lb)
✔ Expansion Units:
See which ASUSTOR NAS and expansion units are compatible. Explore HERE .
✔ Others (Drives, Accessories, Cards, etc.):
See which ASUSTOR NAS and storage drives, expansion cards, rail kits and accessories are compatible. Explore HERE .
