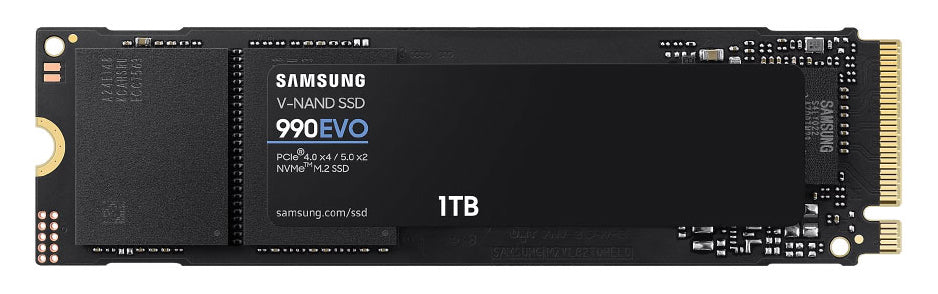

Samsung MZ-V9E1T0BW 990 EVO 1TB M.2 2280 NVMe PCIe 4.0 SSD
Regular price
$118.00
Sold Out
Tax included.
Adding product to your cart
1TB M.2 2280 NVMe client SSD
Samsung 990 EVO 1TB MZ-V9E1T0BW M.2 NVMe SSD
The Samsung 990 EVO 1TB MZ-V9E1T0BW is a 1TB M.2 2280 client SSD rated up to 5,000MB/s sequential read and 4,200MB/s sequential write, with 680K IOPS/800K IOPS QD32 random read/write performance and 600TBW endurance.
- 1TB
- 5,000MB/s/4,200MB/s
- 680K IOPS/800K IOPS
- PCIe 4.0 x4 / 5.0 x2
- 600TBW
- 5-year limited warranty
| Capacity |
1TB |
| Sequential performance |
Up to 5,000MB/s read; 4,200MB/s write |
| Interface |
PCIe 4.0 x4 / PCIe 5.0 x2 |
| Endurance |
600TBW |
990 EVO performance for compatible client systems
The Samsung 990 EVO 1TB MZ-V9E1T0BW combines Samsung V-NAND, an in-house controller and the PCIe 4.0 x4 / PCIe 5.0 x2 interface in a compact M.2 2280 format. Its capacity-specific performance, cache design, endurance and thermal configuration are stated separately so buyers can match the exact SKU to a supported system.
Up to 5,000MB/s read
Samsung rates this exact 1TB model up to 5,000MB/s sequential read under its published test conditions.
Up to 4,200MB/s write
The capacity-specific sequential write rating is up to 4,200MB/s with the supported write-acceleration feature active.
680K IOPS/800K IOPS random IOPS
QD32 random performance is rated up to 680K IOPS read and 800K IOPS write for this exact capacity.
HMB cache design
Host Memory Buffer uses host-system memory rather than dedicated onboard DRAM, as specified for the 990 EVO.
600TBW endurance
Samsung specifies 600TBW for this capacity, with warranty coverage governed by the stated period or endurance limit.
Thermal management
Proper airflow and a suitable host thermal arrangement help the drive operate within its specified temperature range.
Who is the Samsung 990 EVO 1TB MZ-V9E1T0BW best for?
A strong choice for
- Compatible desktop and workstation storage upgrades
- Supported client-PC boot and application drives
- Gaming, creative and productivity workloads within the published profile
- Users needing 1TB nominal capacity
- Buyers who want Samsung Magician management support
Consider another model if you need
- Your system lacks a compatible M.2 2280 NVMe slot
- You require performance beyond 5,000MB/s/4,200MB/s
- You need a data-centre or enterprise endurance profile
- Your system requires a factory-fitted heatsink
Key specifications
| Official model code |
MZ-V9E1T0BW |
| Capacity |
1TB |
| Usage application |
Client PCs |
| Form factor |
M.2 2280 |
| Interface |
PCIe 4.0 x4 / PCIe 5.0 x2 |
| NVMe version |
NVMe 2.0 |
| NAND |
Samsung V-NAND TLC |
| Cache |
Host Memory Buffer (HMB); no dedicated DRAM |
| Sequential read/write |
Up to 5,000MB/s/4,200MB/s |
| QD32 random read/write |
Up to 680K IOPS/800K IOPS |
| Endurance |
600TBW |
| Dimensions |
Maximum 80.15 × 22.15 × 2.38 mm |
| Warranty |
Five years limited or TBW, whichever comes first |
Full technical specifications
Hardware and performance
| Series |
Samsung 990 EVO |
| Official model code |
MZ-V9E1T0BW |
| Capacity |
1TB |
| Usage application |
Client PCs |
| Form factor |
M.2 2280 |
| Interface |
PCIe 4.0 x4 / PCIe 5.0 x2 |
| NVMe version |
NVMe 2.0 |
| Controller |
Samsung in-house controller |
| NAND flash memory |
Samsung V-NAND TLC |
| Cache memory |
Host Memory Buffer (HMB); no dedicated DRAM |
| Sequential read |
Up to 5,000MB/s |
| Sequential write |
Up to 4,200MB/s |
| Random read, 4KB QD32 |
Up to 680K IOPS |
| Random write, 4KB QD32 |
Up to 800K IOPS |
| Random read, 4KB QD1 |
Up to 20K IOPS |
| Random write, 4KB QD1 |
Up to 90K IOPS |
Physical, power and reliability
| Dimensions |
Maximum 80.15 × 22.15 × 2.38 mm |
| Heatsink configuration |
No integrated heatsink |
| Average active read power |
4.9W |
| Average active write power |
4.5W |
| Idle power |
60mW typical (PS3, APST on) |
| Low-power mode |
5mW (PS4/L1.2) |
| Operating temperature |
0°C to 70°C |
| Non-operating temperature |
-40°C to 85°C |
| Humidity |
5% to 95% non-condensing |
| Non-operating shock |
1,500G, 0.5ms, 3 axis |
| Non-operating vibration |
20 to 2,000Hz, 20G |
| MTBF |
1.5 million hours |
| Cooling guidance |
Proper airflow recommended |
Features, security and warranty
| TRIM |
Supported; operating-system support required |
| Garbage collection |
Supported |
| S.M.A.R.T. |
Supported |
| Write acceleration |
Samsung Intelligent TurboWrite |
| Management software |
Samsung Magician Software |
| AES full-disk encryption |
256-bit |
| TCG Opal |
Version 2.0 |
| Encrypted Drive |
IEEE1667 |
| Endurance |
600TBW |
| Warranty period |
Five years limited |
| Warranty basis |
Five years or 600TBW, whichever comes first |
| Performance condition |
Varies with firmware, host hardware, software and configuration |
| Nominal capacity note |
Actual usable capacity is lower after formatting and system use |
Frequently asked questions about the Samsung 990 EVO 1TB MZ-V9E1T0BW
What is the Samsung 990 EVO 1TB MZ-V9E1T0BW?
It is a 1TB M.2 2280 NVMe SSD designed for compatible client-PC workloads.
How fast is the MZ-V9E1T0BW?
Samsung rates it up to 5,000MB/s sequential read and 4,200MB/s sequential write; actual performance varies by system and workload.
What random performance does the MZ-V9E1T0BW provide?
Samsung specifies up to 680K IOPS QD32 random read and 800K IOPS QD32 random write for this exact capacity.
What interface does the MZ-V9E1T0BW use?
It uses PCIe 4.0 x4 / PCIe 5.0 x2 with NVMe 2.0.
Does the MZ-V9E1T0BW have dedicated DRAM?
No. Samsung specifies Host Memory Buffer rather than dedicated onboard DRAM for the 990 EVO.
What endurance applies to the MZ-V9E1T0BW?
Samsung specifies 600TBW for this exact model.
What security features does the MZ-V9E1T0BW support?
Samsung lists AES 256-bit full-disk encryption, TCG Opal 2.0 and IEEE1667 Encrypted Drive.
Does the MZ-V9E1T0BW include a heatsink?
No. This model does not include a factory-fitted heatsink, so confirm the host's thermal arrangement.
What are the dimensions of the MZ-V9E1T0BW?
Samsung publishes maximum dimensions of 80.15 × 22.15 × 2.38 mm.
What warranty applies to the MZ-V9E1T0BW?
Samsung specifies five years limited or 600TBW, whichever comes first, subject to its warranty terms.
Important information:
- Confirm M.2 2280 support, PCIe 4.0 x4 / PCIe 5.0 x2 compatibility, physical clearance and cooling before purchase.
- Published performance is an up-to figure and varies with firmware, host hardware, software, workload and configuration.
- This model has no factory-fitted heatsink; confirm the host thermal solution before installation.
- Actual usable capacity is lower than the labelled capacity after formatting and system use.
