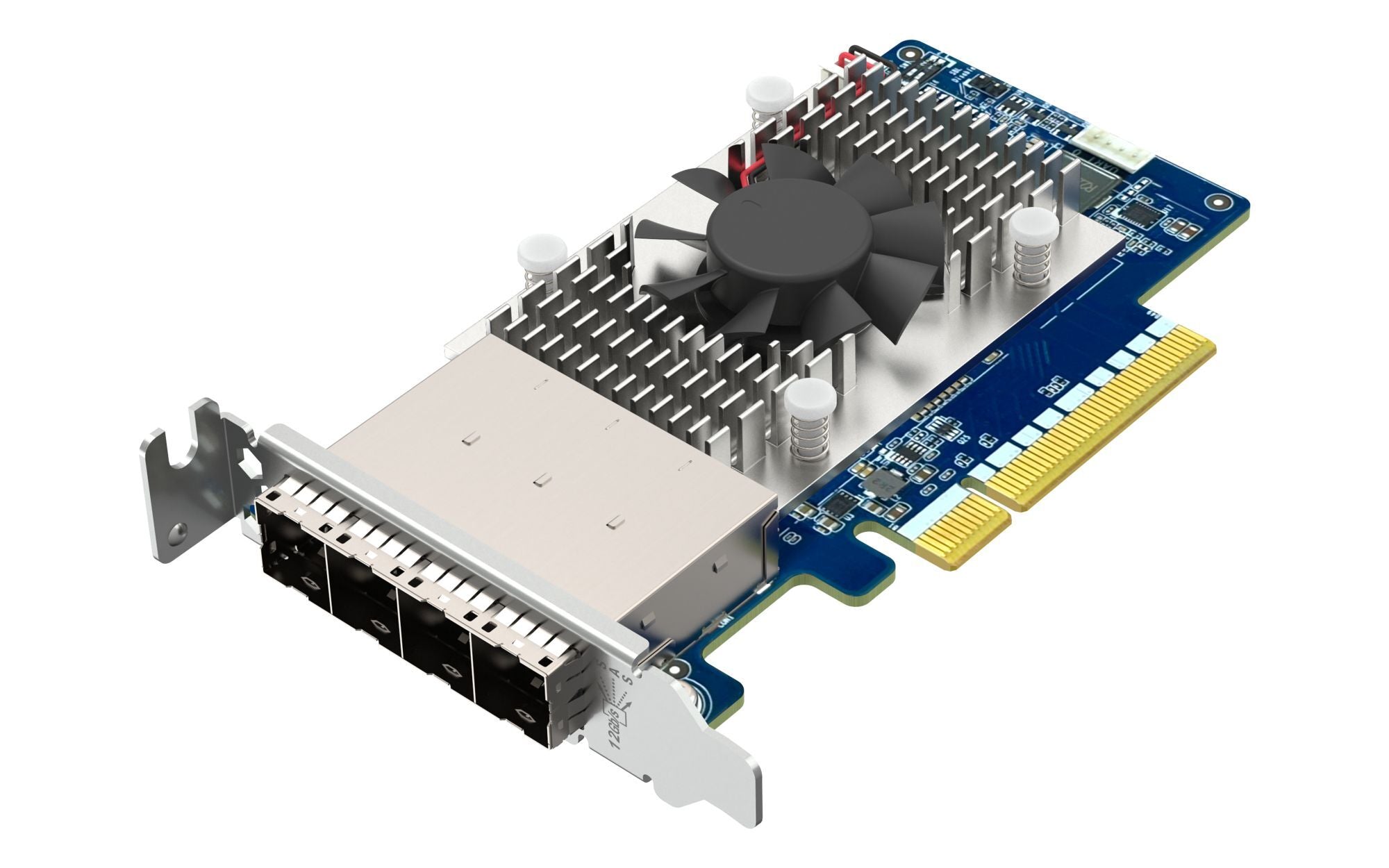

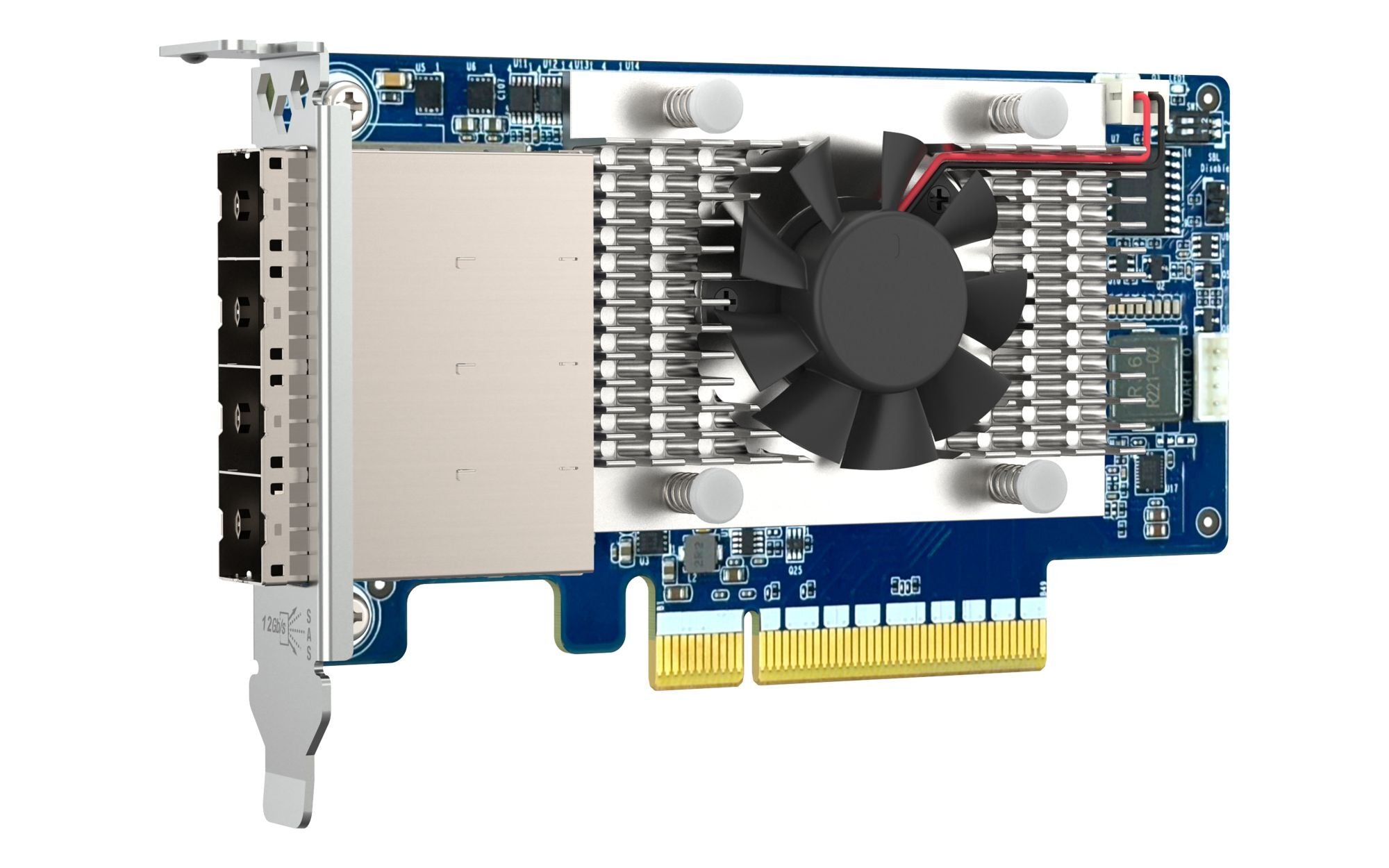

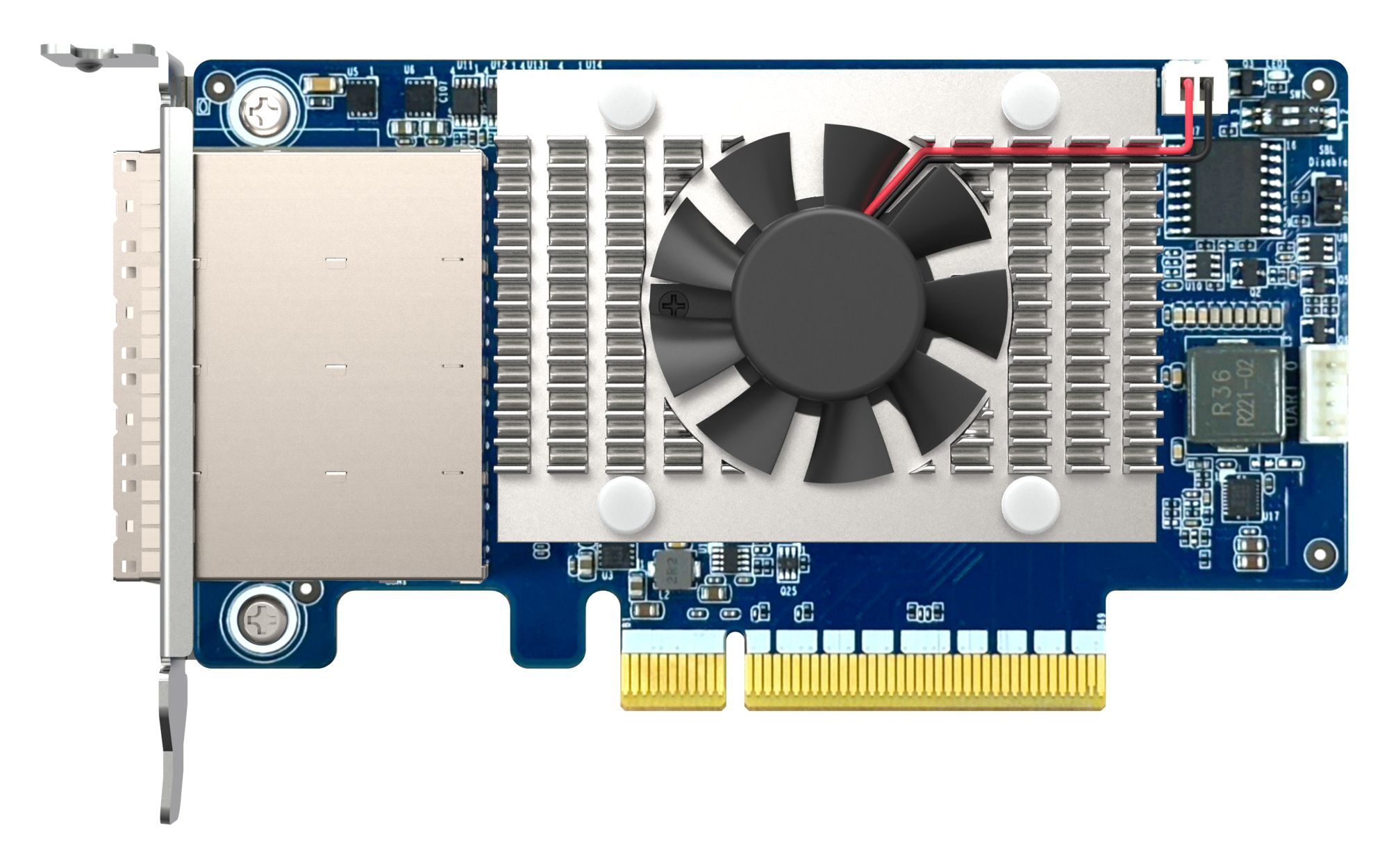

The QXP-1630S-3816 is a PCIe SAS HBA expansion card designed for expanding QNAP NAS storage capacity by connecting TL SAS JBOD enclosures. Ideal for creating a highly reliable IT infrastructure, this SAS-based solution supports demanding workloads such as virtualization, surveillance, big data, video editing, and TV broadcast storage.
NAS system minimum requirements: QTS 5.2.5.3145; QuTS hero h5.2.5.3138; QES 20250306-2.2.1.2220
Always consult the compatibility list before purchasing add-ons and accessories for your NAS.
Petabyte-scale expansion
Expand your storage by daisy-chaining multiple SAS JBOD expansion units.
Note: The maximum expandable capacity will vary depending on the NAS model specifications.
Wider NAS compatibility

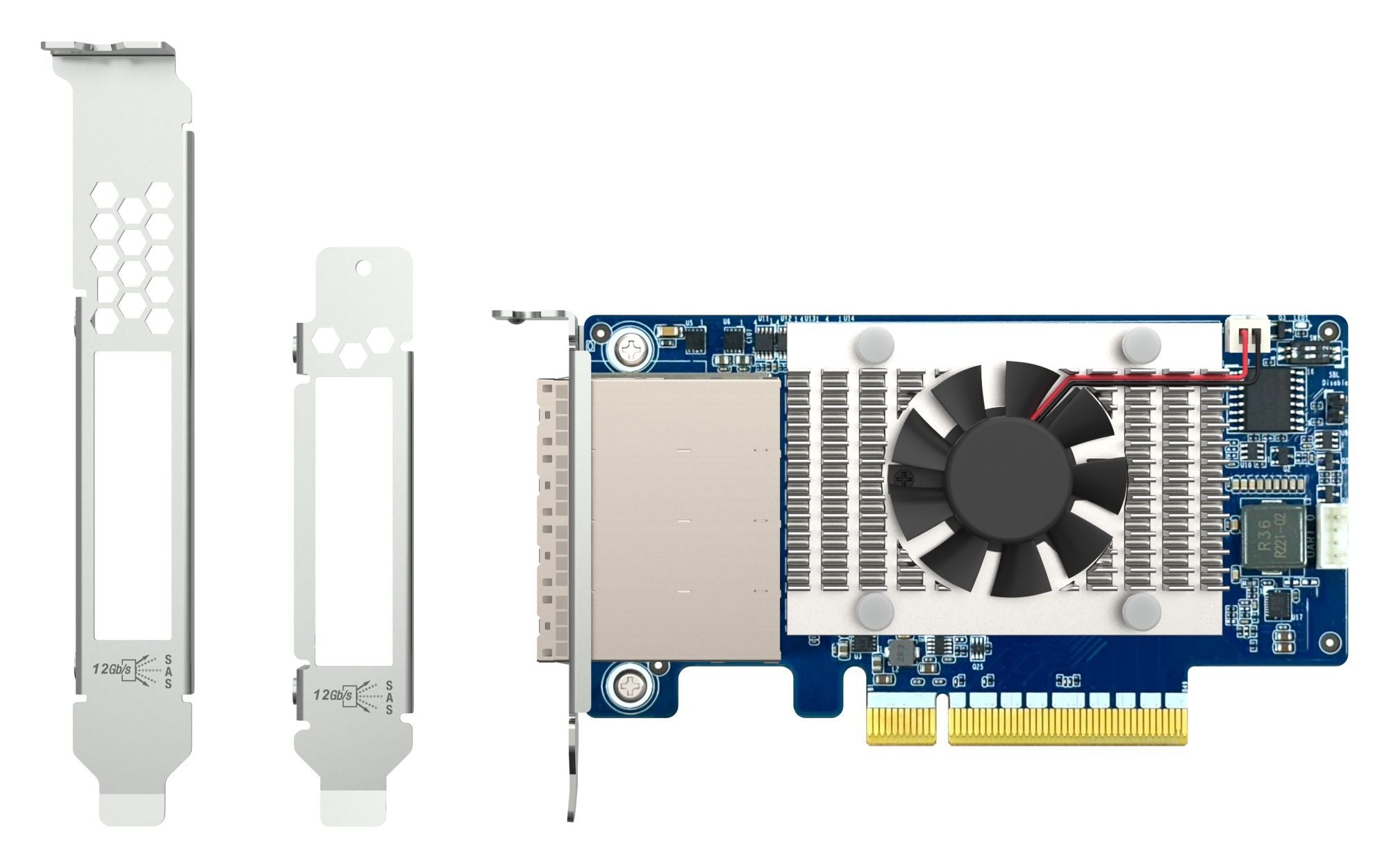

With PCIe Gen 4 x8 support and a smaller form factor than its predecessor, the QXP-1630S-3816 is compatible with a wider range of QNAP NAS models.
Expand storage capacity up to 4.6PB
A NAS with a QXP-1630S-3816 expansion card can be daisy-chained with up to 16 units of TL SAS JBOD enclosures.
Note: QNAP calculates the effective capacity assuming RAID 60 with 24TB hard drives, PB-to-PiB conversion, and using storage utilization processes such as pool over-provisioning.
Flexible port configuration
By managing multipath or link aggregation with NAS and its connected expansion units, the QXP-1630S-3816 effectively balance data transfer loads, ensuring uninterrupted system services and preventing backup failures.
Check Compatible NAS Models
4 Bays
TS-473A, TVS-h474
6 Bays
QVP-63B, TS-673A, TS-h686, TVS-h674
8 Bays
QVP-85B, TS-855eU, TS-855eU-RP, TS-855X, TS-873A, TS-873AeU, TS-873AeU-RP, TS-873AU, TS-873AU-RP, TS-877XU, TS-877XU-RP, TS-h886, TVS-h874
9 Bays
TS-977XU, TS-977XU-RP, TS-h987XU-RP
10 Bays
TS-h1077AFU, TS-h1090FU
12 Bays
TS-1273AU-RP, TS-1277XU-RP, TS-h1277AFX, TS-h1277AXU-RP, TS-h1277XU-RP
16 Bays
ES1686dc, ES1686dc R2, TS-1655, TS-1673AU-RP, TS-1677XU-RP, TS-h1677AXU-RP, TS-h1677XU-RP, TS-h1683XU-RP, TVS-AIh1688ATX
18 Bays
TS-1886XU-RP, TS-h1886XU-RP, TS-h1886XU-RP R2, TS-h1887XU-RP
22 Bays
TS-h2287XU-RP
24 Bays
ES2486AFdc, ES2486dc, TDS-h2489FU, TDS-h2489FU R2, TS-2477XU-RP, TS-h2477AXU-RP, TS-h2483XU-RP, TS-h2490FU
30 Bays
TS-h3077AFU, TS-h3087XU-RP, TS-h3088XU-RP
