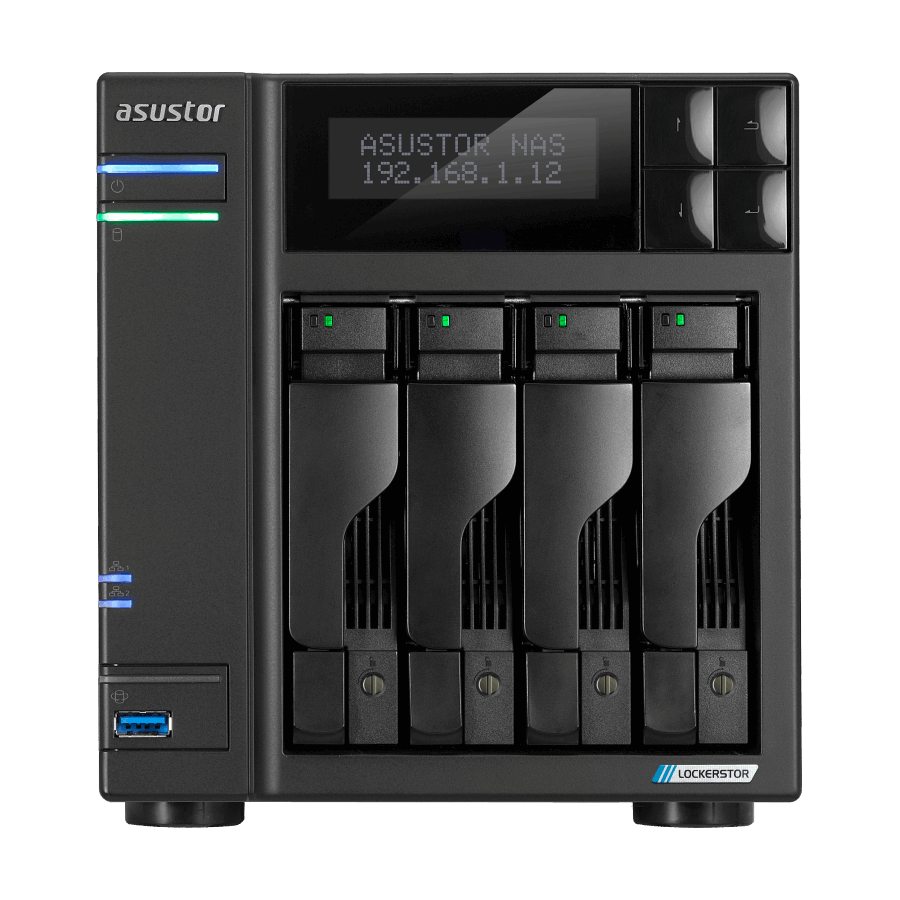

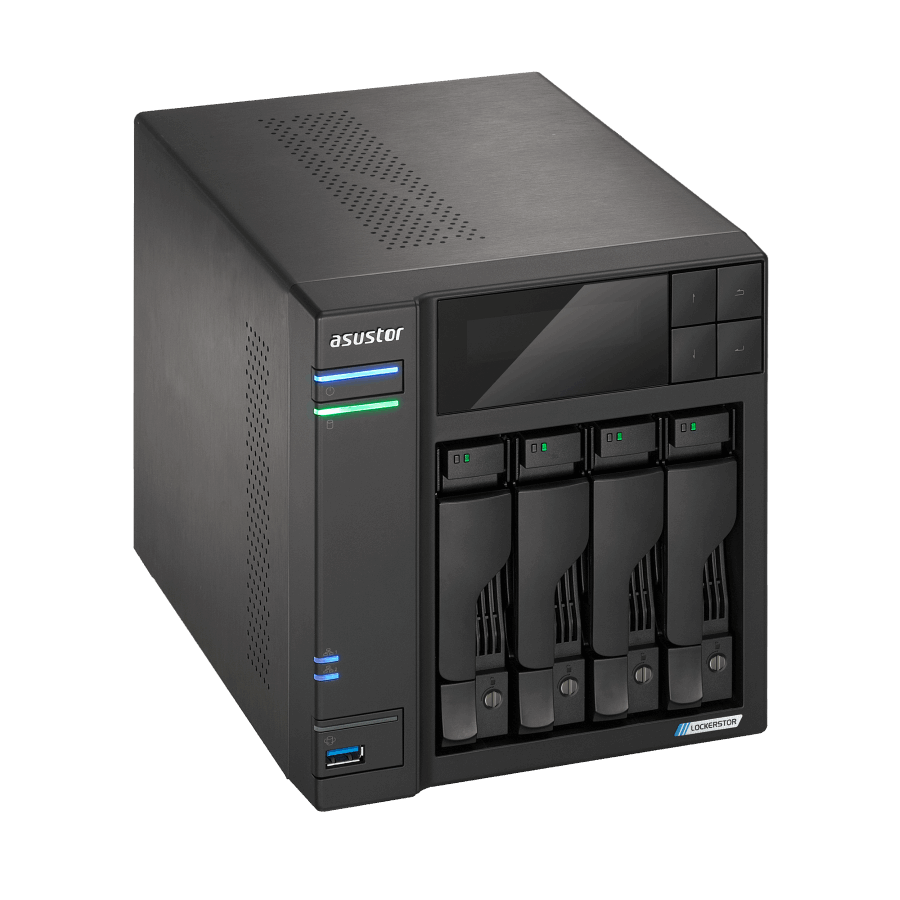

The No-Compromises 2.5GbE NAS

Enthusiast-grade NAS with two, four or six bays

• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for 10GbE NICs or M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports – 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

Specification

Hardware Specifications
CPU	CPU Model	Intel Celeron N5105
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory	Memory	4GB SO-DIMM DDR4
	Memory Module Pre-installed	4GB (1x 4GB)
	Total Memory Slots	2
	Memory Expandable up to	16GB (2x 8GB) Support mixed capacity
	Flash Memory	8GB eMMC
Storage	Drive Bays	4
	M.2 Drive Slots	4
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
	M.2 PCIe Interface	PCIe 3.0 x1
	Maximum Drive Bays with	12
	Supports Hot Swappable Drives
External Ports	Expansion	2x USB 3.2 Gen 2 (10Gbps)
	Network	2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	PCIe Expansion Slots	1x for optional expansion 10 GbE card
	Multimedia Output	1x HDMI 2.0b
Others	System Fan	1x 120mm
	LCD Panel
	Infrared Receiver
	Power Supply Unit / Adapter	90W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
	Warranty	3 Years
Operation	Power Consumption	35 W (Operation); 17.3 W (Disk Hibernation); 0.88 W (Sleep Mode)
	Noise Level	17.6dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	185.5(H) x 170(W) x 230(D) mm
	Weight	2.94 kg / 6.48 lb
