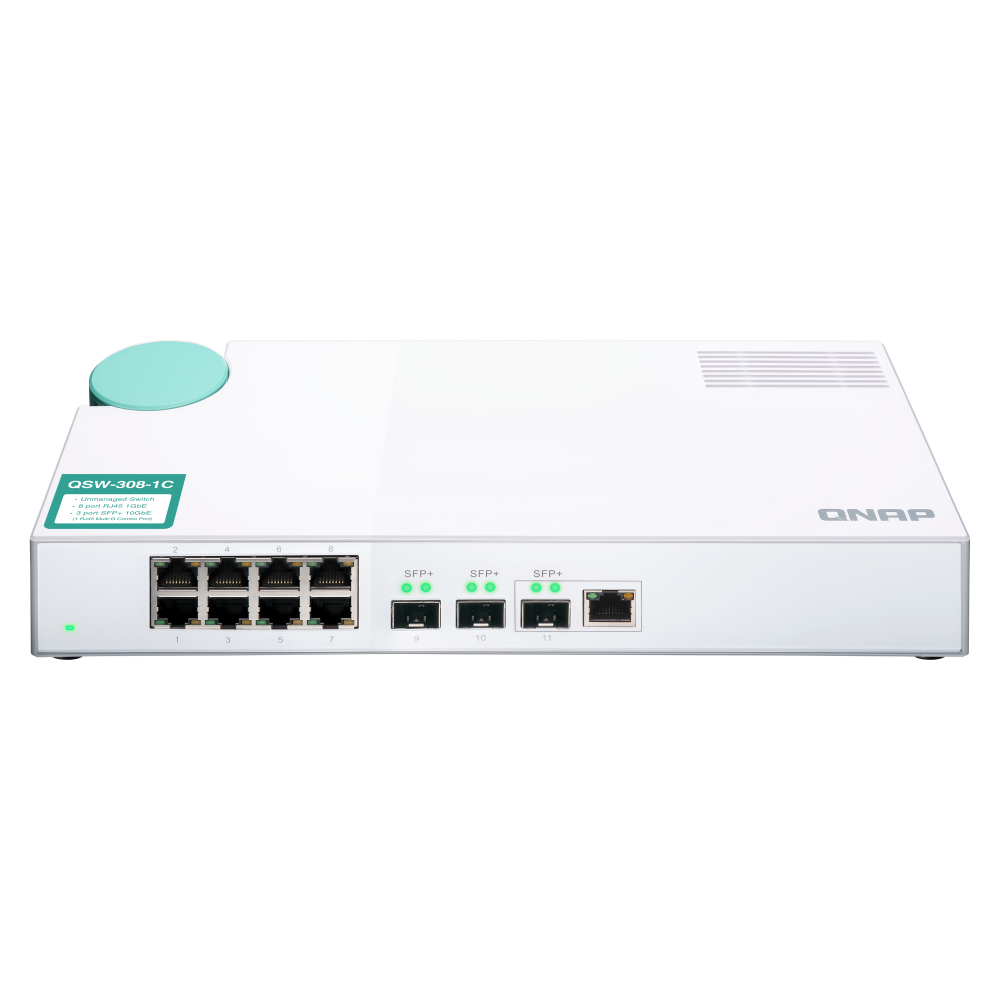

The QSW-308-1C is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, providing three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. The QSW-308-1C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price and is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port also provides higher transmission speeds when used with existing cables. With its desktop size and silent operation, the QSW-308-1C perfectly blends into homes and offices while providing high performance, low latency and superb functionality. The QSW-308-1C is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
-
10GbE connectivity
The QSW-308-1C provides three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. QSW-308-1C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port offers higher transmission speeds when used with existing cables.
-
Silent operation

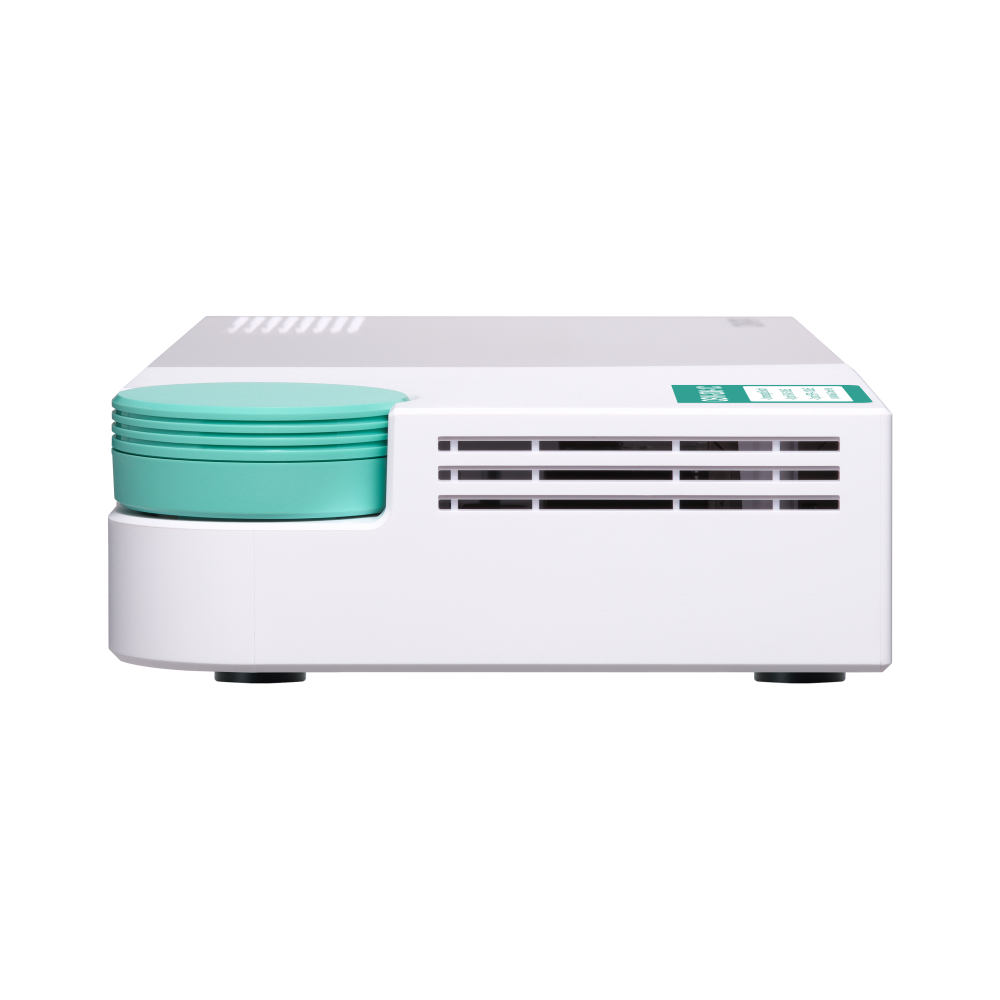

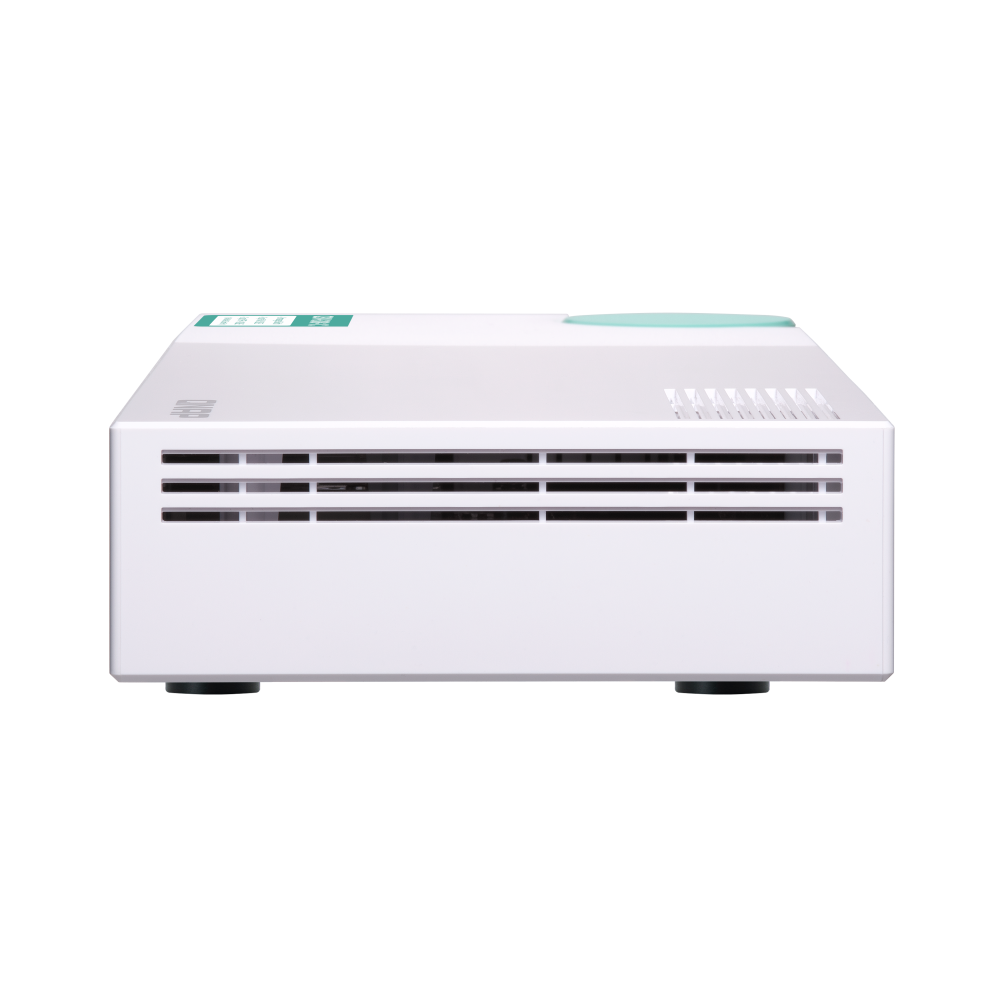

The unique fanless design with ventilated construction provides silent operations while maintaining high performance.
-
Plug and play
Simply connect the QSW-308-1C to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.
Specification
| Management Type | Unmanaged |
| Number of Ports | 11 |
| 10GbE SFP+ | 2
10G only
Note: Compatibility issues with the Intel X520 ethernet network adapter might cause the ports to randomly switch between port up and port down status. |
| 10GbE SFP+/RJ45 Combo Ports | 1
Note1: The 10GbE SFP+ ports are not backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
Note2: Compatibility issues with the Intel X520 ethernet network adapter might cause the ports to randomly switch between port up and port down status. |
| 1GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 36W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 38Gbps |
| Switching Capacity | 76Gbps |
| Fan | Fanless |
| Fanless | yes |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3an 10GBASE-T IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Dimensions (HxWxD) | 42.5 × 290 × 127 mm |
| Weight (Net) | 0.77 kg |
| Weight (Gross) | 1.19 kg |
| Operating Temperature | 0 - 40˚C / 32~104°F |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance | CLASS B, UL62368 |
| Jumbo Frames | 10k |
| Warranty | 2 Years |
