4-bay personal NAS

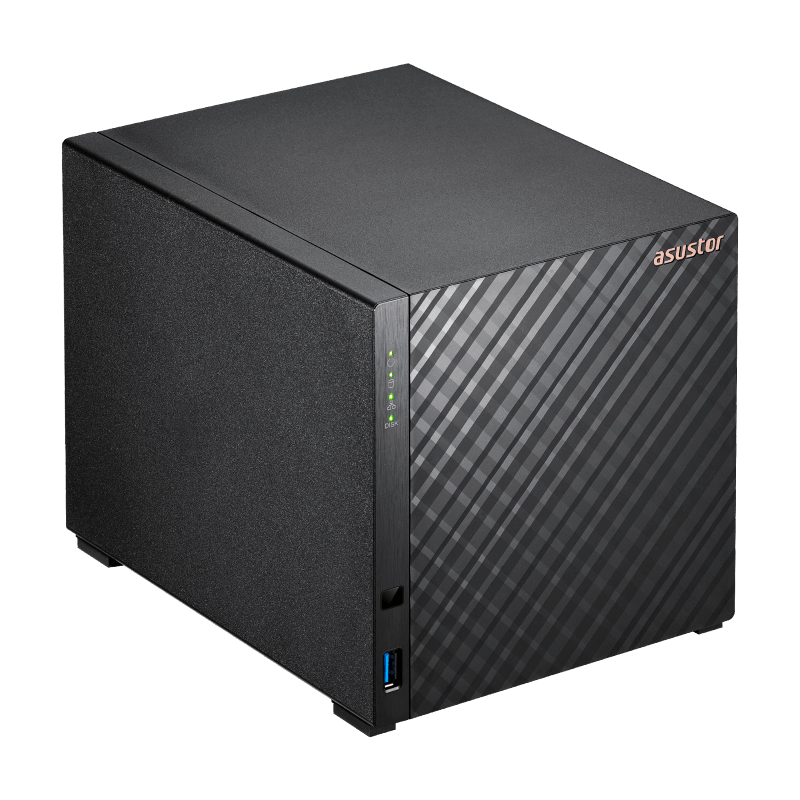

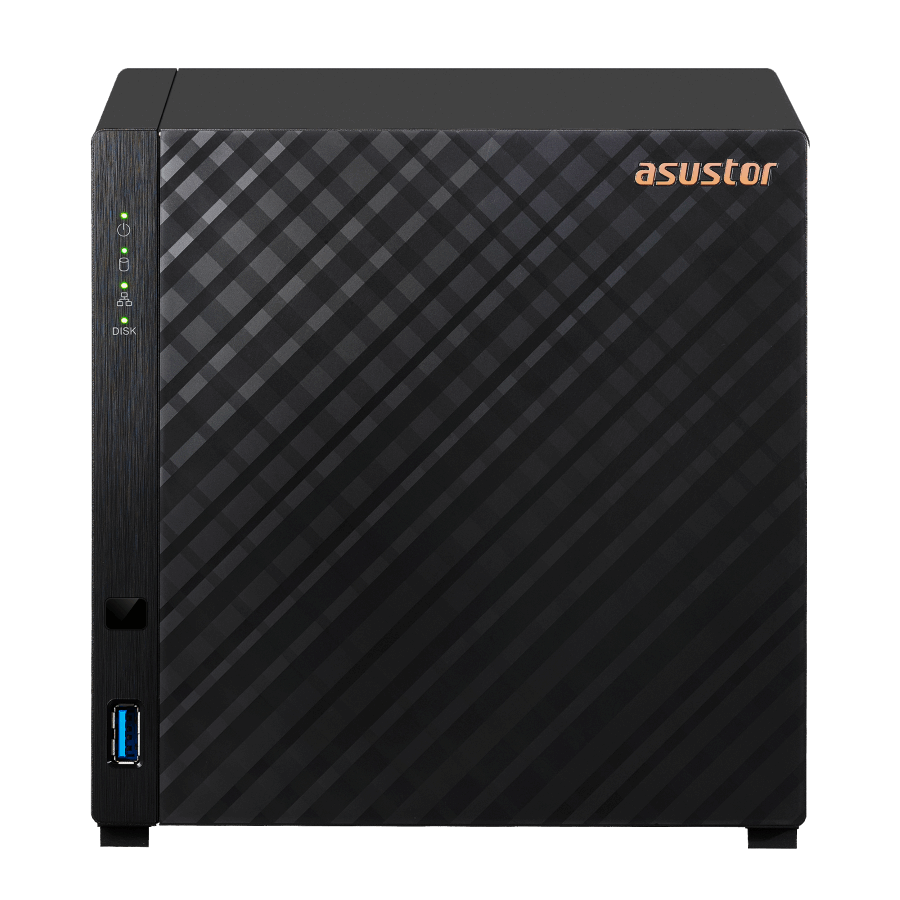

ASUSTOR Drivestor AS1104T
The ASUSTOR Drivestor AS1104T is a 4-bay NAS with Realtek RTD1296, Quad-Core 1.4GHz, 1GB DDR4 and 1x 2.5 Gigabit Ethernet (2.5G/1G/100M).
- Processor
- Realtek RTD1296 — Quad-Core 1.4GHz
- Memory
- 1GB DDR4
- Drive bays
- 4
- Networking
- 1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Straightforward NAS storage based on the supplied feature set
The supplied Drivestor AS1104T description positions this four-bay NAS around simple home or personal storage with a Realtek RTD1296 processor, 1GB DDR4 memory, 2.5-Gigabit Ethernet, Wake-on-LAN/WAN, tool-free installation and 4K transcoding.
Four-bay personal storage
The exact hardware table lists 4 drive bays.
Realtek quad-core processor
The supplied table lists Realtek RTD1296 with Quad-Core 1.4GHz.
Fixed 1GB DDR4 memory
The exact specification lists 1GB DDR4 and states memory is not expandable.
2.5GbE networking
The hardware table lists 1x 2.5 Gigabit Ethernet (2.5G/1G/100M).
USB expansion
The supplied table lists 2x USB 3.2 Gen 1.
4K transcoding positioning
The supplied product description states content playback and streaming with 4K transcoding.
Who is the ASUSTOR AS1104T best for?
A strong choice for
- Home file storage
- Four-drive NAS deployments
- Personal-cloud use
- Users who can use a single 2.5GbE network port
- Buyers who do not need memory expansion
Consider another model if you need
- Upgradeable system memory
- Built-in M.2 NVMe slots
- More than four internal drive bays without expansion
- Multiple built-in Ethernet ports
Key specifications
- Model
- AS1104T
- CPU
- Realtek RTD1296
- CPU frequency
- Quad-Core 1.4GHz
- Memory
- 1GB DDR4
- Memory expandable up to
- not expandable
- Flash memory
- 8GB eMMC
- Drive bays
- 4
- Compatible drive type
- 3.5" SATA HDD
- Networking
- 1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
- External expansion
- 2x USB 3.2 Gen 1
- Multimedia output
- N/A
- Power supply
- 90W x1
- Power consumption
- 22.8W (Operation) 9.41W (Disk Hibernation);
- Noise level
- 19.7dB (HDD idle)
- Operating temperature
- 0°C~40°C (32°F~104°F)
- Storage temperature
- -20°C~70°C (-4°F~158°F)
- Humidity
- 5% to 95% RH
- Warranty
- 3 Years
- Size
- 165(H) x 164(W) x 218(D) mm
- Weight
- 1.57 kg / 3.45 lbs
Full technical specifications
CPU
| CPU Model | Realtek RTD1296 |
|---|---|
| CPU Architecture | ARM64 64-bit |
| CPU Frequency | Quad-Core 1.4GHz |
Memory
| Memory | 1GB DDR4 |
|---|---|
| Memory Expandable up to | not expandable |
| Flash Memory | 8GB eMMC |
Storage
| Drive Bays | 4 |
|---|---|
| Compatible Drive Type | 3.5" SATA HDD |
| Maximum Drive Bays with | 12 |
External Ports
| Expansion | 2x USB 3.2 Gen 1 |
|---|---|
| Network | 1x 2.5 Gigabit Ethernet (2.5G/1G/100M) |
| Multimedia Output | N/A |
Others
| System Fan | 1x 120mm |
|---|---|
| Power Supply Unit / Adapter | 90W x1 |
| Input Power Voltage | 100V to 240V AC |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC |
| Warranty | 3 Years |
Operation
| Power Consumption | 22.8W (Operation) 9.41W (Disk Hibernation); |
|---|---|
| Noise Level | 19.7dB (HDD idle) |
| Operation Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| Humidity | 5% to 95% RH |
Size and Weight
| Size | 165(H) x 164(W) x 218(D) mm |
|---|---|
| Weight | 1.57 kg / 3.45 lbs |
Frequently asked questions about the ASUSTOR AS1104T
What is the ASUSTOR AS1104T?
It is a 4-bay ASUSTOR Drivestor NAS with the hardware and features listed in the supplied product content.
What processor does the AS1104T use?
The exact table lists Realtek RTD1296 with Quad-Core 1.4GHz.
How much memory does the AS1104T include?
The supplied specification lists 1GB DDR4.
Can memory be upgraded on the AS1104T?
The supplied table states: not expandable.
How many drive bays does the AS1104T have?
The exact specification lists 4 drive bays.
What drive types are listed for the AS1104T?
The supplied compatible-drive field lists 3.5" SATA HDD.
What networking is built into the AS1104T?
The exact hardware table lists 1x 2.5 Gigabit Ethernet (2.5G/1G/100M).
What warranty is listed for the AS1104T?
The supplied table lists 3 Years.
- Technical specifications above come only from the supplied product content.
- The supplied technical field is labelled “Maximum Drive Bays with” rather than “Maximum Drive Bays with expansion unit”; the value is retained only in the full source table.
