2U ActiveProtect backup appliance

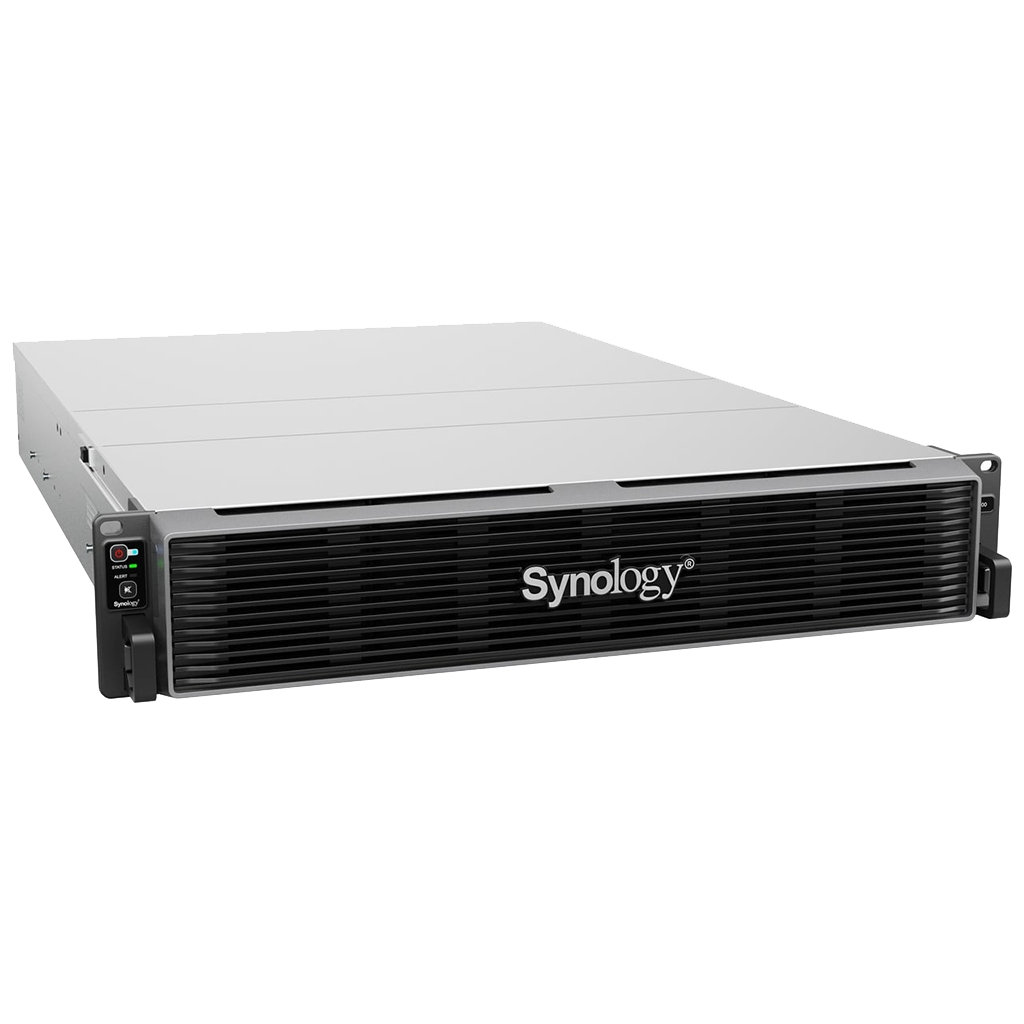

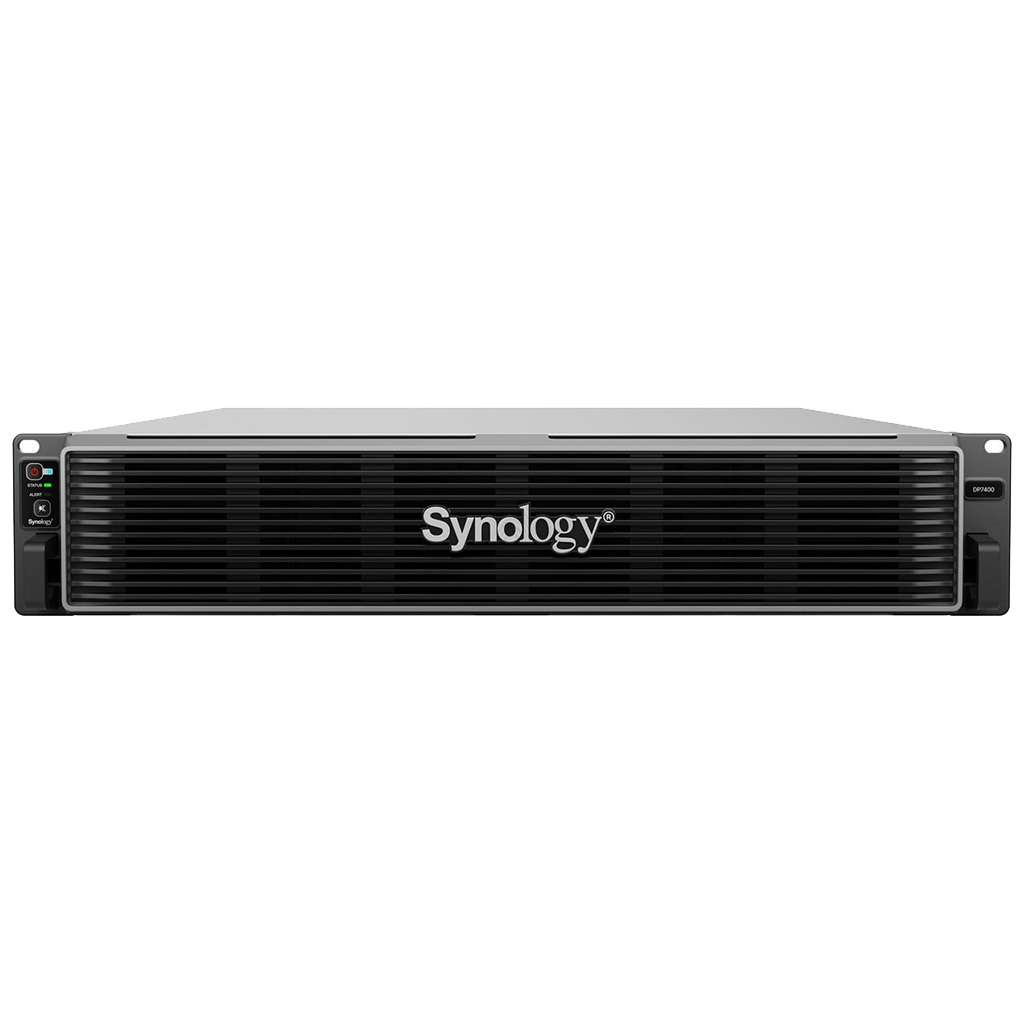

Synology DP7400 ActiveProtect Appliance
The Synology DP7400 is a 2U purpose-built backup appliance with a 12-core AMD EPYC 7272 processor, 64 GB memory, ten 20 TB hard drives and two 3.84 TB SSDs for centralised enterprise data protection.
- Backup source
- Suggested 83.5 TB
- Processor
- AMD EPYC 7272
- Memory
- 64 GB, max. 512 GB
- Data network
- 2 × 10GbE RJ-45
Centralised protection and recovery across large environments
The Synology DP7400 runs ActiveProtect Manager to consolidate backup policies, protection tasks, appliances and recovery workflows. Its predefined storage configuration, deduplication, immutability and air-gapping capabilities suit headquarters and central management deployments that need one backup control plane across many sites.
Unified management
Manage protection plans, appliances and recovery operations from ActiveProtect Manager.
Predefined storage
Ten 20 TB HDDs and two 3.84 TB SSDs are arranged in specified RAID configurations.
Large cluster scale
The current platform specification supports management of up to 2,500 servers or 300,000 workloads.
Recovery readiness
The appliance is rated for nine suggested concurrent built-in restored virtual machines.
Cyber-resilient controls
Immutability, air-gapping and access control support protected backup-copy strategies.
High-speed data links
Two 10GbE RJ-45 data-transfer ports are separate from the 1GbE management interface.
Who is the Synology DP7400 best for?
A strong choice for
- Headquarters backup management
- Large multi-site protection deployments
- Organisations consolidating backup policies
- Teams needing built-in restored-VM capability
- Ransomware-resilient backup architecture
- Rackmount data-centre deployments
Consider another model if you need
- You need a smaller desktop backup appliance
- Your suggested backup source is well below 83.5 TB
- You do not have suitable rack, power and 10GbE infrastructure
- You need primary file storage rather than a dedicated backup platform
Key specifications
- Form factor
- 2U rackmount
- CPU
- AMD EPYC 7272, 12 cores
- Memory
- 64 GB, maximum 512 GB
- HDD configuration
- 10 × 20 TB, RAID 6 + 1 spare
- SSD configuration
- 2 × 3.84 TB, RAID 1
- Management network
- 1 × 1GbE RJ-45
- Data network
- 2 × 10GbE RJ-45
- Dimensions
- 88 × 430.5 × 692 mm
- Weight
- 23.4 kg
- Warranty
- 5 years
Full technical specifications
Protection platform and hardware
| Suggested backup source | 83.5 TB |
|---|---|
| Suggested built-in restored VMs | 9 |
| Cluster management capability | Up to 2,500 servers or 300,000 workloads |
| Form factor | 2U rackmount |
| Processor | AMD EPYC 7272, 12 cores |
| Memory | 64 GB; maximum 512 GB |
| HDD storage configuration | 10 × 20 TB 3.5-inch HDD, RAID 6 + 1 spare |
| SSD storage configuration | 2 × 3,840 GB 2.5-inch SSD, RAID 1 |
Network and physical specifications
| Management network | 1 × 1GbE RJ-45 |
|---|---|
| Data-transfer network | 2 × 10GbE RJ-45 |
| Optional data interfaces | 2 × 10GbE RJ-45 or 25GbE SFP28 |
| Dimensions without server handles | 88 × 430.5 × 692 mm |
| Dimensions with server handles | 88 × 482 × 724 mm |
| Weight | 23.4 kg |
Power and environment
| AC input | 100 V to 240 V AC |
|---|---|
| Power frequency | 50/60 Hz, single phase |
| Power consumption — access | 163.17 W |
| British thermal unit — access | 556.91 BTU/hr |
| Operating temperature | 0°C to 35°C (32°F to 95°F) |
| Operating humidity | 8% to 80% RH |
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Storage humidity | 5% to 95% RH |
Warranty, compliance and package contents
| Warranty | 5 years |
|---|---|
| Environmental compliance | RoHS compliant |
| Certifications | FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS and EAC |
| Package contents | DP7400 main unit × 1, 3.5-inch SATA HDD × 10, 2.5-inch SATA SSD × 2, C13-to-C14 power cord × 2, front cover × 1, accessory pack × 1 and Quick Installation Guide × 1 |
Frequently asked questions about the Synology DP7400
What is the Synology DP7400?
It is a 2U ActiveProtect backup appliance for centralised protection, management and recovery across large environments.
Which processor is installed in the DP7400?
The DP7400 uses a 12-core AMD EPYC 7272 processor.
How much memory does the DP7400 include?
It includes 64 GB and supports a stated maximum of 512 GB.
What storage is installed in the DP7400?
The configuration includes ten 20 TB 3.5-inch HDDs in RAID 6 with one spare and two 3.84 TB 2.5-inch SSDs in RAID 1.
What backup-source size is suggested for the DP7400?
Synology lists a suggested backup source of 83.5 TB; actual requirements depend on retention, change rate and deduplication.
How large can a DP7400 cluster be?
The current specification supports management of up to 2,500 servers or 300,000 workloads.
How many restored VMs are suggested for the DP7400?
Synology lists nine suggested concurrent built-in restored virtual machines.
Which network ports are included on the DP7400?
It includes one 1GbE management port and two 10GbE RJ-45 data-transfer ports.
What are the DP7400 dimensions?
The chassis measures 88 × 430.5 × 692 mm, or 88 × 482 × 724 mm with server handles.
What warranty applies to the DP7400?
Synology specifies a five-year warranty for the appliance.
- The suggested backup-source and restored-VM figures are planning guidance, not guaranteed limits.
- Cluster, performance and reduction figures depend on workload, retention, change rate and deployment design.
- Confirm rack depth, power, network and optional-interface requirements before deployment.
- This is a purpose-built backup appliance rather than a general-purpose DiskStation NAS.
