SYNOLOGY Plus series DS423+ NAS Front View

SYNOLOGY Plus series DS423+ NAS Back View (I/O ports)

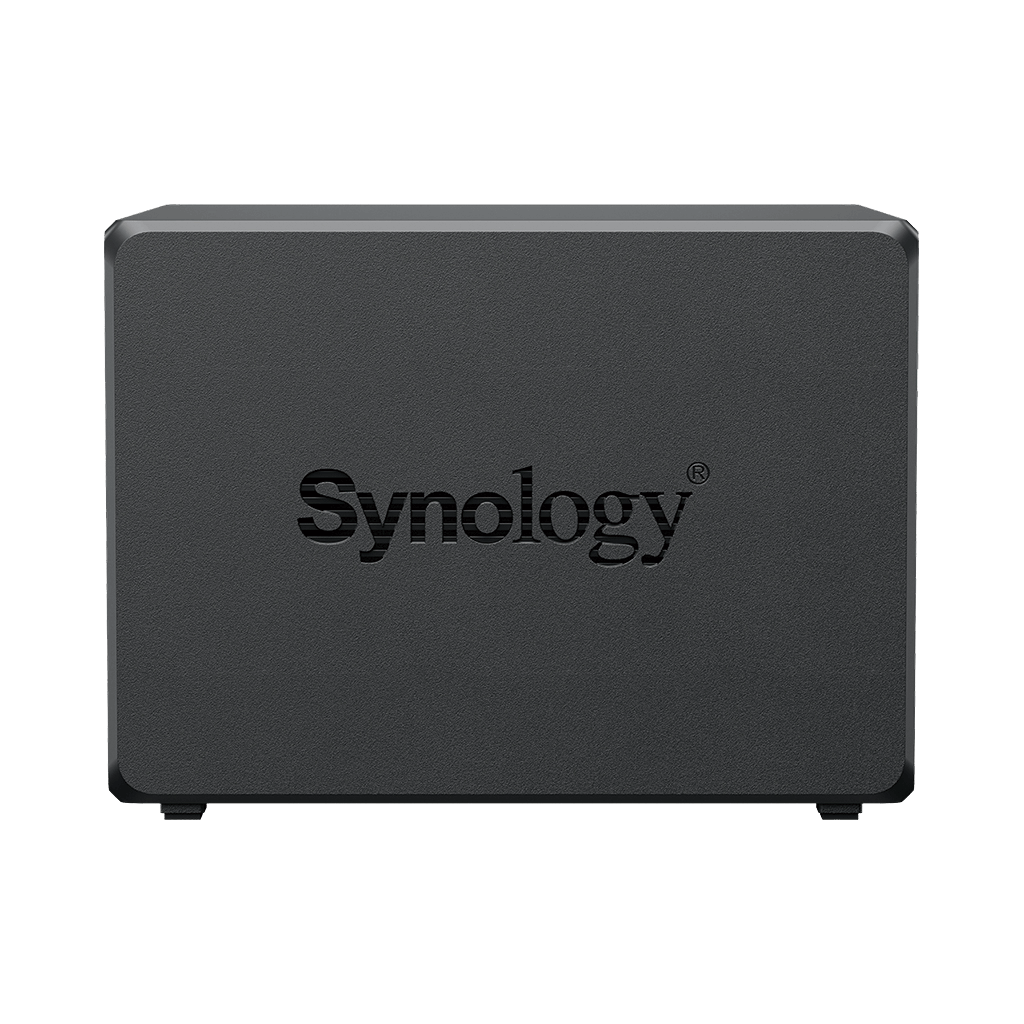

SYNOLOGY Plus series DS423+ NAS Side View 3

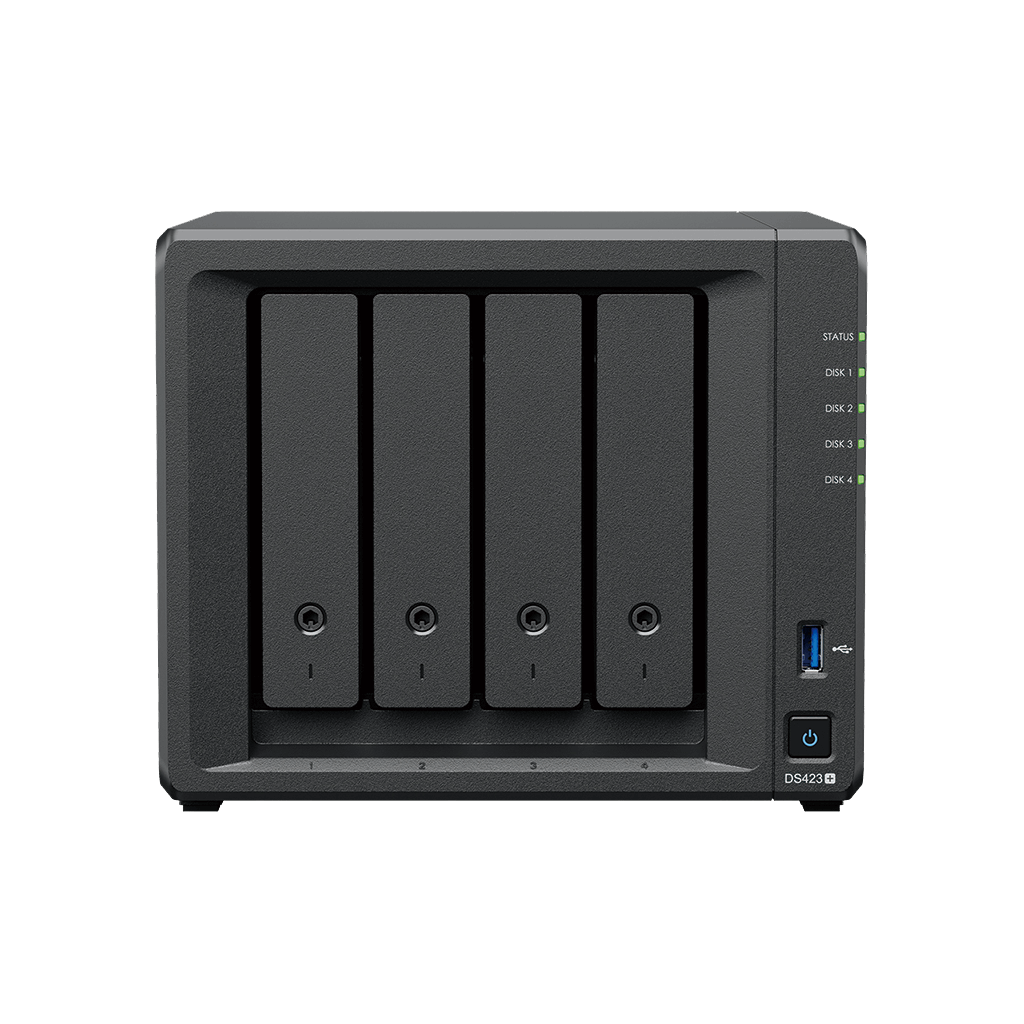

SYNOLOGY Plus series DS423+ NAS Side View 4

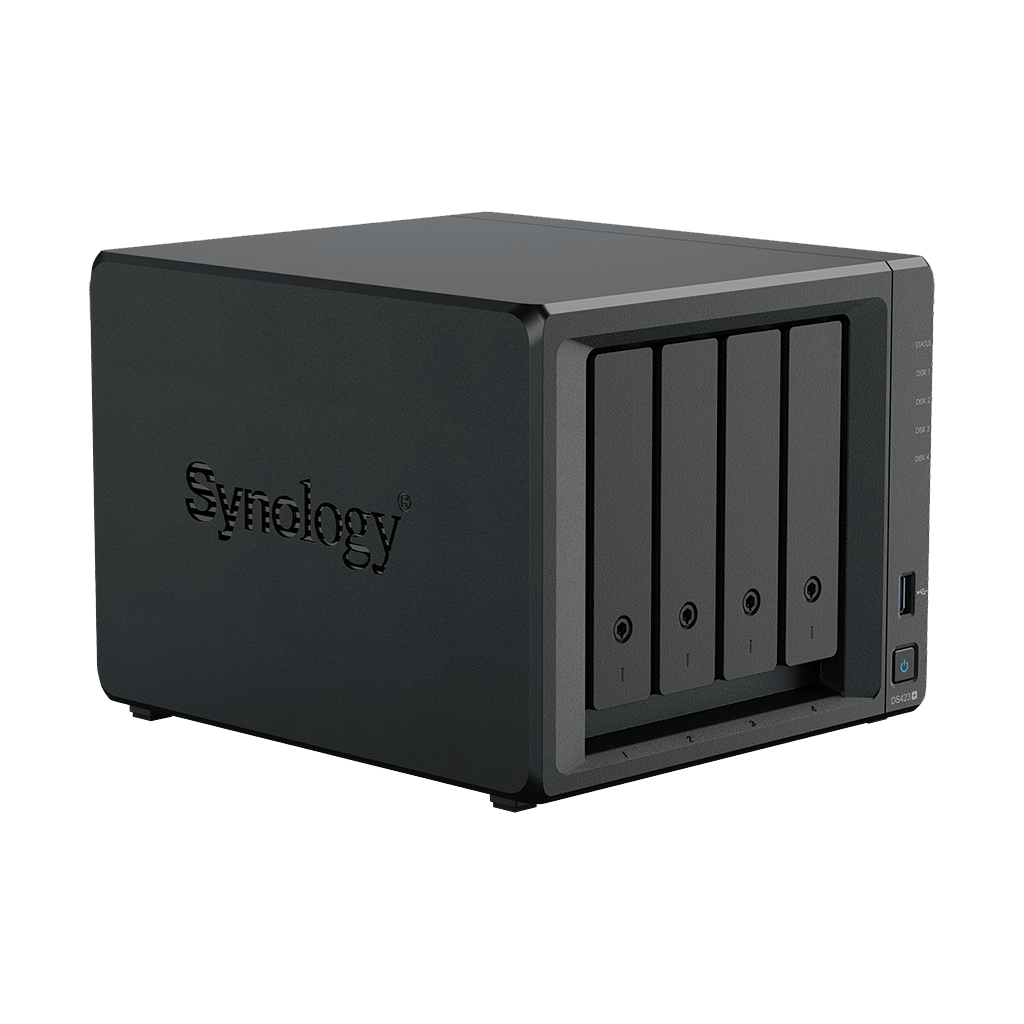

SYNOLOGY Plus series DS423+ NAS Side View 5

Gallery
Description
Compatibility

Description

A compact storage hub with 100% data ownership

Download Datasheet

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

Capable and compact

Powerful functionality packed into a 4-bay chassis

Consolidate and share

Store, organize, and share up to 80 TB of data.

Integrated data protection

Contains hardware and software safeguards engineered to protect your data — trusted by millions.

Specification

Hardware Specifications
CPU	CPU Model	Intel Celeron J4125
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.0 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	2 GB DDR4 non-ECC
	Total Memory Slots	1
	Maximum Memory Capacity	6 GB (2 GB + 4 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	4
	M.2 Drive Slots	2 (NVMe)
	Drive Type	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots.
External Ports	RJ-45 1GbE LAN Port	2
	USB 3.2 Gen 1 Port*	2
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
Appearance	Size (Height x Width x Depth)	166 mm x 199 mm x 223 mm
	Weight	2.18 kg
Others	System Fan	92 mm x 92 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	19.8 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	90 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	28.3 watts (Access) 8.45 watts (HDD Hibernation)
	British Thermal Unit	96.5 BTU/hr (Access) 28.81 BTU/hr (HDD Hibernation)
	Notes	Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty	3-year hardware warranty, extendable to 5 years with extended waranty
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1

Compatibility

✔ Expansion Units:
Not Scalable
✔ General Compatibility:
See the compatible storage drives and accessories for this Synology device (SKU: DS423+):
- Compatible Synology and 3rd-party Storage Drives
- Compatible Accessories

Synology DiskStation DS423+ ,4-Bay Intel Celeron J4125 4-core ,2GB DDR4 ,3.5" Diskless NAS

$690.00

Tax included.

SKU: DS423+
