16-Position Mixed Fibre and Copper 10GbE Switch

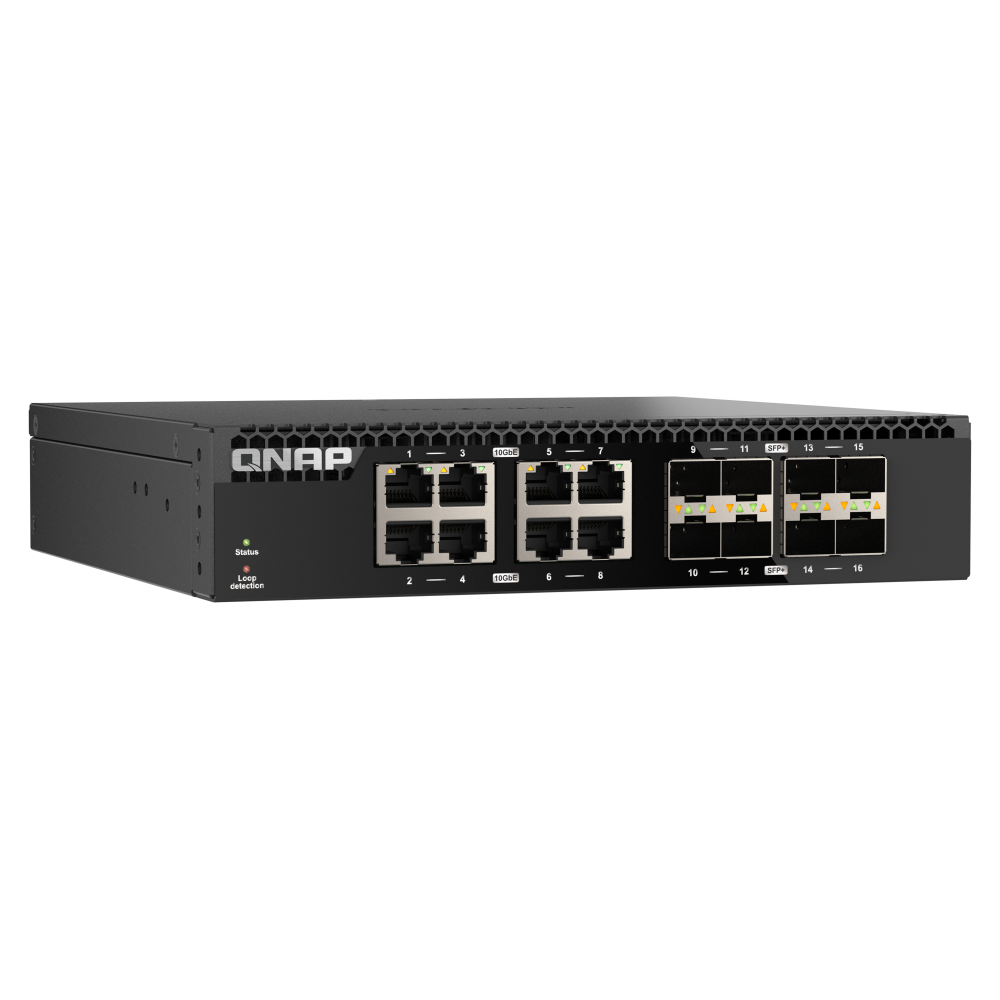

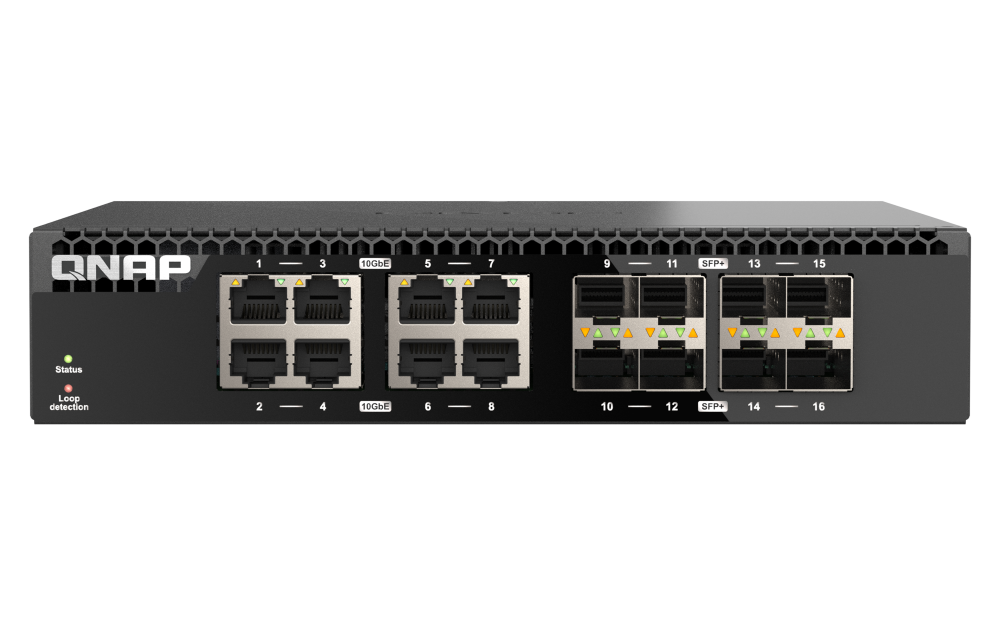

QNAP QSW-3216R-8S8T 10GbE Switch
A half-width rackmount 10GbE switch with eight SFP+ fibre interfaces, eight Multi-Gigabit RJ45 interfaces and a stated switching capacity of 320Gbps.
Sixteen 10GbE connections in a space-saving half-width chassis
The QNAP QSW-3216R-8S8T combines eight 10GbE SFP+ ports and eight 10GbE Multi-Gigabit RJ45 ports for mixed-interface network upgrades. Plug-and-play deployment, loop detection and blocking, flow control and a half-width rackmount chassis support high-speed home, office and business networks where rack space matters.
Key features and benefits
Eight 10GbE SFP+ ports
Eight fibre interfaces support the stated 10G and 1G connection speeds.
Eight Multi-Gigabit RJ45 ports
Eight copper interfaces support 10G, 5G, 2.5G, 1G and 100M speeds.
Automatic loop protection
Loop detection and blocking are provided to help maintain continuous network operation.
IEEE 802.3x flow control
Full-duplex flow control is included for traffic management.

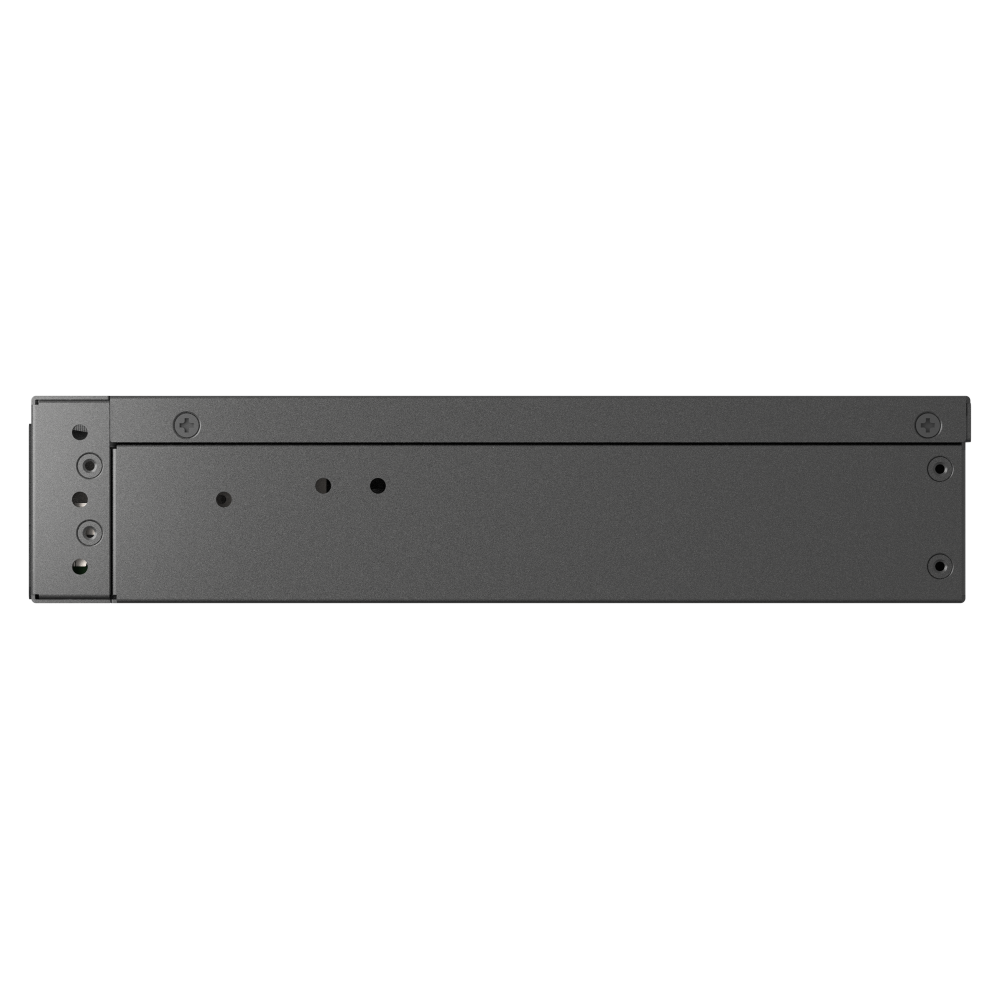

Half-width rackmount design
Two compatible half-width switches can be installed in one 1U rack space.
High switching capacity
The stated switching capacity is 320Gbps with 160Gbps non-blocking throughput.
Who is this model best for?
A strong choice for
- Mixed fibre and copper 10GbE networks
- High-speed NAS and server connections
- Space-conscious rack installations
- Home, office and business network upgrades
- Plug-and-play 10GbE deployment
Consider another model if you need
- You require 25GbE or 100GbE ports
- You need Power over Ethernet
- You need a desktop-only switch
Key specifications
- 10GbE interfaces
- 8 × SFP+; 8 × BASE-T RJ45
- RJ45 speeds
- 10G / 5G / 2.5G / 1G / 100M
- SFP+ speeds
- 10G / 1G
- MAC address table
- 16K
- Non-blocking throughput
- 160Gbps
- Switching capacity
- 320Gbps
- Maximum power consumption
- 48.632W
- Form factor
- Half-width rackmount
- Dimensions
- 43.3 × 207 × 199.5 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Number of Ports | 16 |
|---|---|
| 10GbE SFP+ | 8 (10G/1G) |
| 10GbE BASE-T (RJ45) | 8 (10G/5G/2.5G/1G/100M) |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 160Gbps |
| Switching Capacity | 320Gbps |
| Console | Supported |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Internal Power supply Unit |
|---|---|
| Max. Power Consumption | 48.632W |
| Input Power Type | AC |
| Fan | PWM VAPO Bearing fan x 2 |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Dimensions (HxWxD) | 43.3 x 207 x 199.5 mm |
| Weight (Net) | 1.52 kg |
| Weight (Gross) | 2.23 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 100-240VAC, 50/60Hz |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-3216R-8S8T
What is the QNAP QSW-3216R-8S8T?
It is a half-width rackmount 10GbE switch with eight SFP+ fibre interfaces and eight Multi-Gigabit RJ45 interfaces.
Which high-speed connections does it provide?
It provides eight 10GbE SFP+ interfaces and eight 10GbE BASE-T RJ45 interfaces.
Which speeds do the RJ45 ports support?
The RJ45 interfaces support 10G, 5G, 2.5G, 1G and 100M speeds.
Which speeds do the SFP+ ports support?
The SFP+ interfaces support the stated 10G and 1G speeds.
Does it provide loop protection?
Yes. Automatic loop detection and blocking are included.
What is its switching capacity?
The stated switching capacity is 320Gbps.
What is its non-blocking throughput?
The stated total non-blocking throughput is 160Gbps.
What form factor does it use?
It uses a half-width rackmount form factor.
What are its dimensions?
The stated dimensions are 43.3 × 207 × 199.5 mm.
What warranty is provided?
The QSW-3216R-8S8T includes a two-year warranty.
Important information
The SFP+ ports support the stated 10G and 1G speeds.
The RJ45 ports support 10G, 5G, 2.5G, 1G and 100M speeds.
The product includes a two-year warranty.
