12-Port 10GbE Web-Managed Switch
QNAP QSW-M1208-8C Managed Switch

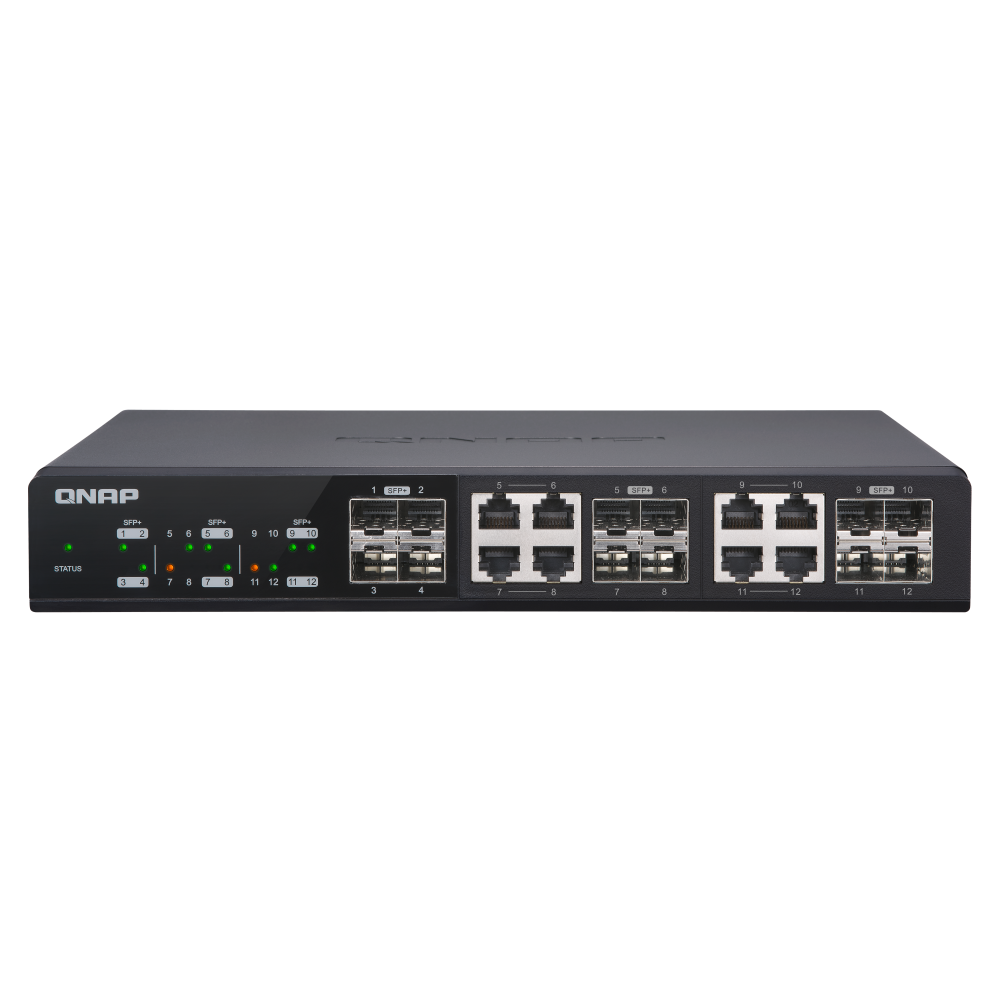

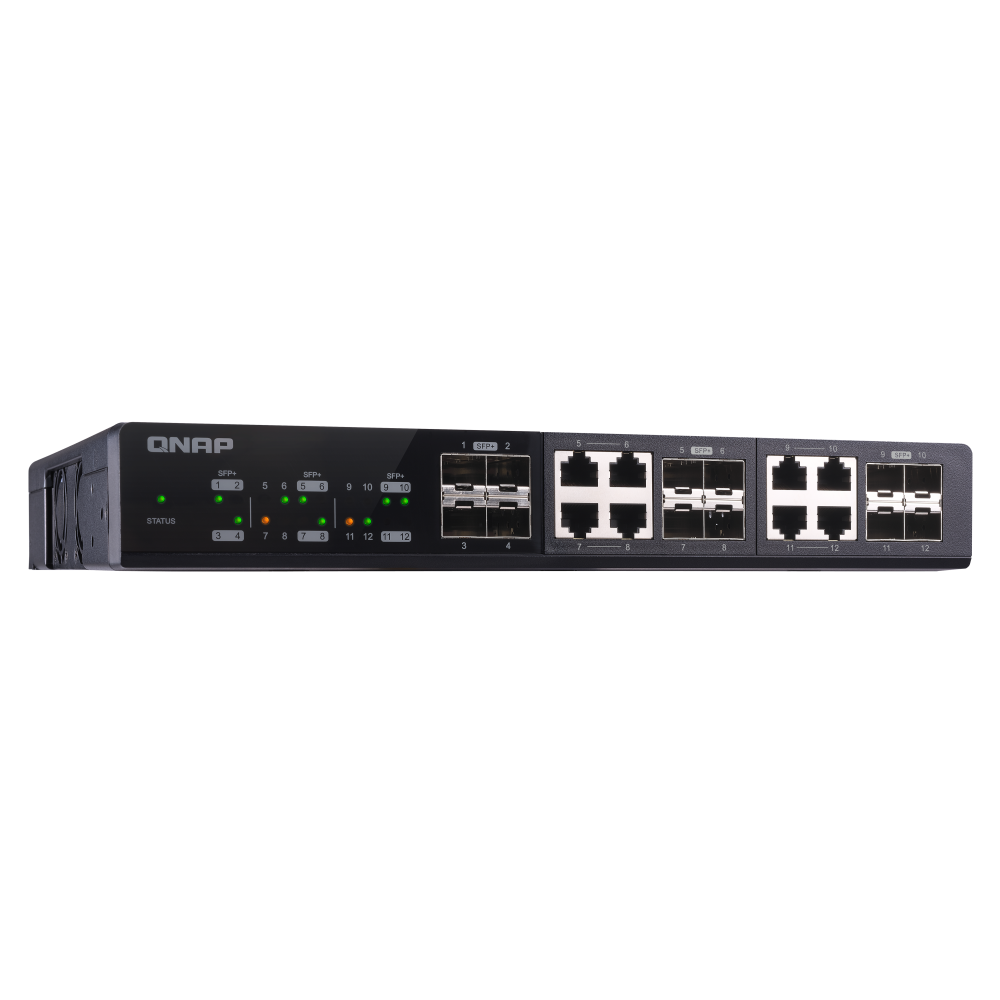

A rackmount Layer 2 web-managed switch with four dedicated 10GbE SFP+ ports, eight 10GbE SFP+/RJ45 combo ports, a separate Gigabit management port and a stated switching capacity of 240Gbps.
Twelve 10GbE positions for demanding fibre and copper networks
The QNAP QSW-M1208-8C combines four dedicated SFP+ ports with eight SFP+/RJ45 combo positions for mixed 10GbE fibre and copper deployment. QSS web management, Layer 2 controls, RSTP and flow control support multi-workstation file access, multimedia, virtualisation and other bandwidth-intensive business traffic.
Key features and benefits
Four dedicated SFP+ ports
Four fibre interfaces provide dedicated 10GbE connections.
Eight 10GbE combo positions
Eight positions provide SFP+ fibre or RJ45 copper connectivity.
Five-speed RJ45 support
The copper combo interfaces support 10G, 5G, 2.5G, 1G and 100M speeds.
Separate management port
One 1GbE RJ45 port is provided for management.
Layer 2 network controls
LACP, VLAN, ACL and LLDP support managed bandwidth and access policies.
RSTP and flow control
RSTP supports redundancy and loop prevention, while IEEE 802.3x manages full-duplex traffic.
Who is this model best for?
A strong choice for
- Multi-workstation 10GbE networks
- Video-editing and multimedia file access
- Virtualisation network traffic
- Hybrid fibre and copper deployments
- Teams needing Layer 2 management
Consider another model if you need
- You need 25GbE or 100GbE connectivity
- You require Power over Ethernet
- You need a small fanless desktop switch
Key specifications
- Management type
- Web Managed
- Ports
- 4 × 10GbE SFP+; 8 × 10GbE SFP+/RJ45 combo
- Management port
- 1 × 1GbE RJ45
- MAC address table
- 32K
- Non-blocking throughput
- 120Gbps
- Switching capacity
- 240Gbps
- Maximum power consumption
- 70W
- Form factor
- Rackmount
- Dimensions
- 46.65 × 285 × 236.6 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 12 |
| 10GbE SFP+ | 4 |
| 10GbE SFP+/RJ45 Combo Ports | 8 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M). |
| Management Port | 1 x 1GbE RJ45 |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 120Gbps |
| Switching Capacity | 240Gbps |
| Management Interface | Web |
| Console | RS232 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP (IEEE 802.1p Class of Service) |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Internal Power Supply Unit |
|---|---|
| Max. Power Consumption | 70W |
| Input Power Type | AC |

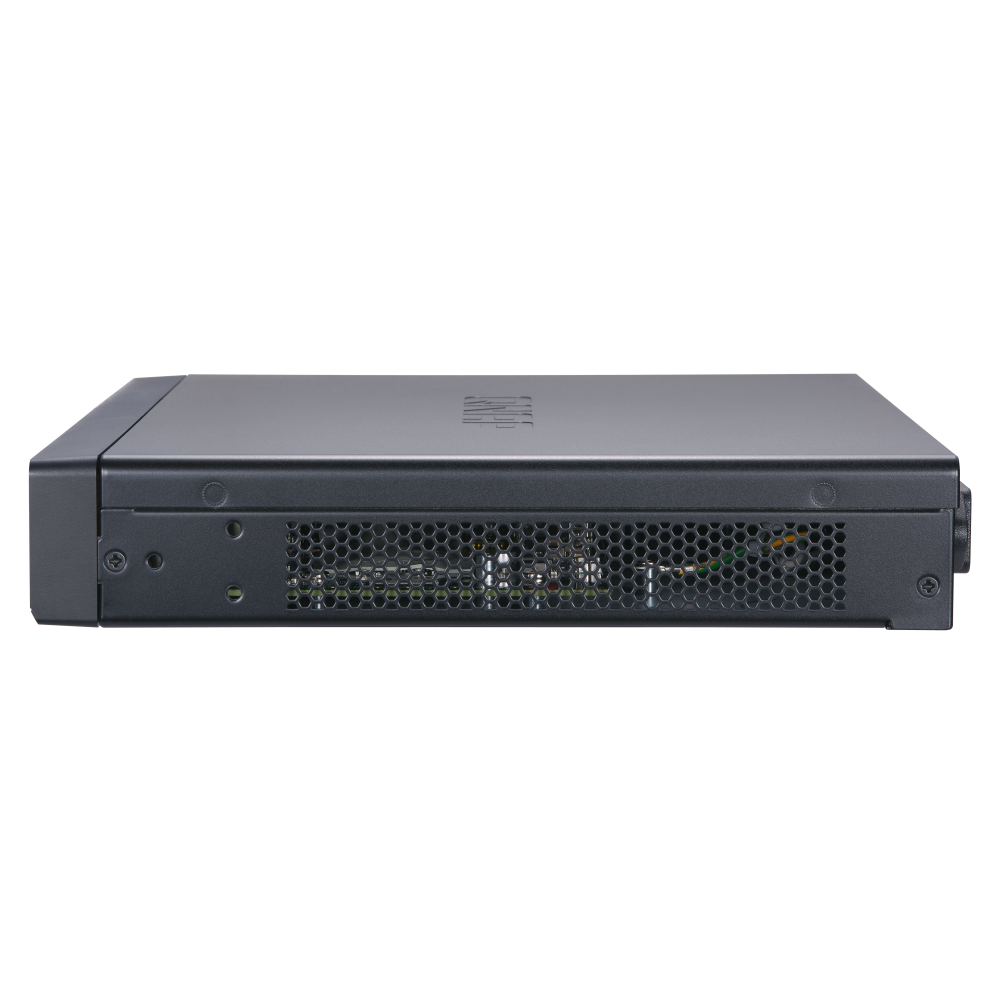

| Fan | System: 4 x 4 cm (12V) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 46.65 x 285 x 236.6 mm |
| Weight (Net) | 2.2 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5%–95% (non-condensing) |
Software and system features
| Input Voltage Range | 100 – 240VAC, 50/60Hz |
|---|
Warranty and certifications
| Certifications | FCC, CE, VCCI, BSMI, RCM, WEEE |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M1208-8C
What is the QNAP QSW-M1208-8C?
It is a rackmount Layer 2 web-managed switch with four dedicated 10GbE SFP+ ports and eight 10GbE SFP+/RJ45 combo positions.
How many ports does the QSW-M1208-8C have?
It has 12 data positions: four dedicated 10GbE SFP+ and eight 10GbE SFP+/RJ45 combo positions, plus a separate 1GbE management port.
Which high-speed connections does the QSW-M1208-8C provide?
All 12 data positions are 10GbE-capable, combining four dedicated SFP+ interfaces with eight fibre-or-copper combo positions.
How is the QSW-M1208-8C managed?
It is web managed through QSS and highlights LACP, VLAN, ACL, LLDP and RSTP.
What is the switching capacity of the QSW-M1208-8C?
The stated switching capacity is 240Gbps.
What is the non-blocking throughput of the QSW-M1208-8C?
The stated total non-blocking throughput is 120Gbps.
What form factor does the QSW-M1208-8C use?
The QSW-M1208-8C uses a rackmount form factor.
What are the dimensions of the QSW-M1208-8C?
The stated dimensions are 46.65 × 285 × 236.6 mm.
What warranty is provided with the QSW-M1208-8C?
The QSW-M1208-8C includes a two-year warranty.
Which network features are highlighted for the QSW-M1208-8C?
It highlights LACP, VLAN, ACL, LLDP, RSTP, flow control and online operating-system updates.
Important information
The SFP+ ports are backward compatible with 1GbE SFP.
The RJ45 side of each combo position supports 10G, 5G, 2.5G, 1G and 100M speeds.
The product includes a two-year warranty.
