10-Port 10GbE and 2.5GbE Web-Managed Switch
QNAP QSW-M2106-4S Managed Switch
A desktop Layer 2 web-managed switch with four 10GbE SFP+ fibre ports, six 2.5GbE RJ45 ports and a stated switching capacity of 110Gbps.
Four 10GbE fibre connections with six 2.5GbE access ports

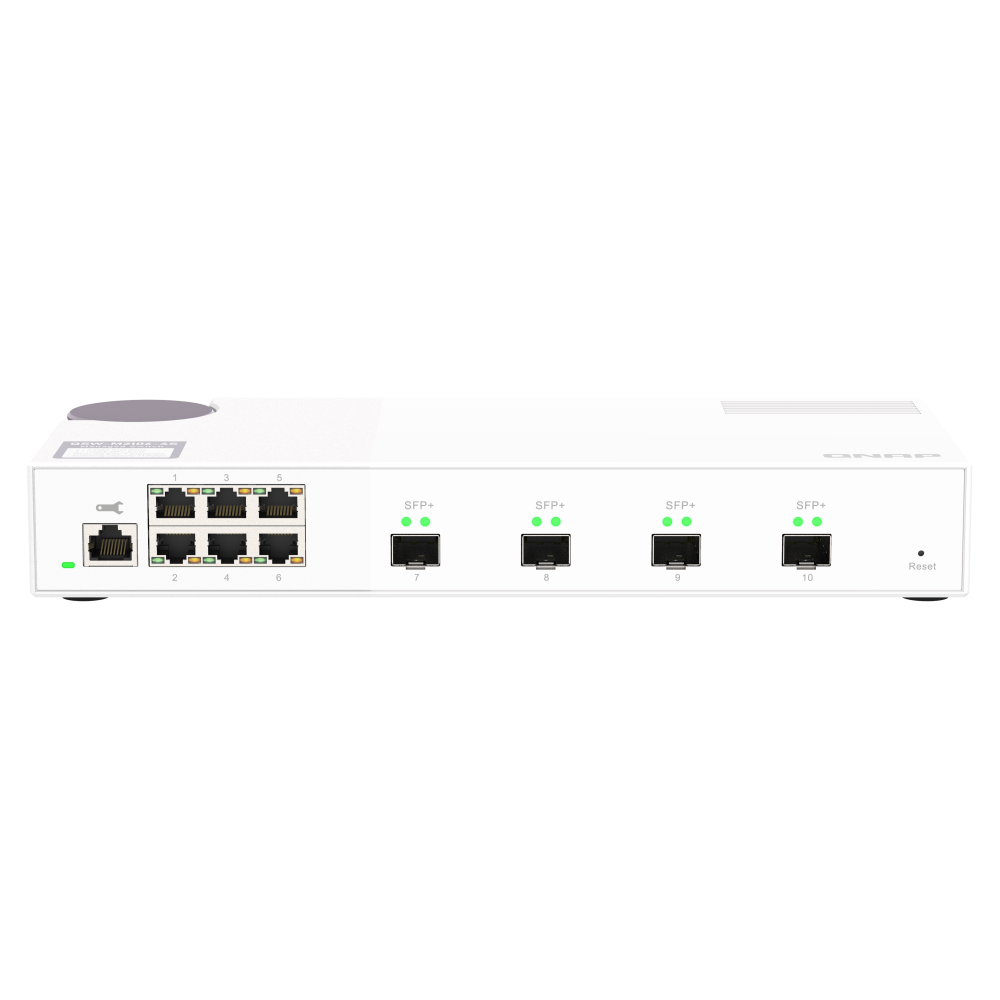

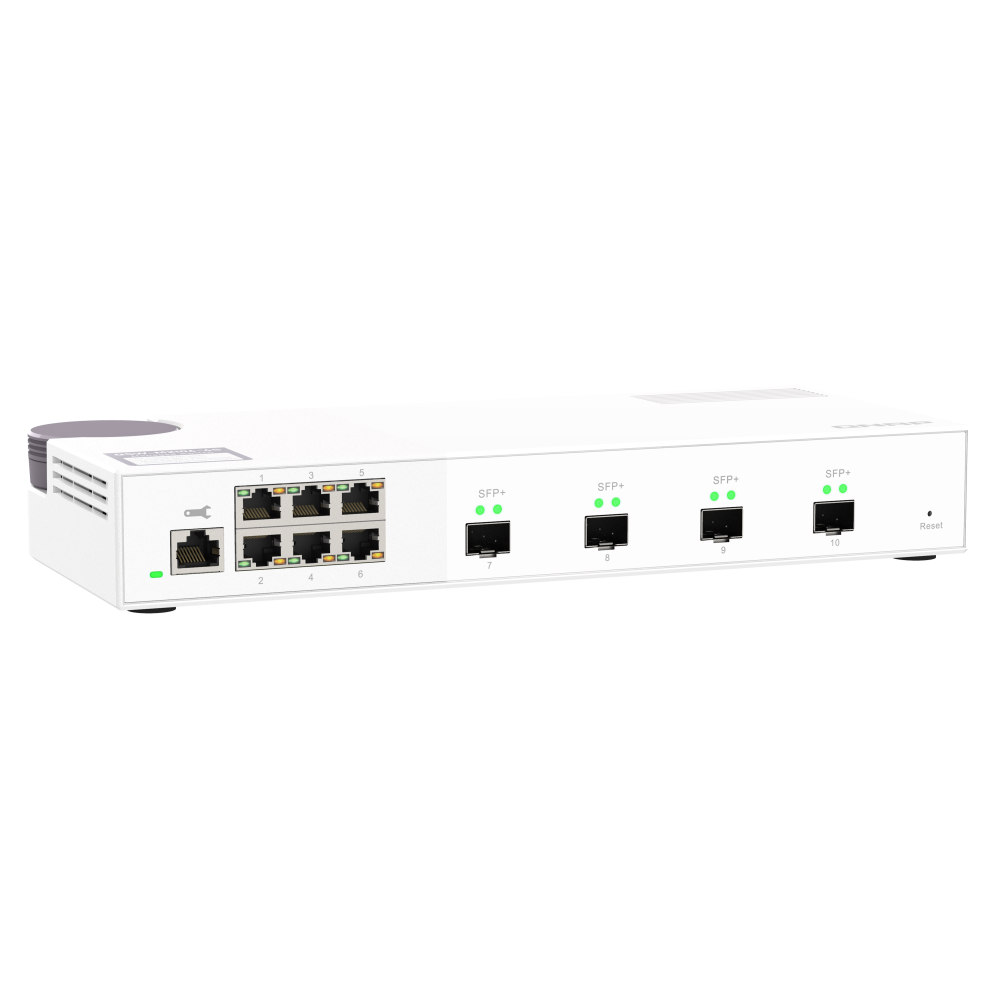

The QNAP QSW-M2106-4S combines four 10GbE SFP+ ports with six 2.5GbE copper ports in a desktop chassis. QSS web management, Layer 2 controls, RSTP and online firmware updates support office and small-business networks that need fast storage, workstation and uplink connections.
Key features and benefits
Four 10GbE SFP+ ports
Four fibre interfaces provide 10GbE connectivity and are backward compatible with 1GbE SFP.
Six 2.5GbE RJ45 ports
Six copper ports connect compatible 2.5GbE, 1GbE and 100M devices.
QSS web management
The interface provides an overview dashboard, port management and a settings guide.
Layer 2 controls
LACP, VLAN, ACL and LLDP support bandwidth and network control.
RSTP support
Rapid Spanning Tree Protocol supports expansion, redundancy and loop prevention.
Online firmware updates
QSS provides the stated one-click online update function.
Who is this model best for?
A strong choice for
- Desktop 2.5GbE network upgrades
- 10GbE fibre uplinks and storage links
- Small-business and office workgroups
- Teams needing Layer 2 management
- Networks using VLAN, LACP and RSTP
Consider another model if you need
- You need 10GbE copper RJ45 ports
- You require Power over Ethernet
- You need a rackmount switch
Key specifications
- Management type
- Web Managed
- Ports
- 4 × 10GbE SFP+; 6 × 2.5GbE RJ45
- MAC address table
- 16K
- Non-blocking throughput
- 55Gbps
- Switching capacity
- 110Gbps
- Power
- Adapter; 16W maximum
- Form factor
- Desktop
- Dimensions
- 42.5 × 290 × 127 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 10 |
| 10GbE SFP+ | 4 |
| 2.5GbE (RJ45) | 6 |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Adapter |
|---|---|
| Max. Power Consumption | 16W |
| Input Power Type | DC |
| Fan | PWM double ball bearing fan x 1 |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 x 290 x 127 mm |
| Weight (Net) | 1.15 kg |
| Weight (Gross) | 1.75 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 12V/3A |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS B |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M2106-4S
What is the QNAP QSW-M2106-4S?
It is a desktop Layer 2 web-managed switch with four 10GbE SFP+ ports and six 2.5GbE RJ45 ports.
How many ports does the QSW-M2106-4S have?
It has 10 data ports: four 10GbE SFP+ and six 2.5GbE RJ45 ports.
Which high-speed connections does the QSW-M2106-4S provide?
It provides four 10GbE SFP+ fibre ports that are backward compatible with 1GbE SFP.
How is the QSW-M2106-4S managed?
It is web managed through QSS and highlights LACP, VLAN, ACL, LLDP and RSTP.
What is the switching capacity of the QSW-M2106-4S?
The stated switching capacity is 110Gbps.
What is the non-blocking throughput of the QSW-M2106-4S?
The stated total non-blocking throughput is 55Gbps.
What form factor does the QSW-M2106-4S use?
The QSW-M2106-4S uses a desktop form factor.
What are the dimensions of the QSW-M2106-4S?
The stated dimensions are 42.5 × 290 × 127 mm.
What warranty is provided with the QSW-M2106-4S?
The QSW-M2106-4S includes a two-year warranty.
Which network features are highlighted for the QSW-M2106-4S?
It highlights LACP, VLAN, ACL, LLDP, RSTP and online firmware updates.
Important information
The 10GbE SFP+ ports are backward compatible with 1GbE SFP.
The product includes a two-year warranty.
