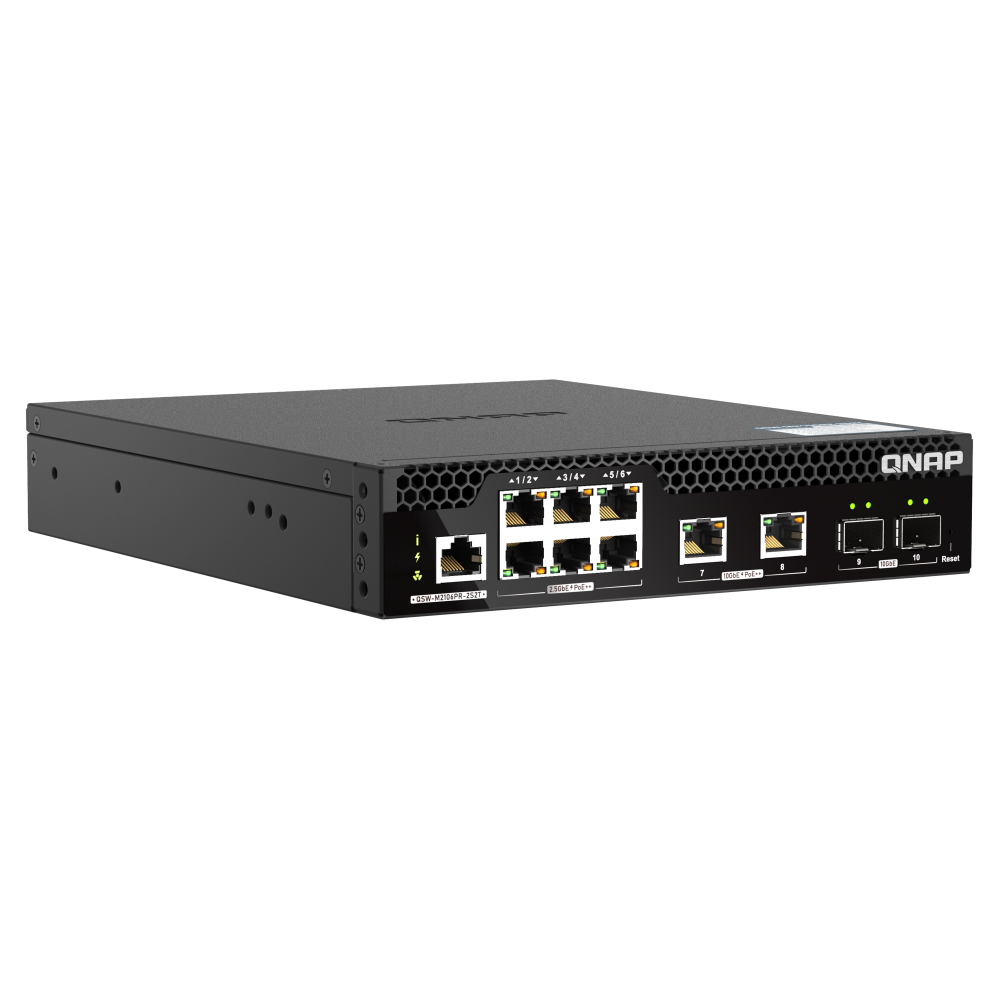

The QNAP QSW-M2106PR-2S2T is a half-width rackmount L2 PoE Managed Switch with six 90-watt 2.5GbE PoE++ ports, two 90-watt 10GbE PoE++ ports and two 10GbE SFP+ fiber ports. Providing a total power budget of 310 watts, the QSW-M2106PR-2S2T enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6/Wi-Fi 6E/Wi-Fi 7 Access Points and Routers. The QNAP Switch System (QSS) features a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2106PR-2S2T offers SMBs a cost-optimized and centrally managed LAN deployment solution. With a half-width design, two QSW-M2106PR-2S2T can be installed in a 1U rack space for space-saving. The QSW-M2106PR-2S2T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
-
10G Multi-Gig connectivity
Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).
-
2.5Gb Ethernet connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
-
90W PoE++
Can supply a total power budget of 310 watts to meet the demands of high-powered devices (PDs).
-
User-friendly management interface
IT administrators can efficiently control Layer 2 and PoE networks, including network connection status and power consumption information, making central management of high-power devices intuitive and easy.
-
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
-
Online OS update
Update QSS with just one click to help ensure network security.
Specification
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 6 |
| Total PoE Ports | 8 |
| PoE++ PSE (802.3bt, 90W) | Port 1-8 (90W) |
| PoE Power Output | Port 1-8 (90W) |
| Total PoE Power Budget | 310W |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 350W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Fan | PWM VAPO Bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10G BASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3af/at/bt Power-over-Ethernet (PoE) |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/PoE/Fan |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 1.77 kg |
| Weight (Gross) | 2.54 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
