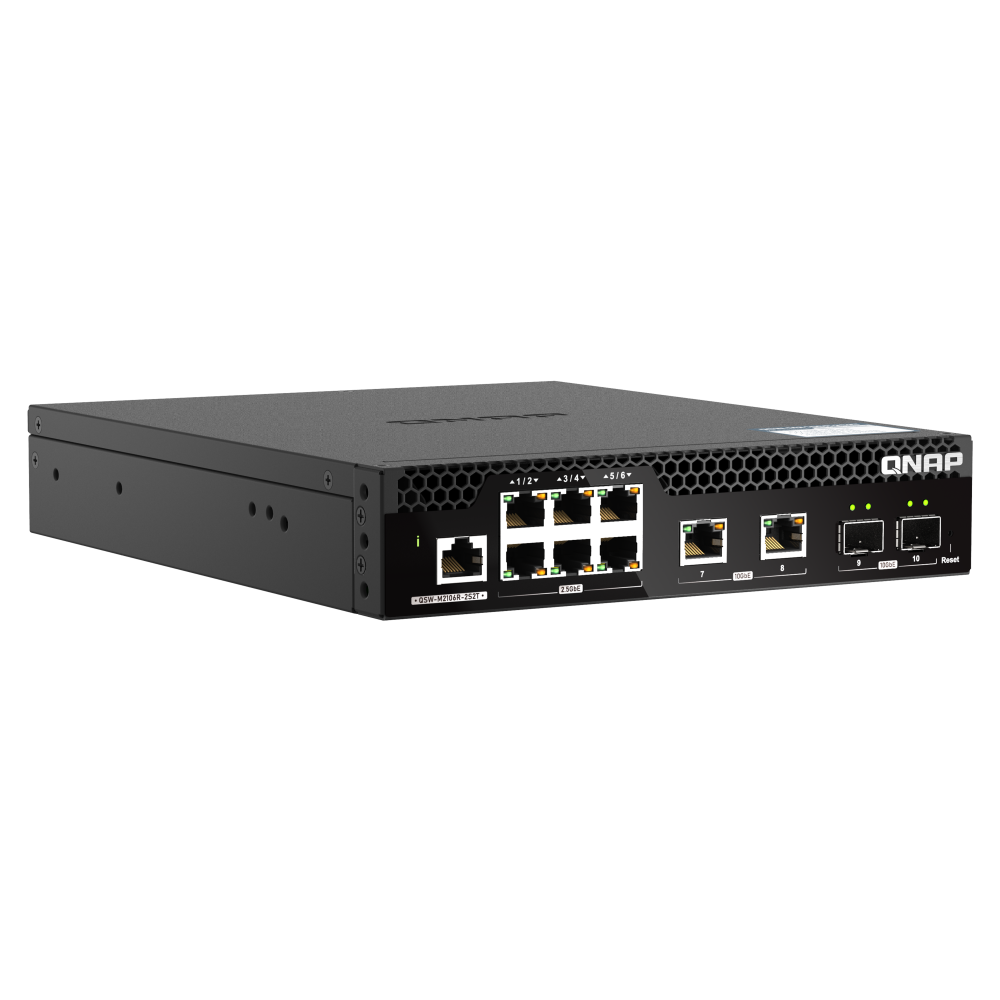

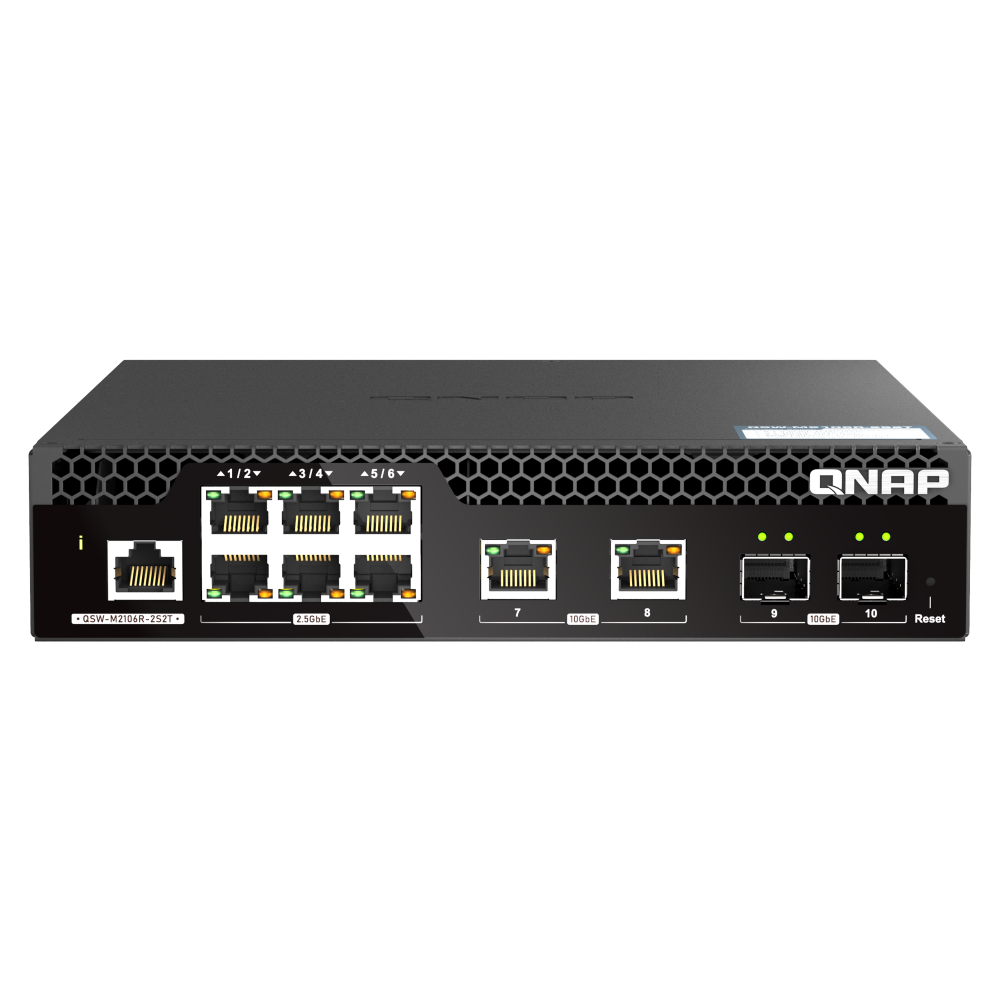

The QSW-M2106R-2S2T is a Layer 2 Web Managed Switch with two 10GbE SFP+ fiber ports, two 10GbE RJ45 ports and six 2.5GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106R-2S2T offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2106R-2S2T can be installed in a 1U rack space for space-saving. The QSW-M2106R-2S2T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
-
10GbE connectivity
Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high-speed networks.
-
2.5GbE connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
-
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
-
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
-
RSTP
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
-
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Specification
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 6 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 40W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Fan | PWM VAPO Bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 1.53 kg |
| Weight (Gross) | 2.3 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
