10-Port 2.5GbE and 10GbE Web-Managed Switch

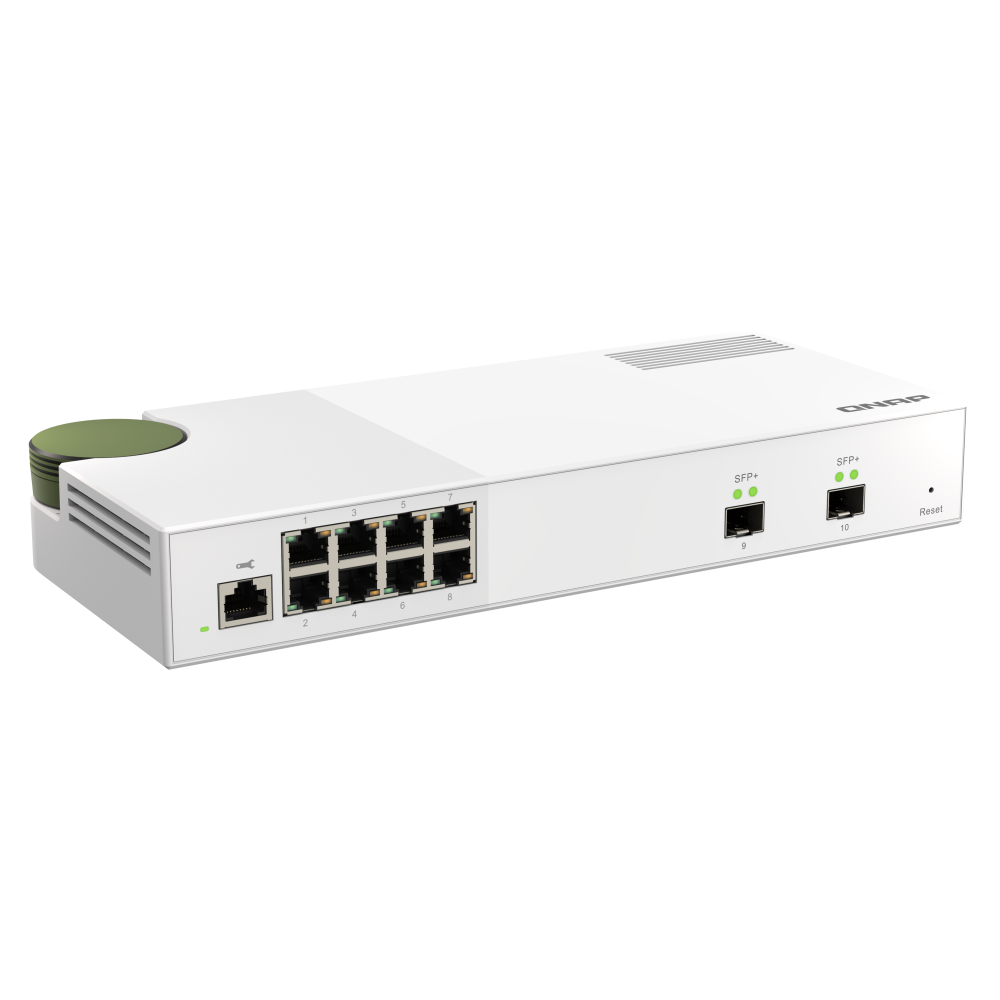

QNAP QSW-M2108-2S Managed Switch
A desktop Layer 2 web-managed switch with eight 2.5GbE RJ45 ports, two 10GbE SFP+ fibre ports and a listed switching capacity of 80Gbps.
A practical desktop upgrade to 2.5GbE with 10GbE fibre uplinks
The QNAP QSW-M2108-2S combines eight 2.5GbE copper access ports with two 10GbE SFP+ fibre ports. QSS web management, Layer 2 controls, RSTP and flow control support compact SMB and office networks that need faster client connectivity and high-speed uplinks.
Key features and benefits
Eight 2.5GbE RJ45 ports
Eight copper ports provide 2.5 Gigabit Ethernet connectivity.
Two 10GbE SFP+ ports
Two fibre interfaces provide high-speed uplink connections.
QSS web management
The interface provides an overview dashboard, port management and a settings guide.
Layer 2 controls
LACP, VLAN, ACL and LLDP are highlighted for managed network operation.
RSTP support
Rapid Spanning Tree Protocol supports expansion, redundancy and loop prevention.
Compact desktop form factor
The desktop chassis fits small-office and workgroup network environments.
Who is this model best for?
A strong choice for
- Desktop 2.5GbE network upgrades
- 10GbE fibre uplinks
- SMB and office workgroups
- Teams needing Layer 2 management
- Networks using VLAN, LACP and RSTP
Consider another model if you need
- You need 10GbE copper RJ45 ports
- You require Power over Ethernet
- You need a rackmount switch
Key specifications
- Management type
- Web Managed
- Ports
- 8 × 2.5GbE RJ45; 2 × 10GbE SFP+
- MAC address table
- 16K
- Non-blocking throughput
- 40Gbps
- Switching capacity
- 80Gbps
- Console
- RJ45
- Power supply
- Adapter, 12V DC input
- Form factor
- Desktop
- Dimensions
- 42.5 × 290 × 127 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 10 |
| 10GbE SFP+ | 2 |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 40Gbps |
| Switching Capacity | 80Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Jumbo Frames | 9K |
Software and system features
| 2.5GbE (RJ45) | 8 |
|---|---|
| Input Voltage Range | 12V |
Physical, environmental and power
| Power Supply Description | Adapter |
|---|---|
| Max. Power Consumption | 23W |
| Input Power Type | DC |
| Fan | PWM double ball bearing fan x 1 |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 x 290 x 127 mm |
| Weight (Net) | 1.12 kg |
| Weight (Gross) | 1.52 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M2108-2S
What is the QNAP QSW-M2108-2S?
It is a desktop Layer 2 web-managed switch with eight 2.5GbE RJ45 ports and two 10GbE SFP+ ports.
How many ports does the QSW-M2108-2S have?
It has ten data ports: eight 2.5GbE RJ45 and two 10GbE SFP+ ports.
Which high-speed connections does the QSW-M2108-2S provide?
It provides two 10GbE SFP+ fibre ports for high-speed uplinks.
How is the QSW-M2108-2S managed?
It is web managed through QSS and highlights Layer 2 controls including LACP, VLAN, ACL, LLDP and RSTP.
What is the switching capacity of the QSW-M2108-2S?
The listed switching capacity is 80Gbps.
What is the non-blocking throughput of the QSW-M2108-2S?
The listed total non-blocking throughput is 40Gbps.
What form factor does the QSW-M2108-2S use?
The QSW-M2108-2S uses a desktop form factor.
What are the dimensions of the QSW-M2108-2S?
The stated dimensions are 42.5 × 290 × 127 mm.
What warranty is listed for the QSW-M2108-2S?
The QSW-M2108-2S lists a two-year warranty.
Which network-management features are highlighted for the QSW-M2108-2S?
It highlights LACP, VLAN, ACL, LLDP, RSTP and IEEE 802.3x Flow Control.
Important information
The two high-speed uplink ports use SFP+ fibre interfaces.
The product lists a two-year warranty.
