20-Port Multi-Gigabit PoE Managed Switch

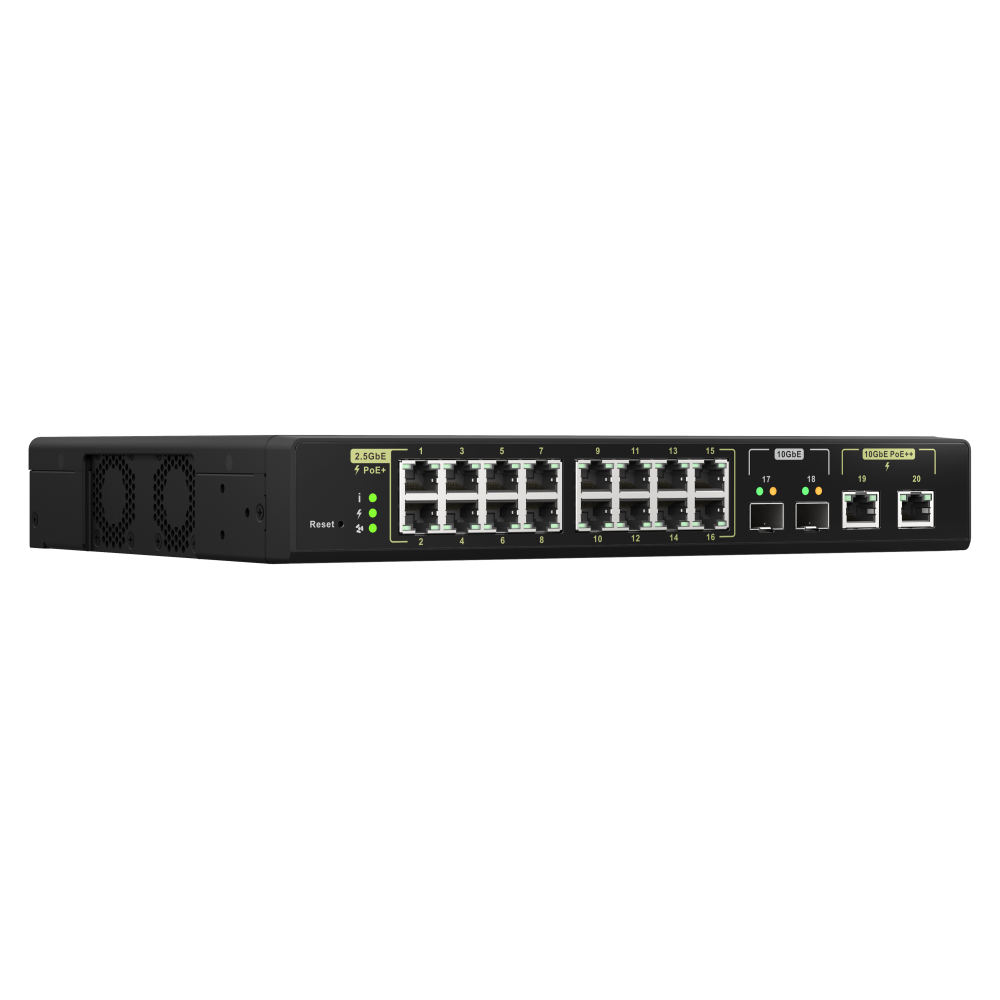

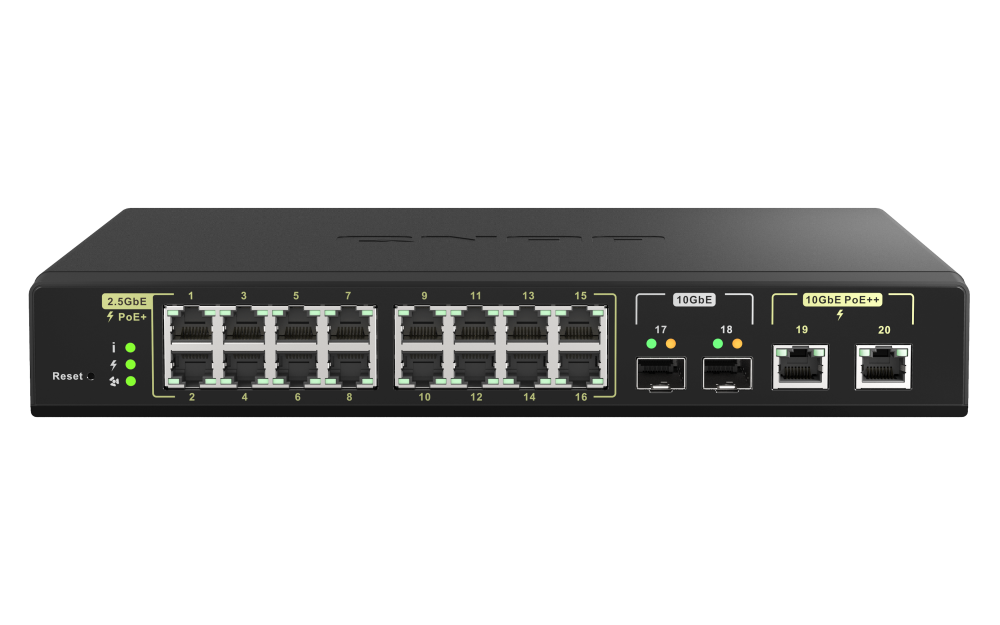

QNAP QSW-M2116P-2T2S Managed PoE Switch
A rackmount web-managed switch with sixteen 2.5GbE PoE+ ports, two 10GbE PoE++ RJ45 ports, two 10GbE SFP+ ports and a total PoE power budget of 280W.
Managed Multi-Gigabit networking and high-power PoE in one switch
The QNAP QSW-M2116P-2T2S combines sixteen 2.5GbE PoE+ access ports, two 10GbE PoE++ copper ports and two 10GbE SFP+ uplinks. Its 280W PoE budget, QSS web management and Layer 2 controls support centrally managed deployment of wireless access points, IP cameras, digital signage, servers and core network connections.
Key features and benefits
Sixteen 2.5GbE PoE+ ports
Ports 1–16 provide up to 30W PoE+ output for compatible powered devices.
Two 10GbE PoE++ ports
Ports 19–20 provide up to 90W output for higher-power compatible devices.
Two 10GbE SFP+ ports
Two fibre interfaces provide high-speed uplink options.
280W PoE power budget
The listed total PoE power budget supports centrally powered network devices.
QSS web management
The interface displays network connection status and power-consumption information.
Layer 2 controls
LACP, VLAN, ACL and LLDP are highlighted for bandwidth and network control.
Who is this model best for?
A strong choice for
- Wi-Fi access points and routers
- IP camera and digital-signage networks
- Multi-Gigabit PoE access layers
- Rackmount SMB network deployments
- Central PoE and Layer 2 management
Consider another model if you need
- You need more than 280W total PoE budget
- You require 25GbE or 100GbE uplinks
- You do not need Power over Ethernet
Key specifications
- Management type
- Web Managed
- Ports
- 16 × 2.5GbE RJ45; 2 × 10GbE BASE-T RJ45; 2 × 10GbE SFP+
- Total PoE ports
- 18
- PoE output
- Ports 1–16: 30W; ports 19–20: 90W
- Total PoE power budget
- 280W
- MAC address table
- 32K
- Non-blocking throughput
- 80Gbps
- Switching capacity
- 160Gbps
- Form factor
- Rackmount
- Dimensions
- 43.5 × 285 × 234.8 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | Web Managed |
|---|---|
| Number of Ports | 20 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 80Gbps |
| Switching Capacity | 160Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10G BASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3af/at/bt Power-over-Ethernet (PoE) |
| Jumbo Frames | 9K |
Software and system features
| 2.5GbE (RJ45) | 16 |
|---|---|
| Total PoE Ports | 18 |
| PoE PSE (802.3af, 15.4W) | Port 1-16 |
| PoE+ PSE (802.3at, 30W) | Port 1-16 |
| PoE++ PSE (802.3bt, 90W) | Port 19-20 |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
Physical, environmental and power
| PoE Power Output | Port 1-16 (30W), Port 19-20 (90W) |
|---|---|
| Total PoE Power Budget | 280W |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 350W |
| Input Power Type | AC |
| Fan | PWM double ball bearing fan x 2 |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/PoE/Fan |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.5 x 285 x 234.8 mm |
| Weight (Net) | 2.08 kg |
| Weight (Gross) | 2.13 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M2116P-2T2S
What is the QNAP QSW-M2116P-2T2S?
It is a rackmount web-managed PoE switch with sixteen 2.5GbE PoE+ ports, two 10GbE PoE++ ports and two 10GbE SFP+ ports.
How many ports does the QSW-M2116P-2T2S have?
It has 20 data ports: sixteen 2.5GbE RJ45, two 10GbE BASE-T RJ45 and two 10GbE SFP+ ports.
Which high-speed connections does the QSW-M2116P-2T2S provide?
It provides two 10GbE BASE-T PoE++ ports and two 10GbE SFP+ ports, alongside sixteen 2.5GbE PoE+ ports.
How is the QSW-M2116P-2T2S managed?
It is web managed through QSS and highlights Layer 2 controls plus PoE status and power-consumption management.
What is the switching capacity of the QSW-M2116P-2T2S?
The listed switching capacity is 160Gbps.
What is the non-blocking throughput of the QSW-M2116P-2T2S?
The listed total non-blocking throughput is 80Gbps.
What form factor does the QSW-M2116P-2T2S use?
The QSW-M2116P-2T2S uses a rackmount form factor.
What are the dimensions of the QSW-M2116P-2T2S?
The stated dimensions are 43.5 × 285 × 234.8 mm.
What warranty is listed for the QSW-M2116P-2T2S?
The QSW-M2116P-2T2S lists a two-year warranty.
Which network-management features are highlighted for the QSW-M2116P-2T2S?
It highlights LACP, VLAN, ACL, LLDP and central PoE monitoring through QSS.
Important information
PoE output is listed as up to 30W on ports 1–16 and up to 90W on ports 19–20.
The product lists a two-year warranty.
