24-Port 10GbE L3 Lite Managed Switch
QNAP QSW-M3224-24T Managed Switch

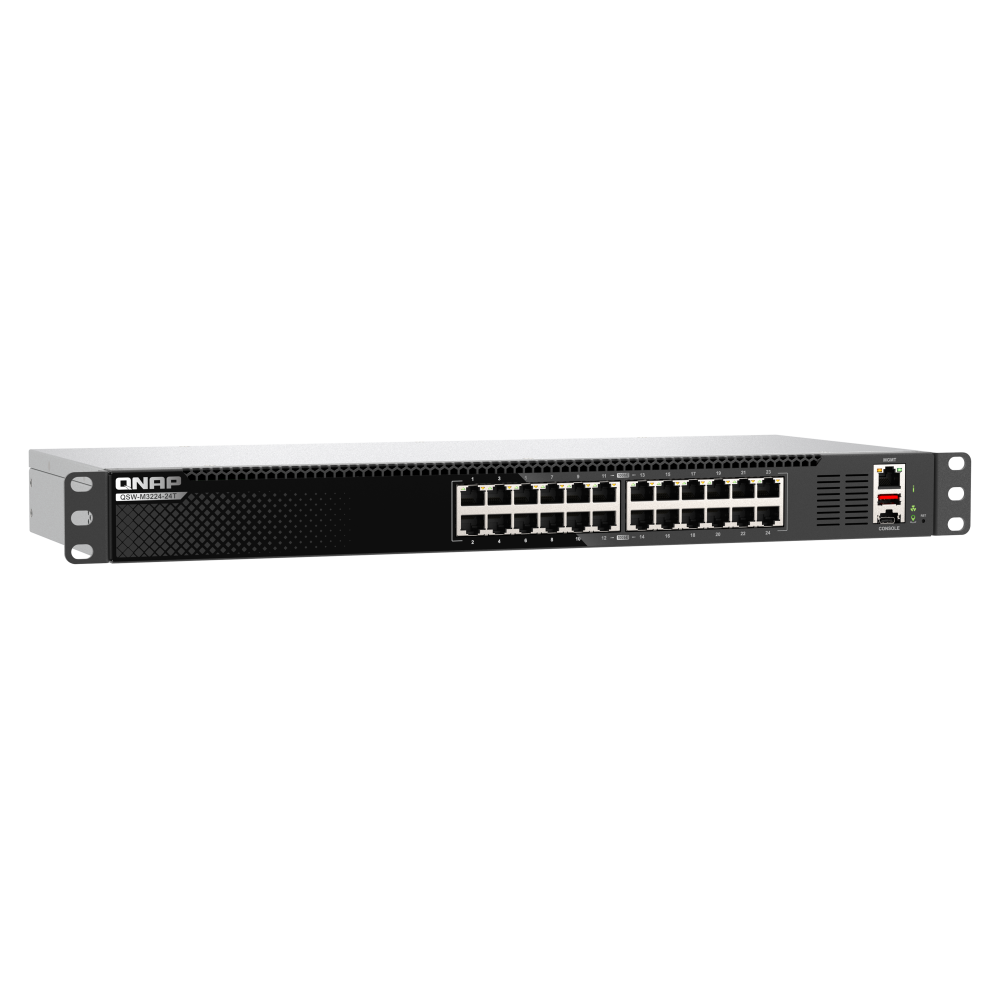

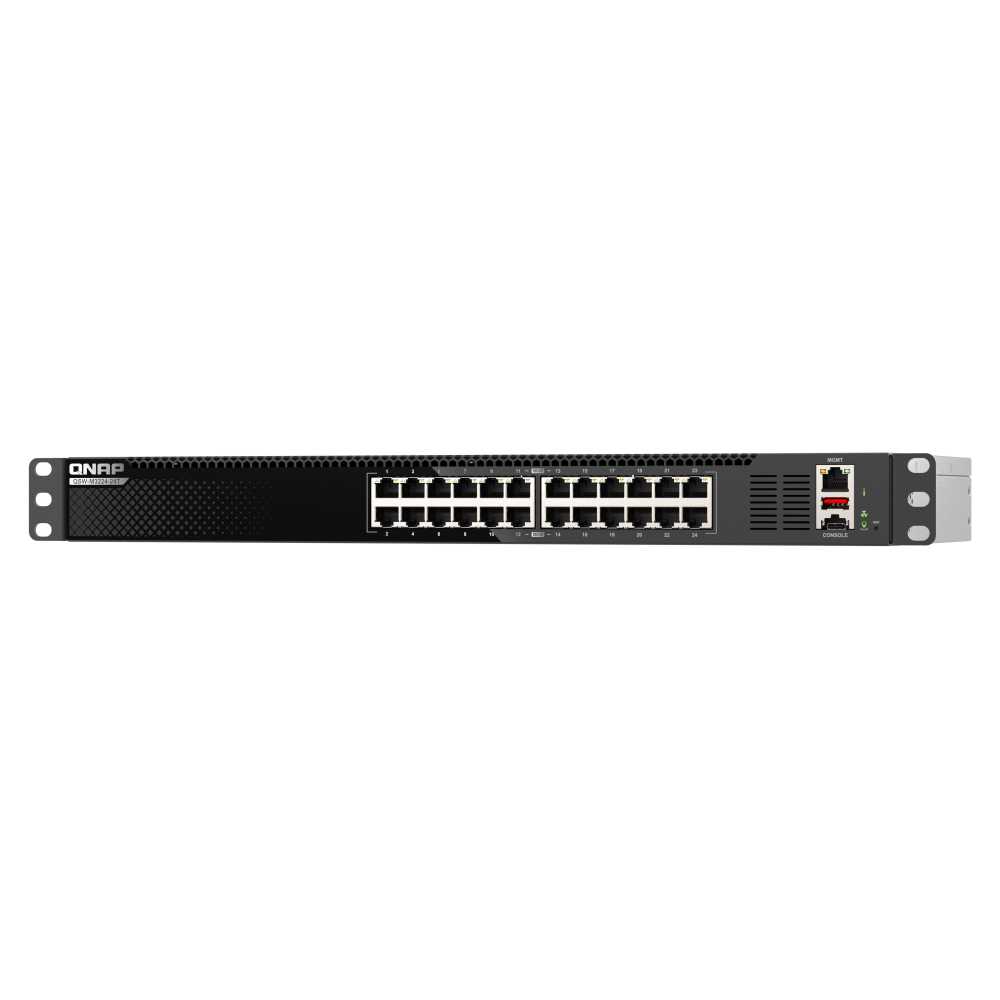

A rackmount L3 Lite managed switch with twenty-four 10GbE Multi-Gig RJ45 ports, a separate 1GbE management port and a listed switching capacity of 480Gbps.
Dense 10GbE copper switching for enterprise networks
The QNAP QSW-M3224-24T provides twenty-four 10GbE Multi-Gig copper ports for storage, video editing, virtualisation, AI and AV-over-IP network traffic. L3 Lite functions, QSS Pro, MC-LAG, SNMP, ACL controls and IGMP Snooping support centrally managed, high-density enterprise network infrastructure.
Key features and benefits
Twenty-four Multi-Gig ports
All twenty-four RJ45 data ports support 10G, 5G, 2.5G, 1G and 100M connections.
L3 Lite functions
IPv4, IPv6, DNS, static routing, DHCP server, SNTP and advanced VLAN settings are highlighted.
MC-LAG redundancy
Multi-chassis link aggregation is listed for high availability and continuous network switching.
QSS Pro management
The web interface provides an overview dashboard, port management and a settings guide.
Central monitoring and access control
SNMP, ACL and Qfinder Pro login are highlighted for managed network maintenance.
AV-over-IP controls
IGMP Snooping and traffic-forwarding controls support low-latency connections across multiple AV devices.
Who is this model best for?
A strong choice for
- High-density 10GbE copper networks
- Enterprise storage and server connectivity
- Video-editing, virtualisation and AI traffic
- AV-over-IP deployments
- Networks requiring MC-LAG redundancy
Consider another model if you need
- You need SFP+ or SFP28 fibre data ports
- You require a compact desktop switch
- You need an unmanaged plug-and-play switch
Key specifications
- Management type
- L3 Lite Web Managed
- Ports
- 24 × 10GbE BASE-T RJ45
- Supported RJ45 speeds
- 10G / 5G / 2.5G / 1G / 100M
- Management port
- 1 × 1GbE RJ45
- MAC address table
- 32k
- Non-blocking throughput
- 240Gbps
- Switching capacity
- 480Gbps
- Console
- USB Type C
- Form factor
- Rackmount
- Dimensions
- 44.2 × 438.5 × 190 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | L3 Lite Web Managed |
|---|---|
| Number of Ports | 24 |
| 10GbE BASE-T (RJ45) | 24 (10G/5G/2.5G/1G/100M) |
| Management Port | 1 x 1GbE RJ45 |
| MAC Address Table | 32k |
| Total Non-Blocking Throughput | 240Gbps |
| Switching Capacity | 480Gbps |
| Management Interface | Web |
| Console | USB Type C |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Internal Power supply Unit |
|---|---|
| Max. Power Consumption | 116.9W |
| Input Power Type | AC |
| Fan | PWM VAPO Bearing fan x 5 |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/Fan/Locator |
| Buttons | Reset button |
| Dimensions (HxWxD) | 44.2 x 438.5 x 190 mm |
| Weight (Net) | 2.93 kg |
| Weight (Gross) | 4.5 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 100-240VAC, 50/60Hz |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M3224-24T
What is the QNAP QSW-M3224-24T?
It is a rackmount L3 Lite managed switch with twenty-four 10GbE Multi-Gig RJ45 ports.
How many ports does the QSW-M3224-24T have?
It has twenty-four 10GbE BASE-T data ports plus a separate 1GbE RJ45 management port.
Which high-speed connections does the QSW-M3224-24T provide?
All twenty-four data ports support 10G, 5G, 2.5G, 1G and 100M copper connections.
How is the QSW-M3224-24T managed?
It is L3 Lite web managed through QSS Pro and lists static routing, DHCP server, SNTP, advanced VLAN and MC-LAG features.
What is the switching capacity of the QSW-M3224-24T?
The listed switching capacity is 480Gbps.
What is the non-blocking throughput of the QSW-M3224-24T?
The listed total non-blocking throughput is 240Gbps.
What form factor does the QSW-M3224-24T use?
The QSW-M3224-24T uses a rackmount form factor.
What are the dimensions of the QSW-M3224-24T?
The stated dimensions are 44.2 × 438.5 × 190 mm.
What warranty is listed for the QSW-M3224-24T?
The QSW-M3224-24T lists a two-year warranty.
Which network-management features are highlighted for the QSW-M3224-24T?
It highlights L3 Lite routing, MC-LAG, ACL, SNMP, Qfinder Pro login, IGMP Snooping and LACP.
Important information
The twenty-four data ports use copper RJ45 connections.
The product lists a two-year warranty.
