12-Port 100GbE/25GbE L3 Lite Managed Switch
QNAP QSW-M7308R-4X Managed Switch
A half-width rackmount L3 Lite managed switch with four 100GbE QSFP28 ports, eight 25GbE SFP28 ports, a 1GbE management port and a listed switching capacity of 1200Gbps.
High-speed fibre switching in a space-saving half-width design
The QNAP QSW-M7308R-4X combines four 100GbE and eight 25GbE fibre ports with L3 Lite management, QSS Pro and MC-LAG. Its half-width rackmount chassis is positioned for high-speed backbone links in server rooms supporting storage, video editing, virtualisation and AI applications.
Key features and benefits

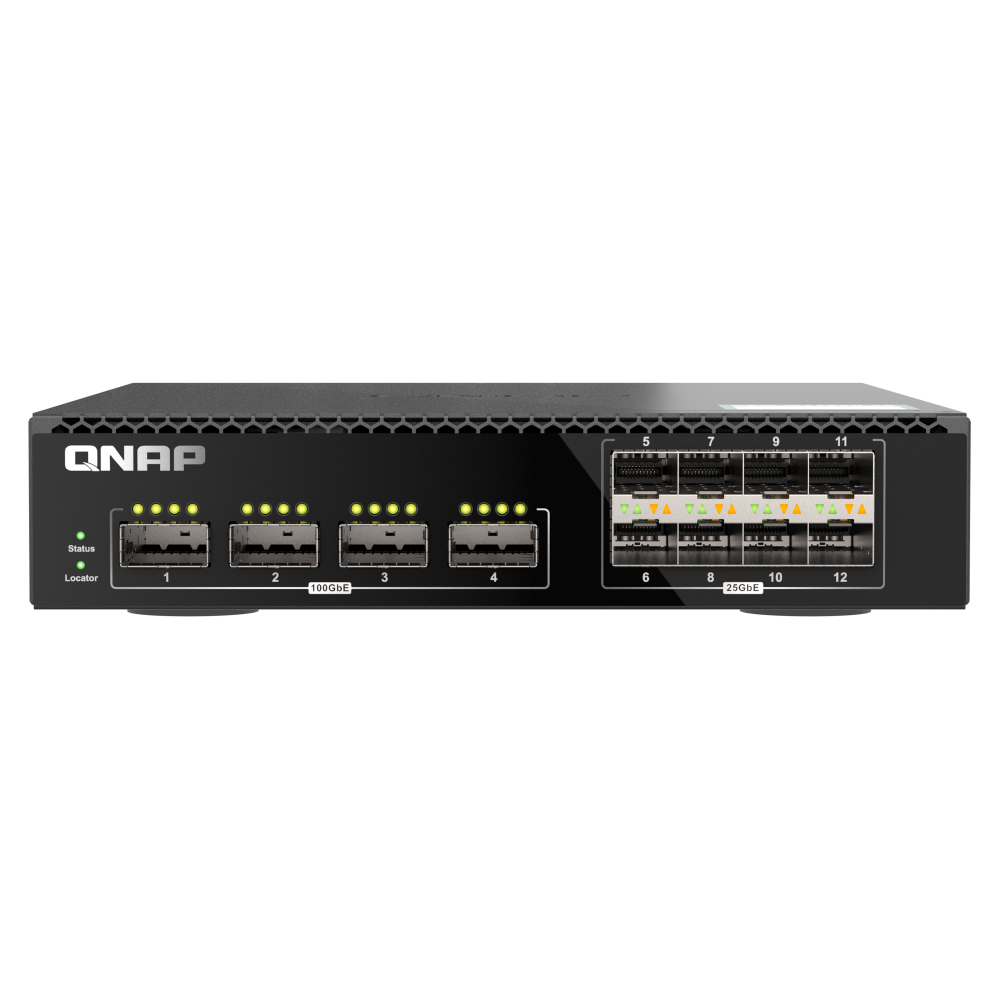

Four 100GbE ports
Four QSFP28 ports provide the listed 100GbE connections.
Eight 25GbE ports
Eight SFP28 ports support high-speed fibre links to servers and storage.
L3 Lite management
The listed features include IPv4, IPv6, DNS, static routing, DHCP server, SNTP and advanced VLAN settings.
MC-LAG redundancy
Multi-chassis link aggregation is listed for network high availability and redundancy.
Half-width rackmount design

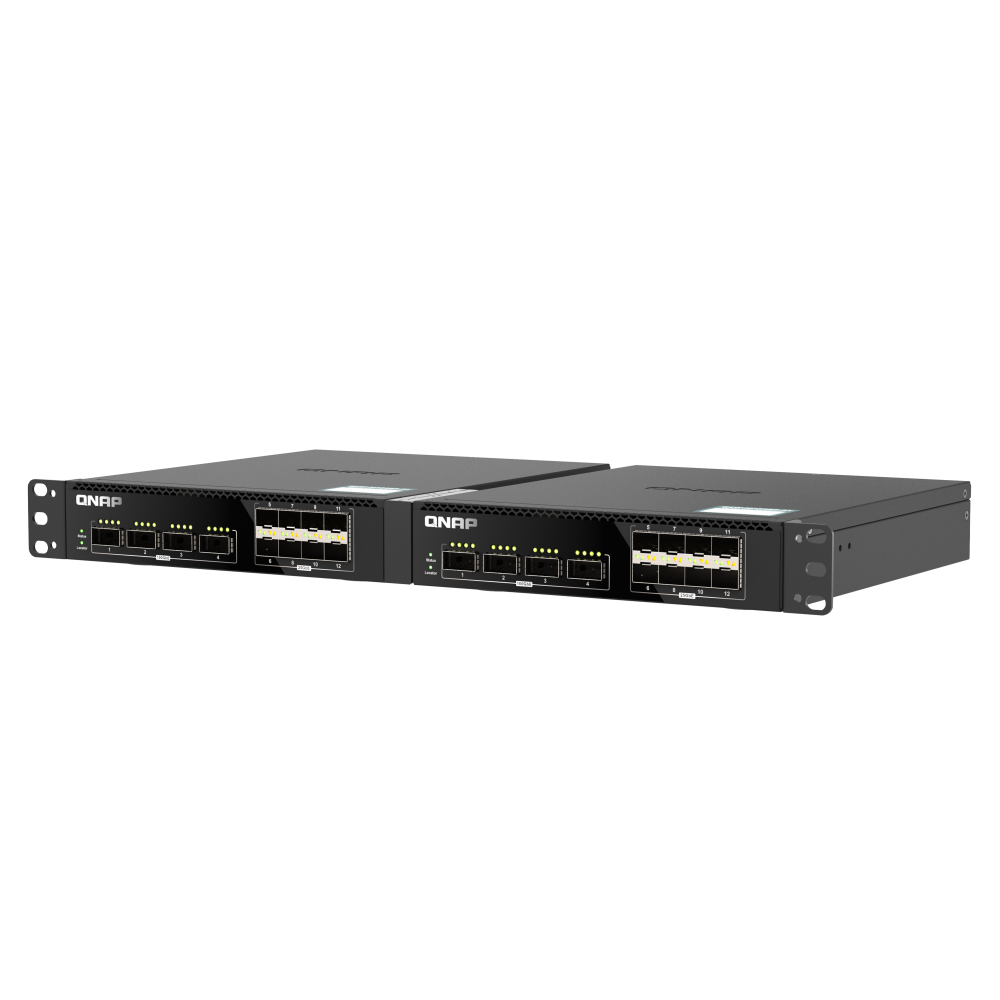

The chassis can share a 1U rack space with another half-width rackmount switch.
QSS Pro interface
QNAP Switch System Pro provides an overview dashboard, port management and a settings guide.
Who is this model best for?
A strong choice for
- 100GbE and 25GbE server-room backbones
- High-speed storage networking
- Video-editing, virtualisation and AI network traffic
- Sites requiring MC-LAG redundancy
- Space-conscious rack installations
Consider another model if you need
- You need high-speed copper RJ45 access ports
- You require a desktop switch
- You need an unmanaged plug-and-play switch
Key specifications
- Management type
- L3 Lite Web Managed
- Ports
- 4 × 100GbE QSFP28; 8 × 25GbE SFP28
- Management port
- 1 × 1GbE RJ45
- MAC address table
- 32K
- Non-blocking throughput
- 600Gbps
- Switching capacity
- 1200Gbps
- Console
- RJ45
- Form factor
- Half-width rackmount
- Dimensions
- 43.3 × 207 × 248.8 mm
- Warranty
- 2 Years
Full technical specifications
Network, ports and switching
| Management Type | L3 Lite Web Managed |
|---|---|
| Number of Ports | 12 |
| 100GbE QSFP28 | 4 |
| 25GbE SFP28 | 8 |
| Management Port | 1 x 1GbE RJ45 |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 600Gbps |
| Switching Capacity | 1200Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Jumbo Frames | 9K |
Physical, environmental and power
| Power Supply Description | Internal Power supply unit |
|---|---|
| Max. Power Consumption | 55.153W |
| Input Power Type | AC |
| Fan | PWM VAPO Bearing fan x 2 |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status/Locater |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 1.78 kg |
| Weight (Gross) | 2.63 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
Software and system features
| Input Voltage Range | 100-240VAC, 50/60Hz |
|---|
Warranty and certifications
| Certifications | CE, FCC, VCCI, BSMI |
|---|---|
| Electromagnetic Compliance | CLASS A |
| Warranty | 2 Years |
Frequently asked questions about the QSW-M7308R-4X
What is the QNAP QSW-M7308R-4X?
It is a half-width L3 Lite web-managed switch with four 100GbE QSFP28 ports and eight 25GbE SFP28 ports.
How many ports does the QSW-M7308R-4X have?
It has 12 high-speed data ports: four 100GbE QSFP28 and eight 25GbE SFP28, plus one 1GbE RJ45 management port.
Which high-speed connections does the QSW-M7308R-4X provide?
It provides four 100GbE QSFP28 ports and eight 25GbE SFP28 ports.
How is the QSW-M7308R-4X managed?
It is L3 Lite web managed through QSS Pro and lists static routing, DHCP server, SNTP, VLAN and MC-LAG features.
What is the switching capacity of the QSW-M7308R-4X?
The listed switching capacity is 1200Gbps.
What is the non-blocking throughput of the QSW-M7308R-4X?
The listed total non-blocking throughput is 600Gbps.
What form factor does the QSW-M7308R-4X use?
The QSW-M7308R-4X uses a half-width rackmount form factor.
What are the dimensions of the QSW-M7308R-4X?
The stated dimensions are 43.3 × 207 × 248.8 mm.
What warranty is listed for the QSW-M7308R-4X?
The QSW-M7308R-4X lists a two-year warranty.
Which network-management features are highlighted for the QSW-M7308R-4X?
It highlights IPv4/IPv6 settings, static routing, DHCP server, SNTP, advanced VLAN settings, MC-LAG, LACP and LLDP.
Important information
The high-speed data ports use QSFP28 and SFP28 fibre interfaces.
The product lists a two-year warranty.
