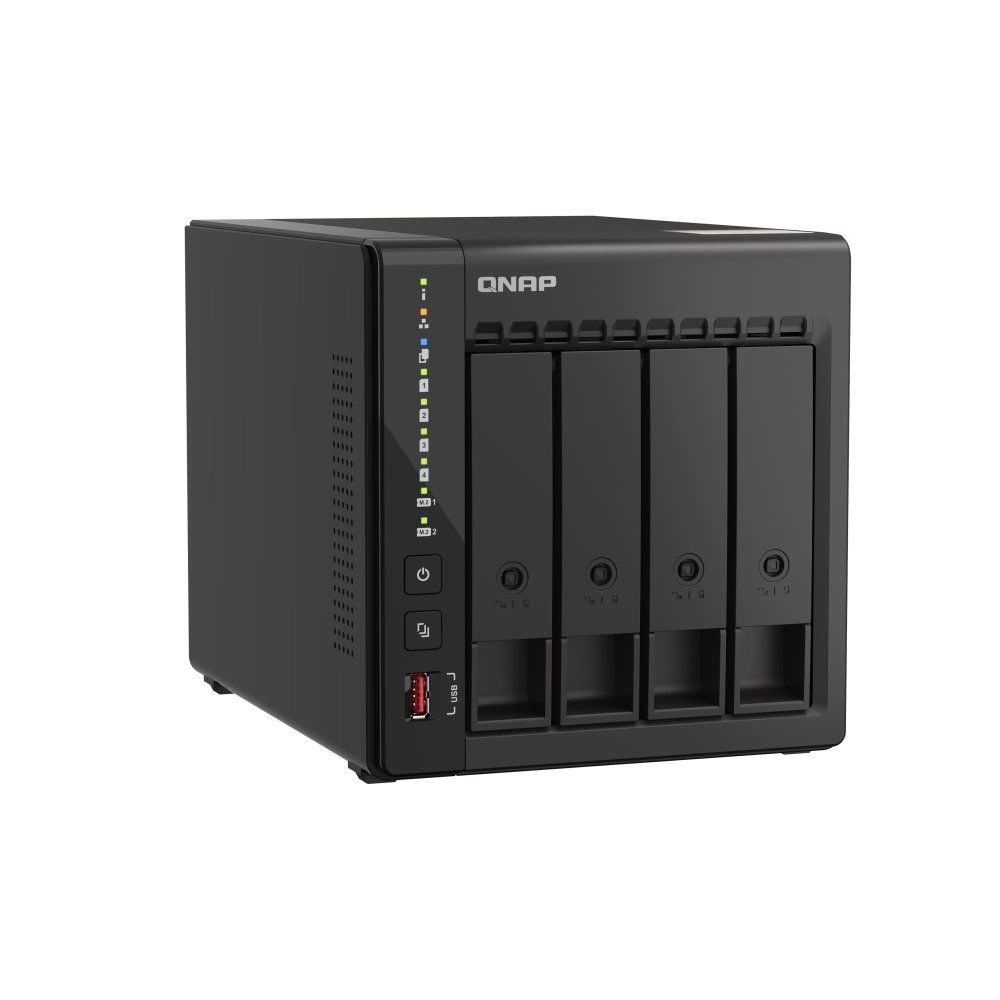

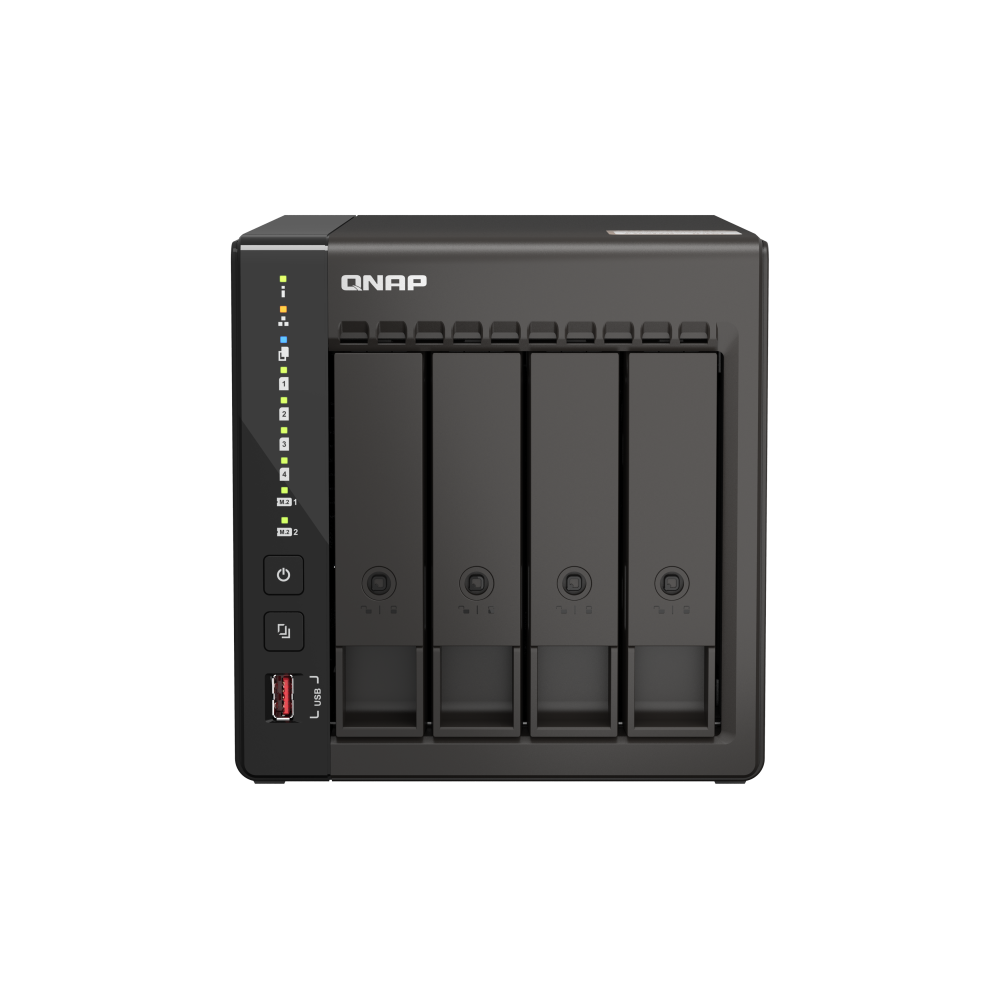

4-Bay QVR Pro Network Video Recorder
QNAP QVP-41C Surveillance NVR
A four-bay diskless QVR Pro tower NVR with an Intel Celeron J6412 four-core processor, 8GB memory, eight embedded camera channels, a stated 24-channel maximum and dual 2.5GbE networking.
Centralised surveillance storage with 2.5GbE and local display
The QNAP QVP-41C combines QVR Pro OS with four hot-swappable SATA bays, eight embedded camera channels and a stated maximum of 24 channels. Its dual 2.5GbE ports, dual HDMI outputs, M.2 expansion and listed surveillance applications suit centrally managed video monitoring and recording for homes, small businesses and offices.
Key features and benefits
Eight embedded channels
Eight IP camera channels are included, with a stated maximum of 24 channels.
ONVIF camera support
The product is described as compatible with ONVIF cameras and cameras from more than 200 brands.
Dual local display outputs
Two HDMI 1.4b outputs support extended display for real-time multi-channel viewing.
Dual 2.5GbE networking
Two 2.5 Gigabit Ethernet ports support surveillance data transfer.
RAID-protected recording storage
The four hot-swappable SATA bays support the listed RAID protection for video data.
AI surveillance expansion
The listed Intel OpenVINO engine and Edge TPU expansion through the M.2 slots support lightweight AI surveillance applications.
Who is this model best for?
A strong choice for
- Home, small-business and office surveillance
- Four-bay central video storage
- Deployments starting with eight embedded camera channels
- Systems scaling toward 24 camera channels
- Sites using 2.5GbE networking
Consider another model if you need
- You need more than 24 camera channels
- You require more than four internal drive bays
- You need a rackmount surveillance appliance
Key specifications
- Operating system
- QVR Pro OS (QVP)
- Processor
- Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
- System memory
- 8GB
- Maximum memory
- 16 GB (2 × 8 GB)
- Camera channels
- 8 embedded; maximum 24
- Maximum throughput
- 300 Mbps
- Drive bays
- 4 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives
- M.2 slots
- 2 × M.2 2280 PCIe Gen 3 x2
- Networking
- two 2.5 Gigabit Ethernet ports
- HDMI output
- 2 × HDMI 1.4b, up to 4096 × 2160 at 30Hz
- Dimensions
- 168.5 × 160.2 × 220.5 mm
Full technical specifications
Surveillance platform and capacity
| OS | QVR Pro OS (QVP) |
|---|---|
| Max Live Cameras (Local Display) | 24ch @ All 720p,H.264, 30FPS 12ch @ All 1080p,H.264, 30FPS |
| Max Playback Cameras (Local Display) | 12 |
| Embedded Channel | 8 |
| Max Channel | 24 H264 / 1920x1080 / 30FPS |
Processor, memory and storage
| CPU | Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 8GB |
| Maximum Memory | 16 GB ( 2 x 8 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD. For the HDD compatibility list |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen 3 x2 |
| File System: Internal Hard Drive | EXT4 |
Software and system features
| Max Concurrent Connection (Client) | 8 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras |
|---|
Network, ports and switching
| Max Throughput | 300 Mbps |
|---|---|
| 2.5 Gigabit Ethernet Port | 2 |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 |
| HDMI™ Output | 2, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
Physical, environmental and power
| Form Factor | Tower |
|---|---|
| LED Indicators | HDD 1-4, Status, LAN, USB port, M.2 port |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 168.5 × 160.2 × 220.5 mm |
| Weight (Net) | 2.21 kg |
| Weight (Gross) | 3.61 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 90W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode | 28.974 W |
| Power Consumption: Operating Mode, Typical | 35.79 W |
| Fan | 1 x 120mm, 12VDC |
| Sound Level | 16.9 db(A) |
| System Warning | Buzzer |
| Tray Locker | Yes |
Frequently asked questions about the QVP-41C
What is the QNAP QVP-41C?
It is a four-bay QVR Pro tower NVR with an Intel Celeron J6412 processor, 8GB memory, eight embedded camera channels and a stated 24-channel maximum.
Which processor does the QVP-41C use?
QVP-41C uses Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz.
How much memory is included with the QVP-41C?
QVP-41C includes 8GB and lists a maximum memory capacity of 16 GB (2 × 8 GB).
How many drive bays does the QVP-41C have?
QVP-41C has 4 SATA drive bays.
Which drives are supported by the QVP-41C?
Its bays support 3.5-inch SATA hard disk drives and 2.5-inch SATA solid state drives.
How many camera channels does the QVP-41C support?
QVP-41C includes 8 embedded channels and lists a maximum of 24 channels at H.264, 1920 × 1080 and 30 FPS.
Which network ports are built into the QVP-41C?
QVP-41C includes two 2.5 Gigabit Ethernet ports.
What local display capability is listed for the QVP-41C?
It lists up to 24 live 720p cameras or 12 live 1080p cameras at H.264 and 30 FPS, plus up to 12 playback cameras.
What are the dimensions of the QVP-41C?
The stated dimensions of the QVP-41C are 168.5 × 160.2 × 220.5 mm.
Which operating system does the QVP-41C use?
QVP-41C uses QVR Pro OS (QVP).
Important information
The system is shipped without HDDs.
The 24-channel maximum is stated for H.264 at 1920 × 1080 and 30 FPS.
The number of concurrent client connections varies with the number of live cameras.
The product is described as an extended-availability model supported up to 2029.
