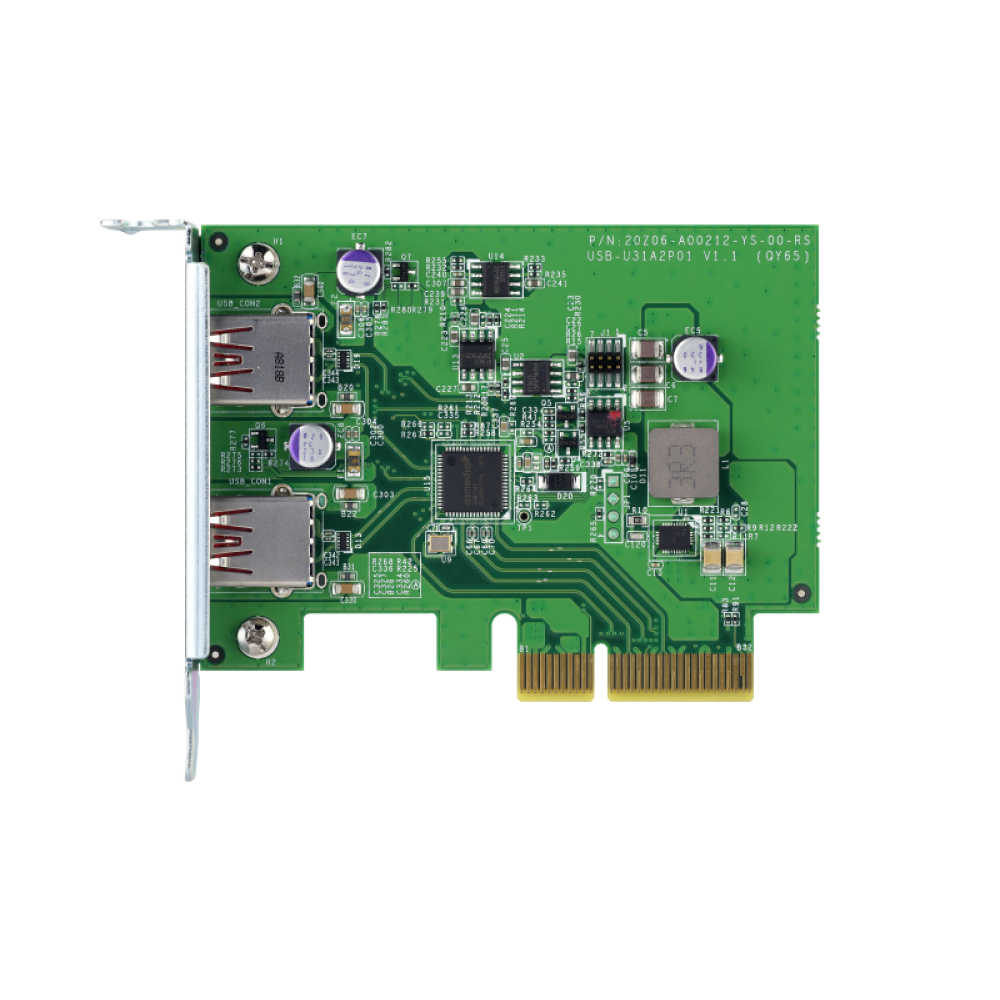

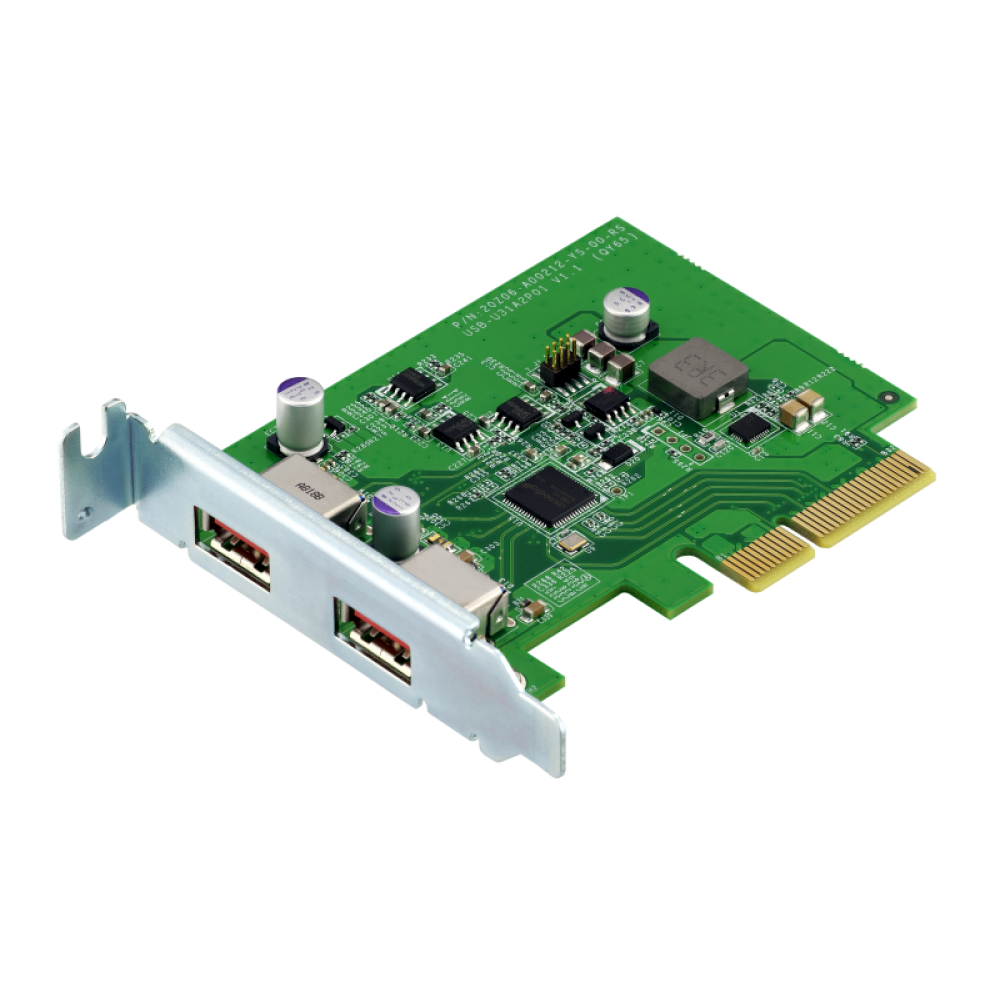

The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps – double that of USB 3.2 Gen 1 – to greatly boost data transfer speeds. With two ports, the QNAP USB 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB 3.2 Gen 2 devices to accelerate file transfers and backup. The QNAP USB 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or Windows®/Ubuntu® PC.
-
1
Dual-port USB 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds and are backwards compatible with previous-generation USB devices.
-
2
Supports USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer.
-
3
Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption.
-
4
Supports overcurrent detection and short circuit protection.
-
5
Supports Windows 8.x / 10 (32/64-bit) and Ubuntu desktop 20.04 LTS. No driver is required.
Specification
| Standard Warranty | 1 year |
| Connectors | 2 x USB Type-A |
| USB Host controller | ASMedia ASM3142 |
| PCIe and Lanes | PCIe Gen2 x 2 |
| Bracket | Low-profile pre-installed. Low-profile and Full-height are included. |
| Form Factor | Low-profile 89.65 x 68.9 x 14 mm (Without bracket) |
| Working Temperature | 0 ~ 40 ºC (32 ~ 104ºF) |
| Working Humidity | 5 ~ 95% RH |
| Supported Operating System | QTS 4.3.6 (or later) QuTS hero Windows 8.x/10 (32/64-bit) Ubuntu 20.04 LTS |
| Package Contents | 1 x USB expansion card; 1 x QIG; 2 x Brackets |
