Efficient storage for centralized data management

Business-ready
Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.

Flexible configuration
Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.

Versatile applications
Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.

Specification

Hardware Specifications		RS2423+
CPU	CPU Model	AMD Ryzen V1780B
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC UDIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

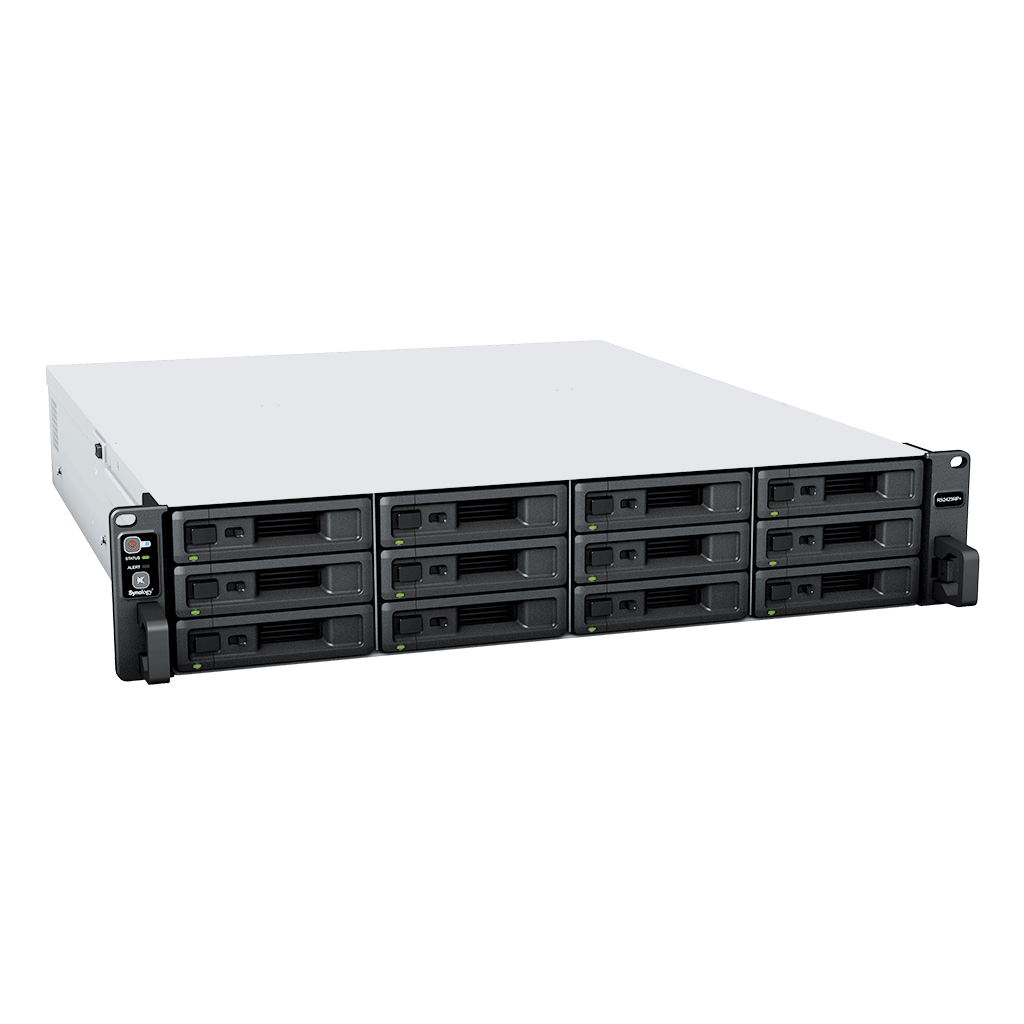

Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	24 (RX1223RP x 1)
	Drive Type	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports	RJ-45 1GbE LAN Port	2
	RJ-45 10GbE LAN Port	1
	USB 3.2 Gen 1 Port*	2
	Expansion Port	1
	Expansion Port Type	Mini-SAS HD
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)

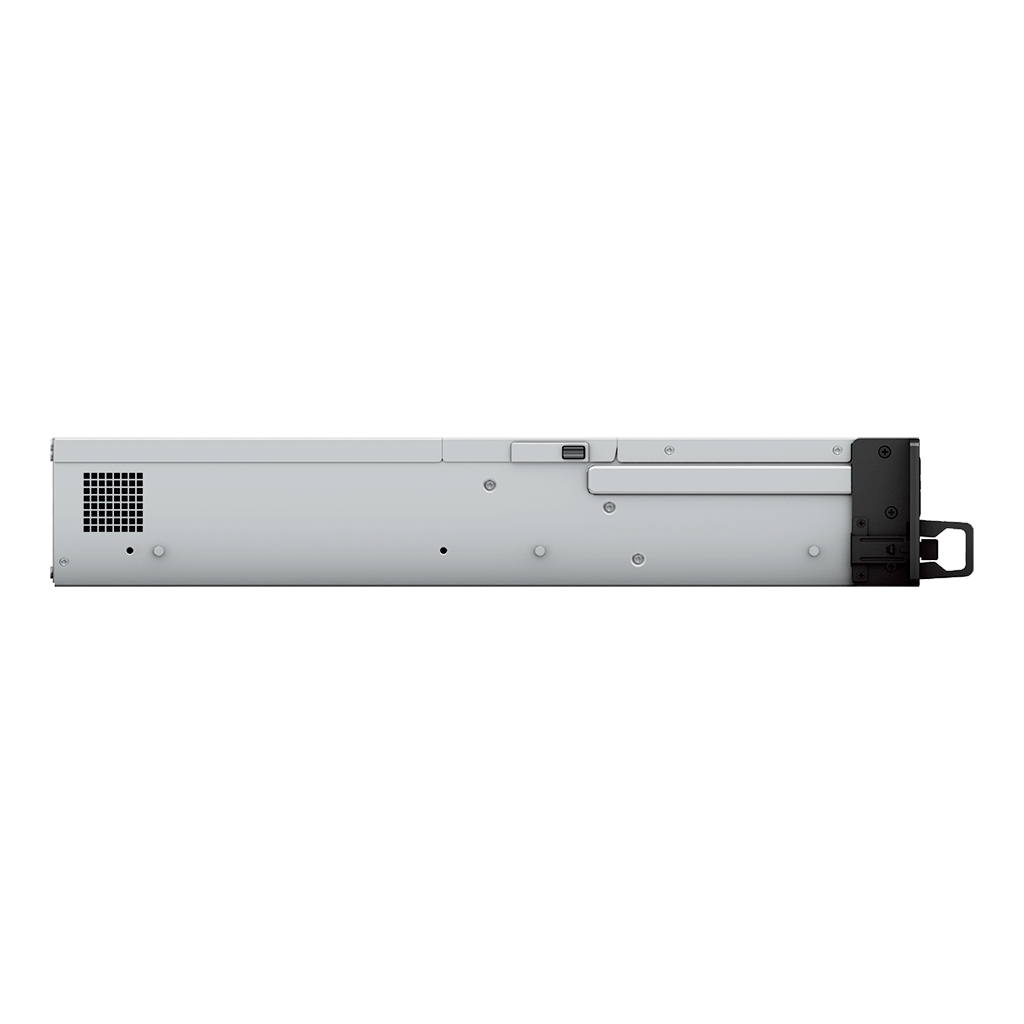

Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 552 mm
	Weight	11.5 kg
	Rack Installation Support*	4-post 19" rack
	Notes	The rail kit is sold separately
Others	System Fan	60 mm x 60 mm x 3 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	52.3 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	500 watts
	Redundant Power Supply	-
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	119.95 watts (Access) 46.21 watts (HDD Hibernation)
	British Thermal Unit	409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation)
	Notes	Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification		FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty		3-year hardware warranty
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt
Environment		RoHS Compliant
Packaging Content		Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1
