High-performance storage for data protection, file serving, and more.

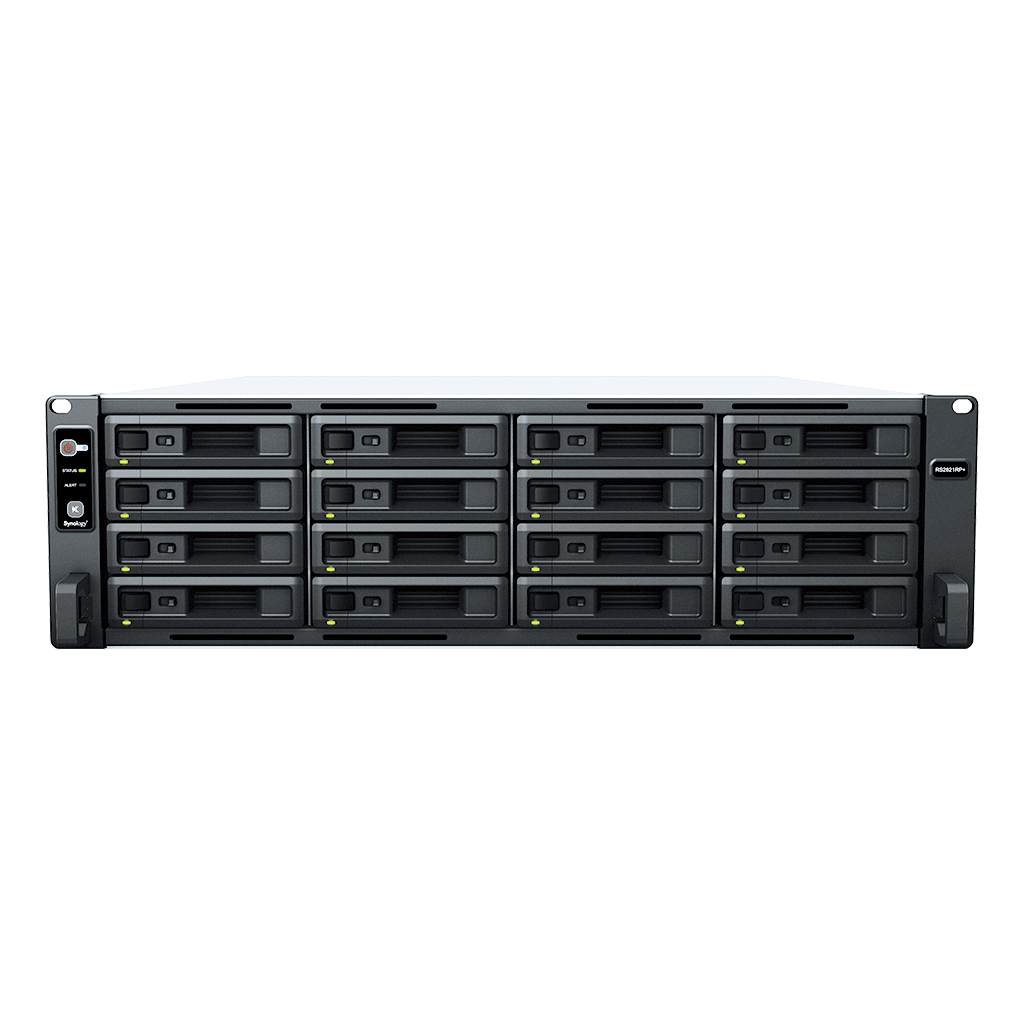

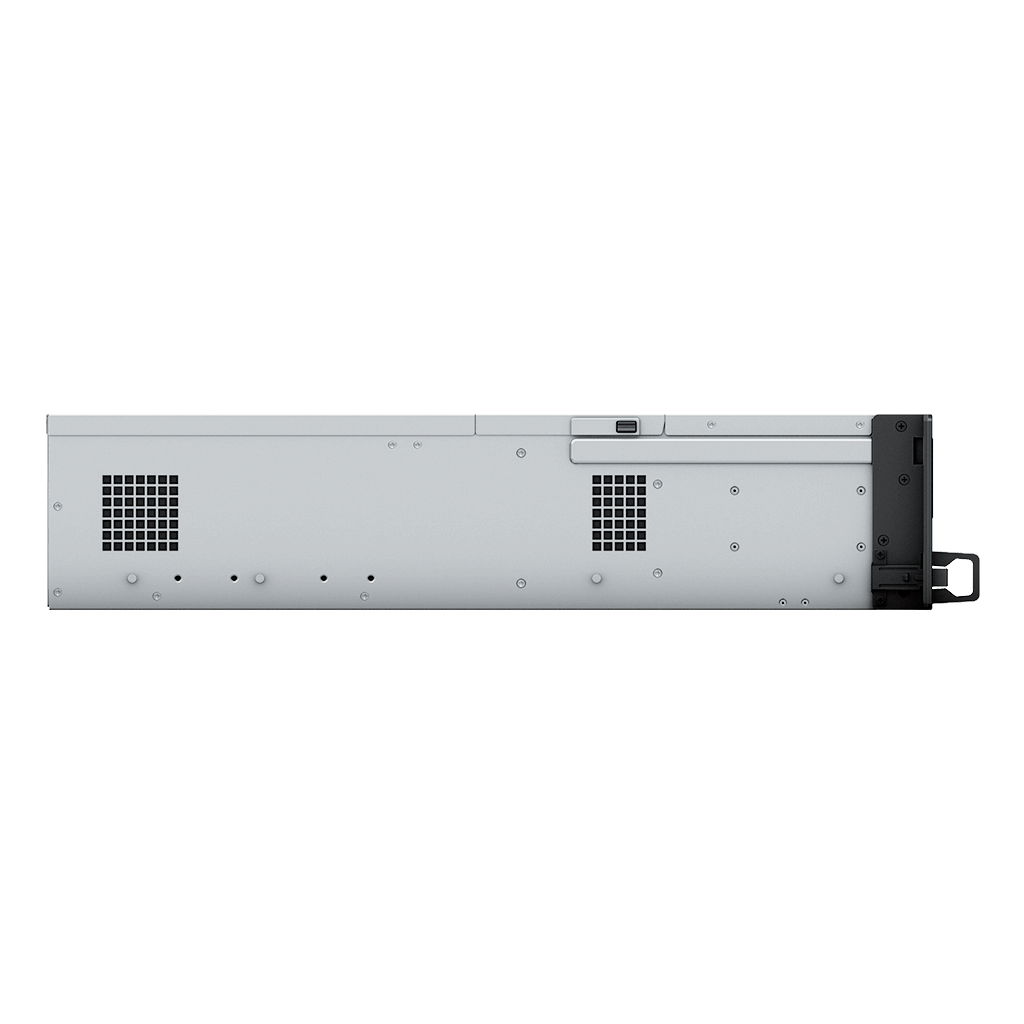

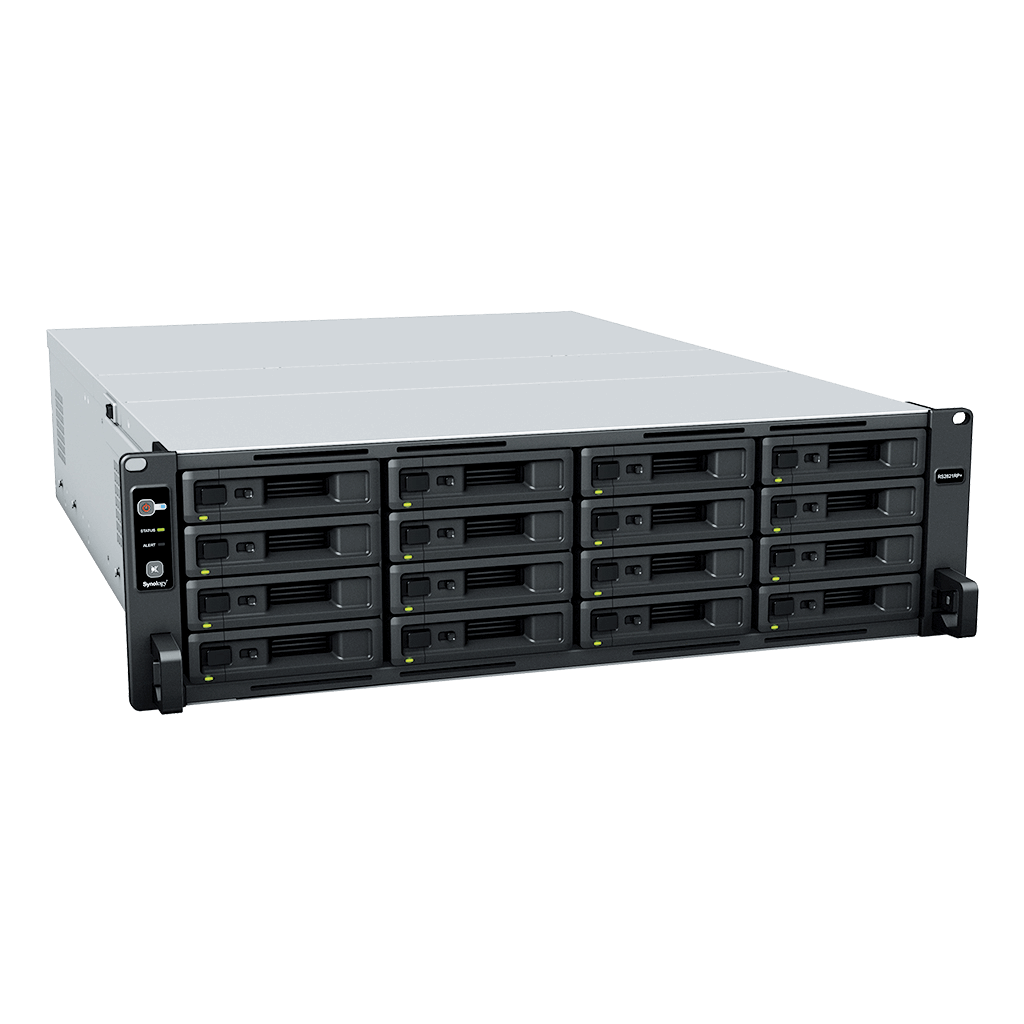

Synology RS2821RP+ is a 3U 16-bay storage server designed to accommodate a diverse set of business requirements. Scalable to 28 drives, the unit provides powerful backup and restoration functionality for the SMB sector. It delivers 2,200 MB/s sequential read and 105K 4K random read performance, and can be upgraded with SSD cache and 10/25Gb Ethernet options.
Compute
AMD Ryzen™ V1500B quad-core 2.2 GHz
Memory
4 GB ECC DDR4, up to 32 GB
Scalability
Up to 28 drive bays with RX1217RP/RX1217
Specification
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine |
|
|
|
Memory
|
System Memory | 4 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 16 |
| Maximum Drive Bays with Expansion Unit | 28 (RX1217 x 1) | |
| Drive Type |
|
|
| Hot Swappable Drive* |
|
|
| Notes | The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
|
External Ports
|
RJ-45 1GbE LAN Port | 4 |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 1 | |
| Expansion Port Type | Infiniband | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
|
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
|
Appearance
|
Form Factor (RU) | 3U |
| Size (Height x Width x Depth) | 132.3 mm x 482 mm x 656.5 mm | |
| Weight | 17.1 kg | |
| Rack Installation Support* | 4-post 19" rack | |
| Notes | The rail kit is sold separately | |
|
Others
|
System Fan | 80 mm x 80 mm x 3 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan |
|
|
| Power Recovery |
|
|
| Noise Level* | 53.5 dB(A) | |
| Scheduled Power On / Off |
|
|
| Wake on LAN / WAN |
|
|
| Power Supply Unit / Adapter | 550 watts | |
| Redundant Power Supply |
|
|
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 97.54 watts (Access) 49.57 watts (HDD Hibernation) |
|
| British Thermal Unit | 332.61 BTU/hr (Access) 169.03 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with extended warranty | |
| Notes | ||
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
