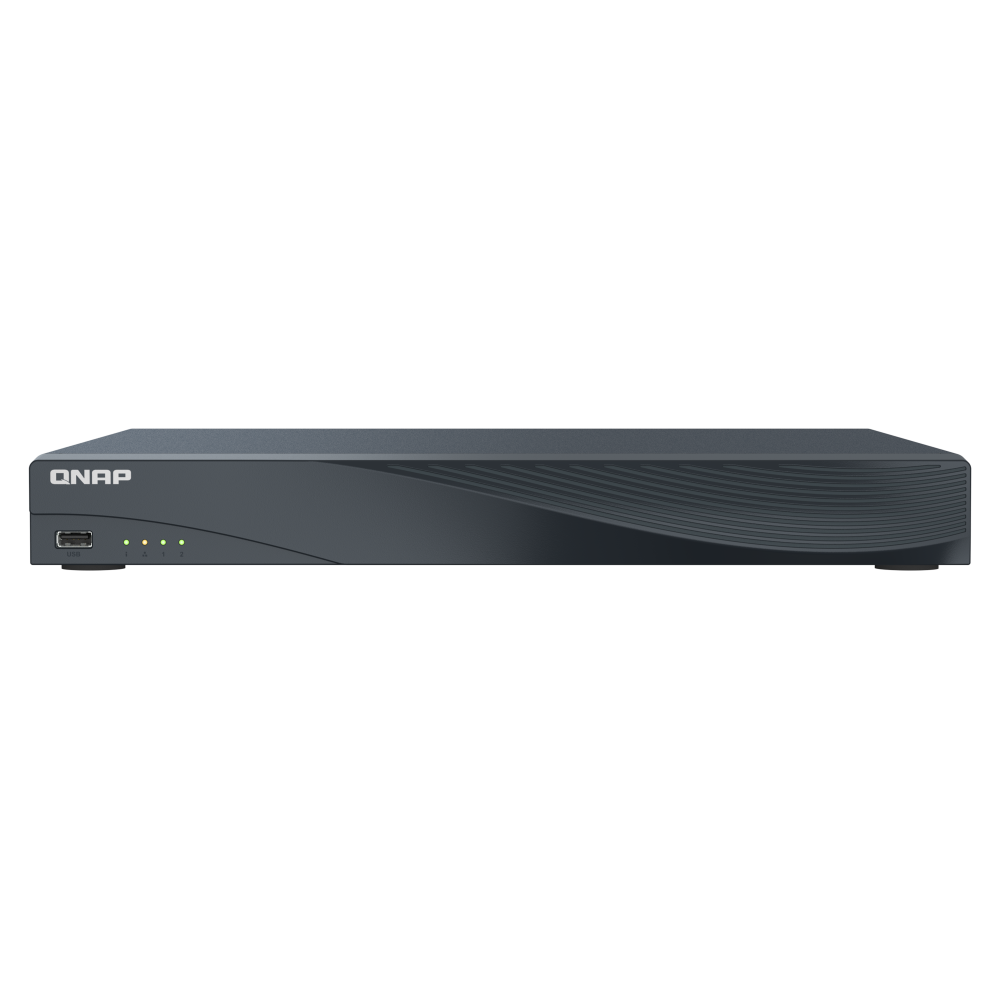

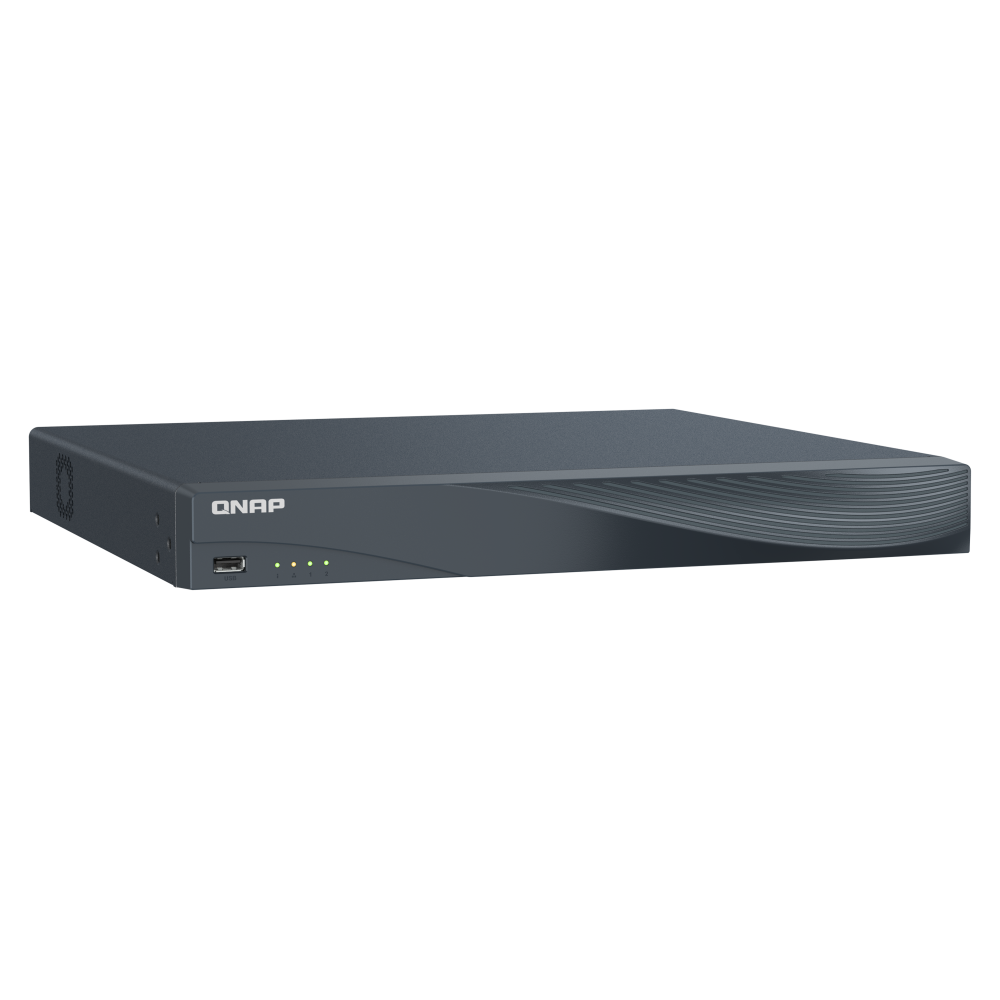

The cost-efficient and high-performing TVR-AI200 NVR features two fixed 2.5-inch/3.5-inch SATA hard drive bays and sixteen PoE+ ports. It is plug-and-play in offline mode, and within 10 minutes, you can complete setup and start recording. The TVR-AI200 supports real-time video display and playback with resolutions up to 16 megapixels (MP), H.265+ compression technology, AI video analytics, and remote backup. With the TVR-AI200, smart retail and small-to-medium businesses can deploy smart video surveillance solutions on a budget, ensuring around-the-clock environmental safety.
-
4K high-resolution video
The monitoring interface allows you to playback up to 16MP footage and output clear footage through the 4K HDMI™ port. It supports advanced compression technologies like H.265+ provided by the cameras, effectively reducing network bandwidth and halving storage space requirements.
-
Supports ONVIF® S/T/G standards
Compatible with over 200 brands and more than 8,000 cameras, and supports third-party camera events and API platform services, providing high hardware and software compatibility.
-
Easy installation, quick deployment
Its 16 PoE+ ports directly powers IP cameras, transmitting both power and data through a single Ethernet cable, eliminating the need for complex cabling.
-
24/7 recording
Supports hard drives with capacities up to 24TB for storing recordings for over 540 days. Combined with QNAP's active backup solution, TVR-AI200 ensures uninterrupted multi-site video surveillance.
-
Remote monitoring, powerful management
Advanced real-time detection, notifications, and prompt response to suspicious events, with flexible monitoring through computers or mobile devices to keep you in control.
-
Lightweight AI Business Analytics
Built-in NPU acceleration for smart image/video recognition, offering advanced AI capabilities such as facial recognition and people counting, even without AI-enabled cameras.
Specification
| OS | TVR OS (QNE) |
| CPU | ARM Quad-core Cortex-A55 up to 2.0GHz |
| CPU Architecture | 64-bit ARM |
| Graphic Processors | Mali-G52 |
| Hardware-accelerated Transcoding |
|
| System Memory | 4GB |
| Maximum Memory | 4GB |
| Flash Memory | 4GB (Dual boot OS protection) |
| Max Live Cameras (Local Display) | 16Mpx |
| Max Playback Cameras (Local Display) | 4 |
| Max Concurrent Connection (Client) | 1 from HDMI™ 4 from other clients via network |
| Embedded Channel | 16 |
| Max Channel | 16
H264 / 1920x1080 / 30FPS
|
| Max Throughput | 160 Mbps |
| Drive Bay | 2x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Gigabit Ethernet Port (RJ45) | 1 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE Power Output | Ports 1-16 (Max 25.5W per port) |
| Total PoE Power Budget | 130W |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 1 |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | 1U Rackmount compatible |
| LED Indicators | HDD 1-2, Status, LAN |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 360 × 333 mm |
| Weight (Net) | 2.16 kg |
| Weight (Gross) | 3.6 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 190W, 100 - 240V |
| Power Consumption: HDD Sleep Mode | 20.7 W |
| Power Consumption: Operating Mode, Typical | 23.9 W |
| Fan | 1 x 40mm, 12VDC |
| Sound Level | 45 db(A) |
| System Warning | Buzzer |
| File System: Internal Hard Drive | EXT4 |
| RAID Recovery |
|
| RAID 1 |
|
| Single Disk |
|
| Wake on LAN (WOL) |
|
| Syslog Server & Client |
|
| Language | English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek |
