7-bay 2U rack-mount UniFi NAS
Ubiquiti UNAS-Pro 7-Bay Rack-Mount UniFi NAS
The Ubiquiti UNAS-Pro is a 2U rack-mount NAS with seven 2.5/3.5-inch HDD/SSD bays, a quad-core ARM Cortex-A57 processor, 8GB memory, 10G SFP+ and 1GbE networking, redundant-power input and UniFi Drive management.
- Processor
- Quad-core ARM Cortex-A57 at 1.7GHz
- Memory
- 8GB
- Storage
- 7 × 2.5/3.5-inch HDD/SSD
- Networking
- 10G SFP+ + 1GbE RJ-45
Large-scale UniFi file storage in a seven-bay rack platform
The Ubiquiti UNAS-Pro brings centralised file storage, personal and shared drives, encryption, snapshots, share links and backup into a steel 2U chassis. UniFi Drive supports NFS and SMB, multiple RAID groups, hot spare operation, remote and cloud backup targets, and Time Machine backup.

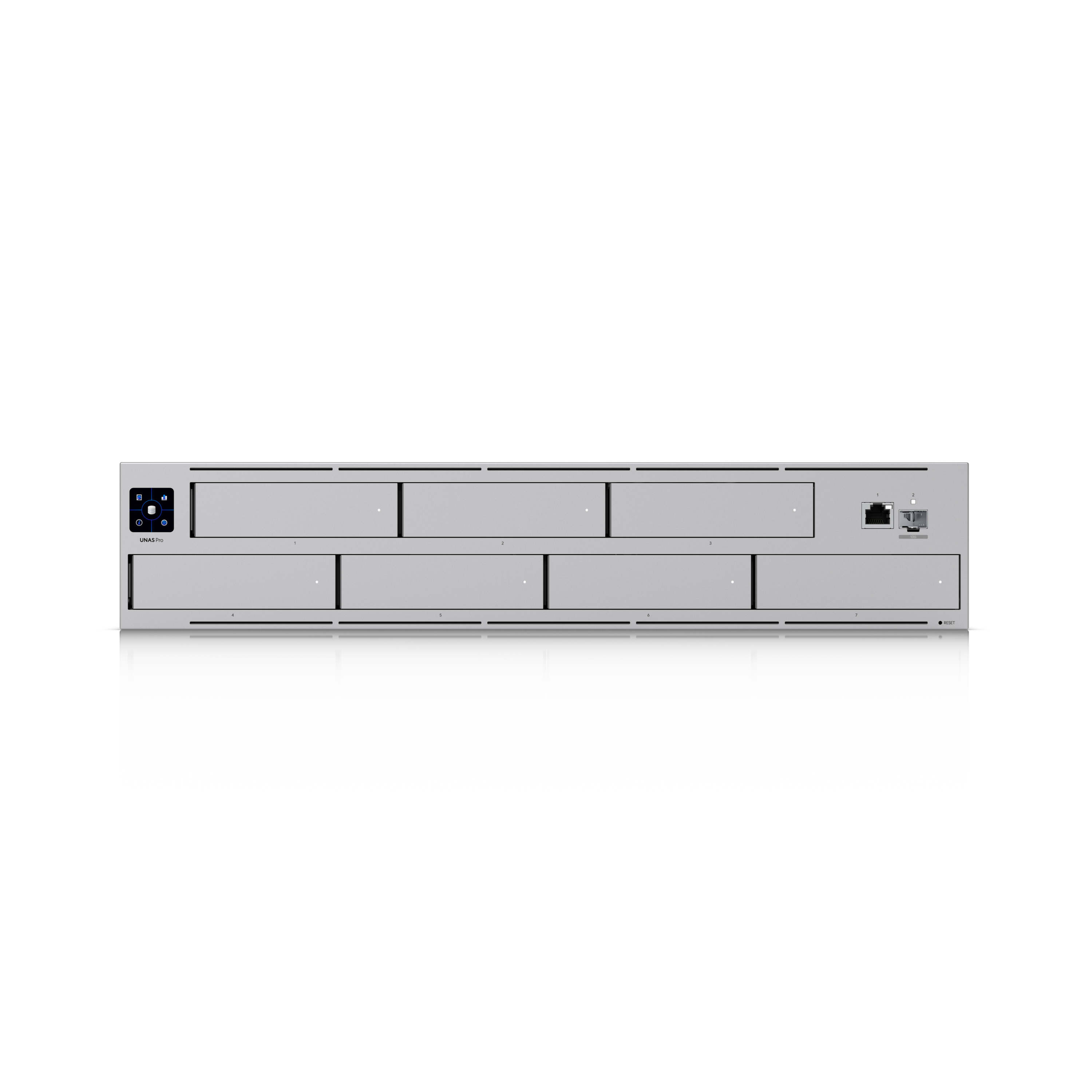

Seven hot-swap drive bays
Seven 2.5-inch or 3.5-inch HDD/SSD bays provide the storage foundation for the rack system.
10G SFP+ networking
A 10G/1G SFP+ port supports high-throughput links, with a separate 1GbE RJ-45 port.
RAID and hot spare
RAID 5, RAID 6 and RAID 10, multiple RAID groups and hot spare support are listed in UniFi Drive.
Protected file services
Personal and shared drives, file encryption, snapshots and share links are current supported features.
Flexible backup targets
Back up to another UNAS, a CIFS/SMB server or supported cloud services, and use Time Machine.
Power redundancy input
The internal AC supply is complemented by a USP-RPS DC input for supported power-redundancy deployment.
Who is the Ubiquiti UNAS-Pro UniFi NAS best for?
A strong choice for
- UniFi-managed business file storage
- Seven-drive rack deployments
- 10G-connected workgroups
- Encrypted shared drives and snapshots
- On-site and cloud backup workflows
Consider another model if you need
- You need more than seven drive bays
- Your rack depth is outside the specified 650–1,000 mm post range
- You require an RJ-45 10GbE connection rather than SFP+
- Your selected drives are not on Ubiquiti's qualified list
Key specifications
- Model
- UNAS-Pro
- Form factor
- 2U rack mount
- Processor
- Quad-core ARM Cortex-A57 at 1.7GHz
- Memory
- 8GB
- Drive bays
- 7 × 2.5/3.5-inch HDD/SSD
- RAID
- RAID 5, 6 and 10
- Networking
- 1 × 10G/1G SFP+; 1 × 1GbE RJ-45
- Dimensions
- 442.4 × 325 × 87.4 mm
- Weight
- 9.2 kg without brackets; 9.5 kg with brackets
- Maximum power
- 160W
- Drive power budget
- 135W
- Application
- UniFi Drive 1.16.0 or later
Full technical specifications
Processor, storage and network
| Model | UNAS-Pro |
|---|---|
| Processor | Quad-core ARM Cortex-A57 at 1.7GHz |
| System memory | 8GB |
| Drive support | 7 × 2.5/3.5-inch HDD or SSD |
| Networking | 1 × 10G/1G SFP+; 1 × 1GbE RJ-45 (1G/100M/10M) |
| Management | Ethernet |
| RF interface | Bluetooth 4.1 |
| Display | 1.3-inch touchscreen |
UniFi Drive features
| Application requirement | UniFi Drive 1.16.0 or later |
|---|---|
| File protocols | NFS and SMB |
| RAID types | RAID 5, RAID 6 and RAID 10 |
| RAID groups | Multiple |
| Hot spare | Supported |
| Personal and shared drives | Supported |
| File encryption | Supported |
| Snapshots | Supported |
| Share links | Supported |
| Time Machine backup | Supported |
| Backup targets | Remote UNAS, CIFS/SMB server, Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2 and Wasabi |
Physical, rack and power
| Dimensions | 442.4 × 325 × 87.4 mm |
|---|---|
| Weight without brackets | 9.2 kg |
| Weight with brackets | 9.5 kg |
| Enclosure and mount material | SGCC steel |
| Supported rack | 482.6 mm four-post rack; 650–1,000 mm post depth |
| Power method | 100–240V AC input plus USP-RPS 11.5V DC input |
| Power supply | Internal 200W AC/DC |
| Maximum power consumption | 160W |
| Maximum drive power budget | 135W |
| Operating temperature | -5°C to 40°C |
| Operating humidity | 5% to 95% non-condensing |
| Certifications | FCC, CE, IC and Anatel 01886-25-08356 |
| NDAA compliant | Yes |
Frequently asked questions about the Ubiquiti UNAS-Pro UniFi NAS
What is the Ubiquiti UNAS-Pro?
It is a seven-bay, 2U rack-mount UniFi NAS for large-scale file storage and sharing.
Which processor and memory are in the UNAS-Pro?
It has a quad-core ARM Cortex-A57 processor at 1.7GHz and 8GB memory.
Which drives does the UNAS-Pro support?
It supports seven qualified 2.5-inch or 3.5-inch HDDs or SSDs.
Which network ports are on the UNAS-Pro?
It has one 10G/1G SFP+ port and one multi-rate 1GbE RJ-45 port.
Which RAID types does the UNAS-Pro support?
UniFi Drive lists RAID 5, RAID 6 and RAID 10 with multiple RAID groups.
Does the UNAS-Pro support a hot spare?
Yes. Hot spare support is listed in the current UniFi Drive specifications.
Can the UNAS-Pro back up to cloud services?
Yes. Current targets include Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2 and Wasabi.
Does the UNAS-Pro support Time Machine?
Yes. Time Machine backup is a listed UniFi Drive feature.
What rack depth is required for the UNAS-Pro?
Ubiquiti specifies a 482.6 mm four-post rack with post depths from 650 to 1,000 mm.
What are the UNAS-Pro dimensions?
It measures 442.4 × 325 × 87.4 mm and occupies 2U of rack space.
- Storage drives are not identified as included; select qualified drives separately.
- Confirm the exact rack, SFP+ module, drives and USP-RPS equipment against current Ubiquiti requirements.
- Usable capacity depends on installed drives, RAID and file-system overhead.
- UniFi Drive minimum versions and supported services may change over time.
