2U ARM Rackmount NAS

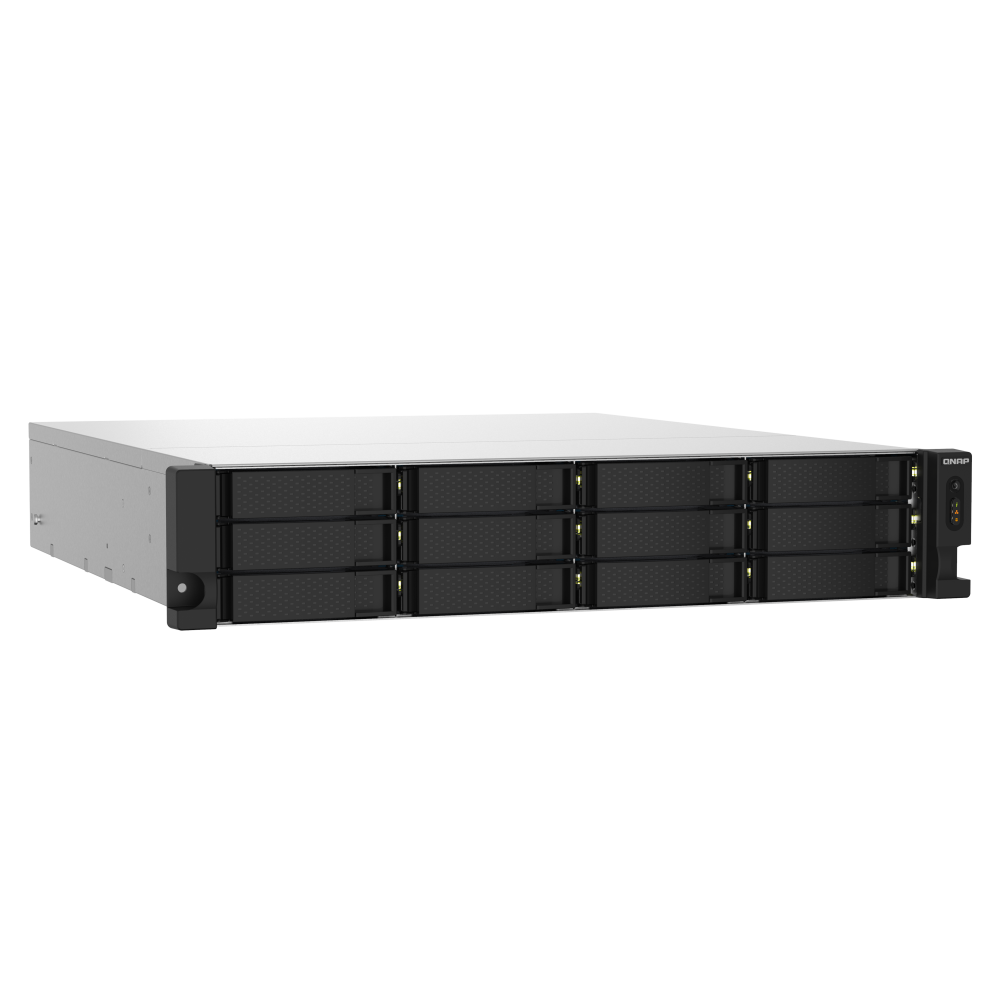

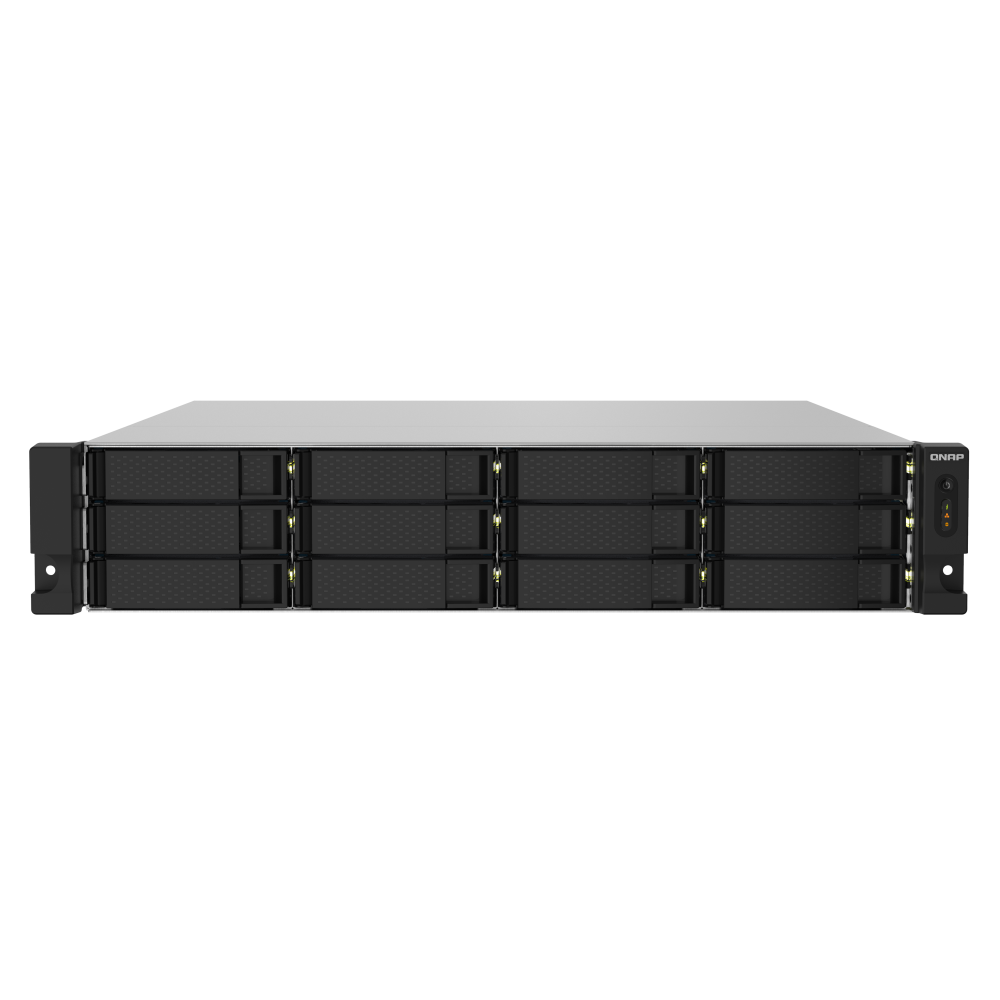

QNAP TS-1232PXU-RP-4G Rackmount NAS
A 2U rackmount NAS with an AnnapurnaLabs Alpine AL324 quad-core processor, 4 GB DDR4 memory, dual 10GbE SFP+, dual 2.5GbE, PCIe expansion and redundant power supplies.
High-bandwidth ARM storage for backup and hybrid cloud workflows
The QNAP TS-1232PXU-RP-4G combines dual 10GbE SFP+ and dual 2.5GbE connectivity with an ARM Cortex-A57 processor, PCIe expansion and redundant power. Hybrid Backup Sync, Boxafe, snapshots, cloud storage gateways and support for compatible QNAP expansion enclosures position it for team file access, backup, recovery and hybrid-cloud storage services.
Key features and benefits
Dual 10GbE SFP+
Two 10GbE SFP+ ports support high-bandwidth file sharing and backup traffic.
Dual 2.5GbE RJ45
Two multi-gigabit copper ports provide flexible connectivity for compatible networks.
Backup and synchronisation
Hybrid Backup Sync supports backup and synchronisation with other NAS, servers and cloud storage.
Google Workspace and Microsoft 365 backup
Boxafe is stated to back up emails, cloud drives, contacts and calendars for supported business accounts.
Snapshots and hybrid cloud
Snapshots and cloud storage gateways support recovery planning and low-latency access to cloud data.
PCIe and enclosure expansion
A PCIe Gen 2 x2 slot and stated QNAP TR or TL enclosure support provide expansion options.
Who is this model best for?
A strong choice for
- Rackmount team storage
- 10GbE SFP+ file access
- Backup and disaster-recovery planning
- Google Workspace and Microsoft 365 backup through Boxafe
- Hybrid-cloud storage workflows
Consider another model if you need
- You require an x86 processor platform
- You need more than 4 GB memory installed initially
- You require more than one PCIe expansion slot
Key specifications
- Processor
- AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57, 4-core 1.7 GHz
- System memory
- 4 GB UDIMM DDR4 (1 × 4 GB)
- Maximum memory
- 16 GB (1 × 16 GB)
- Drive compatibility
- 3.5-inch SATA HDD; 2.5-inch SATA HDD; 2.5-inch SATA SSD
- Networking
- 2 × 10GbE SFP+; 2 × 2.5GbE RJ45
- Expansion
- 1 × PCIe Gen 2 x2 slot
- USB
- 4 × USB 3.2 Gen 1
- Form factor
- 2U rackmount
- Dimensions
- 88.6 × 432 × 511 mm
- Power supply
- 250W × 2, 100–240V
Full technical specifications
Processor, memory and storage
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
|---|---|
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Supported |
| Encryption Engine | Supported |
| System Memory | 4 GB UDIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
Network, ports and expansion
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) | Supported Only the 2.5GbE port |
| Jumbo Frame | Supported |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. Card dimensions for PCIe slot:220 x 68.9x 18.76 mm / 8.67 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
Physical, environmental and power
| Form Factor | 2U Rackmount |
|---|---|
| LED Indicators | HDD 1-12, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 511 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 12.94 kg |
| Weight (Gross) | 14.94 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 250W (x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 83.57 W Tested with drives fully populated. |
| Fan | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
Frequently asked questions about the TS-1232PXU-RP-4G
What is the QNAP TS-1232PXU-RP-4G?
It is a 2U ARM rackmount NAS with dual 10GbE SFP+, dual 2.5GbE, PCIe expansion and redundant power.
Which processor does the TS-1232PXU-RP-4G use?
The TS-1232PXU-RP-4G uses an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 four-core 1.7 GHz processor.
How much memory is included with the TS-1232PXU-RP-4G?
The TS-1232PXU-RP-4G includes 4 GB UDIMM DDR4 memory and supports a stated maximum of 16 GB.
Which data-protection tools are included with the TS-1232PXU-RP-4G?
It includes Hybrid Backup Sync, Boxafe and snapshot protection.
Which drive types are supported by the TS-1232PXU-RP-4G?
It supports 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Which network ports are built into the TS-1232PXU-RP-4G?
It includes two 10GbE SFP+ ports and two 2.5GbE RJ45 ports.
What expansion options does the TS-1232PXU-RP-4G provide?
It provides one PCIe Gen 2 x2 slot and supports the stated QNAP TR RAID expansion enclosures or TL JBOD units.
What form factor is the TS-1232PXU-RP-4G?
It is a 2U rackmount NAS with redundant 250W power supplies.
What are the dimensions of the TS-1232PXU-RP-4G?
Its stated dimensions are 88.6 × 432 × 511 mm, excluding the ear hooks and protruding power-supply section.
Does the TS-1232PXU-RP-4G support cloud storage gateways?
Yes. It supports cloud storage gateways.
Important information
The PCIe Gen 2 x2 bandwidth limitation is stated to restrict 10GbE performance.
Wake on LAN is stated as supported only through the 2.5GbE port.
M.2 storage requires a compatible PCIe adapter.
The stated 83.57 W operating figure was tested with drives fully populated.
