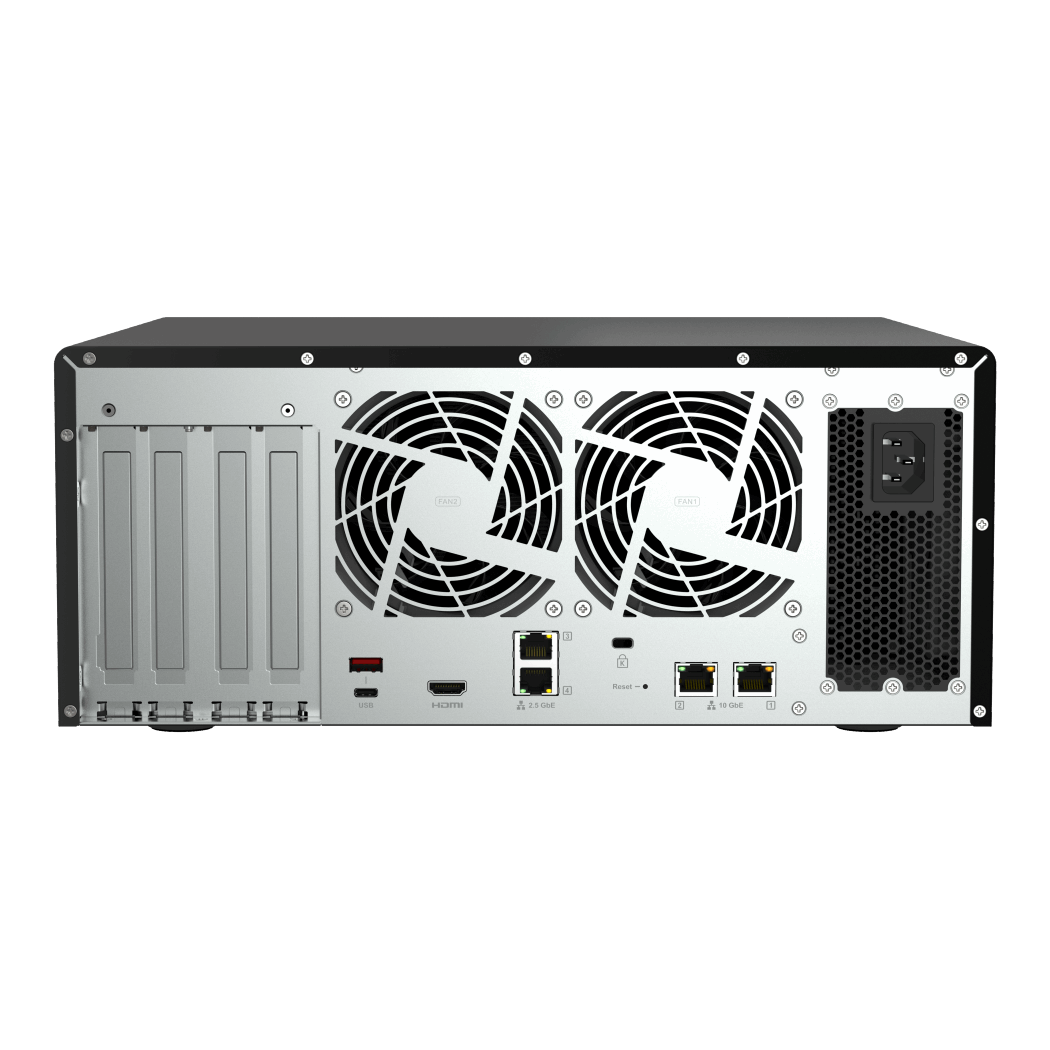

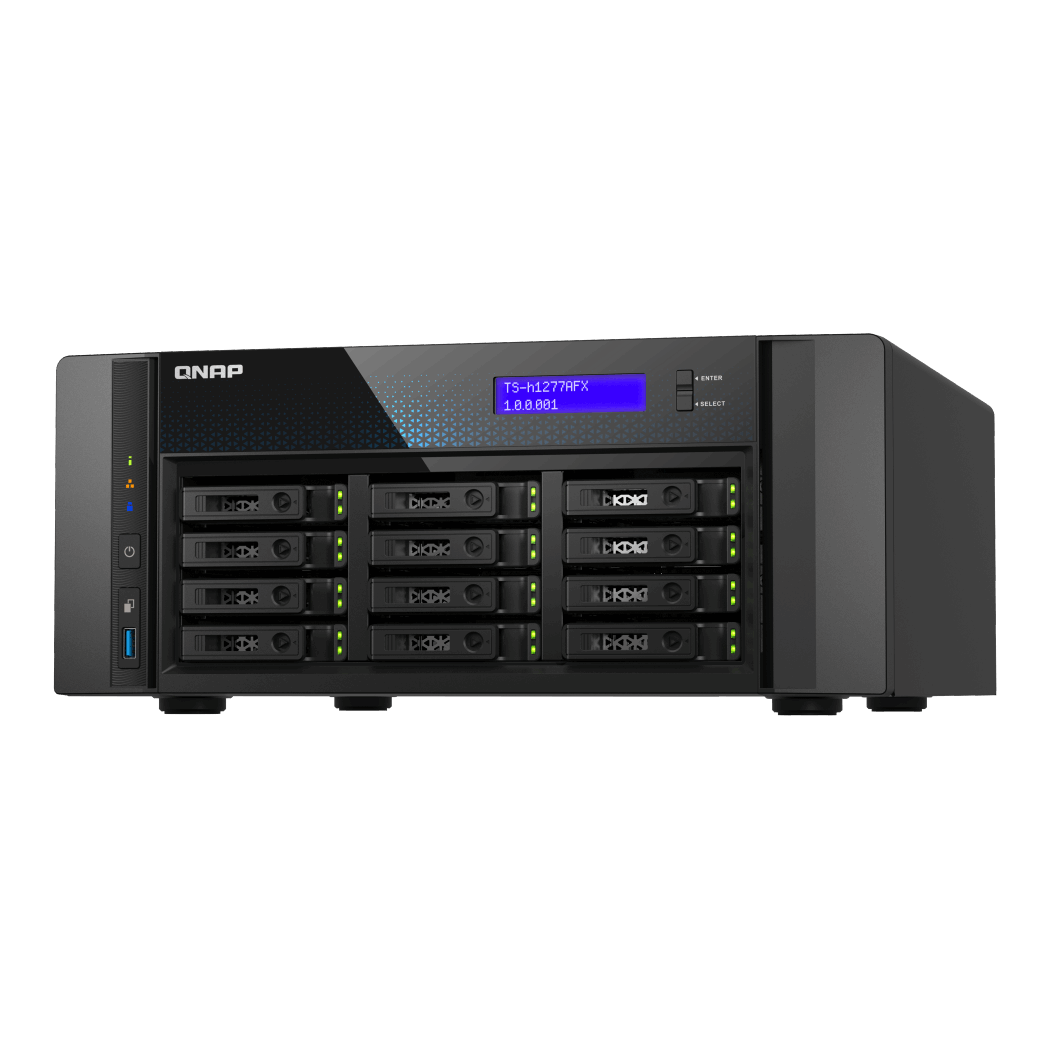

Powered by AMD Ryzen™ 7 9000 Series processors, the 12-bay SATA all-flash NAS TS-h1277AFX redefines performance and expandability, delivering an ideal storage solution tailored for multimedia creators. Coupled with the ZFS-based QuTS hero operating system, it ensures unmatched data integrity, system reliability, and advanced SSD optimization. The TS-h1277AFX supports 2.5/10/25GbE high-speed connectivity, making it an ideal companion for low-latency 4K/8K video editing, visual effects (VFX) workflows, team collaboration, and large file transfers – empowering creators to focus entirely on their craft without worrying technical barriers.
-
DDR5 Memory
Featuring advanced DDR5 ECC memory with up to 192 GB support, delivering exceptional stability for demanding workloads.
-
Optimized SSD Performance
Boosts efficiency and durability with real-time deduplication and SSD failure prevention.
-
Data Immutability
WORM (Write Once, Read Many) technology ensures data integrity and protection against tampering.
-
3 x PCIe Gen 4 Expansion
Upgrade to 25GbE, add M.2 SSDs, or connect JBOD units to scale performance and storage capacity.
-
Dual 2.5GbE & Dual 10GBASE-T Multi-Gig
Multiple network ports for seamless connectivity, with expansion via network switches for more devices and workstations.
-
Built-in GPU for graphics
Power-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and simultaneously runs multiple tasks.
Specifications:
| CPU | AMD Ryzen™ 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon iGPU |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding |  |
| System Memory | 32 GB UDIMM DDR5 ECC (1 x 32 GB) |
| Maximum Memory | 192 GB (4 x 48GB) |
| Memory Slot | 4 x DDR5 UDIMM |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 12 x 2.5" SATA 6Gb/s
The system is shipped without SSD.
For the SSD compatibility list, please visit |
| Drive Compatibility | 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | Optional via PCIe adapters
Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to for compatibility.
|
| SSD Cache Acceleration Support | |
| GPU pass-through |
|
| SR-IOV |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame |
|
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 8 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
Card dimensions for PCIe slot 1 ~ Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3：280 x 111.15 x 18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x USB 3.2 (1x Type-C with DPI included , 1x Type-A) (10Gb/s) |
| HDMI™ Output | 1 x HDMI™ 1.4b ( up to 3840 x 2160 @ 30Hz ) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, SSD1-12 |
| LCD Display/ Button |
|
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 157.2 × 368 × 362 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 8 kg |
| Weight (Gross) | 8.9 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 500W, 100-240V |
| Power Consumption: Disk Standby Mode | 69.01 |
| Power Consumption: Operating Mode, Typical | 102.54 W
Tested with drives fully populated.
|
| Fan | 2 x 92mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot |
|
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
