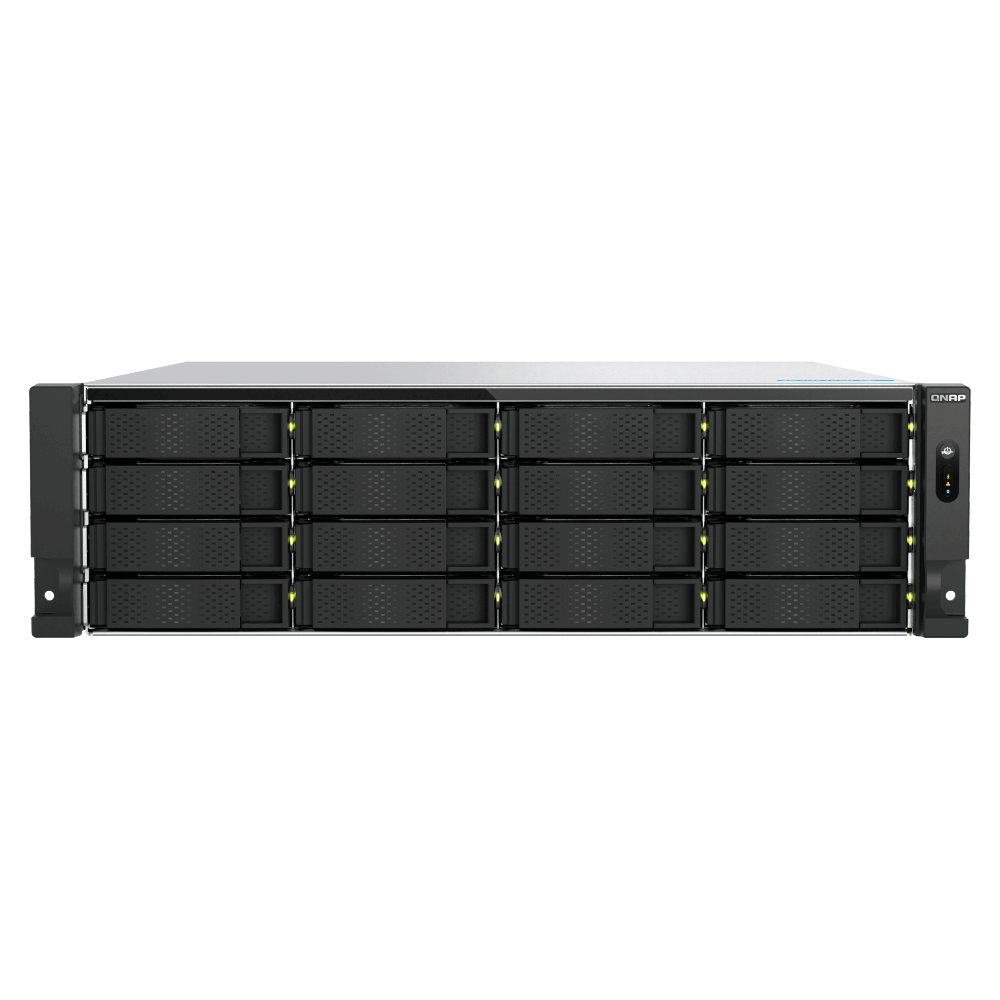

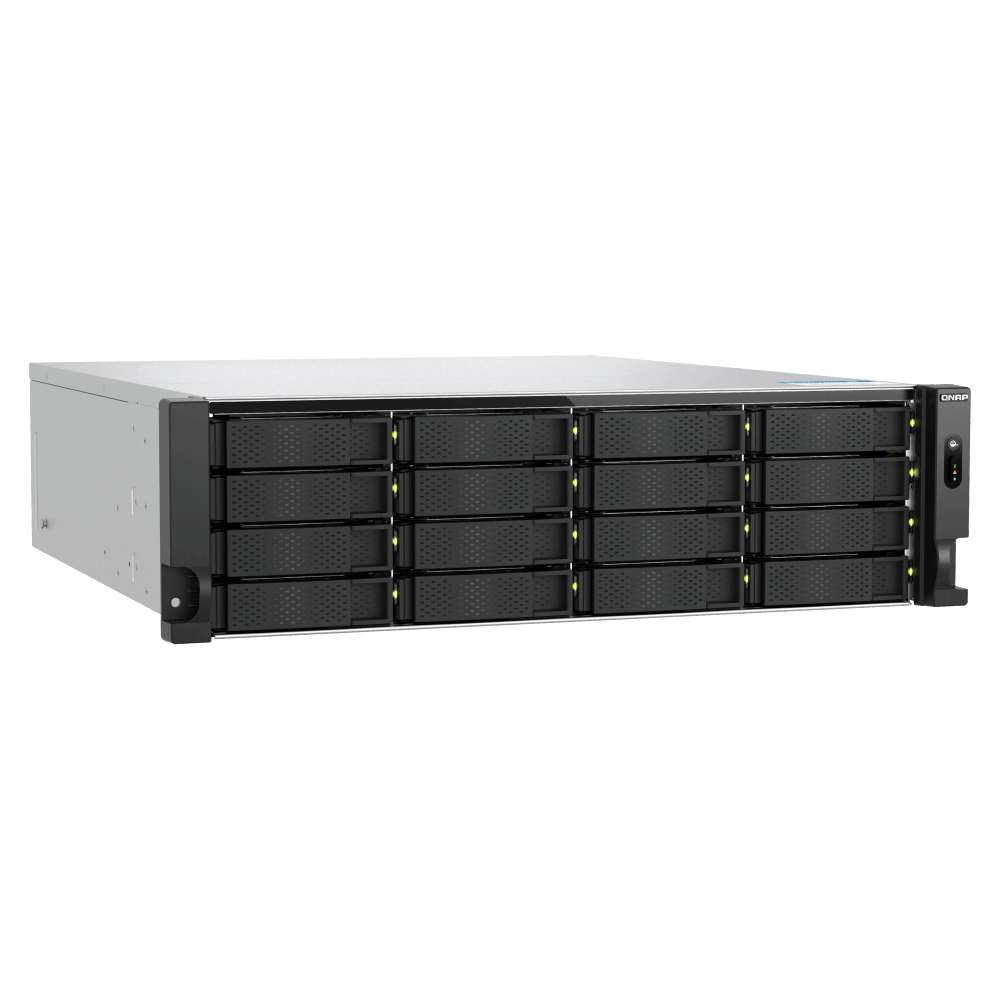

16-bay Ryzen 7 rackmount NAS
QNAP TS-h1677AXU-RP-R7-32G
A 16-bay 3U rackmount NAS supplied with an AMD Ryzen 7 7000 series 8-core processor, 32GB DDR5, two M.2 PCIe Gen 5 slots, dual 10GBASE-T, dual 2.5GbE and three PCIe Gen 4 slots.
DDR5 rackmount storage with M.2 Gen 5 and multi-gigabit networking
The QNAP TS-h1677AXU-RP-R7-32G combines sixteen SATA bays with two M.2 PCIe Gen 5 slots, an eight-core AMD Ryzen 7 7000 series processor and 32GB DDR5. Built-in 10GBASE-T and 2.5GbE ports, three PCIe Gen 4 slots and redundant power support the supplied positioning for Tier 2 storage, virtualisation, video editing and large-scale expansion.
Key features and benefits
Ryzen 7 and DDR5 platform
The eight-core Ryzen 7 7000 series processor is paired with 32GB DDR5 and a listed maximum of 192GB.
Sixteen-bay SATA storage
Sixteen 3.5-inch bays support the listed SATA HDD and SSD configurations.
Dual M.2 PCIe Gen 5 slots
Two M.2 2280 PCIe Gen 5 x2 slots support the listed NVMe SSD generations for caching.
Built-in 10GbE and 2.5GbE
Two 10GBASE-T and two 2.5GbE ports are supplied.
Three PCIe Gen 4 slots
The source lists three slots for compatible 25GbE, SAS expansion and Fibre Channel cards.
Long-term supply statement
The supplied description states availability and support up to 2030; current status should be confirmed when purchasing.
Who is the QNAP TS-h1677AXU-RP-R7-32G best for?
A strong choice for
- Tier 2 storage as positioned in the source
- Virtualisation and large-file workflows
- Video-editing storage
- Sixteen-bay rackmount deployments
- Buyers planning M.2 caching or PCIe expansion
Consider another model if you need
- Support beyond the supplied availability statement of up to 2030
- A tower rather than 3U rackmount enclosure
- More than 192GB maximum memory
- An all-flash drive-bay platform
- A smaller-capacity deployment
Key specifications
- Processor
- AMD Ryzen 7 7000 series, 8-core/16-thread, burst up to 5.3GHz; AMD Radeon Graphics
- Memory
- 32GB UDIMM DDR5 (1 × 32GB); maximum 192GB (4 × 48GB); optional ECC memory supported
- Drive bays
- 16 × 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive compatibility
- 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
- M.2 slots
- 2 × M.2 2280 PCIe Gen 5 x2; compatible with NVMe SSD PCIe Gen 3 and above
- Networking
- 2 × 10GBASE-T; 2 × 2.5GbE
- PCIe
- 3 × PCIe Gen 4, with supplied lane-sharing conditions for slot 2
- USB
- 2 × Type-A USB 3.2 Gen 2, 10Gbps
- Form factor
- 3U rackmount
- Dimensions
- 131.3 × 482.2 × 550.8 mm, excluding ear hook and protruding PSU section
- Net weight
- 15.64 kg
- Power supply
- 2 × 550W, 100–240V
- Standard warranty
- 5 (unit not stated in supplied source)
Full technical specifications
View all supplied technical specifications
| CPU | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 3U Rackmount |
| LED Indicators | Power Status, HDD 1-16, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 131.3 × 482.2 × 550.8 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 15.64 kg |
| Weight (Gross) | 22.08 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: HDD Sleep Mode | 99.99 W |
| Power Consumption: Operating Mode, Typical | 349.96 W Tested with drives fully populated. |
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
Frequently asked questions about the QNAP TS-h1677AXU-RP-R7-32G
What is the QNAP TS-h1677AXU-RP-R7-32G?
It is a 16-bay 3U rackmount NAS with an eight-core Ryzen 7 7000 series processor, 32GB DDR5, two M.2 slots and built-in 10GbE and 2.5GbE.
How much memory is installed?
The table lists 32GB DDR5 as one 32GB module and a maximum of 192GB.
What M.2 slots are included?
Two M.2 2280 PCIe Gen 5 x2 slots are listed, with compatibility for NVMe SSD PCIe Gen 3 and above.
What networking is built in?
Two 10GBASE-T ports and two 2.5GbE ports are supplied.
Does the source list hardware-accelerated transcoding?
Yes. The technical table marks hardware-accelerated transcoding as supported.
What long-term availability is supplied?
The source states availability and support up to 2030. Confirm current status before purchase.
What is the warranty period?
The source gives the value 5 without a unit, so the duration cannot be confirmed.
