22-bay Xeon hybrid rackmount NAS
QNAP TS-h2287XU-RP-E2336-32G

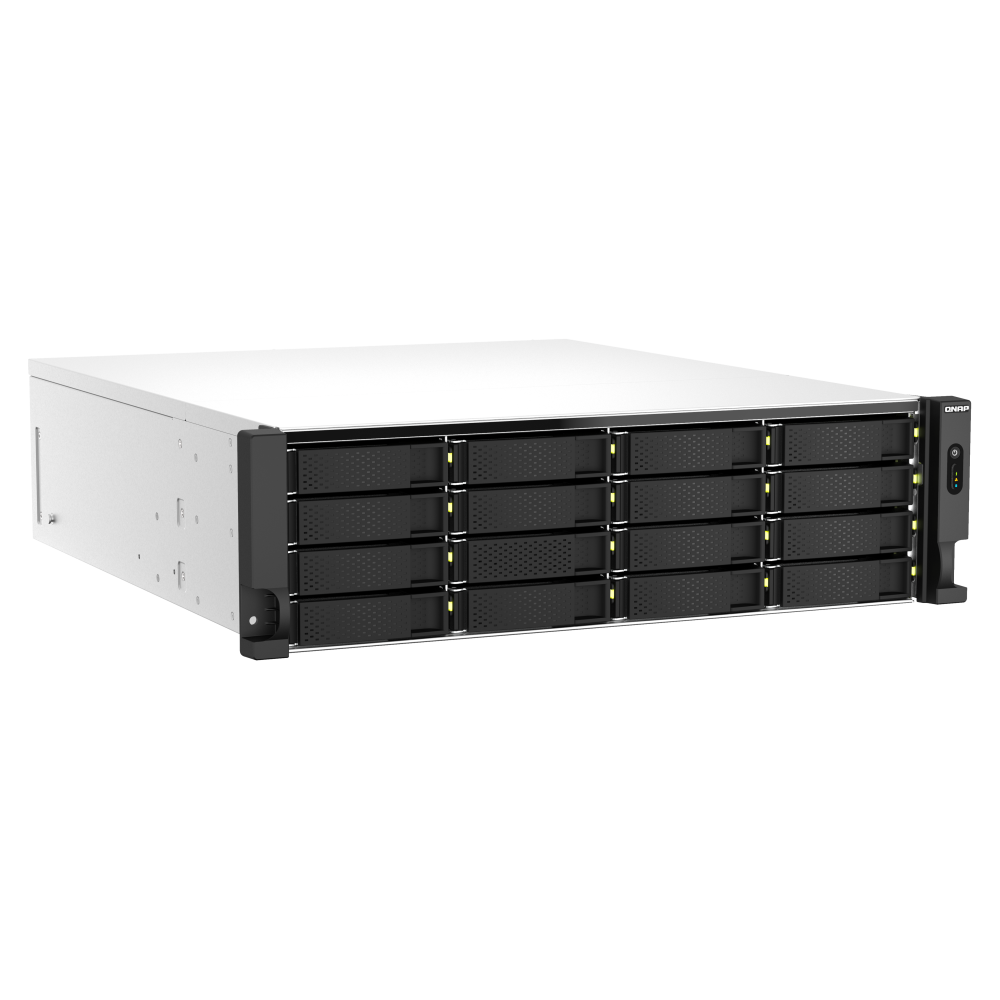

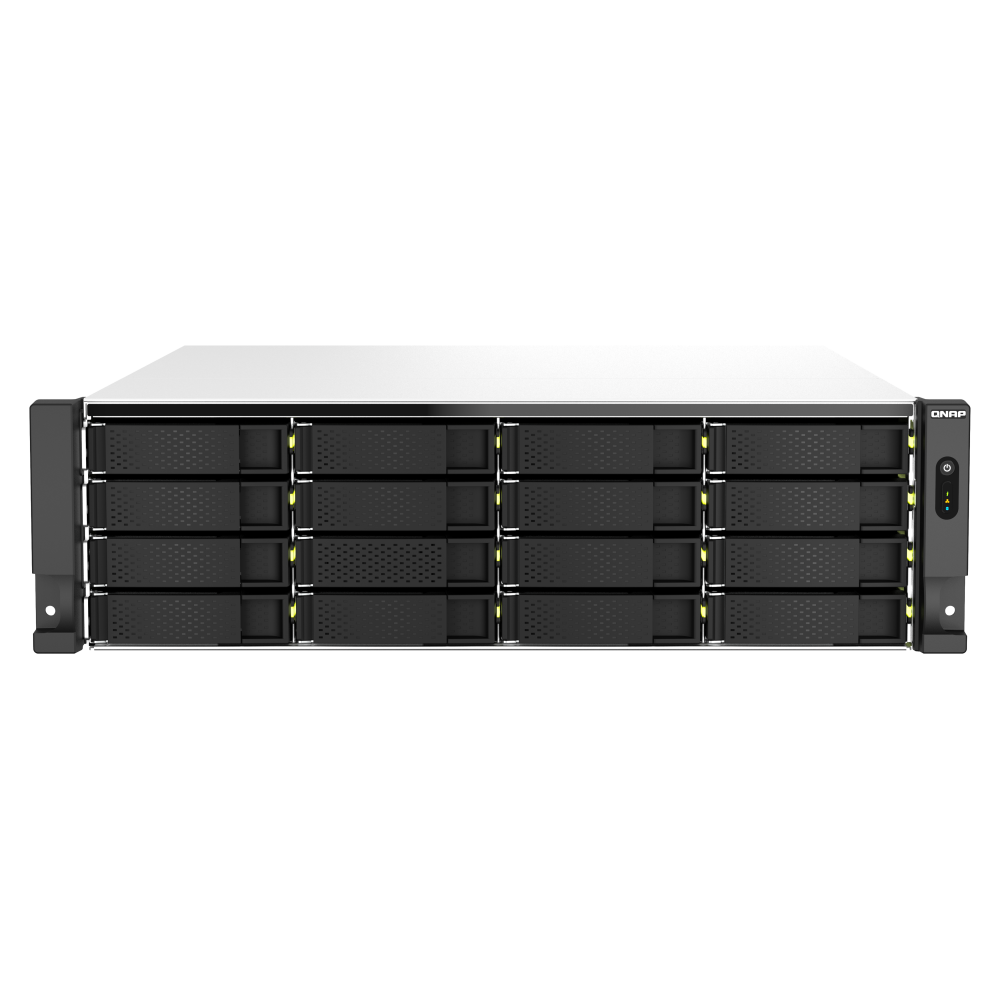

A 3U rackmount NAS supplied with an Intel Xeon E-2336 6-core processor, 32GB memory, sixteen 3.5-inch SATA bays, six 2.5-inch SATA bays, dual 10GBASE-T and dual 2.5GbE. The title and specification table conflict on the memory wording.
Hybrid rackmount storage with dual 10GbE and 2.5GbE
The QNAP TS-h2287XU-RP-E2336-32G combines a six-core Xeon processor with twenty-two SATA bays and built-in 10GbE and 2.5GbE networking. The product title describes the installed memory as “32GB DDR4C”, while the technical table says “32GB ECC DDR4”; this source conflict must be confirmed before publishing.
Key features and benefits
Twenty-two-bay hybrid layout
Sixteen 3.5-inch bays and six 2.5-inch bays combine the supplied HDD and SSD storage options.
Xeon platform
The six-core Xeon E-2336 is paired with 32GB installed memory and a listed maximum of 128GB.
Memory wording needs confirmation
The title says DDR4C while the technical table says ECC DDR4; neither wording has been silently selected.
Built-in 10GbE and 2.5GbE
Two 10GBASE-T ports and two 2.5GbE ports are supplied.
PCIe Gen 4 expansion
Three PCIe Gen 4 slots support the supplied optional networking, QM2 and Fibre Channel adapter categories.
QuTS hero data services
The source includes inline deduplication, snapshots, real-time SnapSync and QSAL.
Who is the QNAP TS-h2287XU-RP-E2336-32G best for?
A strong choice for
- Business file-server storage
- Virtualisation servers and VDI
- Hybrid HDD and SSD configurations
- Large backup and restoration tasks
- Buyers needing built-in 10GbE and 2.5GbE
Consider another model if you need
- Publishing memory type before resolving the DDR4C versus ECC DDR4 conflict
- M.2 slots built in rather than optional via QM2
- More than 128GB maximum memory
- A tower enclosure
- A system supplied with drives where none are stated
Key specifications
- Processor
- Intel Xeon E-2336, 6-core/12-thread, 2.9GHz up to 4.8GHz
- Memory
- Conflict: title says 32GB DDR4C; technical table says 32GB ECC DDR4 (1 × 32GB); listed maximum 128GB (4 × 32GB)
- Drive bays
- 22 total: 16 × 3.5-inch SATA + 6 × 2.5-inch SATA
- Drive compatibility
- 3.5-inch SATA HDDs and 2.5-inch SATA SSDs in 3.5-inch bays; 2.5-inch SATA SSDs in 2.5-inch bays
- Networking
- 2 × 10GBASE-T; 2 × 2.5GbE; 25GbE optional via PCIe adapter
- M.2 slots
- Optional via a QM2 PCIe adapter
- PCIe
- 3 slots: 2 × Gen 4 x4 + 1 × Gen 4 x8
- USB
- 4 × Type-A USB 3.2 Gen 2, 10Gbps
- Form factor
- 3U rackmount
- Dimensions
- 131.3 × 432 × 511.5 mm
- Net weight
- 17.47 kg
- Power supply
- 2 × 550W PSU
- Standard warranty
- 5 (unit not stated in supplied source)
Full technical specifications
View all supplied technical specifications
| CPU | Intel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | Supported |
| Encryption Engine | Supported (AES-NI) |
| System Memory | 32 GB ECC DDR4 (1 x 32 GB) |
| Maximum Memory | 128GB (4 x 32 GB) |
| Memory Slot | 4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 22 (16 x 3.5-inch SATA + 6 x 2.5-inch SATA) |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | Supported |
| M.2 Slot | Optional via a QM2 PCIe adapter |
| SSD Cache Acceleration Support | Supported |
| GPU pass-through | Supported |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | Supported |
| PCIe Slot | 3 (2 x Gen4 x4 +1 x Gen 4 x8) Card dimensions for PCIe slot 1:200 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches. Card dimensions for PCIe slot 2:250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3:250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| HDMI™ Output | Optional via a PCIe adapter |
| Form Factor | 3U Rackmount |
| LED Indicators | Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red) |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 131.3 × 432 × 511.5 mm |
| Weight (Net) | 17.47 kg |
| Weight (Gross) | 21.84 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 2 x 550W PSU |
| Power Consumption: HDD Sleep Mode | 165.39 W |
| Power Consumption: Operating Mode, Typical | 228 W |
| Fan | 3 x 60mm + 1 x 80mm, 12VDC |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 11000 |
Frequently asked questions about the QNAP TS-h2287XU-RP-E2336-32G
What is the QNAP TS-h2287XU-RP-E2336-32G?
It is a 22-bay 3U rackmount NAS with a six-core Xeon E-2336 processor, 32GB installed memory, dual 10GBASE-T and dual 2.5GbE.
What memory does it include?
The source conflicts: the title says 32GB DDR4C, while the technical table says 32GB ECC DDR4 as one 32GB module. Confirm the correct wording before publishing.
How are its drive bays arranged?
The source lists sixteen 3.5-inch SATA bays and six 2.5-inch SATA bays.
What networking is built in?
Two 10GBASE-T ports and two 2.5GbE ports are listed.
Are M.2 slots built in?
No built-in M.2 slot is listed; the source says M.2 support is optional via a QM2 PCIe adapter.
What form factor is it?
The supplied table lists a 3U rackmount chassis.
What is the warranty period?
The source gives the value 5 without a unit, so the duration cannot be confirmed.
